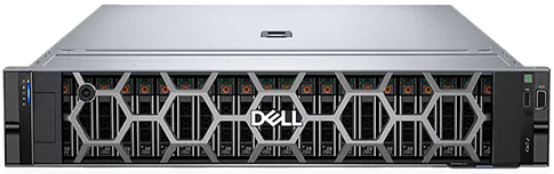

Dell PowerEdge R760xs Server

Chassis:

• 8 Bay SFF
• 8 Bay SFF NVMe
• 8 Bay LFF
• 12 Bay LFF
• 24 Bay SFF (16x 2.5" SAS/SATA + 8x 2.5" NVMe)
• 16 Bay SFF

Rear Bays:

• Up to 2x 2.5" SAS/SATA/NVMe

Processor types:

• Up to two, 4th generation Intel Xeon Scalable,
  housing up to 56 cores and 112 Threads

Memory RAM types:

• ECC Registered Memory, up to Max 16 DIMMs DDR5
• RAM Capacity: 16GB, 32GB, 64GB
• Max Configuration: 1TB (16x64GB)
• Memory Speeds: 4000MT/s to 4800MT/s

Storage Options 2.5" Drives

• SAS SSDs: 7.62TB @ 12GB/s
• SAS SSDs: 7.68TB @ 24GB/s
• SATA SSD: 2TB @ 6GB/s
• NVMe SSD: 7.68TB @32GB/s
• SAS HDD: 2.4TB @ 10K

Storage Options 3.5" Drives

• SAS HDD: 2.4TB @ 12GB/s 10k
• SAS HDD: 20TB @ 12GB/s 7.2k
• SATA HDD: 20TB @ 6GB/s 7.2k

OpenManage Software:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage Service Plugin
• OpenManage Update Manager Plugin
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• CloudIQ for PowerEdge plugin

GPU Options:

• Up to 2x 75W SW GPUs

Power Supplies:

• Hot Swap 1800W Titanium 200 to 240 VAC or 240 HVDC
• Hot Swap 1400W Platinum 100 to 240 VAC or 240 HVDC
• Hot Swap 1100W Titanium 100 to 240 VAC or 240 HVDC
• Hot Swap 1100W LVDC
• Hot Swap 700W Titanium 100 to 240 VAC or 240 HVDC
• Hot Swap 600W Titanium 100 to 240 VAC or 240 HVDC

Systems Management Solutions

• iDRAC9 License
• iDRAC Direct
• iDRAC Service Module
• iDRAC RESTful API w/ Redfish
• Quick Sync 2 Wireless Module

Storage Controllers RAID Options:

• S160 onboard software
• BOSS N1
• HBA355i
• HBA355e
• H355
• H755N
• H755
• H965i

Supported Operating Systems:

• Red Hat® enterprise Linux 6
• Red Hat® enterprise Linux 7
• Red Hat® enterprise Linux 8
• Red Hat® enterprise Linux 9
• SUSE Linux ES 12
• SUSE Linux ES 15
• Ubuntu Server 16.04 LTS
• Ubuntu Server 18.04 LTS
• Ubuntu Server 20.04 LTS
• Ubuntu Server 22.04 LTS
• VMware ESXi 6.0
• VMware ESXi 6.5
• VMware ESXi 6.7
• VMware ESXi 7.0
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022 LTSC

PCIe Options:

• Broadcom 5720 Dual Port 1GbE Optional LOM
• Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2
• Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Full Height, V2
• Broadcom 57414 Dual Port 10/25GbE SFP28 Adapter, PCIe Low Profile, V2
• Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile
• Broadcom 57508 Dual Port 100GbE QSFP Adapter, PCIe Low Profile
• Broadcom 57454 Quad Port 10GbE BASE-T Adapter, PCIe Low Profile
• Intel Ethernet i350 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2
• Intel X710-T2L Dual Port 10GbE BASE-T Adapter, PCIe Low Profile
• Intel E810-XXV Dual Port 10/25GbE SFP28 Adapter, PCIe Low Profile
• Intel E810-CQDA2 Dual Port 100GbE QSFP28 Adapter, PCIe Low Profile
• Mellanox ConnectX-6 Single Port HDR VPI Infiniband Adapter, PCIe Low Profile
• Mellanox ConnectX-6 Single Port HDR100 QSFP56 Infiniband Adapter, PCIe Low Profile
• Mellanox ConnectX-6 DX Dual Port 100GbE QSFP56 Network Adapter, Low Profile
• Nvidia ConnectX-6 Lx Dual Port 10/25GbE SFP28 Adapter, PCIe Low Profile
• Nvidia ConnectX-7 Single Port NDR200 OSFP PCIe Adapter, Low Profile

Network Interface Card Options (NICs)

• Up to 2 NIC ports on the LAN on motherboard (LOM) and up to 4x 25GB ports integrated on the OCP (Open Compute Project) card
• Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0
• Broadcom 57414 Dual Port 10/25GbE SFP28, OCP NIC 3.0
• Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0
• Broadcom 57504 Quad Port 10/25GbE,SFP28, OCP NIC 3.0
• Broadcom 57454 Quad Port 10GbE Base-T Adapter, OCP NIC 3.0
• Intel i350 Quad Port 1GbE Base-T Adapter, OCP NIC 3.0
• Intel X710-T4L Quad Port 10GbE BASE-T, OCP NIC 3.0
• Intel E810-XXV Dual Port 10/25GbE SFP28, OCP NIC 3.0
• Intel E810-XXVDA4 Quad Port 10/25GbE SFP28 Adapter, OCP NIC 3.0
• Nvidia ConnectX-6 Lx Dual Port 10/25GbE SFP28, OCP NIC 3.0
• Intel E810-CQDA2T G1 Dual Port 100GbE Precision Timing Adapter

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• HBA355e Adapter FH & LP, DIB
• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• BOSS-N1 controller card + with 1 M.2 480GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS-N1 controller card + with 1 M.2 960GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 960GB (RAID 1)
