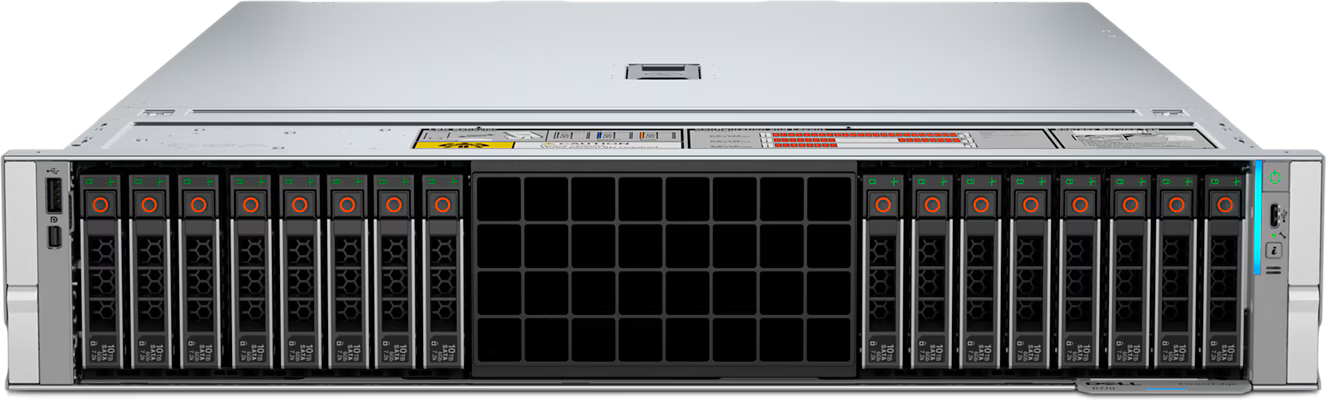

Dell PowerEdge R770

Chassis:

• 8 Bay SFF (SAS/SATA/NVMe)
• 16 Bay SFF
• 24 Bay SFF (Hybrid SAS/SATA + NVMe)
• 24 Bay SFF (All SAS/SATA)
• 8 Bay E3.S NVMe
• 16 Bay E3.S NVMe
• 32 Bay E3.S NVMe
• 40 Bay E3.S NVMe

Rear Bays:

• Up to 4 x EDSFF E3.S NVMe max 245.76 TB

Processor types:

• Two Intel Xeon 6 processors,
  supporting up to 144 E-Cores or 86 P-cores

Memory RAM types:

• ECC Registered Memory, up to Max 32DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 6.14TB (24x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC
• DIMMS with capacities 32GB and 64GB are supported on E- core processors
• DIMMS with capacities 16 GB, 32 GB, 64 GB, 96 GB, 128 GB, and 256 GB are supported on P- core processors

Storage Options 2.5" Drives(up to)

• SATA SSD: 3.84TB @ 6GB/s
• NVMe SSD: 61.44TB Gen4

Storage Options EDSFF NVMe Drives(up to)

• EDSFF E3.S: 61.44TB Gen5 NVMe
• EDSFF E3.S: 3.84TB Gen5 DC NVMe

OpenManage Software:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage Service Plugin
• OpenManage Update Manager Plugin
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage APEX AIOps Observability

GPU Options:

• Up to x2 450W double wide or x6 72W single wide GPUs
• x6 Nvidia L4 24GB
• x3 Nvidia L40S 48GB
• x3 Nvidia A16 64GB
• x3 Nvidia H100NVL 94GB
• x3 Nvidia H200NVL 141GB
• x2 Nvidia RTX PRO 6000 96GB

Power Supplies:

• Hot-Pluggable 800W Platinum/Titanium 100–240 VAC
• Hot-Pluggable 1100W Platinum/Titanium 100–240 VAC
• Hot-Pluggable 1400W -48V DC
• Hot-Pluggable 1500W Titanium 100–240 VAC
• Hot-Pluggable 1500W Titanium 277 VAC / HVDC
• Hot-Pluggable 1800W Titanium 200–240 VAC / HVDC
• Hot-Pluggable 2400W Titanium 100–240 VAC
• Hot-Pluggable 3200W Titanium 200–240 VAC
• Hot-Pluggable 3200W Titanium 277 VAC / HVDC

Systems Management Solutions

• iDRAC10
• iDRAC Direct
• DRAC RESTful API with Redfish

Storage Controllers RAID Options:

• Front PERC H975i
• On ESXi operating systems H975i is supported on versions 9.0 and above

Supported Operating Systems:

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• VMware ESXi
• SUSE Linux Enterprise Server

PCIe Options:

• Broadcom 57414 25GbE SFP28 Dual Port Adapter, PCIe Full Height
• Broadcom 57508 100GbE QSFP56 Dual Port Adapter, PCIe Full Height
• Broadcom 57608 Dual Port 200G (Single Port 400GbE) QSFP112 Adapter, PCIe Full Height
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, PCIe Full Height
• Nvidia ConnectX-6 Dx Dual Port 100GbE QSFP56, No Crypto, PCIe Full Height, IBH
• NVIDIA ConnectX-6 Lx Dual Port 25G SFP28 Adapter, PCIe Full Height
• Agnostic Dual Port 32GB Fibre Channel HBA, PCIe Full Height
• Agnostic Dual Port 64GB Fibre Channel HBA, PCIe Full Height
• Emulex LPe37102 SecureHBA Dual Port Fibre Channel 32Gb Adapter, PCIe Full Height
• Emulex LPe38102 SecureHBA Dual Port Fibre Channel 64Gb Adapter, PCIe Full Height
• QLogic QLE2772C Dual Port 32Gb Fibre Channel, PCIe Full Height
• Nvidia ConnectX-7 Single Port NDR VPI/400GbE OSFP-RHS Adapter, No Crypto, PCIe Low Profile

Network Interface Card Options (NICs)

• Broadcom 5719 Quad Port 1GbE Base-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Quad Port 10GbE Base-T adapter, OCP 3.0 NIC
• Broadcom 57414 Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Broadcom 57504 Quad Port 10/25GbE, SFP28, OCP 3.0 NIC
• Broadcom 57508 Dual Port 100GbE QSFP56, OCP NIC 3.0
• Broadcom 57608 Dual Port 200GbE (Single Port 400GbE) QSFP112 Adapter, OCP 3.0 NIC
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, OCP NIC 3.0
• Broadcom 57608 Quad Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT2 Dual Port 10GbE BASE-T Adapter
• Intel Ethernet E610-XAT4 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-IAT4 Quad Port 1/2.5 GbE BASE-T Adapter, OCP 3.0 NIC
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, OCP 3.0 NIC
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter,OCP 3.0 NIC

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• NVIDIA L40S, PCIe, 350W, 48GB Passive, Dual Slot Full Height
• NVIDIA H100 NVL, PCIe, 400W, 94GB Passive, Dual Slot Full Height
• NVIDIA H200 NVL, PCIe, 400W, 141GB Passive, Dual Slot Full Height
• NVIDIA A16, PCIe, 250W, 64GB Passive, Single Slot Full Height
• NVIDIA RTX PRO 6000, PCIe, 450W (Capped for R770), 96GB Active, Dual Slot Full Height
• BOSS-N1 controller card + with 1 M.2 480GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS-N1 controller card + with 1 M.2 960GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 960GB (RAID 1)
• BOSS-N1 controller card + with 2 FIPS M.2 960GB (RAID 1) (22x80) Rear
