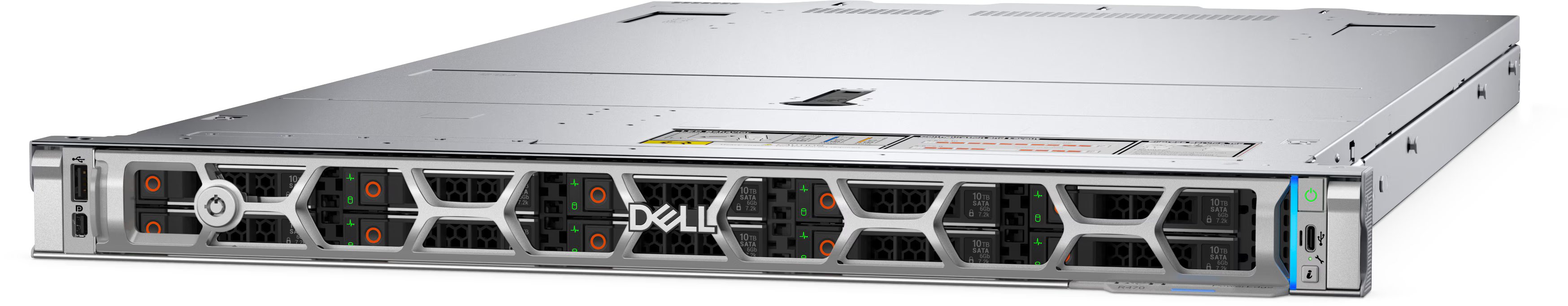

Dell PowerEdge R470

Chassis:

• 8 Bay SFF NVMe
• 8 Bay SFF NVMe Direct Drives
• 8 Bay SFF SAS/SATA
• 10 Bay SFF SAS/SATA
• 8 Bay E3.S NVMe
• 8 Bay E3.S NVMe

Rear Bays:

• Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB

Processor types:

• One Intel Xeon 6 processor,
  supporting up to 144 E-Cores or 86 P-cores

Memory RAM types:

• ECC Registered Memory, up to Max 16DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 4.096TB (16x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC
• Only 32 GB and 64 GB modules are supported on both Intel Xeon 6 E and P Core processors

Storage Options 2.5" Drives(up-to)

• SATA SSD: 3.84TB @ 6GB/s
• Ent NVMe SSD: 61.44TB Gen4
• DC NVMe SSD: 7.68TB Gen4

Storage Options 3.5" Drives

• SATA HDD: 32TB @ 6GB/s 7.2k
• SATA HDD: 32TB @ 12GB/s 7.2k

Storage Options EDSFF NVMe Drives

• EDSFF E3.S: 61.44TB Gen5 Ent NVMe
• EDSFF E3.S: 3.84TB Gen5 DC NVMe



OpenManage Software:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage Service Plugin
• OpenManage Update Manager Plugin



GPU Options:

• Up to x4 75W single width GPUs
• x4 NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile

Power Supplies:

• Hot-Pluggable 800W 100–240 VAC
• Hot-Pluggable 800W Titanium 100–240 VAC
• Hot-Pluggable 1100W 100–240 VAC
• Hot-Pluggable 1100W Titanium 100–240 VAC
• Hot-Pluggable 1400W -48V DC
• Hot-Pluggable 1500W Titanium 100–240 VAC
• Hot-Pluggable 1500W Titanium 277 VAC / 260–400 VDC

Systems Management Solutions

• iDRAC10
• iDRAC Direct
• DRAC RESTful API with Redfish
• RACADM CLI
• IDRAC Service Module

Storage Controllers RAID Options:

• PERC H365i DC-MHS Front
• PERC H965i DC-MHS Front
• H965e
• HBA465e
• On ESXi operating systems H975i is supported on versions 9.0 and above

Supported Operating Systems:

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Microsoft Server
• Red Hat Enterprise Linux
• VMware ESXi
• SUSE Linux Enterprise Server

PCIe Options:

• Broadcom 57414 25GbE SFP28 Dual Port Adapter, PCIe Full Height
• Broadcom 57508 100GbE QSFP56 Dual Port Adapter, PCIe Full Height
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, PCIe Full Height
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, PCIe Full Height
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter, PCIe Full Height
• Agnostic Dual Port 32Gb Fibre Channel HBA, PCIe Full Height
• Agnostic Dual Port 64Gb Fibre Channel HBA, PCIe Full Height
• Emulex LPe37102 SecureHBA Dual Port 32Gb Fibre Channel Adapter, PCIe Full Height
• Emulex LPe38102 SecureHBA Dual Port 64Gb Fibre Channel Adapter, PCIe Full Height
• QLogic QLE2772C Dual Port 32Gb Fibre Channel Adapter, PCIe Full Height
• QLogic QLE2872C Dual Port 64Gb Fibre Channel Adapter, PCIe Full Height

Network Interface Card Options (NICs)

• Broadcom 5719 Quad Port 1GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57414 Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Broadcom 57504 Quad Port 10/25GbE SFP28 Adapter, OCP 3.0 NIC
• Broadcom 57508 Dual Port 100GbE QSFP56 Adapter, OCP 3.0 NIC
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, OCP 3.0 NIC
• Broadcom 57608 Quad Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT2 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT4 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-IAT4 Quad Port 1/2.5GbE BASE-T Adapter, OCP 3.0 NIC
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, OCP 3.0 NIC
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• BOSS-N1 controller card + with 1 M.2 480GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS-N1 controller card + with 1 M.2 960GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 960GB (RAID 1)
• BOSS-N1 controller card + with 2 FIPS M.2 960GB (RAID 1) (22x80) Rear
