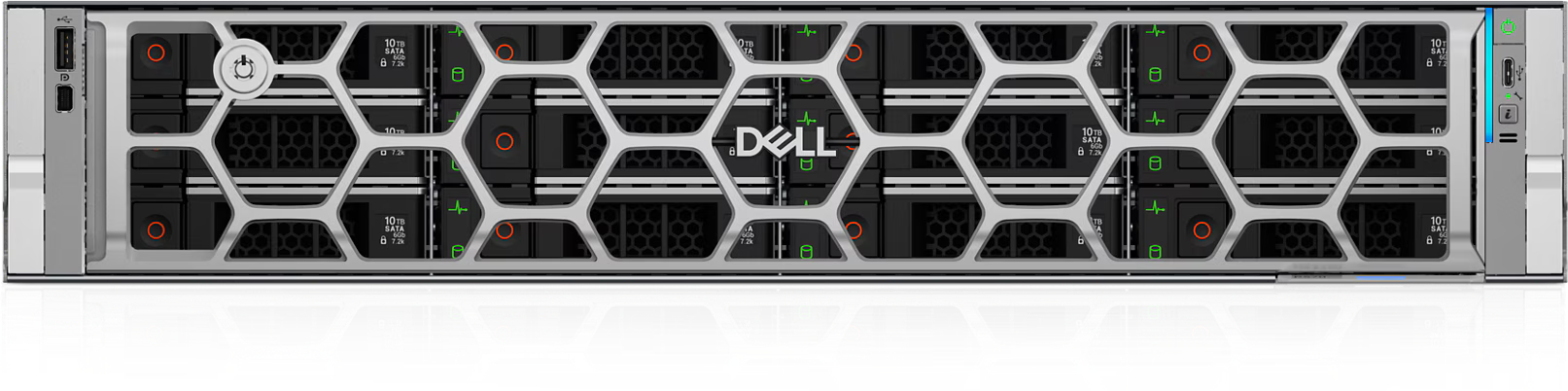

Dell PowerEdge R570

Chassis:

• 8 Bay SFF (SAS/SATA/NVMe)
• 24 Bay SFF (SAS/SATA)
• 12 Bay LFF
• 8 Bay E3.S NVMe
• 16 Bay E3.S NVMe
• 32 Bay E3.S NVMe

Rear Bays:

• Up to 4 x EDSFF E3.S Gen5 NVMe max 61.44 TB

Processor types:

• Two Intel Xeon 6 processors,
  supporting up to 144 E-Cores or 86 P-cores

Memory RAM types:

• ECC Registered Memory, up to Max 16DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 6.14TB (24x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC
• Intel Xeon 6 E-Core processors support 1, 8, or 16 DIMM configurations
• 32GB DIMMs on E-Core processors are supported only in 1 DPC or 1 DIMM per CPU configurations
• 64GB DIMMs on E-Core processors are supported in both 1 DPC and 2 DPC configurations
• E-Core processors support a maximum of 16 DIMMs using 64GB memory modules only
• Intel Xeon 6 P-Core processors support 1, 4, 8, 12, or 16 DIMM configurations
• 256GB DIMMs on P-Core processors are not supported in 8 DIMM configurations
• 16GB and 32GB DIMMs on P-Core processors are supported only in 1 DIMM per CPU configurations
• 32GB and 64GB DIMMs on P-Core processors are supported in 4 DIMMs per CPU configurations
• Only 32GB DIMMs are supported in 12 DIMM P-Core configurations
• 16GB DIMMs are not supported in 16 DIMM P-Core configurations

Storage Options 2.5" Drives(up-to)

• SATA SSD: 3.84TB @ 6GB/s
• Ent NVMe SSD: 15.36TB Gen4
• DC NVMe SSD: 7.68TB Gen4

Storage Options 3.5" Drives

• SATA HDD: 24TB @ 6GB/s 7.2k
• SATA HDD: 24TB @ 12GB/s 7.2k

Storage Options EDSFF NVMe Drives

• EDSFF E3.S: 3.84TB Gen5 Ent NVMe
• EDSFF E3.S: 15.36TB Gen5 DC NVMe

OpenManage Software:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage Service Plugin
• OpenManage Update Manager Plugin
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage APEX AIOps Observability

GPU Options:

• Up to 3x 400W double width GPUs or up to 4 x75W single width
• x4 NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• x3 NVIDIA L40S, PCIe, 350W, 48GB Passive, Dual Slot Full Height
• x3 NVIDIA H100 NVL, PCIe, 400W, 94GB Passive, Dual Slot Full Height

Power Supplies:

• Hot-Pluggable 800W 100–240 VAC
• Hot-Pluggable 800W Titanium 100–240 VAC
• Hot-Pluggable 1100W 100–240 VAC
• Hot-Pluggable 1100W Titanium 100–240 VAC
• Hot-Pluggable 1400W -48V DC
• Hot-Pluggable 1500W Titanium 100–240 VAC
• Hot-Pluggable 1500W Titanium 277 VAC / 260–400 VDC

Systems Management Solutions

• iDRAC10
• iDRAC Direct
• DRAC RESTful API with Redfish
• RACADM CLI
• IDRAC Service Module
• Quick Sync 2 Wireless Module

Storage Controllers RAID Options:

• PERC H365i DC-MHS Front
• PERC H965i DC-MHS Front
• H965e
• HBA465e
• On ESXi operating systems H975i is supported on versions 9.0 and above

Supported Operating Systems:

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• VMware ESXi
• SUSE Linux Enterprise Server

PCIe Options:

• Broadcom 57414 25GbE SFP28 Dual Port Adapter, PCIe Full Height
• Broadcom 57508 100GbE QSFP56 Dual Port Adapter, PCIe Full Height
• Broadcom 57608 Dual Port 200GbE / 400GbE QSFP112 Adapter, PCIe Full Height
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, PCIe Full Height
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, PCIe Full Height
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, PCIe Full Height, IBH
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter, PCIe Full Height
• Agnostic Dual Port 32Gb Fibre Channel HBA, PCIe Full Height
• Agnostic Dual Port 64Gb Fibre Channel HBA, PCIe Full Height
• Emulex LPe37102 SecureHBA Dual Port 32Gb Fibre Channel Adapter, PCIe Full Height
• Emulex LPe38102 SecureHBA Dual Port 64Gb Fibre Channel Adapter, PCIe Full Height
• QLogic QLE2772C Dual Port 32Gb Fibre Channel Adapter, PCIe Full Height
• QLogic QLE2872C Dual Port 64Gb Fibre Channel Adapter, PCIe Full Height

Network Interface Card Options (NICs)

• Broadcom 5719 Quad Port 1GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57414 Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Broadcom 57504 Quad Port 10/25GbE SFP28 Adapter, OCP 3.0 NIC
• Broadcom 57508 Dual Port 100GbE QSFP56 Adapter, OCP 3.0 NIC
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, OCP 3.0 NIC
• Broadcom 57608 Quad Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT2 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT4 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-IAT4 Quad Port 1/2.5GbE BASE-T Adapter, OCP 3.0 NIC
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, OCP 3.0 NIC
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• NVIDIA L40S, PCIe, 350W, 48GB Passive, Dual Slot Full Height
• NVIDIA H100 NVL, PCIe, 400W, 94GB Passive, Dual Slot Full Height
• BOSS-N1 controller card + with 1 M.2 480GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS-N1 controller card + with 1 M.2 960GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 960GB (RAID 1)
• BOSS-N1 controller card + with 2 FIPS M.2 960GB (RAID 1) (22x80) Rear
