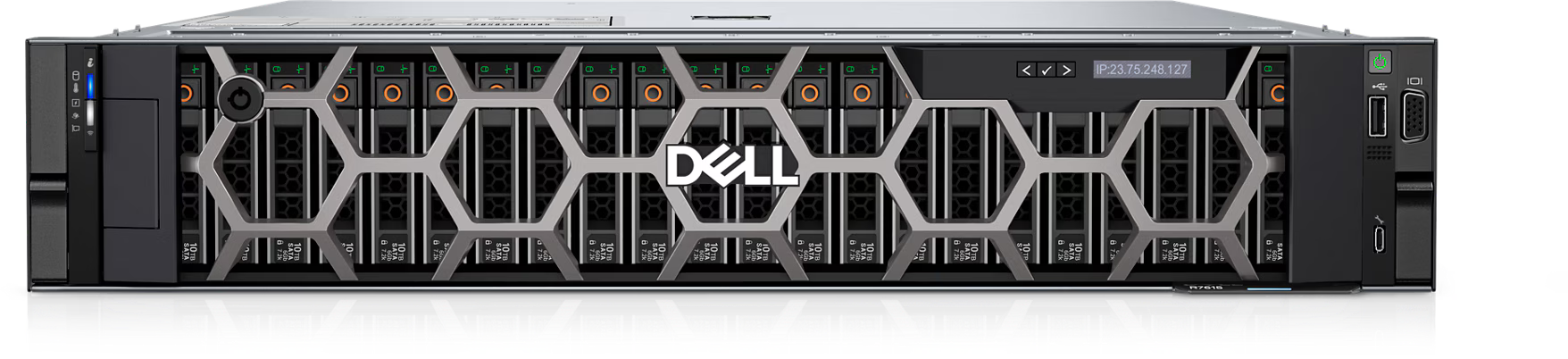

Dell PowerEdge R6715

Chassis:

• 4 Bay LFF
• 8 Bay SFF (incl. NVMe variants)
• 10 Bay SFF
• 12 Bay LFF
• 24 Bay SFF
• 16 Bay SFF NVMe
• 20 Bay SFF NVMe

Rear Bays:

• 2x EDSFF E3.S Rear bays with the 20 Bay NVMe configuration

Processor types:

• One 5th Generation EPYC 9005 Series processor,
  housing up to 160 cores and 320 Threads

Memory RAM types:

• ECC Registered Memory, up to Max 24DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 6.14TB (24x256GB)
• Memory Operating Speeds: 4400MT/s to 5200MT/s

Storage Options 2.5" Drives

• SATA SSD: 3.64TB @ 6GB/s
• NVMe SSD: 7.68TB @32GB/s
• SAS HDD: 2.4TB @ 12Gbps

Storage Options 3.5" Drives

• SAS HDD: 2.4TB @ 12GB/s 10k
• SAS HDD: 24TB @ 12GB/s 7.2k
• SATA HDD: 24TB @ 6GB/s 7.2k

OpenManage Software:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage Service Plugin
• OpenManage Update Manager Plugin
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage APEX AIOps Observability

GPU Options:

• Up to x3 L4 75W GPUs

Power Supplies:

• Hot Swap 1800W Titanium 100-240 VAC or 240 VDC, redundant
• 1500 W Titanium 277 VAC or HVDC
• Hot Swap 1500 W Titanium 100-240 VAC or 240 HVDC, redundant
• 1400 W Telco -48 VDC
• Hot Swap Redundant 1100W Titanium 100-240 VAC or 240 VDC
• Hot Swap Redundant 1100W Platinum 100-240 VAC or 240 VDC
• Hot Swap Redundant 800W Titanium 100-240 VAC or 240 VDC
• Hot Swap Redundant 800W Platinum 100-240 VAC or 240 VDC

Systems Management Solutions

• iDRAC10 Enterprise
• iDRAC10 Datacenter
• iDRAC10
• iDRAC Direct
• DRAC RESTful API with Redfish
• Racadm CLI
• Quick Sync 2 wireless module

Storage Controllers RAID Options:

• S160 onboard software
• H365i
• H965i
• H975i
• H965i
• HBA465e
• H965e

Supported Operating Systems:

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• VMware ESXi
• SUSE Linux Enterprise Server

PCIe Options:

• Broadcom 5719 Quad Port 1GbE Base-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Broadcom 57412 Quad Port 10GbE Base-T adapter, OCP 3.0 NIC +Sec
• Broadcom 57508 Dual Port 100GbE QSFP56, OCP NIC 3.0
• Broadcom 57608 Dual Port 200GbE (Single Port 400GbE) QSFP112 Adapter, OCP 3.0 NIC
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, OCP NIC 3.0
• Broadcom 57608 Quad Port 25GbE SFP28 Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT2 Dual Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-XAT4 Quad Port 10GbE BASE-T Adapter, OCP 3.0 NIC
• Intel Ethernet E610-IAT4 Quad Port 1/2.5 GbE BASE-T Adapter, OCP 3.0 NIC
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, OCP 3.0 NIC
• NVIDIA ConnectX-6 Lx Dual Port 25GbE SFP28 Adapter,OCP 3.0 NIC +Sec

Network Interface Card Options (NICs)

• Up to 2 NIC ports on the LAN on motherboard (LOM) and up to 4x 200GB ports integrated on the OCP (Open Compute Project) card
• Broadcom 57414 25GbE SFP28 Dual Port Adapter, PCIe Low Profile +Sec
• Broadcom 57508 100GbE QSFP56 Dual Port Adapter, PCIe Low Profile
• Broadcom 57608 Dual Port 200GbE (Single Port 400GbE) QSFP112 Adapter, PCIe Low Profile
• Broadcom 57608 Dual Port 100GbE QSFP56 Adapter, PCIe Low Profile +Sec
• NVIDIA ConnectX-6 Dx Dual Port 100GbE QSFP56 Adapter, No Crypto, PCIe Low Profile
• NVIDIA ConnectX-6 Lx Dual Port 25G SFP28 Adapter, PCIe Low Profile +Sec

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• HBA355e Adapter FH & LP, DIB
• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• BOSS-N1 controller card + with 1 M.2 480GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 480GB (RAID 1)
• BOSS-N1 controller card + with 1 M.2 960GB (RAID 0)
• BOSS-N1 controller card + with 2 M.2 960GB (RAID 1)
