Supermicro GPU A+ Server AS -A126GS-TNBR

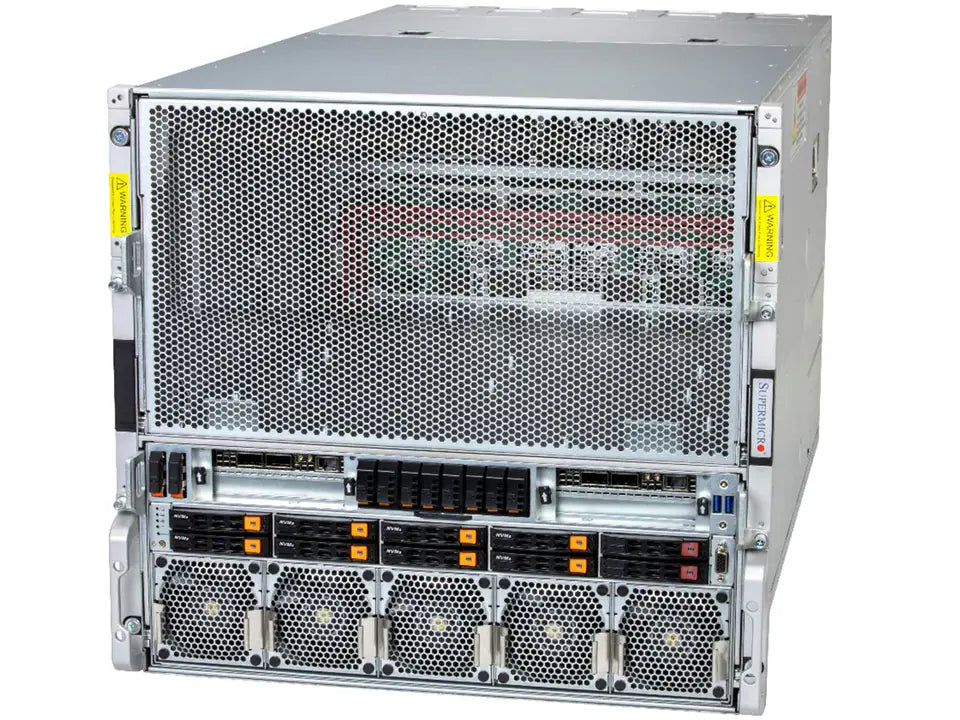

Introducing the new Supermicro GPU A+ Server AS -A126GS-TNBR
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors the Supermicro GPU A+ Server AS -A126GS-TNBR delivers extremely fast processing speeds, opearations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the Supermicro GPU A+ Server AS -A126GS-TNBR email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 10U Rackmount
- 8x NVMe PCIe 5.0 2.5" + 2x 2.5" SATA
- Optional 8x E1.S NVMe (requires storage controller)
- 2x NVMe M.2 (2280/22110)
Processor types:
- Dual Socket SP5
AMD EPYC 9005/9004 Series, housing up to 192 cores and 384 Threads per processor
Memory RAM types:
- Motherboard: Super X13DEG-D
- ECC Registered Memory, up to Max 8TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 6TB (24x256GB)
- Memory Speeds: 4800MT/s to 6400MT/s
Storage Options 2.5" Drives
- NVMe 2.5" PCIe Gen 5.0: 15.36TB @ 16GT/s
- 2.5" SATA: 15.36TB @ 6GB/s
- NVMe E1.S: 15.36TB @ 16GT/s
GPU Options:
- NVIDIA SXM: HGX B200 8-GPU
Power Supplies:
- 6x 5250W Redundant (3+3) Titanium PSU
Systems Management Solutions
- Supermicro Server Manager
- Super Diagnostics Offline
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Intel X710
- Mellanox ConnectX-6 Dx
- Mellanox ConnectX-7 2-port 200GbE
- Mellanox 400GbE OSFP Gen5x16 ConnectX-7
Expansion Slots:
- 8x PCIe 5.0 x16 LP slot
- 2x PCIe 5.0 x16 FHFL slot
Supermicro GPU A+ Server AS-5126GS-TNRT2 Supported CPUs
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
| AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
| AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
| AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
| AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
| AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
| AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
| AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
| AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
| AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
| AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
| AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
| AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
| AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
| AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
| AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
| AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9015 | 8C/16T | 3.60GHz | 4.10GHz |
| AMD EPYC 9115 | 16C/32T | 2.60GHz | 4.10GHz |
| AMD EPYC 9135 | 16C/32T | 3.65GHz | 4.30GHz |
| AMD EPYC 9175F | 16C/32T | 4.20GHz | 5.00GHz |
| AMD EPYC 9255 | 24C/48T | 3.25GHz | 4.80GHz |
| AMD EPYC 9275F | 24C/48T | 4.10GHz | 4.80GHz |
| AMD EPYC 9335 | 32C/ 64T | 3.00GHz | 4.40GHz |
| AMD EPYC 9355 | 32C/64T | 3.55GHz | 4.40GHz |
| AMD EPYC 9355P | 32C/64T | 3.55GHz | 4.40GHz |
| AMD EPYC 9365 | 36C/72T | 3.40GHz | 4.30GHz |
| AMD EPYC 9375F | 32C/64T | 3.85GHz | 4.80GHz |
| AMD EPYC 9455 | 48C/96T | 3.15GHz | 4.40GHz |
| AMD EPYC 9455P | 48C/96T | 3.15GHz | 4.40GHz |
| AMD EPYC 9475F | 48C/96T | 3.65GHz | 4.80GHz |
| AMD EPYC 9535 | 64C/128T | 2.40GHz | 4.30GHz |
| AMD EPYC 9535 | 64C/128T | 2.40GHz | 4.30GHz |
| AMD EPYC 9555 | 64C/128T | 3.20GHz | 4.40GHz |
| AMD EPYC 9555P | 64C/128T | 3.20GHz | 4.40GHz |
| AMD EPYC 9565 | 72C/144T | 3.15GHz | 4.30GHz |
| AMD EPYC 9575F | 64C/128T | 3.30GHz | 5.00GHz |
| AMD EPYC 9645 | 96C/192T | 2.3GHz | 3.70GHz |
| AMD EPYC 9655 | 96C/192T | 2.60GHz | 4.50GHz |
| AMD EPYC 9655P | 96C/192T | 2.60GHz | 4.50GHz |
| AMD EPYC 9745 | 128C/256T | 2.40GHz | 3.70GHz |
| AMD EPYC 9755 | 128C/256T | 2.70GHz | 4.10GHz |
