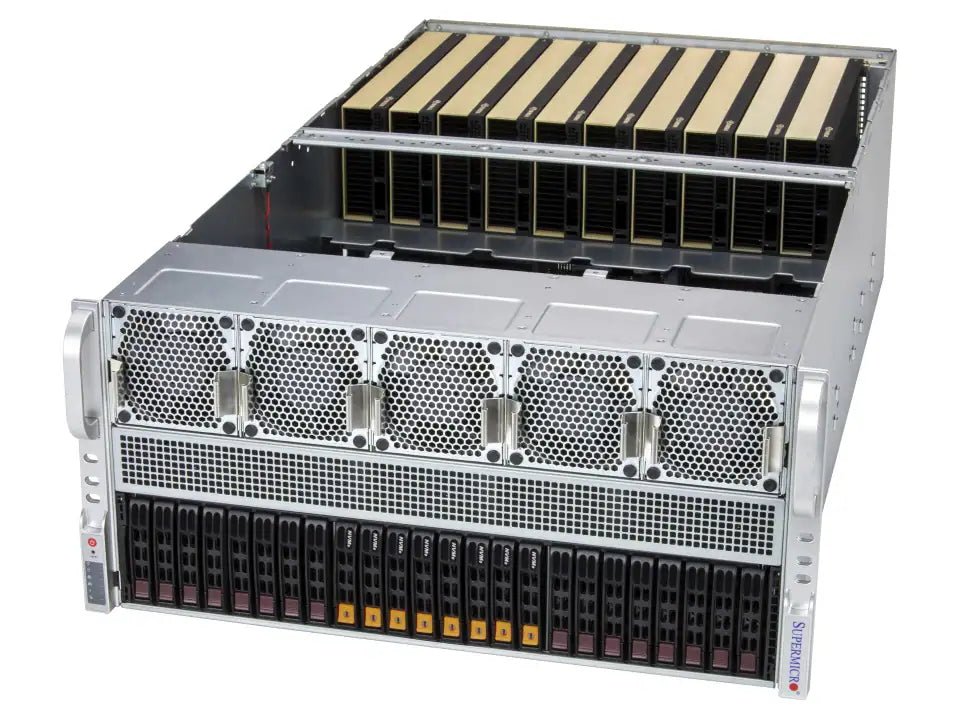

Supermicro GPU A+ Server AS-5126GS-TNRT2

Chassis:

• 5U Rackmount
• 8x Hot-Swap 2.5-inch NVMe PCIe 5.0 + 2x 2.5" SATA SSD
• 1x NVMe M.2 (2280/22110) PCIe Gen3

Processor types:

• Dual Socket AMD SP5
  AMD EPYC 9004 and 9005, housing up to 192 cores and 384 Threads per processor

Memory RAM types:

• Motherboard: Super H14DSG-O-CPU
• ECC Registered Memory, up to Max 6TB DDR5
• RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 6TB (24x256GB)
• Memory Speeds: 4800MT/s to 6400MT/s

Storage Options 2.5" Drives

• NVMe PCIe Gen5.0: 15.36TB @ 16GT/s
• SATA: 15.36TB @ 6GB/s

GPU Options:

• NVIDIA H100 NVL
• NVIDIA H200 NVL
• NVIDIA L4
• NVIDIA L40
• NVIDIA L40S

Power Supplies:

• 6x 2700W Redundant (3+3) Titanium PSU

Systems Management Solutions

• Supermicro Server Manager
• Super Diagnostics Offline

Security:

• Hardware: Trusted Platform Module (TPM) 2.0

Network Interface Card Options (NICs)

• Mellanox ConnectX-6 Dx
• Mellanox ConnectX-6 Lx
• Intel X710-AT2
• Mellanox ConnectX-7
• Broadcom BCM57508
• Intel E810-CAM1
• Intel I350-AM4
• Broadcom BCM57416
• Intel X710-BM2
• Intel X550-AT2

Expansion Slots:

• 11x PCIe 5.0 x16 FHFL double-width slot
