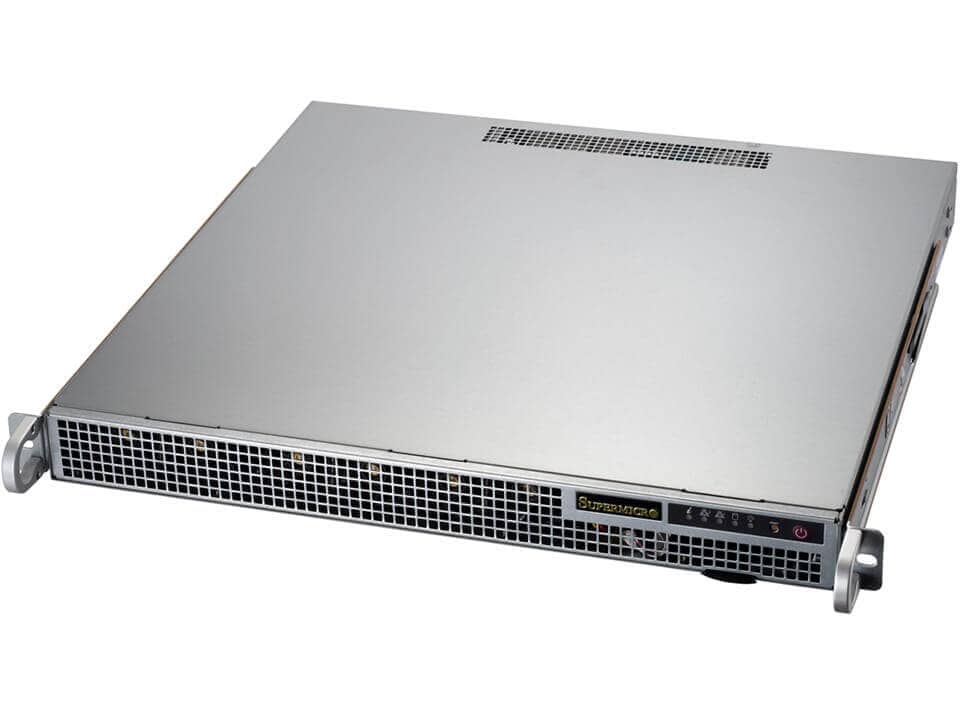

Supermicro AS-1015A-MT

SKU: Supermicro-AS1015AMT

Chassis
Qty
Price
Internal 4 Bay 2.5"
1
$1,275.00
Price as configured
Regular price
$1,275.00
Sale price
$1,275.00
Unit price
per

Tech Specs

Chassis:

  • 1U Rackmount server
  • 1 x Internal 3.5" HDD
  • 4 x Internal 2.5" SSD

Processor types:

  • One, Single Socket AM5 (LGA-1718)
  • AMD Ryzen Zen4 7000/9000 Series or AMD EPYC 4004 Series
  • Max 16 Cores & 32 Threads CPU

Memory RAM types:

  • Motherboard: Super H13SAE-MF
  • ECC Unbuffered Memory, up to Max 192GB DDR5
  • Non-ECC Unbuffered Memory, up to Max 192GB DDR5
  • RAM Capacity: 8GB, 16GB, 32GB, 48GB
  • Max Configuration: 192GB (4x48GB)
  • Memory Speeds: 4000MT/s to 5200MT/s

Storage Options

  • 4 x SATA SSD: 15.36TB @ 6GB/s
  • 1 x SATA HDD: 18TB @ 7.2K
  • 2 x 4TB NVMe M.2 PCIe 5.0 (2280/22110)

GPU Options:

  • NVIDIA Tesla T4 16GB GDDR6 PCIe3.0x16--PassiveCooling 70w
  • NVIDIA Ampere A2 16GB GDDR6 PCIe 4.0 x8 -- w/o CEC 40~60W Configurable
  • NVIDIA Ada L4 24GB GDDR6 PCIe Gen 4th-- 70w
  • NVDIA Tesla M4 4GB GDDR5 PCIe Gen 3 -- 50W

*GRAID SupremeRAID Cards compatible if no GPU installed on server!

Power Supplies:

  • 500W 80 Plus Platinum

Systems Management Solutions

  • SuperCloud Composer
  • BIOS Type: AMI 32MB SPI Flash
  • Supermicro Server Management Software

Storage Controllers RAID Options:

  • Broadcom SAS3908
  • Broadcom SAS3916

Security:

  • Hardware: Trusted Platform Module (TPM) 2.0

Network Interface Card Options (NICs)

  • Intel E810-CQDA4 Dual-Port 100GbE QSFP28 PCIe
  • Broadcom 57416 Dual-Port 10GbE RJ45 PCIe
  • Intel XL710 Dual-Port 40GbE QSFP+ PCIe
  • Intel X550 2x10GbE RJ45 PCIe
  • Intel E810-XXVDA4 4x10/25GbE SFP28 PCIe
  • Mellanox ConnectX-6 Dx 2x100GbE QSFP56 PCIe
  • Mellanox ConnectX-5 2x10/25GbE SFP28 PCIe
  • Mellanox ConnectX-4 LX 2x10/25GbE SFP28 PCIe
  • Mellanox ConnectX-3 Pro Dual-Port 40GbE QSFP+ PCIe
  • Mellanox ConnectX-5 EX 2x100GbE QSFP28 PCIe

Expansion Slots:

  • 1 PCIe 5.0 x16 FHHL slot

Supermicro AS-1015A-MT Supported CPUs

CPU Cores/Threads Frequency Turbo Frequency
AMD Ryzen 5 7600X 6C/12T 4.70GHz 5.30GHz
AMD Ryzen 5 7600X3D 6C/12T 4.10GHz 4.70GHz
AMD Ryzen 5 7700X 8C/16T 4.50GHz 5.40GHz
AMD Ryzen 9 5900X 12C/24T 3.70GHz 4.90GHz
AMD Ryzen 9 5950X 16C/32T 3.40GHz 4.90GHz
AMD Ryzen 9 7900 12C/24T 3.70GHz 5.40GHz
AMD Ryzen 9 7900X 12C/24T 4.70GHz 5.60GHz
AMD Ryzen 9 7900X3D 12C/24T 4.40GHz 5.60GHz
AMD Ryzen 9 7950X 16C/32T 4.50GHz 5.70GHz
AMD Ryzen 9 7950X3D 16C/32T 4.20GHz 5.70GHz
AMD Ryzen 9 9900X 12C/24T 4.40GHz 5.60GHz
AMD Ryzen 9 9900X3D 12C/24T 4.40GHz 5.50GHz
CPU Cores/Threads Frequency Turbo Frequency
AMD EPYC 4124P 4C/8T 3.80GHz 5.10GHz
AMD EPYC 4244P 6C/12T 3.80GHz 5.10GHz
AMD EPYC 4344P 8C/16T 3.80GHz 5.30GHz
AMD EPYC 4364P 8C/16T 4.50GHz 5.40GHz
AMD EPYC 4464P 12C/24T 3.70GHz 5.40GHz
AMD EPYC 4484PX 12C/24T 4.40GHz 5.60GHz
AMD EPYC 4564P 16C/32T 4.50GHz 5.70GHz
AMD EPYC 4584PX 16C/32T 4.20GHz 5.70GHz


Supermicro AS-1015A-MT Technical Information and Documentation
