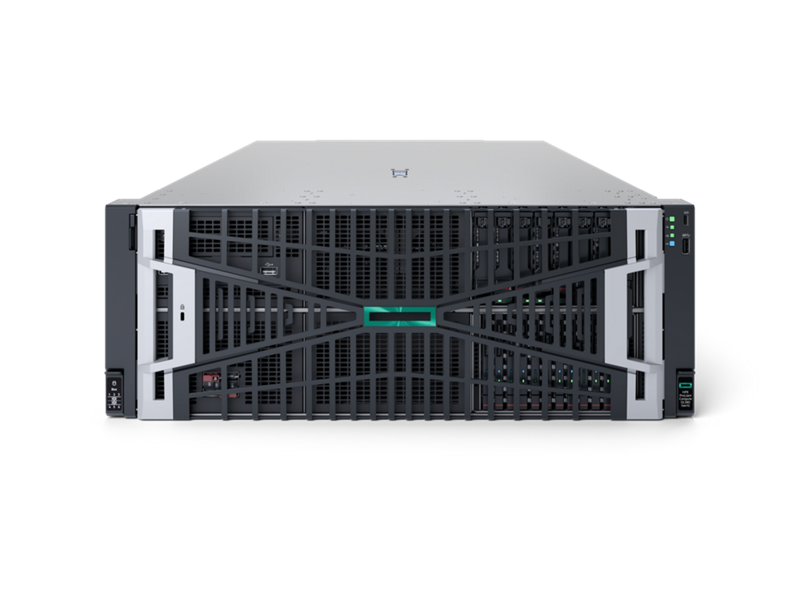

HPE ProLiant DL380a Gen12

Chassis:

• 4U rack GPU-optimized chassis
• 10 Double-Width GPU chassis configuration
• Includes 4SFF U.3 NVMe drive cage (x1 default)
• Supports additional drive cage expansion options

Rear Bays:

• Not applicable

Processor types:

• up to 2 Xeon 6 Scalable processors,
  supporting up to 144 cores per processor.

Memory RAM types:

• ECC Registered Memory, up to Max x32 DDR5 DIMMs with 2 CPUs
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 8.192TB (32x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC

Storage Options 2.5" Drives(up to)

• U.3 NVMe SSD: 15.36TB @Gen4

Storage Options EDSFF NVMe Drives(up to)

• EDSFF E3.S: 61.44TB @Gen5 NVMe



GPU Options:

• Supports up to 10 double-wide GPUs
• x8 NVIDIA RTX PRO 6000 Blackwell Server Edition, PCIe, 96GB Passive, Double Wide Full Height
• x8 NVIDIA RTX PRO 6000D, PCIe, 84GB Passive, Double Wide Full Height
• x10 NVIDIA H200 NVL, PCIe, 141GB Passive, Double Wide Full Height
• x10 NVIDIA L40S, PCIe, 48GB Passive, Double Wide Full Height
• x10 NVIDIA L20, PCIe, 48GB Passive, Double Wide Full Height
• x10 NVIDIA L4, PCIe, 24GB Passive, Single Wide Low Profile

Power Supplies:

• 2400W M-CRPS Titanium Hot Plug Power Supply
• 3200W M-CRPS Titanium Hot Plug Power Supply
• 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply

Systems Management Solutions

• HPE iLO 6 ASIC (ROM ID: U70) for HPE ProLiant Compute DL380a Gen12 8DW CTO Server
• HPE iLO 7 ASIC (ROM ID: U72) for HPE ProLiant Compute DL380a Gen12 8DW/16SW CTO Server

Storage Controllers RAID Options:

• Intel VROC (Hybrid RAID on CPU)
• HPE MR416i-p RAID Controller
• HPE MR416i-o RAID Controller

Supported Operating Systems:

• Microsoft Windows Server 2022
• Microsoft Windows Server 2025
• Red Hat Enterprise Linux (RHEL)
• Red Hat Enterprise Linux with KVM
• Ubuntu Server
• Canonical Ubuntu LTS
• SUSE Linux Enterprise Server (SLES)
• VMware ESXi
• VMware vSphere
• Oracle Linux
• Rocky Linux
• AlmaLinux
• Debian Linux
• Citrix Hypervisor
• Microsoft Hyper-V
• Nutanix AHV

PCIe Options:

• Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter
• Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter
• Intel E610-IT4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
• Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter
• Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter
• Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter
• Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter
• Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter
• HPE InfiniBand NDR200 200Gb 1-port OSFP PCIe Gen5 Adapter
• HPE InfiniBand NDR 400Gb 1-port OSFP PCIe Gen5 Adapter
• HPE InfiniBand NDR 400Gb 1-port QSFP112 PCIe Gen5 Adapter
• HPE Omni-Path XDR 400Gb 1-port OSFP PCIe Gen6 Adapter
• HPE Omni-Path XDR 400Gb 2-port QSFP112 PCIe Gen6 Adapter
• HPE XDR PCIe Gen6 Multi-Host / Socket Direct Auxiliary Card
• Intel Omni-Path 100Gb OP101 QSFP28 PCIe Gen3 Adapter

Network Interface Card Options (NICs)

• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter
• Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter
• Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
• Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter
• Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
• Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter
• Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• HPE NS204i-u v2 480GB NVMe Boot Optimized Storage Device
• HPE NS204i-u v2 960GB NVMe Boot Optimized Storage Device
• HPE NS204i-u v2 960GB NVMe SED Boot Optimized Storage Device
