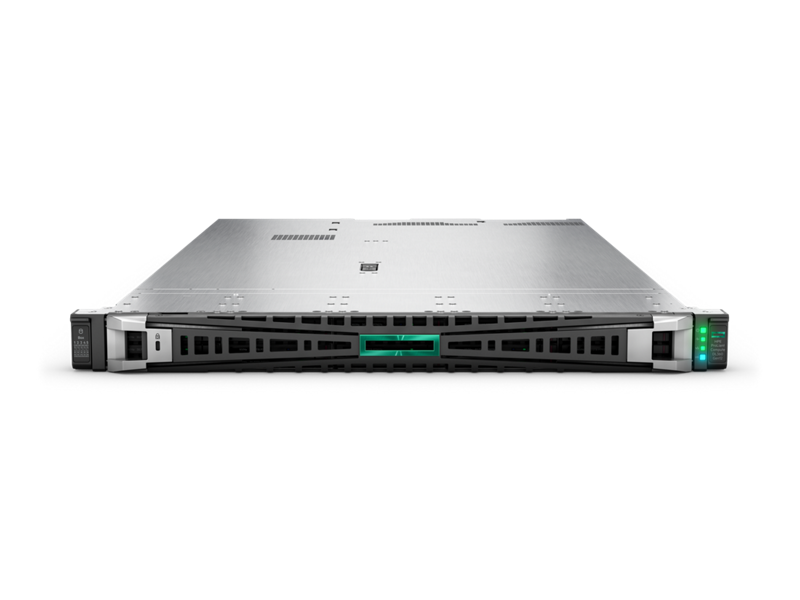

HPE ProLiant DL360 Gen12

Chassis:

• 10 Bay SFF Server
• 20 Bay E3.S NVMe Server
• 8+2 Bay SFF Server
• 4 Bay LFF Server

Rear Bays:

• Not applicable

Processor types:

• One Intel Xeon 6 processor,
  supporting up to 144 E-Cores or 86 P-cores

Memory RAM types:

• ECC Registered Memory, up to Max 32DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 8.192TB (32x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC

Storage Options 2.5" Drives(up to)

• SATA SSD: 7.68TB @ 6GB/s
• SAS HDD: 2.4TB @12GB/s 10k
• SAS SSD: 15.36TB @12GB/s
• NVMe SSD: 15.36TB @Gen4

Storage Options 3.5" Drives(up to)

• SAS HDD: 26TB @12GB/s 7.2k
• SATA HDD: 26TB @6GB/s 7.2k
• SAS SSD: 960GB (in LPC)
• SATA SSD: 960GB (in LPC)

Storage Options EDSFF NVMe Drives(up to)

• EDSFF E3.S: 61.44TB Gen5 NVMe

GPU Options:

• Up to x3 single width GPUs
• x3 NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile

Power Supplies:

• HPE 800W Flex Slot Platinum Hot Plug Power Supply
• HPE 1000W Flex Slot Titanium Hot Plug Power Supply
• HPE 1600W Flex Slot -48VDC Hot Plug Power Supply
• HPE 1600W Flex Slot Platinum Hot Plug Power Supply
• HPE 1800W–2200W Flex Slot Titanium Hot Plug Power Supply

Systems Management Solutions

• HPE iLO 7
• Unified Extensible Firmware Interface (UEFI)
• Intelligent Provisioning
• iLO RESTful API with Redfish
• OpenBMC Support

Storage Controllers RAID Options:

• HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller
• HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller
• HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller
• HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
• HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
• HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller
• HPE Smart Array E208e-p SR Gen10 12G SAS PCIe Plug-in Controller

Supported Operating Systems:

• Windows Server 2022
• Windows Server 2025
• Red Hat Enterprise Linux 8
• Red Hat Enterprise Linux 9
• SUSE Linux Enterprise Server 15 SP5 / SP6
• Ubuntu Server 22.04 LTS
• Ubuntu Server 24.04 LTS
• VMware ESXi 8.x (including 8.0 U2 and later updates depending on HPE certification)

PCIe Options:

• HPE InfiniBand XDR400 / Ethernet 400GbE 2-port QSFP112 PCIe6 x16 Adapter
• HPE InfiniBand XDR / Ethernet 400GbE 1-port OSFP PCIe6 x16 Adapter
• HPE InfiniBand NDR / Ethernet 400Gb 1-port OSFP PCIe5 x16 Adapter
• HPE InfiniBand NDR200 / Ethernet 200Gb 1-port OSFP PCIe5 x16 Adapter
• HPE InfiniBand NDR200 / Ethernet 200GbE 2-port QSFP112 PCIe5 x16 Adapter
• Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE
• Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE
• Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE
• NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE
• HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
• Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
• NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE
• Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
• Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
• AMD Solarflare X4522-PLUS Ethernet 10/25GbE 2-port SFP56 Adapter for HPE
• Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
• Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

Network Interface Card Options (NICs)

• HPE ProLiant Compute DL360 Gen12 Front Primary OCP NIC Box3 Bay3 Enablement Kit
• HPE ProLiant Compute DL360 Gen12 Front Secondary OCP NIC Box3 Bay1 Enablement Kit
• HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit
• HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotB x8 Cable Kit
• HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x8 Cable Kit
• HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x16 Cable Kit

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter
• HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter
• HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter
• HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter
• HPE SN1620E 32Gb 2-port FC SecureHBA
• HPE SN1720E 64Gb 2-port FC SecureHBA
