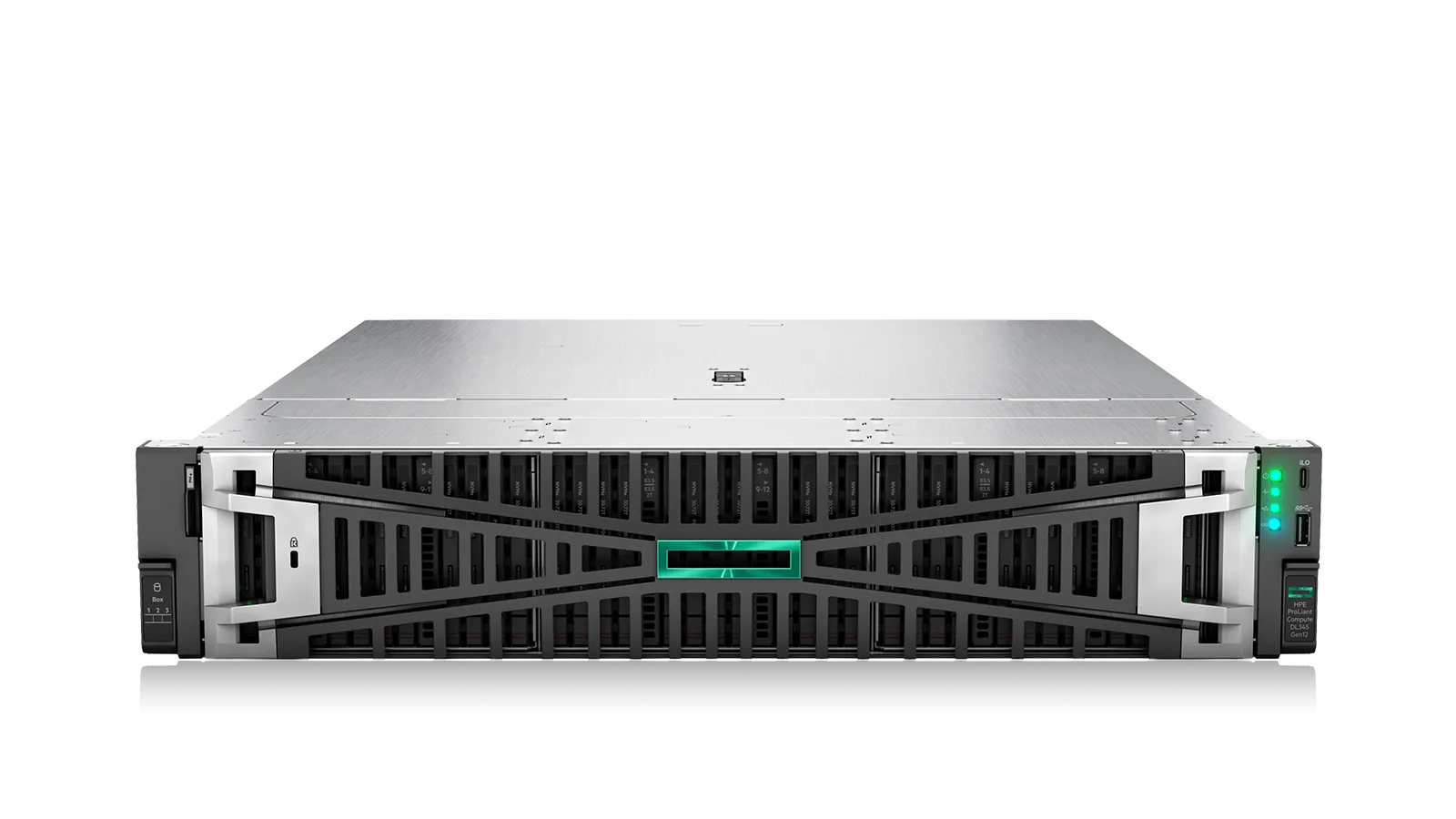

HPE ProLiant DL345 Gen12
Introducing the new HPE ProLiant DL345 Gen12
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the HPE ProLiant DL345 Gen12 delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the HPE ProLiant DL345 Gen12 email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
HPE ProLiant DL345 Gen12
Chassis:
- 24 Bay SFF Server
- 12 Bay LFF Server
- GPU Server (supports up to 4 front-mounted double-width GPUs)
- 36 Bay EDSFF Server
Rear Bays:
- Not applicable
Processor types:
-
One 5th Generation AMD EPYC Processor,
supporting up to 192 cores.
Memory RAM types:
- ECC Registered Memory, up to Max x24 DDR5 DIMMs
- RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 6.144TB (24x256GB)
- Memory Operating Speeds: 4400MT/s @2DPC to 5200MT/s @1DPC
Storage Options 2.5" Drives(up to)
- SATA SSD: 7.68TB @ 6GB/s
- SAS HDD: 2.4TB @12GB/s 10k
- SAS SSD: 15.36TB @12GB/s
- NVMe SSD: 15.36TB @Gen4
Storage Options 3.5" Drives(up to)
- SAS HDD: 24TB @12GB/s 7.2k
- SATA HDD: 24TB @6GB/s 7.2k
Storage Options EDSFF NVMe Drives(up to)
- EDSFF E3.S: 30.72TB @Gen5 or @Gen4 NVMe
- Up to x6 single width or x4 double width GPUs
- x6 NVIDIA L4, PCIe, 24GB Passive, Single Wide Low Profile
- x4 NVIDIA L40S, PCIe, 48GB Passive, Double Wide Full Height
- x4 NVIDIA RTX PRO 600 Blackwell Server Edition, PCIe, 96GB Passive, Double Wide Full Height
GPU Options:
Power Supplies:
- 800W Platinum Hot Plug Power Supply
- 1000W Titanium Hot Plug Power Supply
- 1500W Titanium Hot Plug Power Supply
- 2400W Titanium Hot Plug Power Supply
- 3200W Titanium Hot Plug Power Supply
Systems Management Solutions
- HPE iLO 7
- Unified Extensible Firmware Interface (UEFI)
- Intelligent Provisioning
- iLO RESTful API with Redfish
- OpenBMC Support
Storage Controllers RAID Options:
- HPE MR216i-p RAID Controller
- HPE MR216i-o RAID Controller
- HPE MR408i-o RAID Controller
- HPE MR408i-p RAID Controller
- HPE MR416i-o RAID Controller
- HPE MR416i-p RAID Controller
- HPE MR932i-p RAID Controller
Supported Operating Systems:
- Microsoft Windows Server 2022
- Microsoft Windows Server 2025
- Red Hat Enterprise Linux (RHEL)
- Red Hat Enterprise Linux with KVM
- Ubuntu Server
- Canonical Ubuntu LTS
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- VMware vSphere
- Oracle Linux
- Rocky Linux
- AlmaLinux
- Debian Linux
- Citrix Hypervisor
- Microsoft Hyper-V
- Nutanix AHV
PCIe Options:
- Broadcom BCM5719 1Gb 4-Port BASE-T Adapter
- Broadcom BCM57416 10Gb 2-Port BASE-T Adapter
- Broadcom BCM57412 10Gb 2-Port SFP+ Adapter
- Broadcom BCM57414 10/25Gb 2-Port SFP28 Adapter
- Broadcom BCM57504 10/25Gb 4-Port SFP28 Adapter
- Intel E810-XXVDA2 10/25Gb 2-Port SFP28 Adapter
- Intel E810-XXVDA4 10/25Gb 4-Port SFP28 Adapter
- Mellanox MCX631102AS-ADAT 10/25Gb 2-Port SFP28 Adapter
- AMD Solarflare X4522-PLUS 10/25GbE 2-Port SFP56 Adapter
- NVIDIA 10/25Gb 2-Port SFP28 NVMe-oF Crypto Adapter
- Mellanox MCX623106AS-CDAT 100Gb 2-Port QSFP56 Adapter
- Intel E810-CQDA2 100Gb 2-Port QSFP28 Adapter
- Broadcom BCM57608 100Gb 2-Port QSFP112 Adapter
- NVIDIA 100Gb 2-Port NVMe-oF Offload Adapter
- HPE InfiniBand NDR200 200GbE 2-Port QSFP112 Adapter
- HPE InfiniBand NDR200 200Gb 1-Port OSFP Adapter
- HPE InfiniBand NDR 400Gb 1-Port OSFP Adapter
- HPE InfiniBand XDR 2x400GbE 1-Port OSFP Crypto Adapter
- HPE InfiniBand XDR400 400GbE 2-Port QSFP112 Crypto Adapter
- HPE InfiniBand XDR PCIe Gen6 Multi Host Auxiliary Card
- HPE SN1610Q 32Gb 1-Port Fibre Channel HBA
- HPE SN1610Q 32Gb 2-Port Fibre Channel HBA
- HPE SN1700Q 64Gb 1-Port Fibre Channel HBA
- HPE SN1700Q 64Gb 2-Port Fibre Channel HBA
- HPE SN1620E 32Gb Secure Fibre Channel HBA
- HPE SN1720E 64Gb Secure Fibre Channel HBA
Network Interface Card Options (NICs)
- Broadcom BCM5719 1Gb 4-Port BASE-T OCP3 NIC
- Broadcom BCM57412 10Gb 2-Port SFP+ OCP3 NIC
- Broadcom BCM57416 10Gb 2-Port BASE-T OCP3 NIC
- Broadcom BCM57414 10/25Gb 2-Port SFP28 OCP3 NIC
- Broadcom BCM57504 10/25Gb 4-Port SFP28 OCP3 NIC
- Intel E810-XXVDA2 10/25Gb 2-Port SFP28 OCP3 NIC
- Intel E810-XXVDA4 10/25Gb 4-Port SFP28 OCP3 NIC
- Mellanox MCX631432AS-ADAI 10/25Gb 2-Port SFP28 OCP3 NIC
- Intel E810-CQDA2 100Gb 2-Port QSFP28 OCP3 NIC
- Broadcom BCM57608 100Gb 2-Port QSFP112 OCP3 NIC
NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards
- NVIDIA L4, PCIe, 24GB Passive, Single Wide Low Profile
- NVIDIA L40S, PCIe, 48GB Passive, Double Wide Full Height
- NVIDIA RTX PRO 600 Blackwell Server Edition, PCIe, 96GB Passive, Double Wide Full Height
- HPE NS204i-u v2 NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 480GB NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 960GB NVMe SED Boot Optimized Storage Device
- HPE NS204i-u v2 NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 960GB NVMe Boot Optimized Storage Device
HPE ProLiant DL345 Gen12 Supported CPUs
| CPU | Cores/Threads | Frequency |
|---|---|---|
| AMD EPYC 9965 | 192C/384T | 2.25GHz |
| AMD EPYC 9845 | 192C/384T | 2.1GHz |
| AMD EPYC 9825 | 144C/288T | 2.2GHz |
| AMD EPYC 9755 | 128C/256T | 2.7GHz |
| AMD EPYC 9745 | 128C/256T | 2.4GHz |
| AMD EPYC 9645 | 96C/192T | 2.3GHz |
| AMD EPYC 9655P | 96C/192T | 2.6GHz |
| AMD EPYC 9565 | 72C/144T | 3.15GHz |
| AMD EPYC 9535 | 64C/128T | 2.4GHz |
| AMD EPYC 9575F | 64C/128T | 3.3GHz |
| AMD EPYC 9555P | 64C/128T | 3.2GHz |
| AMD EPYC 9475F | 48C/96T | 3.65GHz |
| AMD EPYC 9455P | 48C/96T | 3.15GHz |
| AMD EPYC 9365 | 36C/72T | 3.4GHz |
| AMD EPYC 9335 | 32C/64T | 3.0GHz |
| AMD EPYC 9375F | 32C/64T | 3.8GHz |
| AMD EPYC 9355P | 32C/64T | 3.55GHz |
| AMD EPYC 9255 | 24C/48T | 3.25GHz |
| AMD EPYC 9275F | 24C/48T | 4.1GHz |
| AMD EPYC 9135 | 16C/32T | 3.65GHz |
| AMD EPYC 9115 | 16C/32T | 2.6GHz |
| AMD EPYC 9175F | 16C/32T | 4.2GHz |
| AMD EPYC 9015 | 8C/16T | 3.6GHz |
HPE ProLiant DL345 Gen12 RAID Options
| HPE MR216i-p | 0,1,10 | No Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR216i-o | 0,1,10 | No Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR408i-o | 0,1,5,10 | 4GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR408i-p | 0,1,5,10 | 4GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR416i-o | 0,1,5,6,10,50,60 | 8GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR416i-p | 0,1,5,6,10,50,60 | 8GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR932i-p | 0,1,5,6,10,50,60 | High Cache | SAS / NVMe SSD | PCIe Gen5 | Hardware |
