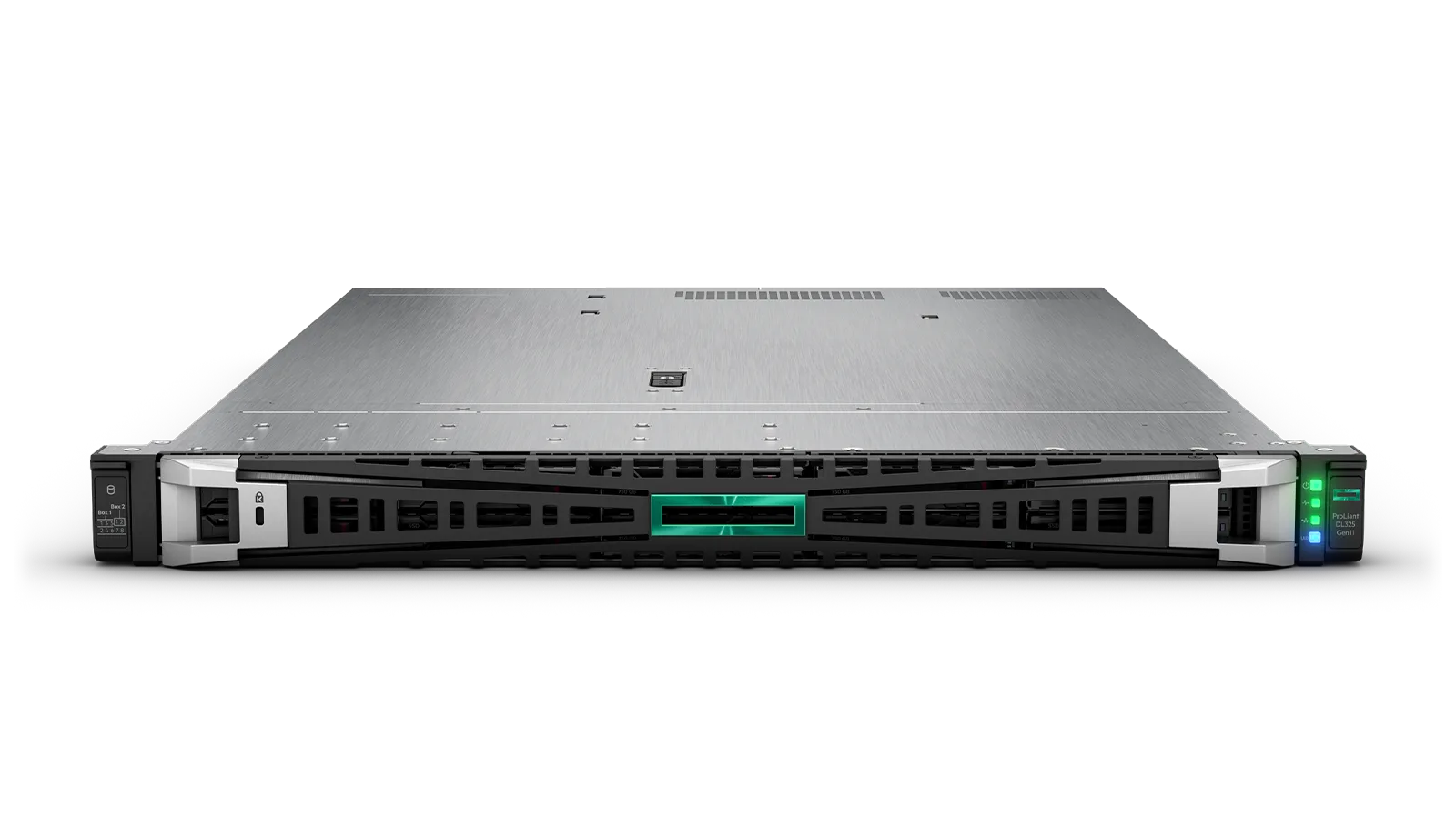

HPE ProLiant DL325 Gen12
Introducing the new HPE ProLiant DL325 Gen12
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the HPE ProLiant DL325 Gen12 delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the HPE ProLiant DL325 Gen12 email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
HPE ProLiant DL325 Gen12
Chassis:
- 8 Bay SFF Server
- 4 Bay LFF Server
- 10 Bay SFF Server
- 20 Bay EDSFF Server
- GPU Server
Rear Bays:
- Not applicable
Processor types:
-
One Intel Xeon 6 processor,
supporting up to 144 E-Cores or 86 P-cores
Memory RAM types:
- ECC Registered Memory, up to Max 32DIMM DDR5
- RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 8.192TB (32x256GB)
- Memory Operating Speeds: 6000MT/s @2DPC to 6400MT/s @1DPC
Storage Options 2.5" Drives(up to)
- SATA SSD: 7.68TB @ 6GB/s
- SAS HDD: 2.4TB @12GB/s 10k
- SAS SSD: 7.68TB @12GB/s
- NVMe SSD: 15.36TB @Gen4
Storage Options 3.5" Drives(up to)
- SAS HDD: 26TB @12GB/s 7.2k
- SATA HDD: 26TB @6GB/s 7.2k
- SAS SSD: 15.36TB @Gen5
- SATA SSD: 960GB @6GB/s
Storage Options EDSFF NVMe Drives(up to)
- EDSFF E3.S: 30.72TB Gen5 NVMe
- Up to x8 single width or x3 double width GPUs
- x1 NVIDIA L4, PCIe, 24GB Passive, Single Wide Low Profile
GPU Options:
Power Supplies:
- 800W Platinum Hot Plug Power Supply
- 1000W Titanium Hot Plug Power Supply
- 1500W Titanium Hot Plug Power Supply
- 2400W Titanium Hot Plug Power Supply
Systems Management Solutions
- HPE iLO 7
- Unified Extensible Firmware Interface (UEFI)
- Intelligent Provisioning
- iLO RESTful API with Redfish
- OpenBMC Support
Storage Controllers RAID Options:
- HPE MR216i-o Storage Controller
- HPE MR216i-p Storage Controller
- HPE MR408i-o Storage Controller
- HPE MR408i-p Storage Controller
- HPE MR416i-o Storage Controller
- HPE MR416i-p Storage Controller
- HPE MR932i-p Storage Controller
- HPE Smart Array E208e-p Storage Controller
Supported Operating Systems:
- Windows Server 2022
- Windows Server 2025
- Red Hat Enterprise Linux 8
- Red Hat Enterprise Linux 9
- SUSE Linux Enterprise Server 15 SP5 / SP6
- Ubuntu Server 22.04 LTS
- Ubuntu Server 24.04 LTS
- VMware ESXi 8.x (including 8.0 U2 and later updates depending on HPE certification)
PCIe Options:
- HPE InfiniBand NDR200 200GbE QSFP112 Adapter
- HPE InfiniBand NDR 400Gb OSFP Adapter
- HPE InfiniBand NDR200 200Gb OSFP Adapter
- HPE InfiniBand XDR 400GbE OSFP Adapter
- HPE InfiniBand XDR400 400GbE QSFP112 Adapter
- HPE InfiniBand XDR PCIe Gen6 Auxiliary Card
- HPE SN1610Q 32Gb Fibre Channel HBA
- HPE SN1700Q 64Gb Fibre Channel HBA
- HPE SN1620E 32Gb Secure Fibre Channel HBA
- HPE SN1720E 64Gb Secure Fibre Channel HBA
- NVIDIA 10/25Gb SFP28 NVMe-oF Adapter
- Mellanox 100Gb QSFP56 Ethernet Adapter
- Intel E810-CQDA2 100Gb QSFP28 Ethernet Adapter
- NVIDIA 100Gb NVMe-oF Offload Adapter
- Broadcom BCM57608 100Gb QSFP112 Ethernet Adapter
- AMD Solarflare X4522-PLUS 10/25GbE Adapter
- Broadcom BCM5719 1Gb BASE-T Ethernet Adapter
- Broadcom BCM57416 10Gb BASE-T Ethernet Adapter
- Broadcom BCM57412 10Gb SFP+ Ethernet Adapter
- Broadcom BCM57414 10/25Gb SFP28 Ethernet Adapter
- Broadcom BCM57504 10/25Gb SFP28 Ethernet Adapter
- Intel E810-XXVDA2 10/25Gb SFP28 Ethernet Adapter
- Mellanox MCX631102AS-ADAT 10/25Gb SFP28 Ethernet Adapter
- Intel E810-XXVDA4 10/25Gb SFP28 Ethernet Adapter
Network Interface Card Options (NICs)
- Broadcom BCM5719 1Gb BASE-T OCP3 Adapter
- Broadcom BCM57412 10Gb SFP+ OCP3 Adapter
- Broadcom BCM57416 10Gb BASE-T OCP3 Adapter
- Broadcom BCM57414 10/25Gb SFP28 OCP3 Adapter
- Broadcom BCM57504 10/25Gb SFP28 OCP3 Adapter
- Intel E810-XXVDA2 10/25Gb SFP28 OCP3 Adapter
- Intel E810-XXVDA4 10/25Gb SFP28 OCP3 Adapter
- Mellanox MCX631432AS-ADAI 10/25Gb SFP28 OCP3 Adapter
- Intel E810-CQDA2 100Gb QSFP28 OCP3 Adapter
- Broadcom BCM57608 100Gb QSFP112 OCP3 Adapter
NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards
- HPE NS204i-u v2 NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 480GB NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 960GB NVMe Boot Optimized Storage Device
- HPE NS204i-u v2 960GB NVMe SED Boot Optimized Storage Device
HPE ProLiant DL325 Gen12 Supported CPUs
| CPU | Cores/Threads | Frequency |
|---|---|---|
| AMD EPYC 9965 | 192C/384T | 2.25GHz |
| AMD EPYC 9845 | 192C/384T | 2.1GHz |
| AMD EPYC 9825 | 144C/288T | 2.2GHz |
| AMD EPYC 9755 | 128C/256T | 2.7GHz |
| AMD EPYC 9745 | 128C/256T | 2.4GHz |
| AMD EPYC 9645 | 96C/192T | 2.3GHz |
| AMD EPYC 9655P | 96C/192T | 2.6GHz |
| AMD EPYC 9565 | 72C/144T | 3.15GHz |
| AMD EPYC 9535 | 64C/128T | 2.4GHz |
| AMD EPYC 9575F | 64C/128T | 3.3GHz |
| AMD EPYC 9555P | 64C/128T | 3.2GHz |
| AMD EPYC 9475F | 48C/96T | 3.65GHz |
| AMD EPYC 9455P | 48C/96T | 3.15GHz |
| AMD EPYC 9365 | 36C/72T | 3.4GHz |
| AMD EPYC 9335 | 32C/64T | 3.0GHz |
| AMD EPYC 9375F | 32C/64T | 3.8GHz |
| AMD EPYC 9355P | 32C/64T | 3.55GHz |
| AMD EPYC 9255 | 24C/48T | 3.25GHz |
| AMD EPYC 9275F | 24C/48T | 4.1GHz |
| AMD EPYC 9135 | 16C/32T | 3.65GHz |
| AMD EPYC 9115 | 16C/32T | 2.6GHz |
| AMD EPYC 9175F | 16C/32T | 4.2GHz |
| AMD EPYC 9015 | 8C/16T | 3.6GHz |
HPE ProLiant DL325 Gen12 RAID Options
| HPE MR216i-p | 0,1,10 | No Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR216i-o | 0,1,10 | No Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR408i-o | 0,1,5,10 | 4GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR408i-p | 0,1,5,10 | 4GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR416i-o | 0,1,5,6,10,50,60 | 8GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR416i-p | 0,1,5,6,10,50,60 | 8GB Cache | SAS / SATA / NVMe | PCIe Gen5 | Hardware |
| HPE MR932i-p | 0,1,5,6,10,50,60 | Advanced Cache | SAS / NVMe | PCIe Gen5 | Hardware |
