HPE ProLiant DL320 Gen12

Chassis:

• 10 Bay SFF SAS HDD Server
• 10 Bay SFF SATA SSD Server
• 10 Bay SFF SAS SSD Server
• 10 Bay SFF / 20 Bay EDSFF NVMe Server

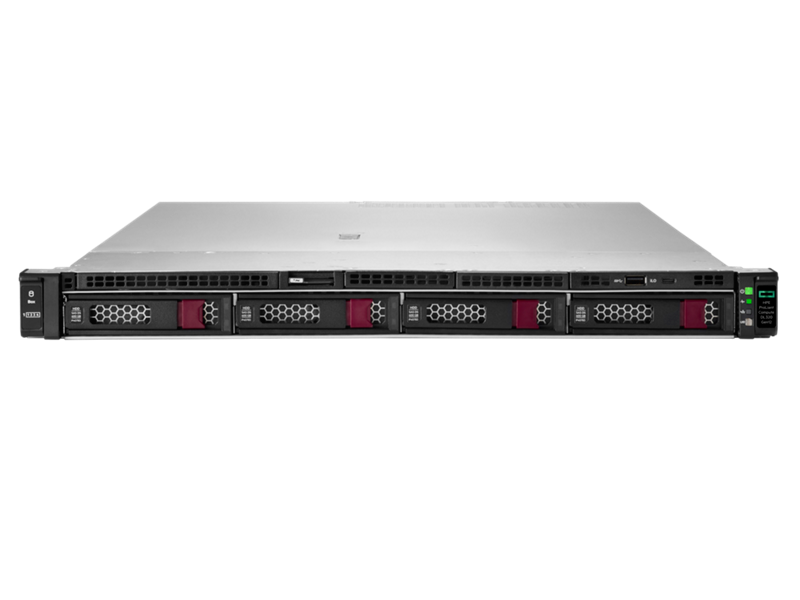

• 4 Bay LFF Server
• 12 Bay LFF Server
• 4 Bay GPU SFF Cage Server
• 8 Bay GPU EDSFF Cage Server

Rear Bays:

• Not applicable

Processor types:

• One Intel Xeon 6 processor,
  supporting up to 144 E-Cores or 86 P-cores

Memory RAM types:

• ECC Registered Memory, up to Max 16DIMM DDR5
• RAM Capacity: 16GB, 32GB, 64GB, 96GB, 128GB, 256GB
• Max Configuration: 4.096TB (16x256GB)
• Memory Operating Speeds: 5200MT/s @2DPC to 6400MT/s @1DPC

Storage Options 2.5" Drives(up to)

• SATA SSD: 3.84TB @ 6GB/s
• SAS HDD: 2.4TB @12GB/s 10k
• SAS SSD: 15.36TB @12GB/s
• NVMe SSD: 15.36TB @Gen4

Storage Options 3.5" Drives(up to)

• SAS HDD: 26TB @12GB/s 7.2k
• SATA HDD: 26TB @6GB/s 7.2k

Storage Options EDSFF NVMe Drives(up to)

• EDSFF E3.S: 15.36TB Gen5 or Gen4 NVMe

GPU Options:

• Up to x4 single width GPUs or x2 dual width GPUs
• x4 NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• x2 NVIDIA L40S, PCIe, 350W, 48GB Passive, Dual Wide

Power Supplies:

• Hot-Pluggable 800W Platinum Power Supply
• Hot-Pluggable 1000W Titanium Power Supply
• Hot-Pluggable 1300W -48VDC Power Supply
• Hot-Pluggable 1500W Titanium Power Supply
• Hot-Pluggable 2200W -48VDC Power Supply
• Hot-Pluggable 2400W Titanium Power Supply

Systems Management Solutions

• HPE iLO 7
• Unified Extensible Firmware Interface (UEFI)
• Intelligent Provisioning
• iLO RESTful API with Redfish
• OpenBMC Support

Storage Controllers RAID Options:

• HPE MR216i-p Gen11 x16 Lanes PCIe Storage Controller
• HPE MR216i-o Gen11 x16 Lanes OCP Storage Controller
• HPE MR932i-p PCIe Gen5 Storage Controller
• HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP RAID Controller
• HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP RAID Controller
• HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCIe RAID Controller
• Intel VROC RAID 1 Controller
• Intel VROC Premium RAID Controller
• HPE Smart Array E208e-p SR Gen10 External SAS Controller
• HPE NS204i-u v2 NVMe Boot Optimized Storage Device

Supported Operating Systems:

• Windows Server 2022
• Windows Server 2025
• Red Hat Enterprise Linux 8
• Red Hat Enterprise Linux 9
• SUSE Linux Enterprise Server 15 SP5 / SP6
• Ubuntu Server 22.04 LTS
• Ubuntu Server 24.04 LTS
• VMware ESXi 8.x (including 8.0 U2 and later updates depending on HPE certification)

PCIe Options:

• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter
• Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter
• Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter
• Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter
• NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter
• AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter
• Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter
• Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter
• HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC
• NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter
• HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 Adapter

Network Interface Card Options (NICs)

• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter
• Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
• Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
• Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter
• Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter
• Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter

NVMe, PCIe Storage Adapters, GPU/FPGA/Accelaration cards, Boot Optimized Storage Cards

• NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Low Profile
• NVIDIA L40S, PCIe, 350W, 48GB Passive, Dual Wide
• HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter
• HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter
• HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter
• HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter
• HPE SN1620E 32Gb 2-port FC SecureHBA
• HPE SN1720E 64Gb 2-port FC SecureHBA
