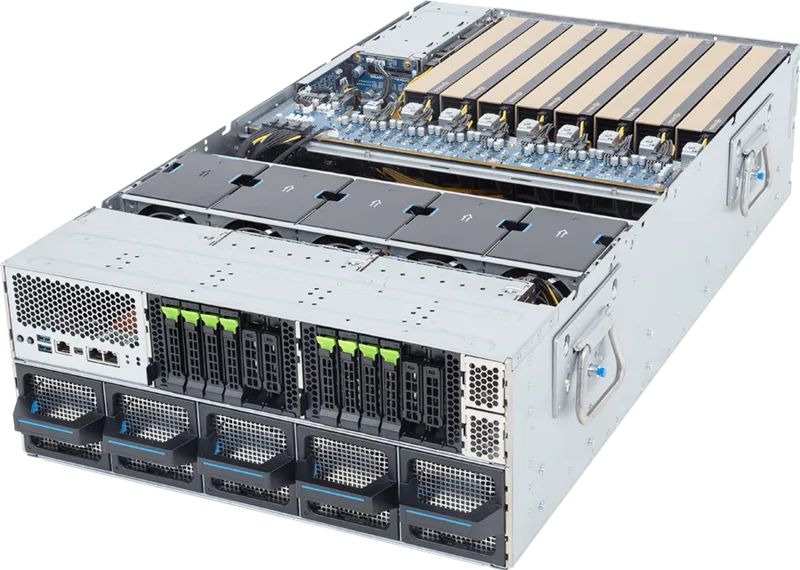

Gigabyte XL44-SX2-AAS1 GPU Server
Introducing the new Gigabyte XL44-SX2-AAS1 GPU Server
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the Gigabyte XL44-SX2-AAS1 GPU Server delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the Gigabyte XL44-SX2-AAS1 GPU Server email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 4U Rackmount
- 8x 2.5" Hot-swap NVMe
- 2x M.2 NVMe PCIe Gen4
- Motherboard: MSX4-MG1
Processor types:
- Dual Socket LGA4710
Intel Xeon 6500/6700 Series
Memory RAM types:
- ECC Registered Memory, up to Max 6TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 8TB (32x256GB)
- Memory Speeds: 5200MT/s using 2 DIMMs per channel
- Memory Speeds: 6400MT/s using 1 DIMM per channel
Storage Options
- NVMe PCIe Gen5.0 : 30.72TB @ 32GT/s
- NVMe M.2 PCIe Gen4.0 : 4TB @ 32GT/s
GPU Options:
- 8x NVIDIA RTX PRO 6000 Blackwell Server Edition
Power Supplies:
- 4x 3200W Redundant (3+1) Titanium PSU
Systems Management Solutions
- Gigabyte Management Console Web Interface
- HTML5 KVM (out-of-band/BMC AST2600)
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Incorporated Intel X710-AT2
- 8x NVIDIA Mellanox ConnectX-8 400GbE (GPU networking)
Expansion Slots:
- 4x FHHL dual-slot PCIe Gen5 x16 slots
- 8x FHHL single-slot PCIe Gen5 x16 slots
Gigabyte XL44-SX2-AAS1 GPU Server Supported CPUs
| Intel Xeon 6500 Series | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6521p | 24C/48T | 2.60GHz | 4.10GHz |
| Intel Xeon 6530P | 32C/64T | 2.30GHz | 4.10GHz |
| Intel Xeon 6533P-B | 32C/64T | 2.20GHz | 3.90GHz |
| Intel Xeon 6553P-B | 36C/72T | 2.60GHz | 4.00GHz |
| Intel Xeon 6556P-B | 36C/72T | 2.30GHz | 3.50GHz |
| Intel Xeon 6700 Series | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6710E | 64C/64T | 2.40GHz | 3.20GHz |
| Intel Xeon 6714P | 8C/16T | 4.00GHz | 4.30GHz |
| Intel Xeon 6731E | 96C/96T | 2.20GHz | 3.10GHz |
| Intel Xeon 6746E | 112C/112T | 2.00GHz | 2.70GHz |
| Intel Xeon 6780E | 144C/144T | 2.20GHz | 3.00GHz |
| Intel Xeon 6781P | 80C/160T | 2.00GHz | 3.80GHz |
| Intel Xeon 6787P | 86C/172T | 2.00GHz | 3.80GHz |
| Intel Xeon 6788P | 86C/172T | 2.00GHz | 3.80GHz |
| Intel Xeon 6716P-B | 40C/80T | 2.50GHz | 3.50GHz |
