GIGABYTE R183-Z94-AAD2 Server

Built for performance-driven environments, the GIGABYTE R183-Z94-AAD2 delivers a powerful foundation for modern data center operations. Cloud Ninjas enables full customization of this system, allowing you to align compute, memory, and storage resources with your exact requirements. Leveraging a dual-socket AMD EPYC platform, this server excels in handling parallel workloads such as virtualization clusters, analytics processing, and large-scale cloud deployments. Its compact 1U design ensures efficient use of rack space while maintaining consistent thermal and operational performance.

  • Dense 1U Rack-Optimized Design
  • Dual-Socket AMD EPYC Compute Architecture
  • Flexible Memory and I/O Scalability
  • Designed for Cloud, Analytics & Virtualized Environments
Build Your Configuration View Full Specifications
Gigabyte R183-Z94-AAD2 Server
Configure System Technical Specs Technical Information Videos Reviews Related Systems

Configure your GIGABYTE R183-Z94-AAD2

Workstation
Qty
Price

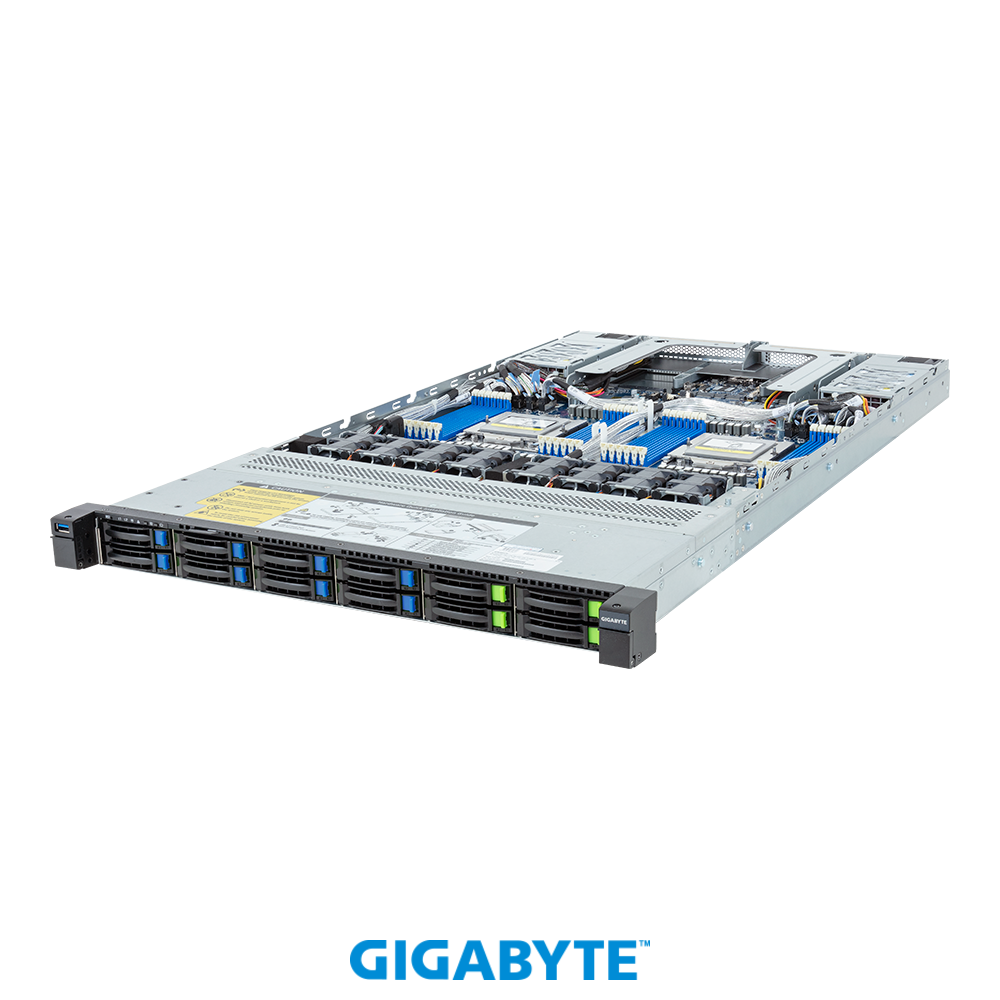

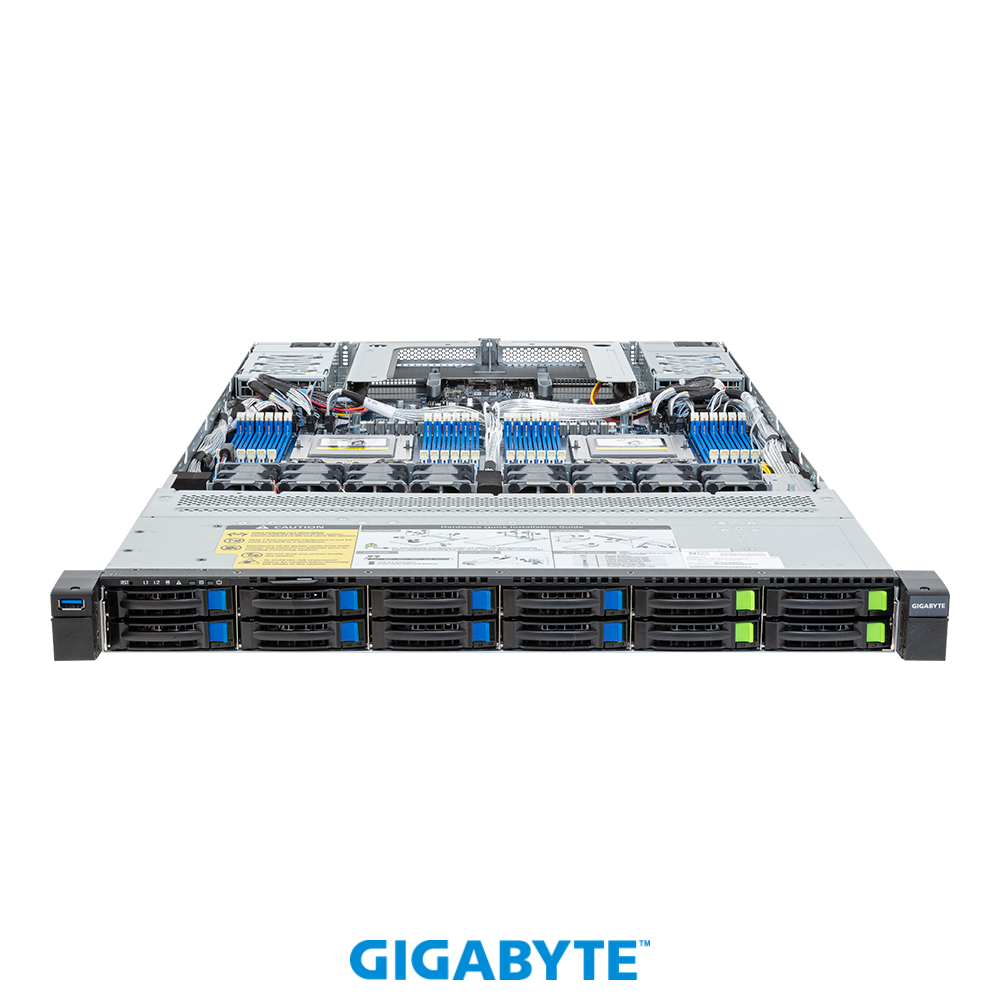

12 Bay SFF SAS/SATA/NVMe
1
$3,199.00
Price as Configured
$3,199.00
$3,199.00

GIGABYTE R183-Z94-AAD2 Specifications

Tech Specs

Chassis:

  • 1U Rackmount server
  • 8 x 2.5" SATA/SAS hot-swappable Bays
  • 4 x 2.5" SATA/SAS/NVMe hot-swappable Bays
  • MZ93-FS1 Motherboard

Processor types:

  • 2 x AMD EPYC 9004 Genoa CPUs
  • 2 x AMD EPYC 9005 Turin CPUs
  • Up to 128 Cores Processor
  • Up to 300W TDP for processor
  • Socket: SP5 LGA-6096

Memory RAM types:

  • 24 Slots, 12 channels per processor
  • 12 channels 1 slots per channel
  • Max configuration: 3TB DDR5 4800 MT/s
    24 x 128GB ECC Registered

Storage Options 2.5" Drives and
3 x M.2

  • 2 x NVMe M.2 4TB PCIe Gen3/Gen4 x4 2280/22110
  • 1 x NVMe M.2 4TB PCIe Gen3/Gen4 x2 2280/22110
  • SAS SSDs: 7.68TB @ 12GB/s or 24GB/s * SAS drives depend on SAS add-in cards
  • SATA SSD: 15.36TB @ 6GB/s
  • NVMe U.2: 15.36TB PCIe Gen5

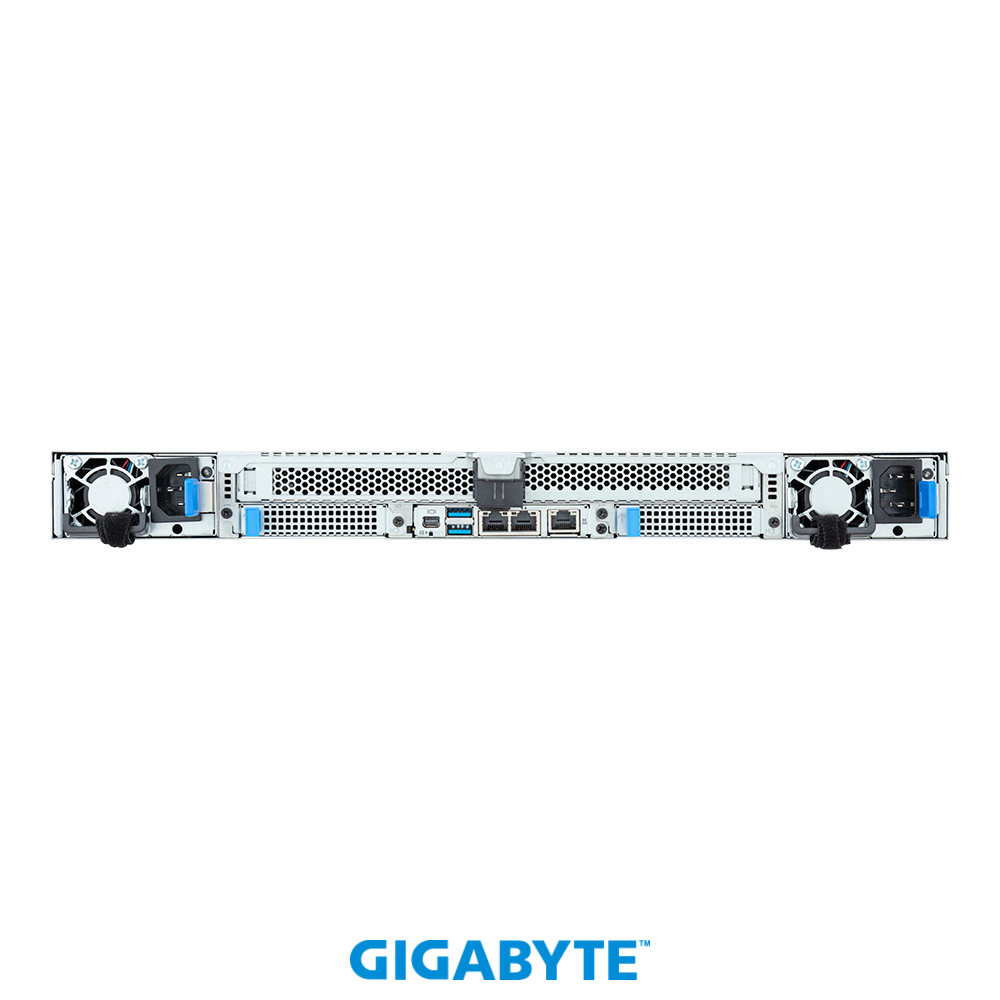

Rear Side:

  • 2 x 1GB/s LAN Port (Intel I350-AM2)
  • 1 x 10/100/1000 Mbps Management LAN

Operating Systems:

  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2025
  • Ubuntu 22.04 LTS
  • SUSE Linux Enterprise
  • VMware ESXi 8.0
  • RHEL 8.x
  • RHEL 9.x

Power Supplies:

  • Redundant 1600W 80 PLUS Platinum

Storage Controllers RAID Options:

  • LSI SAS 3816
  • LSI SAS 3808
  • LSI SAS 3916
  • LSI SAS 3908
  • Broadcom HBA 9500-16i
  • Broadcom HBA 9500-8i
  • Broadcom MegaRAID 9540-8i
  • Broadcom MegaRAID 9670W-16i
  • Broadcom MegaRAID 9660-16i
  • Broadcom MegaRAID 9560-16i
  • Broadcom MegaRAID 9560-8i
  • Graid SupremeRAID Cards

Security:

  • Trusted Platform Module with SPI interface

Network Interface Card Options (NICs)

  • Integrated: Intel I350-AM2
  • Broadcom BCM57414
  • Broadcom BCM57416
  • Broadcom BCM5720L
  • Intel XL710
  • Intel XL550-AT2
  • Intel X710 Series
  • NVIDIA ConnectX-4 Series
  • NVIDIA ConnectX-5 Series
  • NVIDIA ConnectX-6 Series
  • NVIDIA ConnectX-7 Series

Expansion Slots:

  • 2x PCIe x16 Gen5 Full Height
  • 2 x OCP3.0 Socket Gen5
  • 2 x M.2 PCIe Gen3 x4
  • 1 x M.2 PCIe Gen3 x2


GIGABYTE R183-Z94-AAD2 Server Supported CPUs

Genoa CPUs Cores/Threads Frequency Turbo Frequency
AMD EPYC 9124 16C/32T 3.00GHz 3.70GHz
AMD EPYC 9174F 16C/32T 4.10GHz 4.40GHz
AMD EPYC 9184X 16C/32T 3.55GHz 4.10GHz
AMD EPYC 9224 24C/48T 2.50GHz 3.70GHz
AMD EPYC 9254 24C/48T 2.96GHz 4.15GHz
AMD EPYC 9274F 24C/48T 4.05.10GHz 4.30GHz
AMD EPYC 9334 32C/64T 2.70GHz 3.90GHz
AMD EPYC 9354 32C/64T 3.25GHz 3.80GHz
AMD EPYC 9354P 32C/64T 3.25GHz 3.80GHz
AMD EPYC 9374F 32C/64T 3.85GHz 4.30GHz
AMD EPYC 9384X 32C/64T 3.10GHz 3.90GHz
AMD EPYC 9454 48C/96T 2.75GHz 3.80GHz
AMD EPYC 9454P 48C/96T 2.75GHz 3.90GHz
AMD EPYC 9474F 48C/96T 3.60GHz 4.10GHz
AMD EPYC 9534 64C/128T 2.45GHz 3.70GHz
AMD EPYC 9554 64C/128T 3.10GHz 3.75GHz
AMD EPYC 9554P 64C/128T 3.10GHz 3.75GHz
AMD EPYC 9634 84C/168T 2.25GHz 3.70GHz
AMD EPYC 9654 96C/192T 2.40GHz 3.70GHz
AMD EPYC 9654P 96C/192T 2.40GHz 3.70GHz
AMD EPYC 9684X 96C/192T 2.55GHz 3.70GHz
AMD EPYC 9734 112C/224T 2.20GHz 3.00GHz
AMD EPYC 9754 128C/256T 2.25GHz 3.10GHz
Turin CPUs Cores/Threads Frequency Turbo Frequency
AMD EPYC 9015 8C/16T 3.60GHz 4.10GHz
AMD EPYC 9115 16C/32T 2.60GHz 4.10GHz
AMD EPYC 9135 16C/32T 3.65GHz 4.30GHz
AMD EPYC 9175F 16C/32T 4.20GHz 5.00GHz
AMD EPYC 9255 24C/48T 3.25GHz 4.80GHz
AMD EPYC 9275F 24C/48T 4.10GHz 4.80GHz
AMD EPYC 9335 32C/ 64T 3.00GHz 4.40GHz
AMD EPYC 9355 32C/64T 3.55GHz 4.40GHz
AMD EPYC 9355P 32C/64T 3.55GHz 4.40GHz
AMD EPYC 9365 36C/72T 3.40GHz 4.30GHz
AMD EPYC 9375F 32C/64T 3.85GHz 4.80GHz
AMD EPYC 9455 48C/96T 3.15GHz 4.40GHz
AMD EPYC 9455P 48C/96T 3.15GHz 4.40GHz
AMD EPYC 9475F 48C/96T 3.65GHz 4.80GHz
AMD EPYC 9535 64C/128T 2.40GHz 4.30GHz
AMD EPYC 9535 64C/128T 2.40GHz 4.30GHz
AMD EPYC 9555 64C/128T 3.20GHz 4.40GHz
AMD EPYC 9555P 64C/128T 3.20GHz 4.40GHz
AMD EPYC 9565 72C/144T 3.15GHz 4.30GHz
AMD EPYC 9575F 64C/128T 3.30GHz 5.00GHz
AMD EPYC 9645 96C/192T 2.3GHz 3.70GHz
AMD EPYC 9655 96C/192T 2.60GHz 4.50GHz
AMD EPYC 9655P 96C/192T 2.60GHz 4.50GHz
AMD EPYC 9745 128C/256T 2.40GHz 3.70GHz
AMD EPYC 9755 128C/256T 2.70GHz 4.10GHz


GIGABYTE R183-Z94-AAD2 Server RAID Options

RAID Options RAID Levels Cache Drive Speeds PCIe Generation RAID Hardware
Broadcom MegaRAID 9540-8i 0, 00, 1, 10 N/A 12Gb/s SAS | 16GT/s NVMe 4.0 Yes
Broadcom MegaRAID HBA 9500-16i N/A N/A 12Gb/s SAS | 6GB/s SATA 4.0 Yes
Broadcom MegaRAID HBA 9500-8i N/A N/A 12Gb/s SAS | 16GT/s NVMe 4.0 Yes
Broadcom MegaRAID 9560-8i 0, 00, 1, 10, 5, 6, 60 4GB 12Gb/s SAS | 16GT/s NVMe 4.0 Yes
Broadcom MegaRAID 9560-16i 0, 00, 1, 5, 6, 10, 60 8GB 12Gb/s SAS | 16GT/s NVMe 4.0 Yes
Broadcom MegaRAID 9660-16i 0, 1, 5, 6, 10, 50, 60 4GB 24Gb/s SAS | 16GT/s NVMe 4.0 Yes
Broadcom MegaRAID 9670W-16i 0, 1, 5, 6, 10, 50, 60 8GB 24Gb/s SAS | 16GT/s NVMe 4.0 Yes
