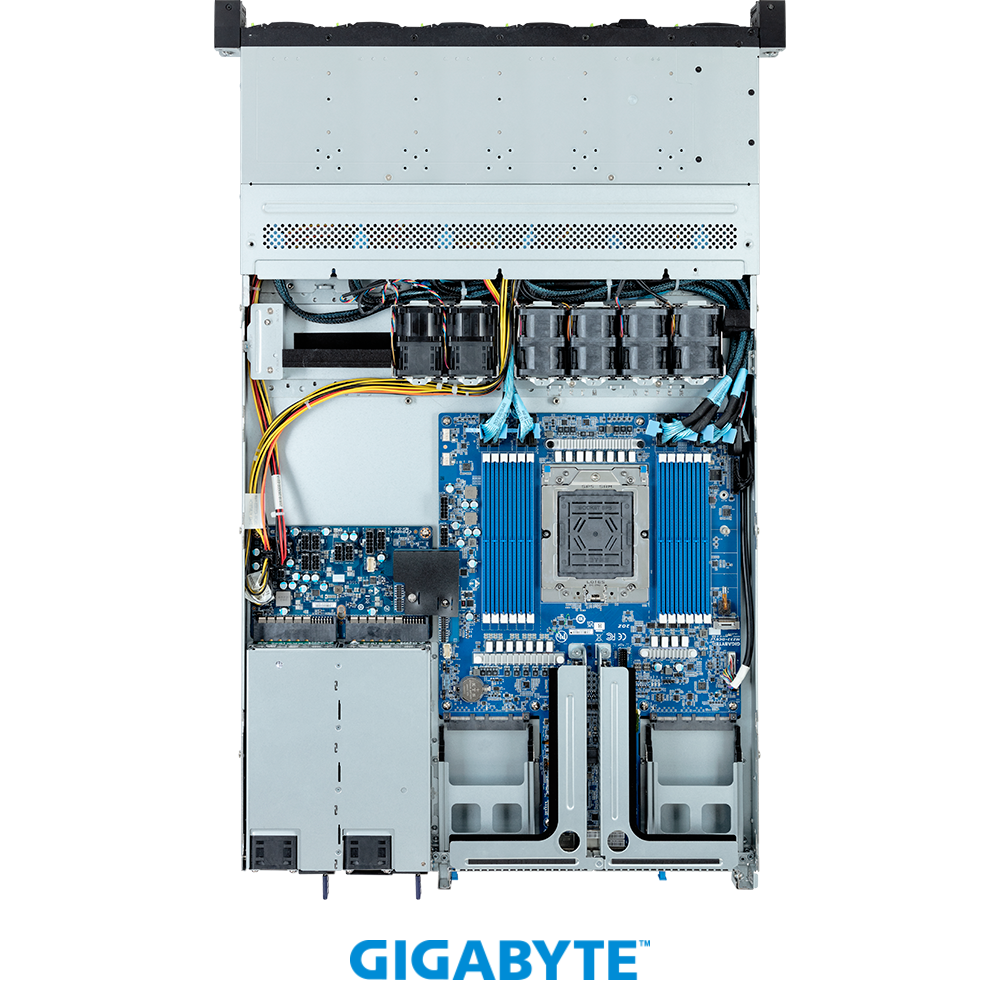

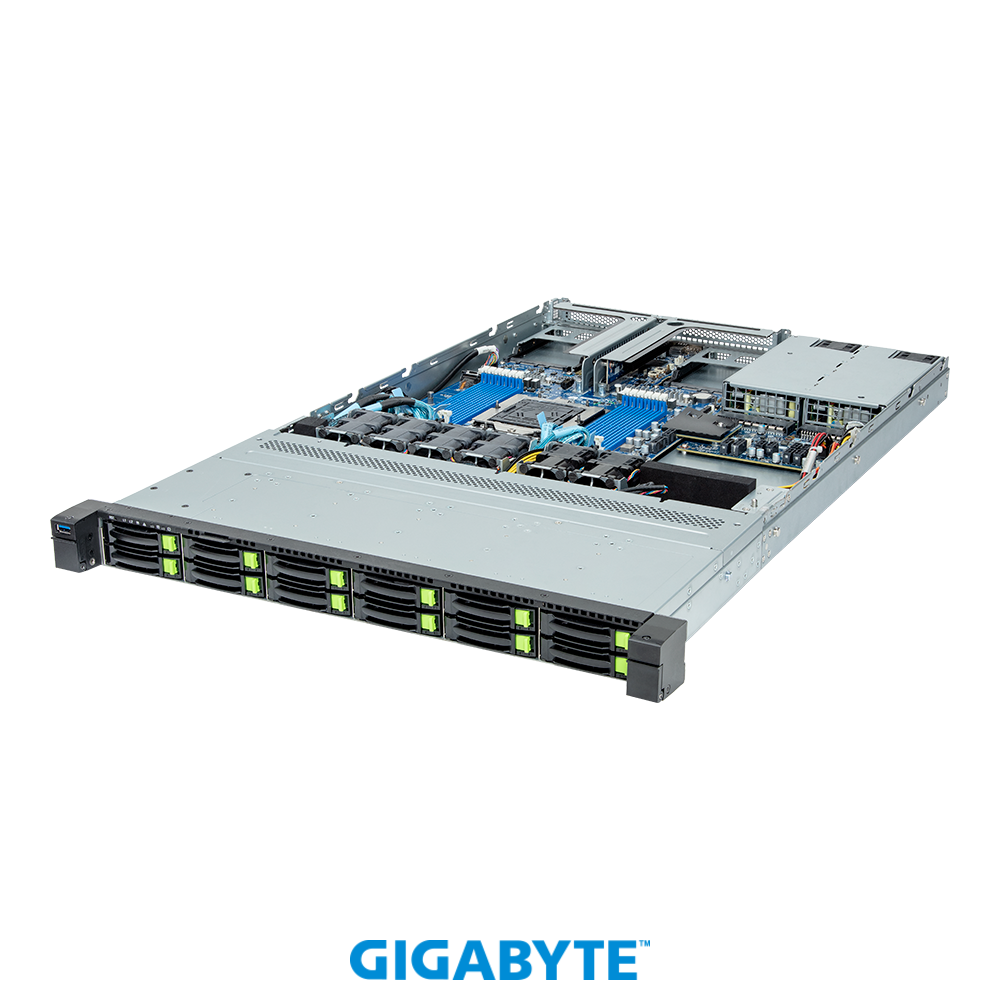

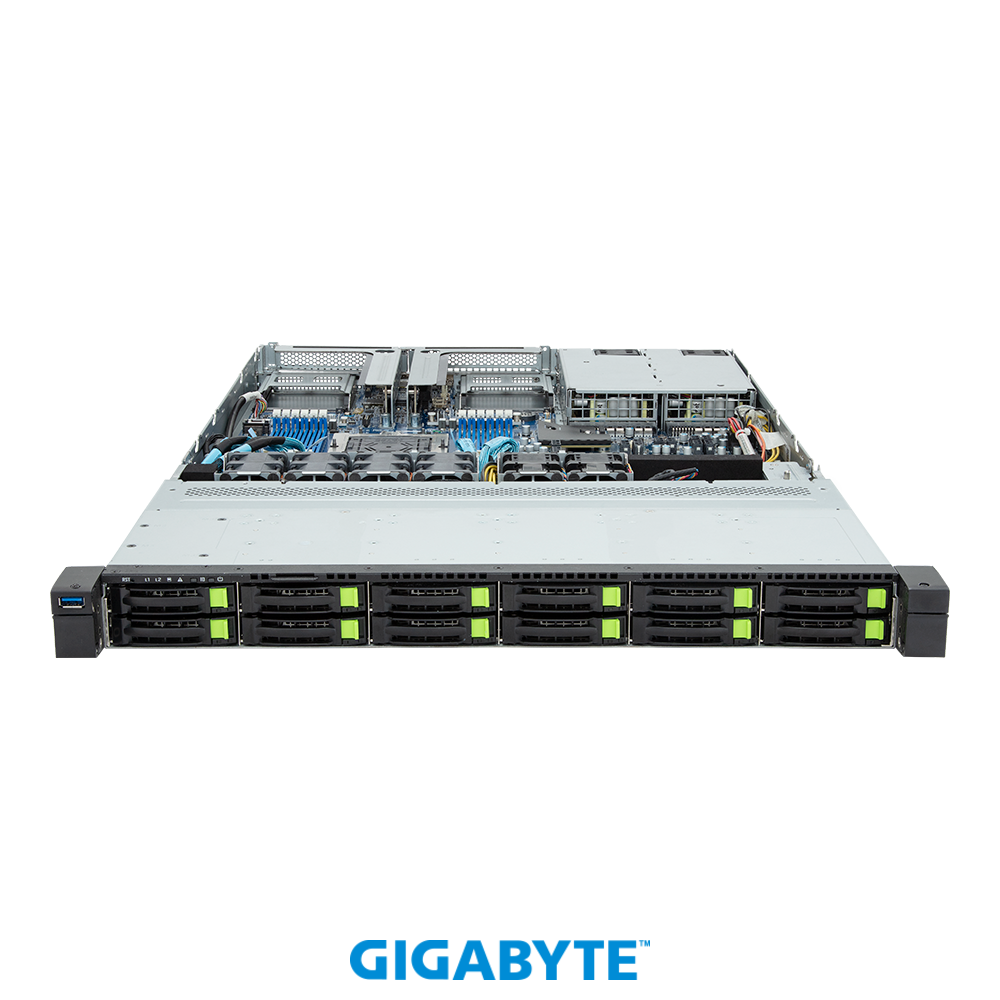

Gigabyte R163-Z32-AAC1 12 Bay SFF Server
SKU: R163-Z32-AAC1-12B-SFF-SATA-SAS-NVMe
Tech Specs
Chassis:
- 12 x 2.5" SATA/SAS/NVMe hot-swappable Bays
- MZ33-DC0 Motherboard
Processor types:
- 1 x AMD EPYC 9004 Genoa CPUs
Generation - Up to 128 Cores Processor
- Up to 300W TDP for processor
- Socket: SP5 LGA-6096
Memory RAM types:
- 12 Slots, 12 channels
- 12 channels 1 slots per channel
- Max configuration: 1.2TB DDR5 4800 MT/s
12 x 96GB ECC Registered - Max configuration: 3TB DDR5 4800 MT/s
12 x 256GB 3DS ECC Registered
Storage Options 2.5" Drives and
1 x M.2 Gen3
- NVMe M.2: 4TB PCIe Gen3 x4 2280/22110
- SAS SSDs: 7.68TB @ 12GB/s * SAS drives depend on SAS add-in cards
- SATA SSD: 15.36TB @ 6GB/s
- NVMe U.2: 7.68TB PCIe Gen4

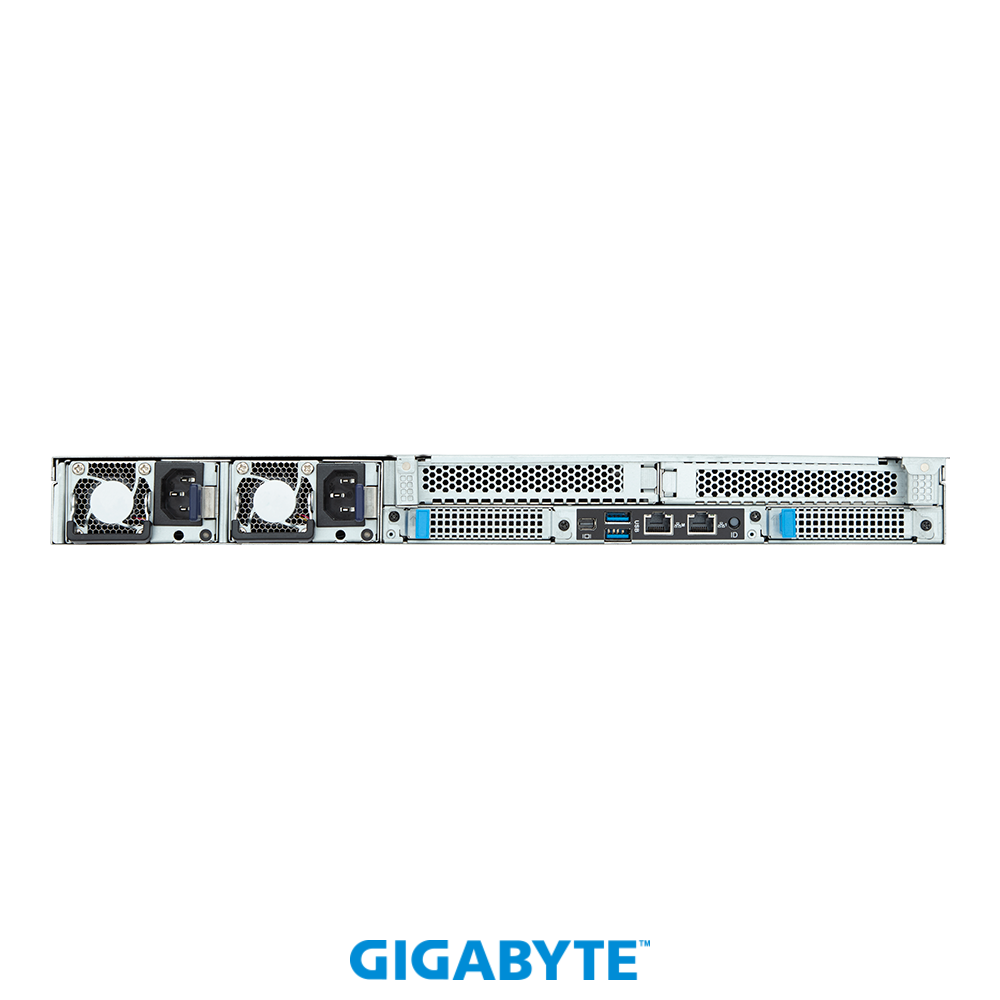

Rear Side:
- 1 x 1GB/s LAN Port (Intel I210-AT)
- 1 x 10/100/1000 Mbps Management LAN
Operating Systems:
- Windows Server 2019
- Windows Server 2022
- Ubuntu 22.04 LTS
- ESXi 8.0
- RHEL 8.x
- RHEL 9.x
Power Supplies:
- 1+1 Redundant 1300W 80 PLUS Platinum
Storage Controllers RAID Options:
- Broadcom HBA 9500-8i
- Broadcom MegaRAID 9540-8i
- Broadcom MegaRAID 9560-8i
- Broadcom MegaRAID 9580-8i8e
Security:
- Trusted Platform Module with SPI interface
Network Interface Card Options (NICs)
- Integrated: Intel I210-AT
- Broadcom NetXtreme Series
- Intel X710 Series
- Intel E810 Series
- NVIDIA ConnectX-6 Series
- NVIDIA ConnectX-7 Series
Expansion Slots:
- 1x PCIe x16 Gen5 Full Height
- 2 x OCP3.0 Socket Gen5
- 1 x M.2 PCIe Gen3 x4
Gigabyte R163-Z32-AAC1 Server Supported CPUs
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
Gigabyte R163-Z30-AAB1 Server RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
Broadcom MegaRAID 9540-8i | 0, 00, 1, 10 | N/A | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
Broadcom MegaRAID HBA 9500-8i | N/A | N/A | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
Broadcom MegaRAID 9560-8i | 0, 00, 1, 10, 5, 6, 60 | 4GB | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
Broadcom MegaRAID 9580-8i8e | 0, 00, 1, 10, 5, 6, 60 | 8GB | 12Gb/s SAS | 16GT/s NVMe | 4.0 | Yes |
