ASUS RS700A-E12-RS12U Server

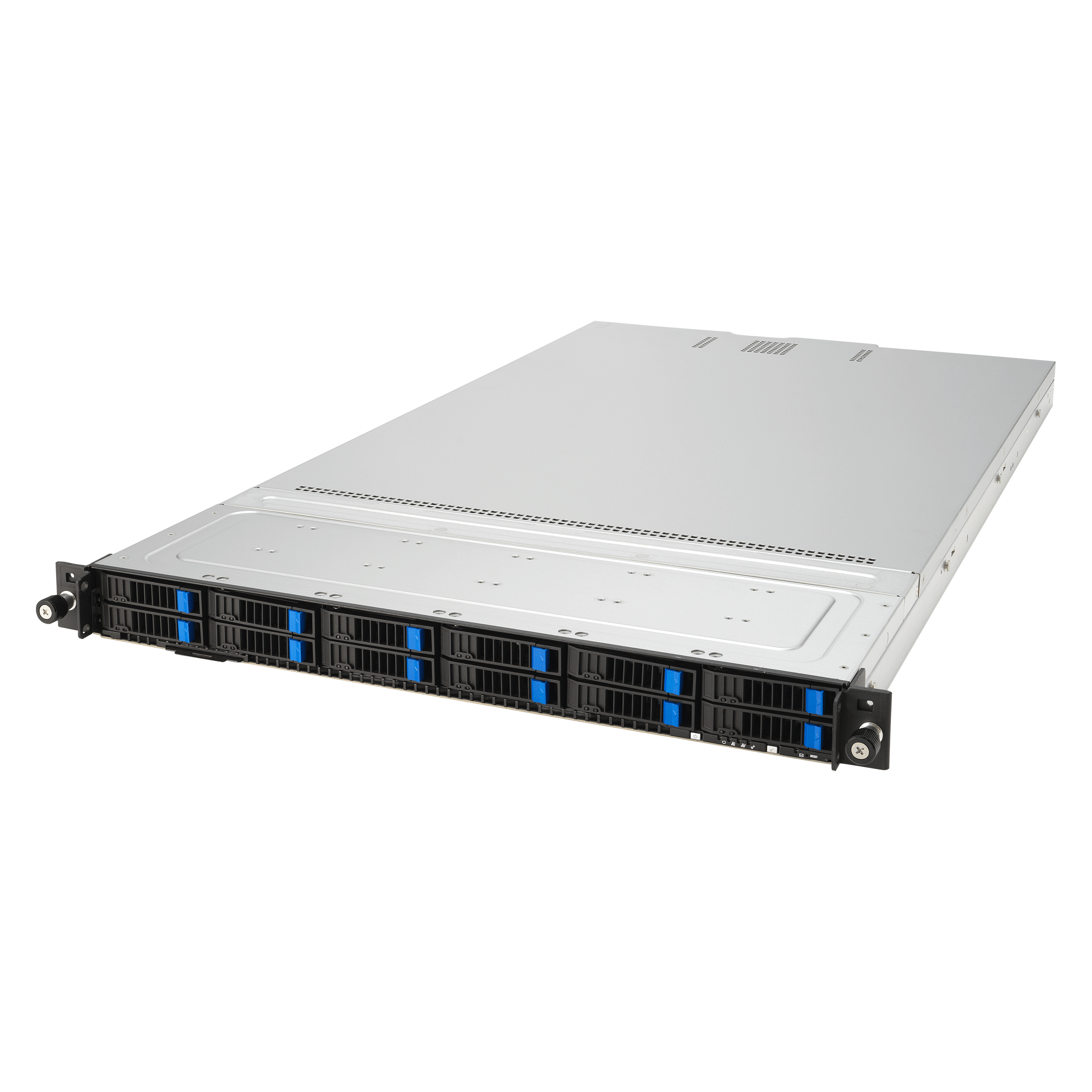

Chassis:

• Front Flex Bay 1U - 12 x 2.5" SATA/SAS/NVMe SSDs
• 2x NVMe M.2

Processor types:

• 2 x AMD EPYC 9004 Genoa CPUs
  Generation
• Up to 128 Cores per Processor
• Up to 400W TDP per processor
• Socket: SP5 LGA-6096

Memory RAM types:

• 24 Slots, 12 channels per CPU
• 12 channels 1 slots per channel per CPU
• Max configuration: 3TB DDR5 4800 MT/s
  24 x 128GB ECC Registered

Storage Options

• NVMe M.2: 4TB
• SAS SSDs: 15.36TB @ 12GB/s
• SATA SSD: 30.72B @ 6GB/s
• NVMe U.2: 15.36TB
• NVMe U.3: 15.36TB

GPU Options:

• Up to 2 single-slot GPU cards
• Up to 1 double-slot GPU cards

Operating Systems:

• Windows Server 2019
• Windows Server 2022
• Ubuntu 22.04 LTS
• ESXi 8.0
• CentOS 7.9/8.4
• RHEL 9.x

Power Supplies:

• 1+1 Redundant 1600W 80 PLUS Titanium
• 1+1 Redundant 2600W 80 PLUS Titanium
• 1+1 Redundant 1600W 80 PLUS Platinum
• 1+1 Redundant 2000W 80 PLUS Platinum

Storage Controllers RAID Options:

• Broadcom Mega RAID 9560-16i
• Broadcom MegaRAID 9540-8i
• Broadcom HBA CARD 9500-16i
• ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
• Graid Technology GPU cards

Security:

• Trusted Platform Module
• PFR Module

Network Interface Card Options (NICs)

• 1 x Intel I350-AM4 Quad Port
• 1 x Intel X710-AT2 Dual Port
• 1 x Management LAN Port

Expansion Slots:

• 1x PCIe x16 Gen5 Full Height
• 1x PCIe x16 Gen5 Full Height or OCP3.0
• 1x PCIe x16 Gen5 Low Profile
• 1x PCIe x8 Gen4 Low Profile
