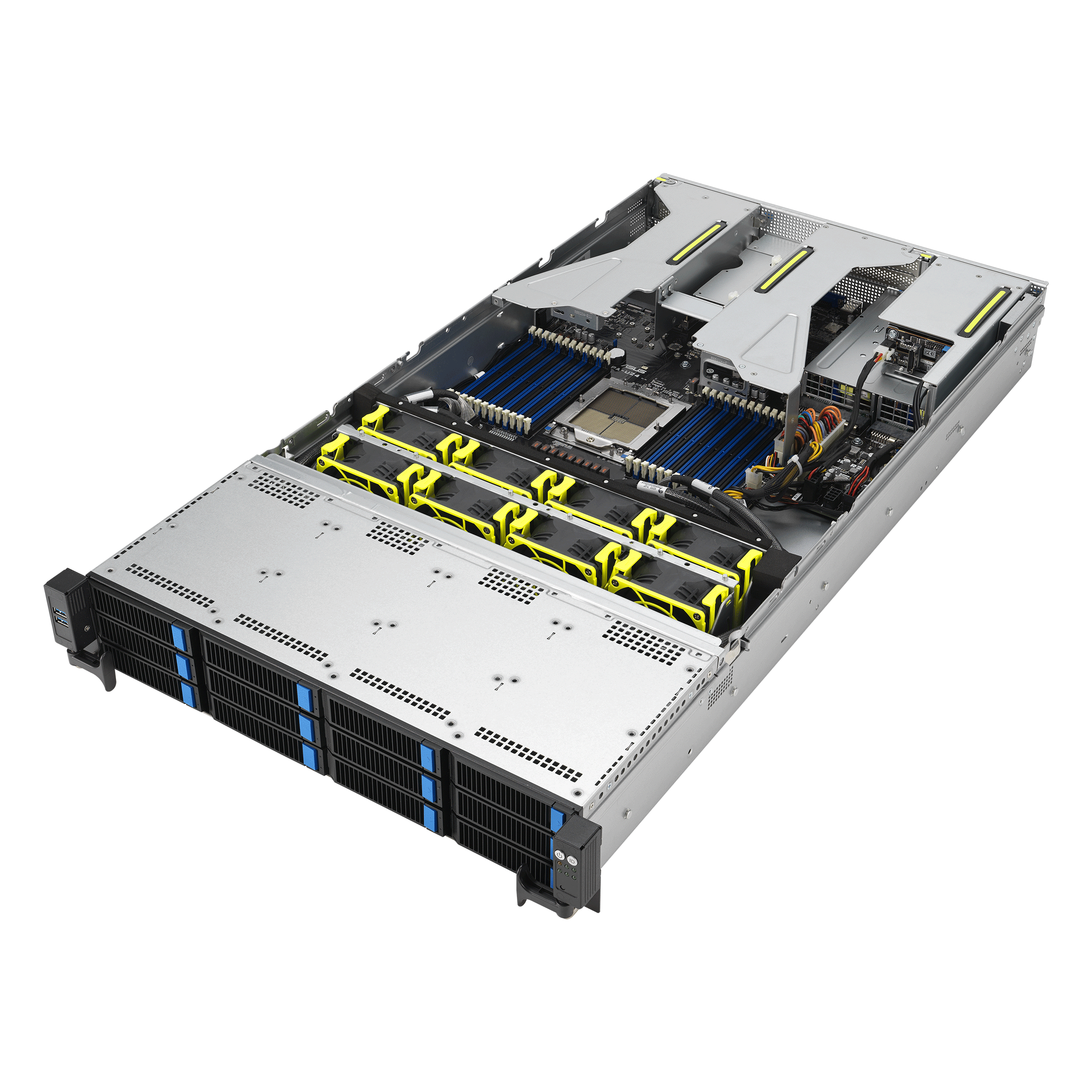

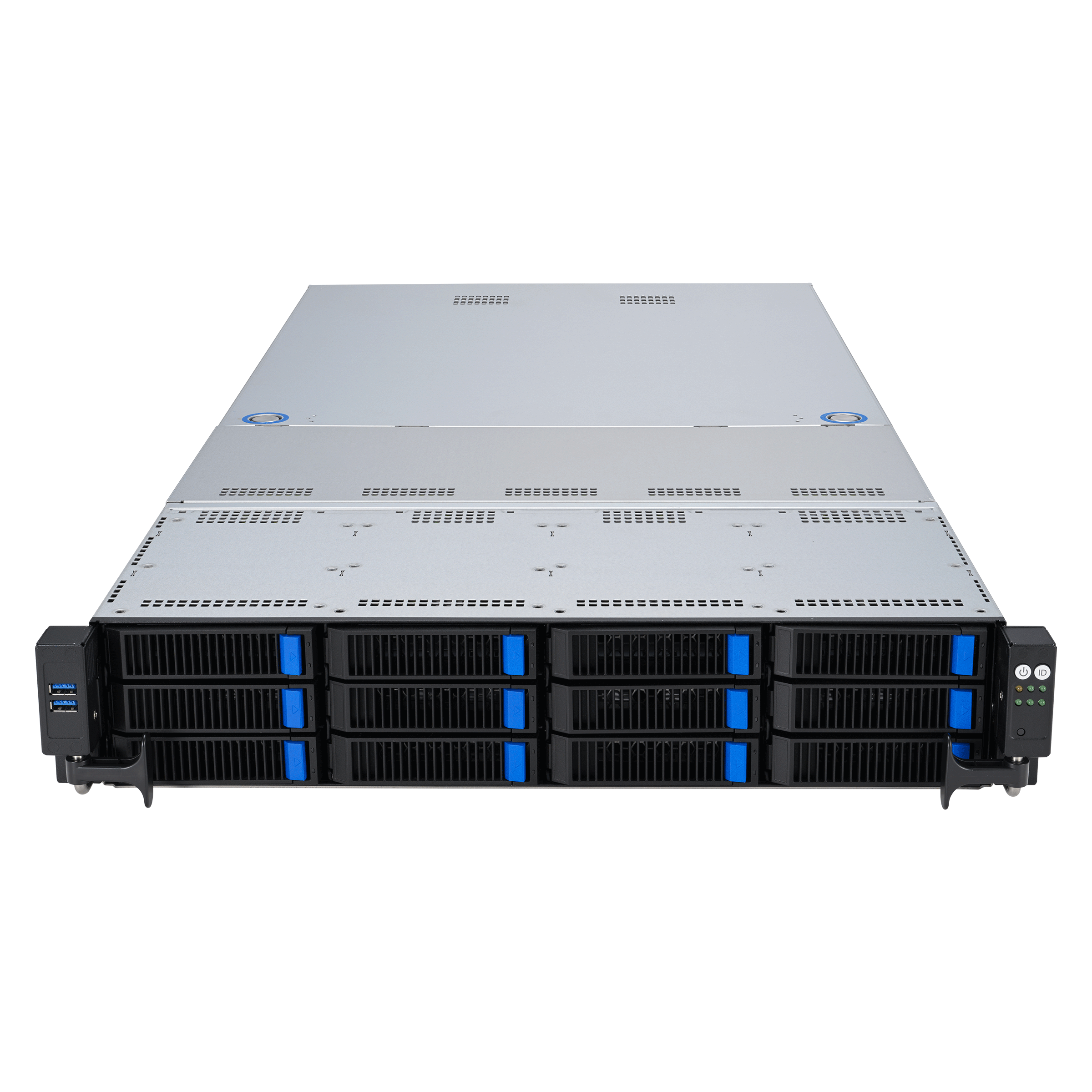

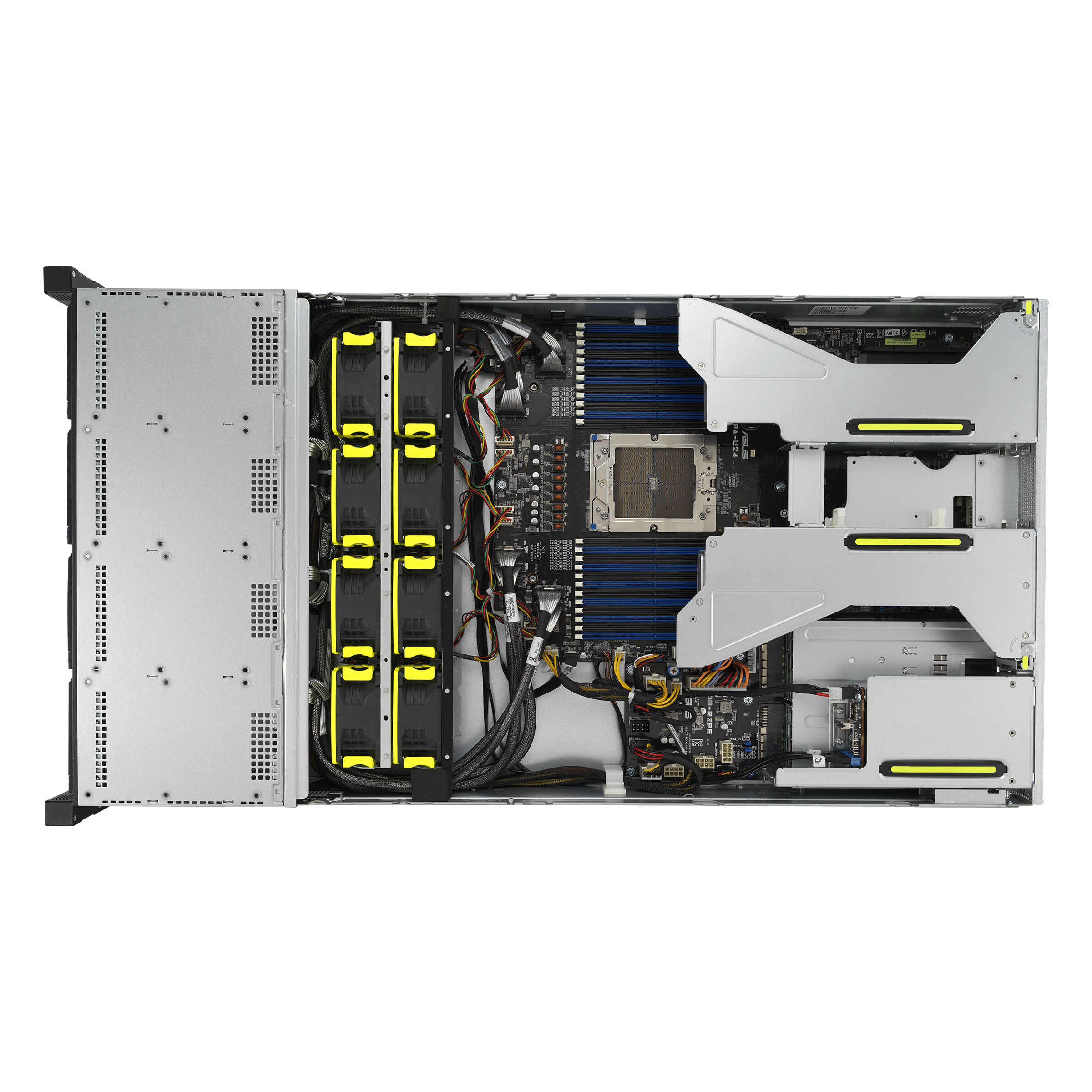

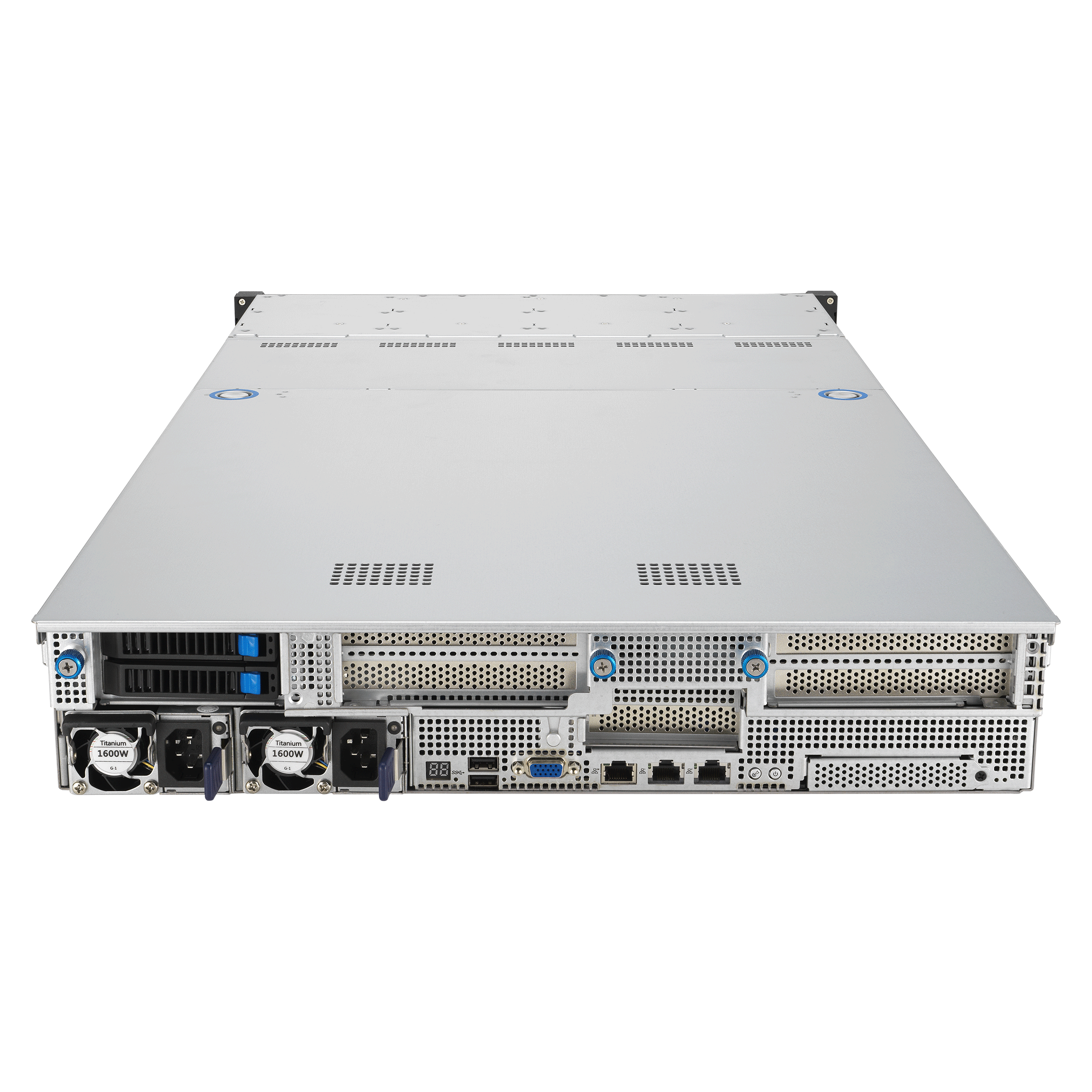

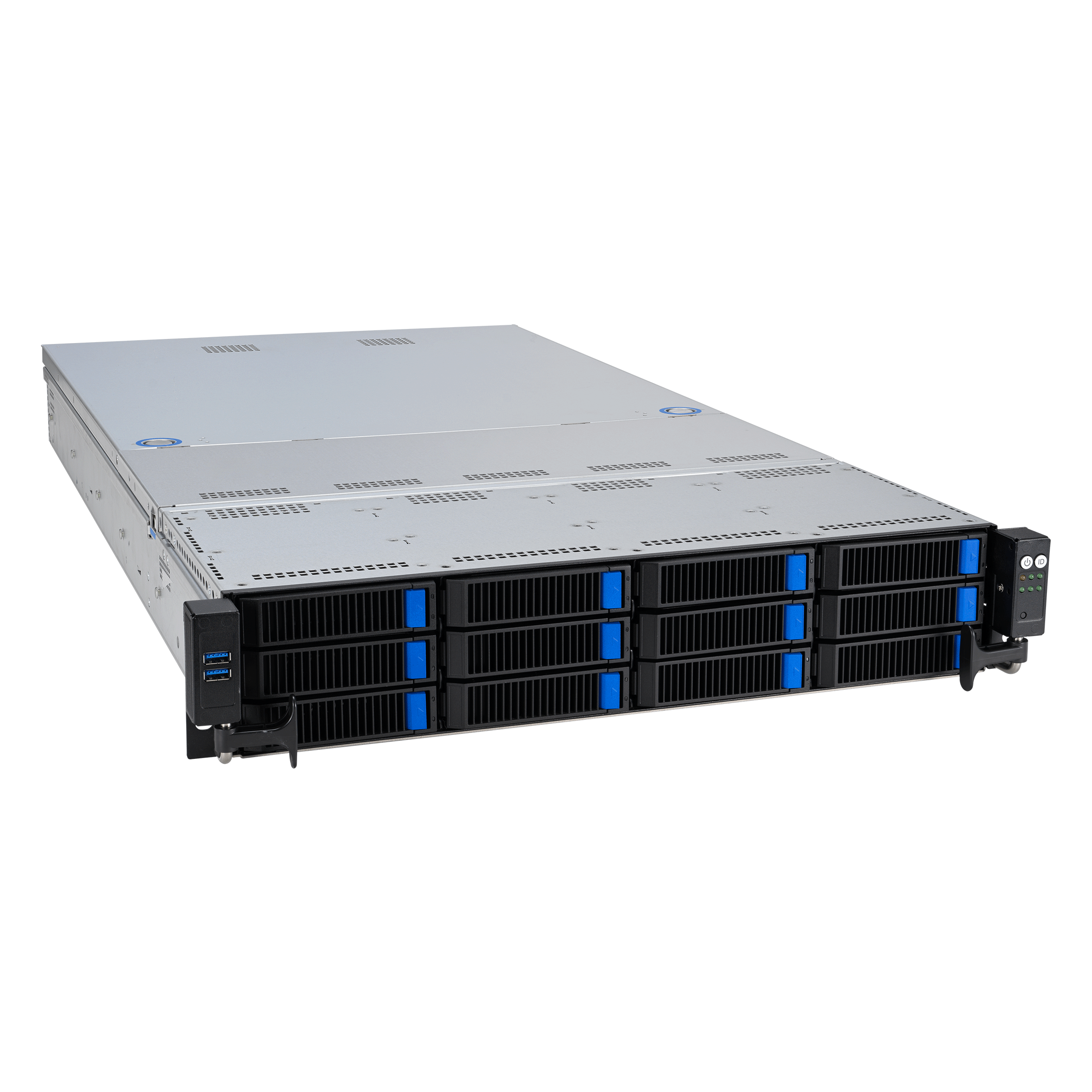

ASUS RS520A-E12-RS12U Server

Chassis:

• Front Flex Bay 2U - 12 x 3.5" SATA/SAS/NVMe SSDs
• Rear Bay: 2x 2.5" SATA hot-swap SSDs
  SAS support only from optional RAID
• 2x NVMe M.2

Processor types:

• 1 x AMD EPYC 9004 Genoa CPUs
  Generation
• Up to 128 Cores Processor
• Up to 400W TDP for processor
• Socket: SP5 LGA-6096

Memory RAM types:

• 24 Slots, 12 channels
• 12 channels 2 slots per channel
• Max configuration: 6TB DDR5 4800 MT/s
  24 x 256GB Load-Reduced 3DS or ECC Registered

Storage Options

• NVMe M.2: 4TB
• SAS SSDs: 15.36TB @ 12GB/s
• SATA SSD: 30.72B @ 6GB/s
• NVMe U.2: 15.36TB
• NVMe U.3: 15.36TB

GPU Options:

• Up to 4 single-slot GPU cards
• Up to 2 double-slot GPU cards

Operating Systems:

• Windows Server 2019
• Windows Server 2022
• Ubuntu 22.04 LTS
• ESXi 8.0
• RHEL 8.x
• RHEL 9.x

Power Supplies:

• 1+1 Redundant 1600W 80 PLUS Titanium
• 1+1 Redundant 1600W 80 PLUS Platinum
• 1+1 Redundant 1200W 80 PLUS Platinum

Storage Controllers RAID Options:

• Broadcom Mega RAID 9560-16i
• ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
• Graid Technology GPU cards

Security:

• Trusted Platform Module
• PFR Module

Network Interface Card Options (NICs)

• Integrated: Intel i350-AM2
  2x 1GbE RJ45 onboard LAN
• 1 x Management LAN Port

Expansion Slots:

• 2x PCIe x16 Gen5 Full Height
• 4x PCIe x8 Gen5 Full Height
• 1x PCIe x8 Gen5 Low Profile
• 1 x OCP3.0 Mezzanine Gen5 x16 link
