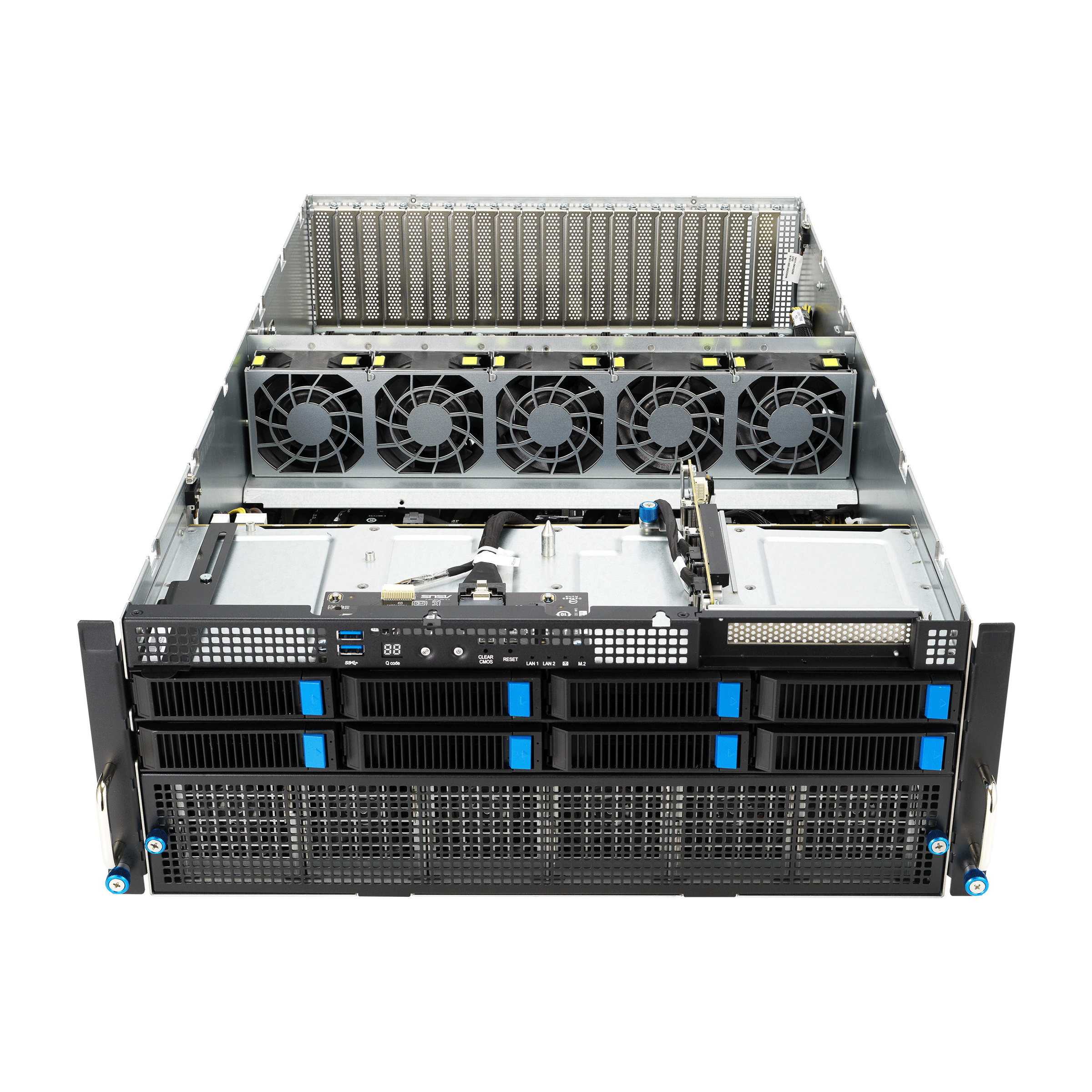

ASUS ESC8000A-E12 GPU Server
Introducing the new ASUS ESC8000A-E12 GPU Server
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the ASUS ESC8000A-E12 GPU Server delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the ASUS ESC8000A-E12 GPU Server email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 4U Rackmount
- 8x 2.5" Hot-swap SATA/SAS/NVMe *SAS Requires RAID controller
- 2x M.2 NVMe PCIe Gen3
Processor types:
- Dual Socket LGA6069
AMD EPYC 9004
Memory RAM types:
- ECC Registered Memory, up to Max 6TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 6TB (24x256GB)
- Memory Speeds: 4400MT/s to 4800MT/
Storage Options
- NVMe PCIe Gen5.0 : 30.72TB @ 32GT/s
- SATA : 30.72TB @ 6GB/s
- SAS : 30.72TB @ 12GB/s
- SAS : 30.72TB @ 24GB/s
- * SAS Drives require RAID controller
GPU Options:
- *8x PCIe Gen5 x16 FH/FL dual-slot GPU Cards
- NVIDIA NVLINK Bridge A100
- NVIDIA RTX 4090
- NVIDIA RTX 5090
- NVIDIA RTX PRO 6000 Blackwell
- NVIDIA RTX 6000 ADA
- NVIDIA RTX 5000 ADA 32GB
- NVIDIA RTX 4500 ADA 24GB
- NVIDIA RTX 4000 ADA 20GB
- NVIDIA A100 PCIe 80GB
- NVIDIA H100 PCIe 80GB
- NVIDIA A40 48GB
- NVIDIA A30 24GB
- NVIDIA A16 64GB
- NVIDIA L4 24GB
- NVIDIA L40 48GB
RAID Options:
- Broadcoe MegaRAID 9560-16i
- Broadcom MegaRAID 9540-8i
- ASUS PIKE II 3008 8-Port HBA Card
- ASUS PIKE II 3108 8-port HW RAID Card
Power Supply Options:
- 4x 2600W or 3000W Redundant (2+2) Titanium PSU
- 3x 3000W Redundant (2+1) Titanium PSU
Systems Management Solutions
- ASUS Control Center Enterprise
- ASMB11-iKVM for (out-of-band/BMC AST2600)
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Incorporated Intel X710-AT2
- Incorporated Intel I350-AM2
- Broadcom P1400G 400GbE
- Broadcom P2100G 100GbE
- Broadcom P225P 25GbE
- Broadcom P210TP 10GbE
- Intel E810-XXVDA2
- Intel E810-CQDA2
- NVIDIA Mellanox ConnectX-6 VPI 200GbE
- NVIDIA Mellanox ConnectX-6 DE 200GbE
- NVIDIA Mellanox ConnectX-6 Dx 100GbE
- NVIDIA Mellanox ConnectX-6 Lx 25GbE
- NVIDIA Mellanox ConnectX-7 100GbE
- NVIDIA Mellanox ConnectX-7 50GbE/25GbE
Expansion Slots:
- 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
- Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
- Rear:1 x PCIe slot (Gen5 x16 link) for NIC
- or Rear 1x OCP3.0 NIC PCIe Gen5 x16 link
Asus ESC8000A-E12 GPU Server Supported CPUs
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
| AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
| AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
| AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
| AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
| AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
| AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
| AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
| AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
| AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
| AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
| AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
| AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
| AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
| AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
| AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
| AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
| AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
| AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
