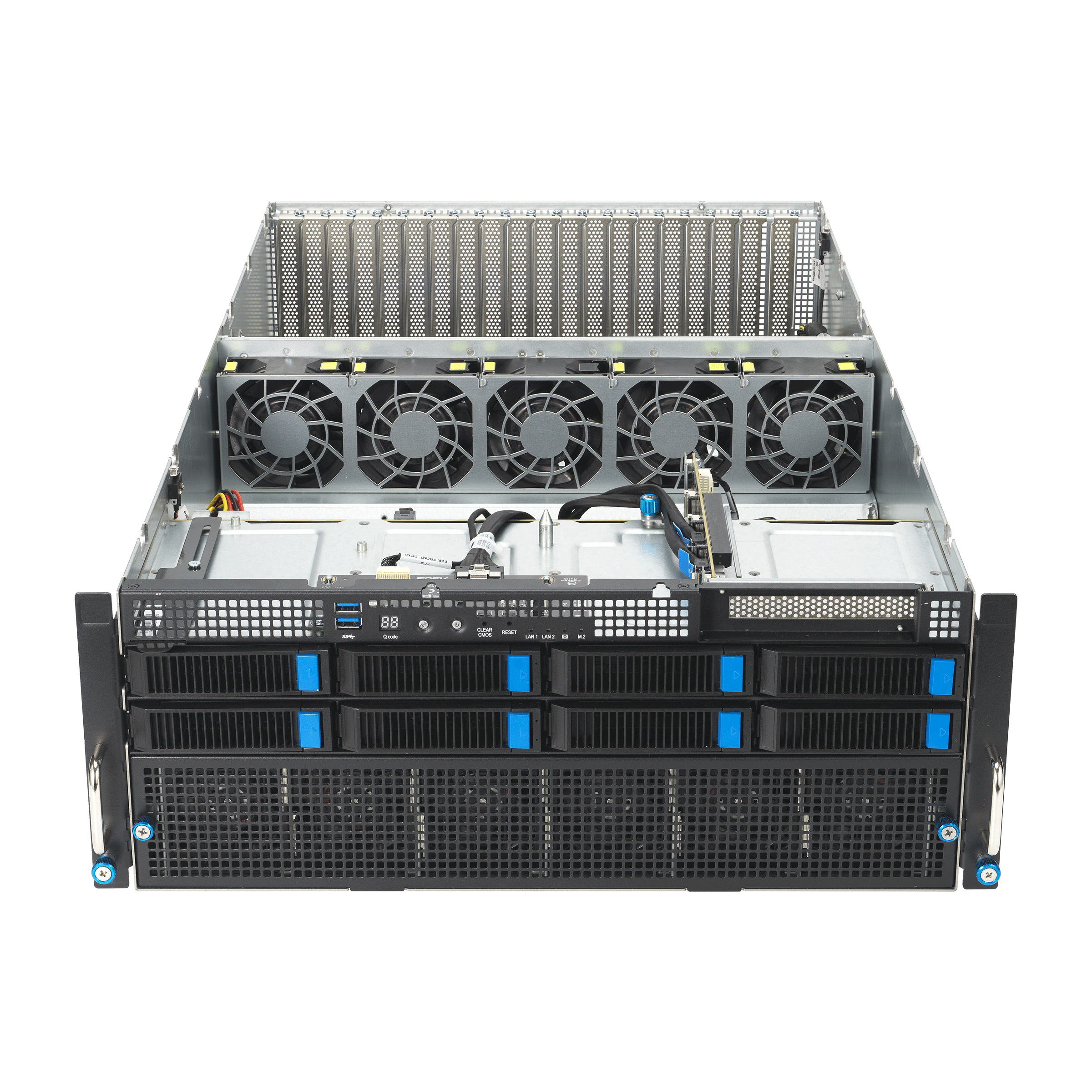

ASUS ESC8000-E11 GPU Server
Introducing the new ASUS ESC8000-E11 GPU Server
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the ASUS ESC8000-E11 GPU Server delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the ASUS ESC8000-E11 GPU Server email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 4U Rackmount
- 8x 2.5" Hot-swap SATA/SAS/NVMe *SAS Requires RAID controller
- 1x M.2 NVMe PCIe Gen3
Processor types:
- Dual Socket LGA4677
Intel Xeon 4ht/5th Gen Scalable
Memory RAM types:
- ECC Registered Memory, up to Max 3TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB
- Max Configuration: 8TB (32x256GB)
- Memory Speeds: 4400MT/s to 5600MT/
Storage Options
- NVMe PCIe Gen5.0 : 30.72TB @ 32GT/s
- SATA : 30.72TB @ 6GB/s
- SAS : 30.72TB @ 12GB/s
- SAS : 30.72TB @ 24GB/s
- * SAS Drives require RAID controller
GPU Options:
- 8x PCIe Gen5 x16 FH/FL dual-slot GPU Cards
- NVIDIA RTX 4090
- NVIDIA RTX 5090
- NVIDIA RTX PRO 6000 Blackwell
- NVIDIA RTX 6000 ADA
- NVIDIA RTX 5000 ADA 32GB
- NVIDIA RTX 4500 ADA 24GB
- NVIDIA RTX 4000 ADA 20GB
- NVIDIA H200 NVL 141GB
- NVIDIA H100 NVL 94GB
- NVIDIA L40S 48GB
RAID Options:
- Broadcoe MegaRAID 9560-16i
- Broadcom MegaRAID 9540-8i
- ASUS PIKE II 3008 8-Port HBA Card
- ASUS PIKE II 3108 8-port HW RAID Card
Power Supplies:
- 4x 2600W or 3000W Redundant (2+2) Titanium PSU
- 3x 3000W Redundant (2+1) Titanium PSU
Systems Management Solutions
- ASUS Control Center Enterprise
- ASMB11-iKVM for (out-of-band/BMC AST2600)
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Incorporated Intel X710-AT2
- Incorporated Intel I350-AM2
- Broadcom P1400G 400GbE
- Broadcom P2100G 100GbE
- Broadcom P225P 25GbE
- Broadcom P210TP 10GbE
- Intel E810-XXVDA2
- Intel E810-CQDA2
- NVIDIA Mellanox ConnectX-6 VPI 200GbE
- NVIDIA Mellanox ConnectX-6 Dx 100GbE
- NVIDIA Mellanox ConnectX-6 Lx 25GbE
- NVIDIA Mellanox ConnectX-7 100GbE
- NVIDIA Mellanox ConnectX-7 50GbE/25GbE
Expansion Slots:
- 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
- Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
- Rear:1 x PCIe slot (Gen5 x16 link) for NIC
- or Rear 1x OCP3.0 NIC PCIe Gen5 x16 link
ASUS ESC8000-E11 GPU Server Supported CPUs
| Intel Xeon 4th Gen Scalable | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon Bronze 3408U | 8C/8T | 1.80GHz | 1.90GHz |
| Intel Xeon Silver 4410T | 10C/20T | 2.70GHz | 4.00GHz |
| Intel Xeon Silver 4410Y | 12C/24T | 2.00GHz | 3.90GHz |
| Intel Xeon Silver 4416+ | 20C/40T | 2.00GHz | 3.90GHz |
| Intel Xeon Gold 5403N | 12C/24T | 2.00GHz | 3.90GHz |
| Intel Xeon Gold 5411N | 24C/48T | 1.90GHz | 3.90GHz |
| Intel Xeon Gold 5412U | 24C/48T | 2.10GHz | 3.90GHz |
| Intel Xeon Gold 5415+ | 8C/16T | 2.90GHz | 4.10GHz |
| Intel Xeon Gold 5416S | 16C/32T | 2.00GHz | 4.00GHz |
| Intel Xeon Gold 5418N | 24C/48T | 1.80GHz | 3.80GHz |
| Intel Xeon Gold 5418Y | 24C/48T | 2.00GHz | 3.80GHz |
| Intel Xeon Gold 5420+ | 28C/56T | 2.00GHz | 4.10GHz |
| Intel Xeon Gold 5423N | 20C/40T | 2.10GHz | 4.10GHz |
| Intel Xeon Gold 5433N | 20C/40T | 2.10GHz | 4.10GHz |
| Intel Xeon Gold 6403N | 24C/48T | 1.90GHz | 3.960GHz |
| Intel Xeon Gold 6414U | 32C/64T | 2.00GHz | 3.40GHz |
| Intel Xeon Gold 6416H | 18C/36T | 2.20GHz | 4.20GHz |
| Intel Xeon Gold 6418H | 24C/48T | 2.10GHz | 4.00GHz |
| Intel Xeon Gold 6421N | 32C/64T | 1.80GHz | 3.60GHz |
| Intel Xeon Gold 6423N | 28C/56T | 2.00GHz | 3.60GHz |
| Intel Xeon Gold 6426Y | 16C/32T | 2.50GHz | 4.10GHz |
| Intel Xeon Gold 6428N | 32C/64T | 1.80GHz | 3.80GHz |
| Intel Xeon Gold 6430 | 32C/64T | 2.10GHz | 3.40GHz |
| Intel Xeon Gold 6433N | 32C/64T | 2.00GHz | 3.60GHz |
| Intel Xeon Gold 6433NE | 32C/64T | 2.00GHz | 3.60GHz |
| Intel Xeon Gold 6434 | 8C/16T | 3.70GHz | 4.10GHz |
| Intel Xeon Gold 6434H | 8C/16T | 3.70GHz | 4.10GHz |
| Intel Xeon Gold 6438M | 32C/64T | 2.20GHz | 3.90GHz |
| Intel Xeon Gold 6438N | 32C/64T | 2.00GHz | 3.60GHz |
| Intel Xeon Gold 6438Y+ | 32C/64T | 2.00GHz | 4.00GHz |
| Intel Xeon Gold 6442Y | 24C/48T | 2.60GHz | 4.00GHz |
| Intel Xeon Gold 6443N | 32C/64T | 2.00GHz | 3.60GHz |
| Intel Xeon Gold 6444Y | 16C/32T | 3.60GHz | 4.00GHz |
| Intel Xeon Gold 6448H | 32C/64T | 2.40GHz | 4.10GHz |
| Intel Xeon Gold 6448Y | 32C/64T | 2.10GHz | 3.40GHz |
| Intel Xeon Gold 6454S | 32C/64T | 2.20GHz | 3.40GHz |
| Intel Xeon Gold 6458Q | 32C/64T | 3.10GHz | 4.00GHz |
| Intel Xeon Platinum 8444H | 16C/32T | 2.90GHz | 4.00GHz |
| Intel Xeon Platinum 8450H | 28C/56T | 2.00GHz | 3.50GHz |
| Intel Xeon Platinum 8452Y | 36C/72T | 2.00GHz | 3.20GHz |
| Intel Xeon Platinum 8454H | 32C/64T | 2.10GHz | 3.40GHz |
| Intel Xeon Platinum 8458P | 44C/88T | 2.70GHz | 3.80GHz |
| Intel Xeon Platinum 8460H | 40C/80T | 2.20GHz | 3.80GHz |
| Intel Xeon Platinum 8460Y+ | 40C/80T | 2.00GHz | 3.70GHz |
| Intel Xeon Platinum 8461V | 48C/96T | 2.20GHz | 3.70GHz |
| Intel Xeon Platinum 8462Y+ | 32C/64T | 2.80GHz | 4.10GHz |
| Intel Xeon Platinum 8468 | 48C/96T | 2.10GHz | 3.80GHz |
| Intel Xeon Platinum 8468H | 48C/96T | 2.10GHz | 3.80GHz |
| Intel Xeon Platinum 8468V | 48C/96T | 2.40GHz | 3.80GHz |
| Intel Xeon Platinum 8470 | 52C/104T | 2.00GHz | 3.80GHz |
| Intel Xeon Platinum 8470N | 52C/104T | 1.70GHz | 3.60GHz |
| Intel Xeon Platinum 8470Q | 52C/104T | 2.10GHz | 3.80GHz |
| Intel Xeon Platinum 8471N | 52C/104T | 1.80GHz | 3.60GHz |
| Intel Xeon Platinum 8480+ | 56C/112T | 2.00GHz | 3.80GHz |
| Intel Xeon Platinum 8490H | 60C/120T | 1.90GHz | 3.50GHz |
| Intel Xeon 5th Gen Scalable | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon Bronze 3508U | 8C/8T | 2.10GHz | 2.20GHz |
| Intel Xeon Silver 4509Y | 8C/16T | 2.60GHz | 4.10GHz |
| Intel Xeon Silver 4510 | 12C/24T | 2.40GHz | 4.10GHz |
| Intel Xeon Silver 4510T | 12C/24T | 2.00GHz | 3.70GHz |
| Intel Xeon Silver 4514Y | 16C/32T | 2.00GHz | 3.40GHz |
| Intel Xeon Silver 4516Y+ | 24C/48T | 2.20GHz | 3.70GHz |
| Intel Xeon Gold 5512U | 28C/56T | 2.10GHz | 3.70GHz |
| Intel Xeon Gold 5515+ | 8C/16T | 3.20GHz | 4.10GHz |
| Intel Xeon Gold 5520+ | 28C/56T | 2.20GHz | 4.00GHz |
| Intel Xeon Gold 6526Y | 16C/32T | 2.80GHz | 3.90GHz |
| Intel Xeon Gold 6530 | 32C/64T | 2.10GHz | 4.00GHz |
| Intel Xeon Gold 6534 | 8C/16T | 3.90GHz | 4.20GHz |
| Intel Xeon Gold 6538N | 32C/64T | 2.10GHz | 4.10GHz |
| Intel Xeon Gold 6538Y+ | 32C/64T | 3.90GHz | 4.20GHz |
| Intel Xeon Gold 6542Y | 24C/48T | 2.90GHz | 4.10GHz |
| Intel Xeon Gold 6544Y | 16C/32T | 3.60GHz | 4.10GHz |
| Intel Xeon Gold 6548N | 32C/64T | 2.80GHz | 4.10GHz |
| Intel Xeon Gold 6548Y+ | 32C/64T | 2.50GHz | 4.10GHz |
| Intel Xeon Gold 6554S | 36C/72T | 2.20GHz | 4.00GHz |
| Intel Xeon Gold 6558Q | 32C/64T | 3.20GHz | 4.10GHz |
| Intel Xeon Platinum 8558 | 48C/96T | 2.10GHz | 4.00GHz |
| Intel Xeon Platinum 8558P | 48C/96T | 2.70GHz | 4.00GHz |
| Intel Xeon Platinum 8558U | 48C/96T | 2.00GHz | 4.00GHz |
| Intel Xeon Platinum 8562Y+ | 32C/64T | 2.80GHz | 4.10GHz |
| Intel Xeon Platinum 8568Y+ | 48C/96T | 2.30GHz | 4.00GHz |
| Intel Xeon Platinum 8570 | 56C/112T | 2.10GHz | 4.00GHz |
| Intel Xeon Platinum 8571N | 52C/104T | 2.40GHz | 4.00GHz |
| Intel Xeon Platinum 8580 | 60C/120T | 2.00GHz | 4.00GHz |
| Intel Xeon Platinum 8581V | 60C/120T | 2.00GHz | 3.90GHz |
| Intel Xeon Platinum 8592+ | 64C/128T | 1.90GHz | 3.90GHz |
| Intel Xeon Platinum 8592V | 64C/128T | 1.90GHz | 3.90GHz |
| Intel Xeon Platinum 8593Q | 64C/128T | 2.20GHz | 3.90GHz |
