ASRock 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA

SKU: 4-Bay-LFF-Hot-Swap-SATA

Chassis
Qty
Price
4 Bay LFF Hot-Swap SATA
1
$1,499.00
Price as configured
Regular price
Sold out
Sale price
$1,499.00
Unit price
per

Tech Specs

Chassis:

  • 1U Rackmount
  • 4 Bay LFF Hot-Swap SATA

Processor types:

  • One, Single Socket AM5 5nm architecture
    AMD Ryzen Zen4 7000 Series, housing up to 16 cores and 32 Threads

Memory RAM types:

  • Motherboard: B650
  • ECC Unbuffered Memory, up to Max 192GB DDR5
  • RAM Capacity: 8GB, 16GB, 32GB, 48GB
  • Max Configuration: 192GB (4x48GB)
  • Memory Speeds: 4800MT/s to 5200MT/s

Storage Options - 2.5' with 3.5" converter Drives

  • SATA SSD: 15.36TB @ 6GB/s
  • NVMe M.2: 4TB @ 16GB/s

Supported Operating Systems

  • Microsoft Windows 10 (64 bit)
  • Microsoft Windows 11 (64 bit)
  • RedHat Enterprise Linux Server 8.7 (64bit)
  • CentOs 8.5 ( 64 bit)
  • SUSE SLES 15.4(64 bit) / 15.2(64 bit)
  • UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)>
  • VMWare® ESXi 8.0 / 7.0 U3g

Power Supplies:

  • 2 x 450W

Systems Management Solutions

  • License key for enabling OOB BIOS management per node
  • BIOS Type: AMI 32MB SPI Flash EEPROM

Network Interface Card Options (NICs)

  • Integrated Intel i210 2x1GbE RJ45 + Broadcom BCM57416 2x10GbE RJ45
  • Dual-Port 10GbE SFP+ PCIe Card
  • Dual-Port 10GbE RJ45 PCIe Card

Expansion Slots:

  • 1 PCIe 5.0 x4 MLP slot(s)

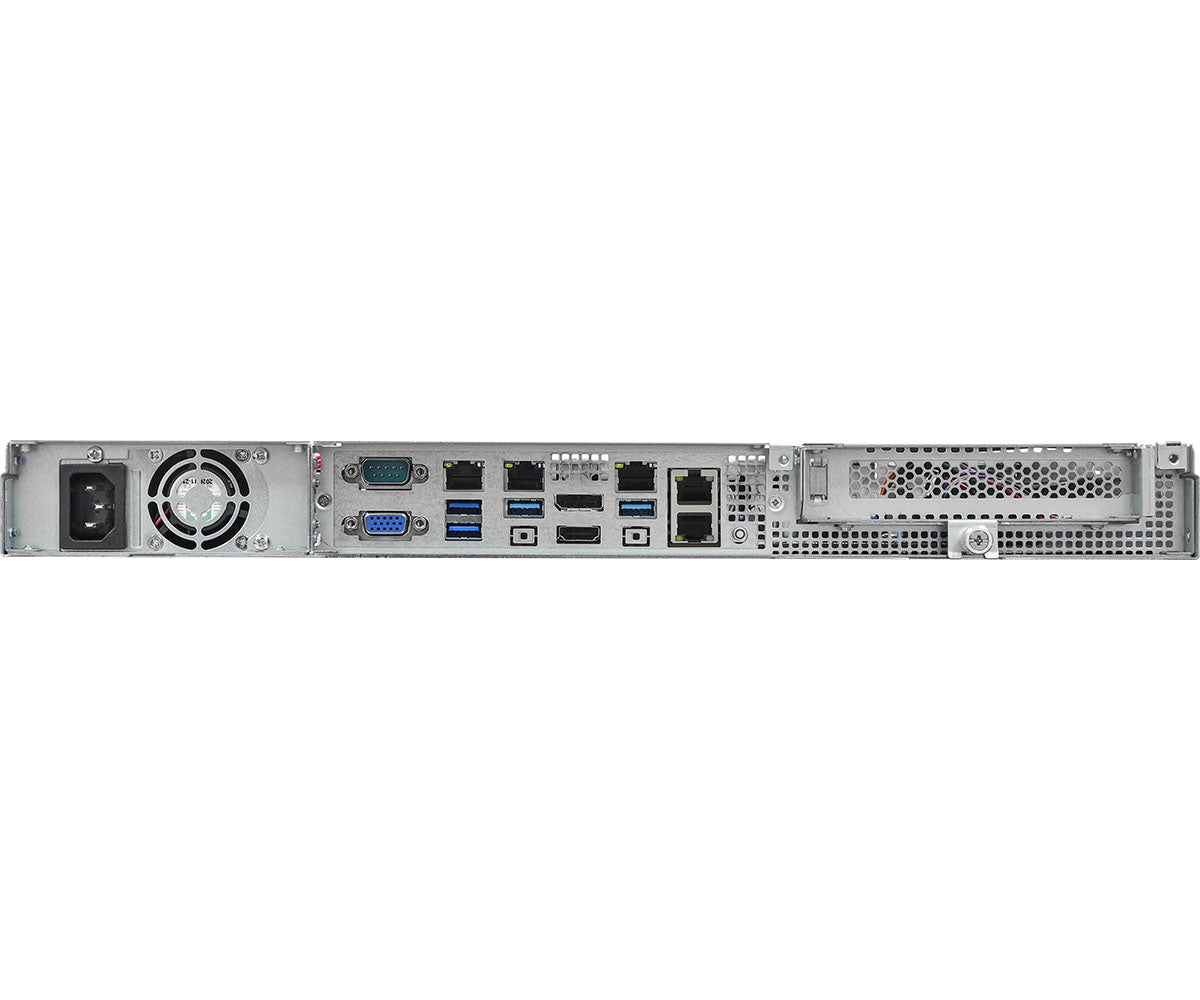

Rear I/O:

  • 1 UID button w/ LED
  • VGA Port :1 DB15 (VGA), 1 DisplayPort, 1 HDMI
  • USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI

PCIe Expansion Slots (SLOT7 close to CPU):

  • PCIe x 16 Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA Supported CPUs

CPU Cores/Threads Frequency Turbo Frequency
AMD Ryzen 5 7500F 6C/12T 3.7GHz 5.00GHz
AMD Ryzen 5 7600 6C/12T 3.80GHz 5.10GHz
AMD Ryzen 5 7600X 6C/12T 4.70GHz 5.30GHz
AMD Ryzen 5 PRO 7645 6C/12T 3.80GHz 5.10GHz
AMD Ryzen 7 7700 8C/16T 3.80GHz 5.30GHz
AMD Ryzen 7 7700X 8C/16T 4.50GHz 5.40GHz
AMD Ryzen 7 7800X3D 8C/16T 4.20GHz 5.00GHz
CPU Cores/Threads Frequency Turbo Frequency
AMD Ryzen 7 PRO 7745 8C/16T 3.80GHz 5.30GHz
AMD Ryzen 9 7900 12C/24T 3.70GHz 5.40GHz
AMD Ryzen 9 7900X 12C/24T 4.70GHz 5.60GHz
AMD Ryzen 9 7900X3D 12C/24T 4.40GHz 5.60GHz
AMD Ryzen 9 7950X 16C/32T 4.50GHz 5.70GHz
AMD Ryzen 9 7950X3D 16C/32T 4.20GHz 5.70GHz
AMD Ryzen 9 PRO 7945 12C/24T 3.70GHz 5.40GHz

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA System Overview

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA Technical Information and Documentation

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Tech Specs

Chassis:

  • 1U Rackmount
  • 4 Bay LFF Hot-Swap SATA

Processor types:

  • One, Single Socket AM5 5nm architecture
    AMD Ryzen Zen4 7000 Series, housing up to 16 cores and 32 Threads

Memory RAM types:

  • Motherboard: B650
  • ECC Unbuffered Memory, up to Max 192GB DDR5
  • RAM Capacity: 8GB, 16GB, 32GB, 48GB
  • Max Configuration: 192GB (4x48GB)
  • Memory Speeds: 4800MT/s to 5200MT/s

Storage Options - 2.5' with 3.5" converter Drives

  • SATA SSD: 15.36TB @ 6GB/s
  • NVMe M.2: 4TB @ 16GB/s

Supported Operating Systems

  • Microsoft Windows 10 (64 bit)
  • Microsoft Windows 11 (64 bit)
  • RedHat Enterprise Linux Server 8.7 (64bit)
  • CentOs 8.5 ( 64 bit)
  • SUSE SLES 15.4(64 bit) / 15.2(64 bit)
  • UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)>
  • VMWare® ESXi 8.0 / 7.0 U3g

Power Supplies:

  • 2 x 450W

Systems Management Solutions

  • License key for enabling OOB BIOS management per node
  • BIOS Type: AMI 32MB SPI Flash EEPROM

Network Interface Card Options (NICs)

  • Integrated Intel i210 2x1GbE RJ45 + Broadcom BCM57416 2x10GbE RJ45
  • Dual-Port 10GbE SFP+ PCIe Card
  • Dual-Port 10GbE RJ45 PCIe Card

Expansion Slots:

  • 1 PCIe 5.0 x4 MLP slot(s)

Rear I/O:

  • 1 UID button w/ LED
  • VGA Port :1 DB15 (VGA), 1 DisplayPort, 1 HDMI
  • USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI

PCIe Expansion Slots (SLOT7 close to CPU):

  • PCIe x 16 Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA Supported CPUs

CPU Cores/Threads Frequency Turbo Frequency
AMD Ryzen 5 7500F 6C/12T 3.7GHz 5.00GHz
AMD Ryzen 5 7600 6C/12T 3.80GHz 5.10GHz
AMD Ryzen 5 7600X 6C/12T 4.70GHz 5.30GHz
AMD Ryzen 5 PRO 7645 6C/12T 3.80GHz 5.10GHz
AMD Ryzen 7 7700 8C/16T 3.80GHz 5.30GHz
AMD Ryzen 7 7700X 8C/16T 4.50GHz 5.40GHz
AMD Ryzen 7 7800X3D 8C/16T 4.20GHz 5.00GHz
CPU Cores/Threads Frequency Turbo Frequency
AMD Ryzen 7 PRO 7745 8C/16T 3.80GHz 5.30GHz
AMD Ryzen 9 7900 12C/24T 3.70GHz 5.40GHz
AMD Ryzen 9 7900X 12C/24T 4.70GHz 5.60GHz
AMD Ryzen 9 7900X3D 12C/24T 4.40GHz 5.60GHz
AMD Ryzen 9 7950X 16C/32T 4.50GHz 5.70GHz
AMD Ryzen 9 7950X3D 16C/32T 4.20GHz 5.70GHz
AMD Ryzen 9 PRO 7945 12C/24T 3.70GHz 5.40GHz

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA System Overview

ASRock Rack 1U4LW-B650/2L2T RPSU 4 Bay LFF Hot-Swap SATA Technical Information and Documentation
