ASRock 1U4LW-B650/2L2T Server

Chassis:

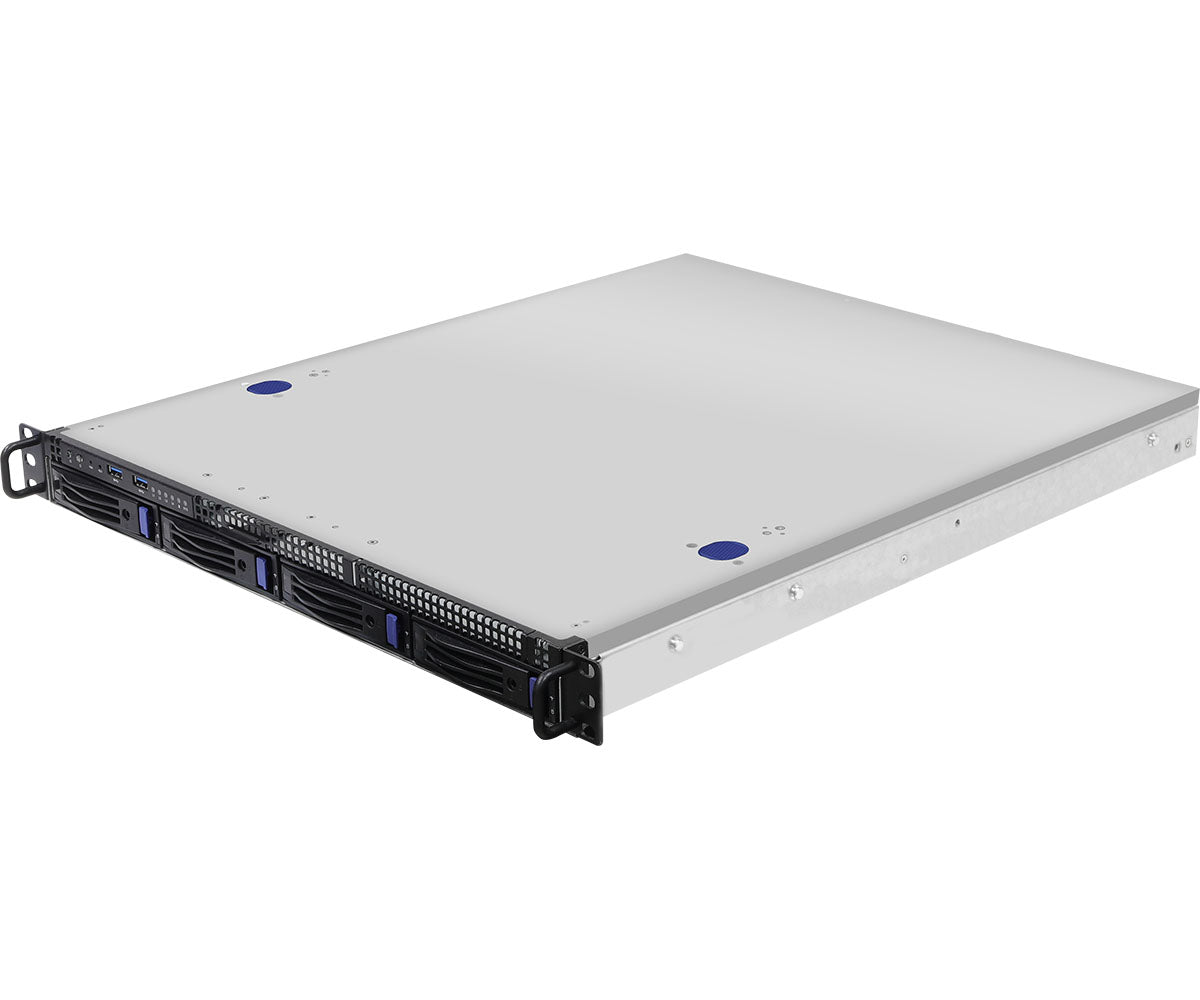

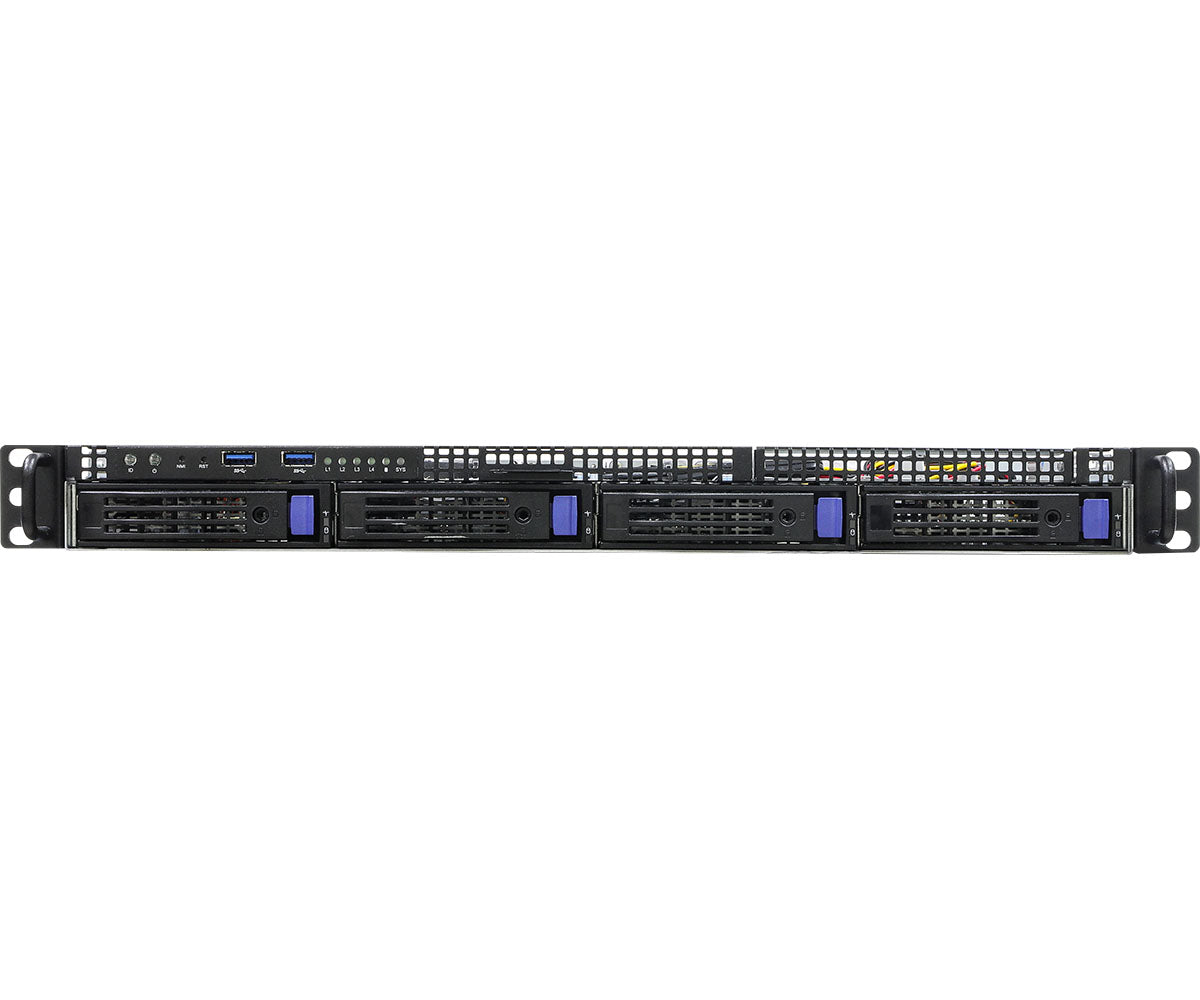

• 4 Bay LFF Hot-Swap SATA

Processor types:

• One, Single Socket AM5 5nm architecture
  AMD Ryzen Zen4 7000 & 9000 Series, housing up to 16 cores and 32 Threads
• Or One Single Socket AM5 5nm architecture
  AMD EPYC 4004 Series, housing up to 16 cores and 32 Threads

Memory RAM types:

• Motherboard: B650
• ECC Unbuffered Memory, up to Max 192GB DDR5
• RAM Capacity: 8GB, 16GB, 32GB, 48GB
• Max Configuration: 192GB (4x48GB)
• Memory Speeds: 4800MT/s to 5200MT/s

Storage Options - 2.5' with 3.5" converter Drives

• SATA SSD: 15.36TB @ 6GB/s
• NVMe M.2: 4TB @ 16GB/s

Supported Operating Systems

• Microsoft Windows 10 (64 bit)
• Microsoft Windows 11 (64 bit)
• RedHat Enterprise Linux Server 8.7 (64bit)
• CentOs 8.5 ( 64 bit)
• SUSE SLES 15.4(64 bit) / 15.2(64 bit)
• UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
• VMWare® ESXi 8.0 / 7.0 U3g

Power Supplies:

• 400W

Systems Management Solutions

• License key for enabling OOB BIOS management per node
• BIOS Type: AMI 32MB SPI Flash EEPROM

Network Interface Card Options (NICs)

• Integrated Intel i210 2x1GbE RJ45 + Broadcom BCM57416 2x10GbE RJ45
• Dual-Port 10GbE SFP+ PCIe Card
• Dual-Port 10GbE RJ45 PCIe Card

Expansion Slots:

• 1 PCIe 5.0 x4 MLP slot(s)

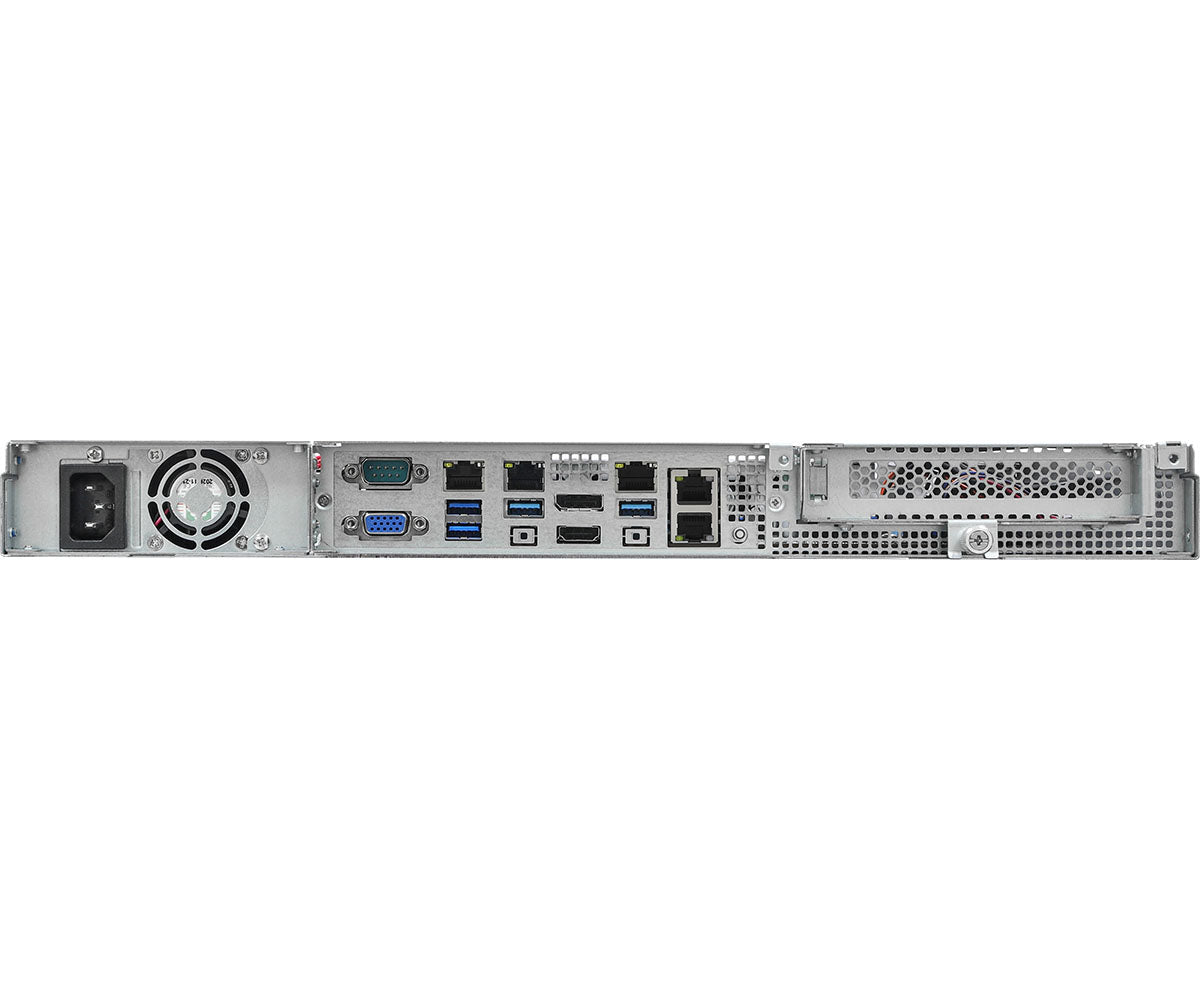

Rear I/O:

• 1 UID button w/ LED
• VGA Port :1 DB15 (VGA), 1 DisplayPort, 1 HDMI
• USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
• RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI

PCIe Expansion Slots (SLOT7 close to CPU):

• PCIe x 16 Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4
