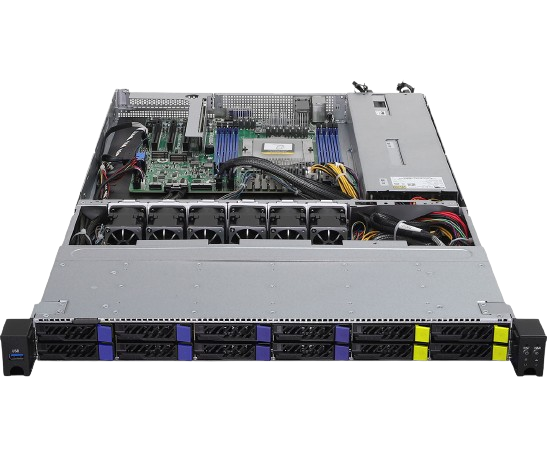

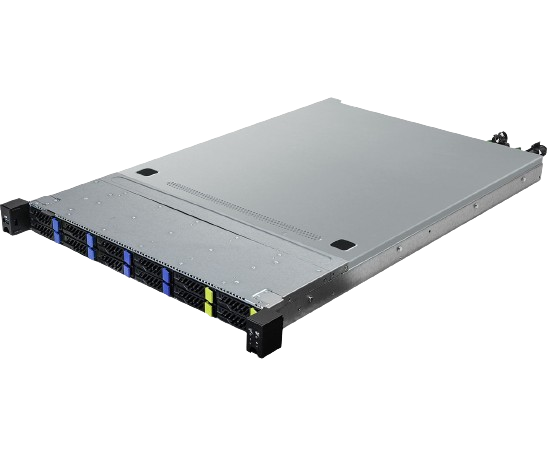

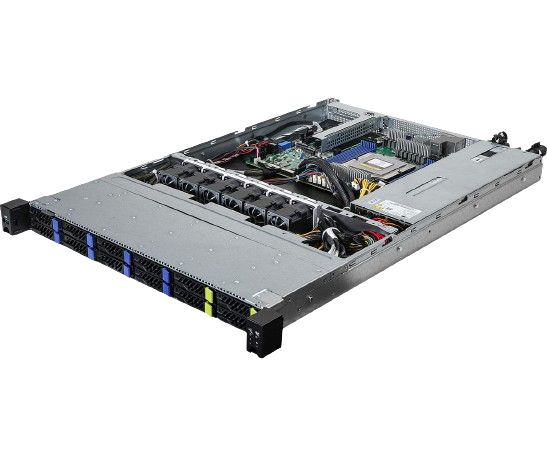

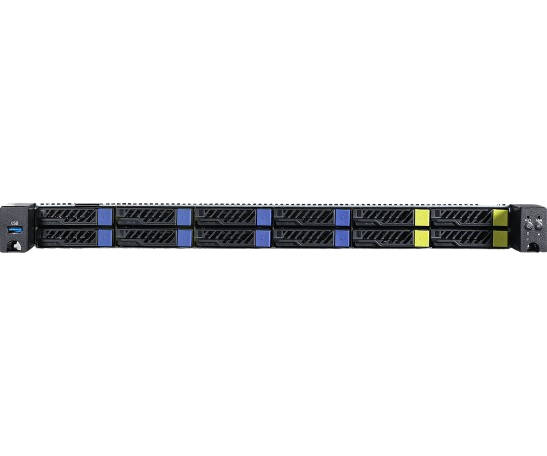

ASRock 1U8S4E-GENOA/2T 8-Bay SFF SATA + 4-Bay SFF NVMe 1U Server
SKU: ASRock-1U8S4EGENOA/2T
Tech Specs
Chassis:
- 4 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
- 8 hot-swap 2.5" SATA drive bays
- 12-port NVMe/SATA/SAS* passive backplane RAID/HBA cards and SAS cables needed to allow SAS drives
Processor types:
- One, Single Socket SP5 AM5 5nm architecture
AMD EPYC 9004 Series, housing up to 128 cores and 256 Threads - Up to 300W TDP
- LGA 6096 Socket
Memory RAM types:
- Motherboard: GENOAD8UD-2T/X550
- 8 modules of ECC Registered Memory, up to Max 2048GB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB
- Max Configuration: 2048GB (8x256GB)
- Memory Speeds: 4800MT/s
Storage Options - 2.5' with 3.5" converter Drives
- SATA SSD: 15.36TB @ 6GB/s
- NVMe SSD: 15.36TB
- NVMe M.2: 4TB
Supported Operating Systems
- Microsoft Windows Server 2019
- Microsoft Windows Server 2022
- RedHat Enterprise Linux Server 8.7 (64bit)
- RedHat Enterprise Linux Server
- SUSE SLES 15.4(64 bit) / 15.2(64 bit)
- Ubuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
- VMWare® ESXi 8.0 / 7.0 U3g
- CITRIX Hypervisor 8.2.1
Power Supplies:
- 1+1 Slim 80-PLUS Platinum 750W
Systems Management Solutions
- License key for enabling OOB BIOS management per node
- BIOS Type: AMI 32MB SPI Flash EEPROM
Network Interface Card Options (NICs)
- Intel® X550-AT2: 2 RJ45 (10GbE)
- 2x Dual-Port 10GbE RJ45 PCIe Card
Expansion Slots:
- 1x PCIe x 16
Rear I/O:
- 1 UID button w/ LED
- 2x USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
- RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
PCIe Expansion Slots (SLOT7 close to CPU):
- PCIe x 16 Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4
ASRock 1U4L4E-GENOA/2T 4-Bay SFF NVMe + 4-Bay LFF SATA Supported CPUs
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
ASRock 1U8S4E-GENOA/2T Technical Information and Documentation
Tech Specs
Chassis:
- 4 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
- 8 hot-swap 2.5" SATA drive bays
- 12-port NVMe/SATA/SAS* passive backplane RAID/HBA cards and SAS cables needed to allow SAS drives
Processor types:
- One, Single Socket SP5 AM5 5nm architecture
AMD EPYC 9004 Series, housing up to 128 cores and 256 Threads - Up to 300W TDP
- LGA 6096 Socket
Memory RAM types:
- Motherboard: GENOAD8UD-2T/X550
- 8 modules of ECC Registered Memory, up to Max 2048GB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB
- Max Configuration: 2048GB (8x256GB)
- Memory Speeds: 4800MT/s
Storage Options - 2.5' with 3.5" converter Drives
- SATA SSD: 15.36TB @ 6GB/s
- NVMe SSD: 15.36TB
- NVMe M.2: 4TB
Supported Operating Systems
- Microsoft Windows Server 2019
- Microsoft Windows Server 2022
- RedHat Enterprise Linux Server 8.7 (64bit)
- RedHat Enterprise Linux Server
- SUSE SLES 15.4(64 bit) / 15.2(64 bit)
- Ubuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
- VMWare® ESXi 8.0 / 7.0 U3g
- CITRIX Hypervisor 8.2.1
Power Supplies:
- 1+1 Slim 80-PLUS Platinum 750W
Systems Management Solutions
- License key for enabling OOB BIOS management per node
- BIOS Type: AMI 32MB SPI Flash EEPROM
Network Interface Card Options (NICs)
- Intel® X550-AT2: 2 RJ45 (10GbE)
- 2x Dual-Port 10GbE RJ45 PCIe Card
Expansion Slots:
- 1x PCIe x 16
Rear I/O:
- 1 UID button w/ LED
- 2x USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
- RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
PCIe Expansion Slots (SLOT7 close to CPU):
- PCIe x 16 Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4
ASRock 1U4L4E-GENOA/2T 4-Bay SFF NVMe + 4-Bay LFF SATA Supported CPUs
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9124 | 16C/32T | 3.00GHz | 3.70GHz |
AMD EPYC 9174F | 16C/32T | 4.10GHz | 4.40GHz |
AMD EPYC 9184X | 16C/32T | 3.55GHz | 4.10GHz |
AMD EPYC 9224 | 24C/48T | 2.50GHz | 3.70GHz |
AMD EPYC 9254 | 24C/48T | 2.96GHz | 4.15GHz |
AMD EPYC 9274F | 24C/48T | 4.05.10GHz | 4.30GHz |
AMD EPYC 9334 | 32C/64T | 2.70GHz | 3.90GHz |
AMD EPYC 9354 | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9354P | 32C/64T | 3.25GHz | 3.80GHz |
AMD EPYC 9374F | 32C/64T | 3.85GHz | 4.30GHz |
AMD EPYC 9384X | 32C/64T | 3.10GHz | 3.90GHz |
AMD EPYC 9454 | 48C/96T | 2.75GHz | 3.80GHz |
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 9454P | 48C/96T | 2.75GHz | 3.90GHz |
AMD EPYC 9474F | 48C/96T | 3.60GHz | 4.10GHz |
AMD EPYC 9534 | 64C/128T | 2.45GHz | 3.70GHz |
AMD EPYC 9554 | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9554P | 64C/128T | 3.10GHz | 3.75GHz |
AMD EPYC 9634 | 84C/168T | 2.25GHz | 3.70GHz |
AMD EPYC 9654 | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9654P | 96C/192T | 2.40GHz | 3.70GHz |
AMD EPYC 9684X | 96C/192T | 2.55GHz | 3.70GHz |
AMD EPYC 9734 | 112C/224T | 2.20GHz | 3.00GHz |
AMD EPYC 9754 | 128C/256T | 2.25GHz | 3.10GHz |
