Cloud Ninjas' HP ProLiant DL360 Gen9 Specifications
Chassis
The HP ProLiant DL360 Gen9 server is powerful, general-purpose server. This server is perfect for businesses of all sizes This 1U rackmount server has thress chassis options to choose from: 4 Bay LFF 8 Bay SFF and 10 Bay SFF.
4 Bay LFF
The 4 Bay LFF chassis for the HP ProLiant DL360 Gen9 can accept up to four 3.5" SAS/SATA drives. 2.5" hard drives and solid-state drives can be installed via a 2.5" to 3.5" drive converter. Drive bays for the DL360 are hot-swap, meaning that drives can be added or removed while the system is powered on. The rear of the 4 Bay LFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 4 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, one full-height PCIe 3.0 x16 slot, one low-profile PCIe 3.0 x8 slot, one low-profile PCIe 3.0 x16 slot, and two hot-swap power supply bays.

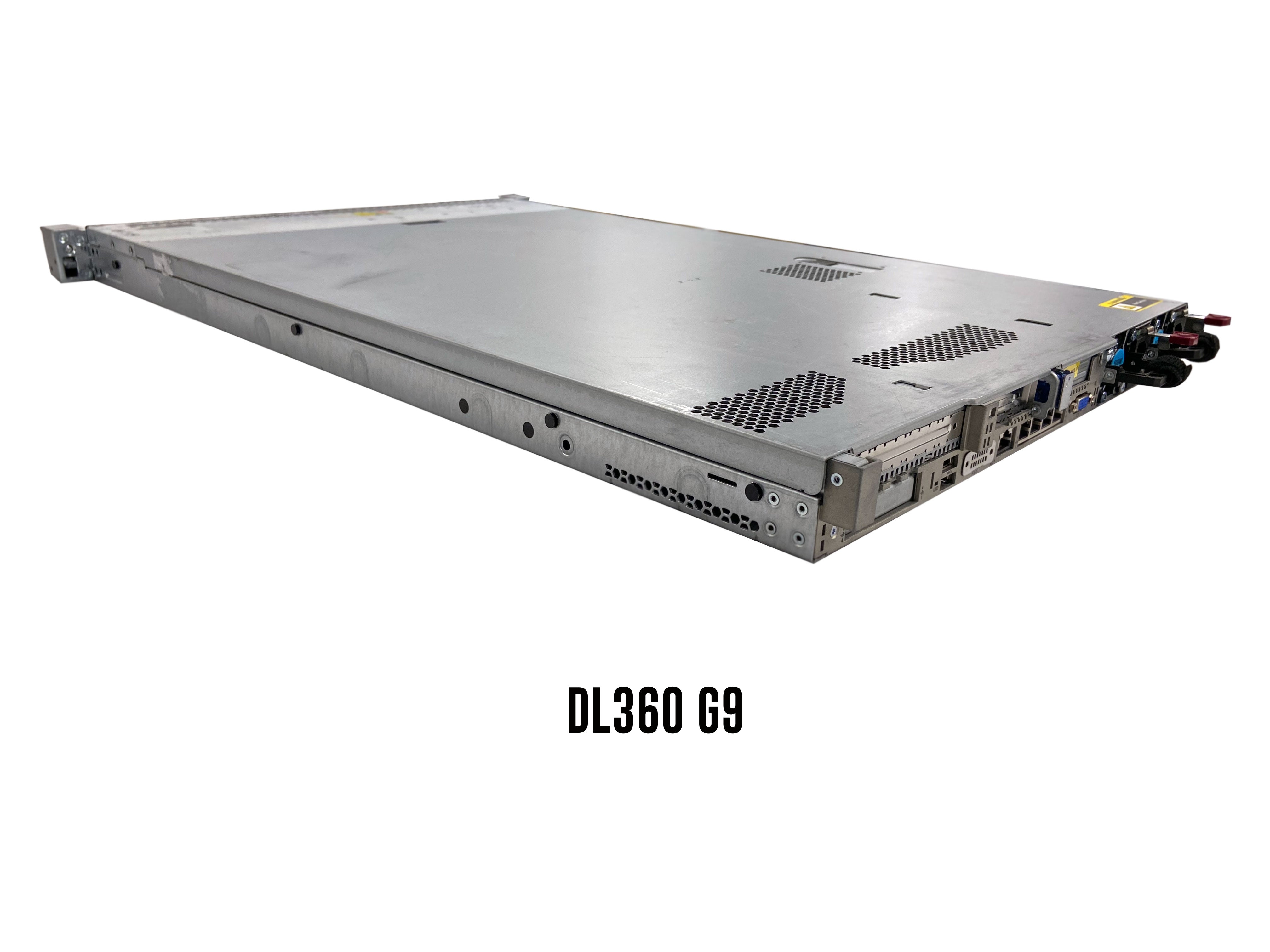

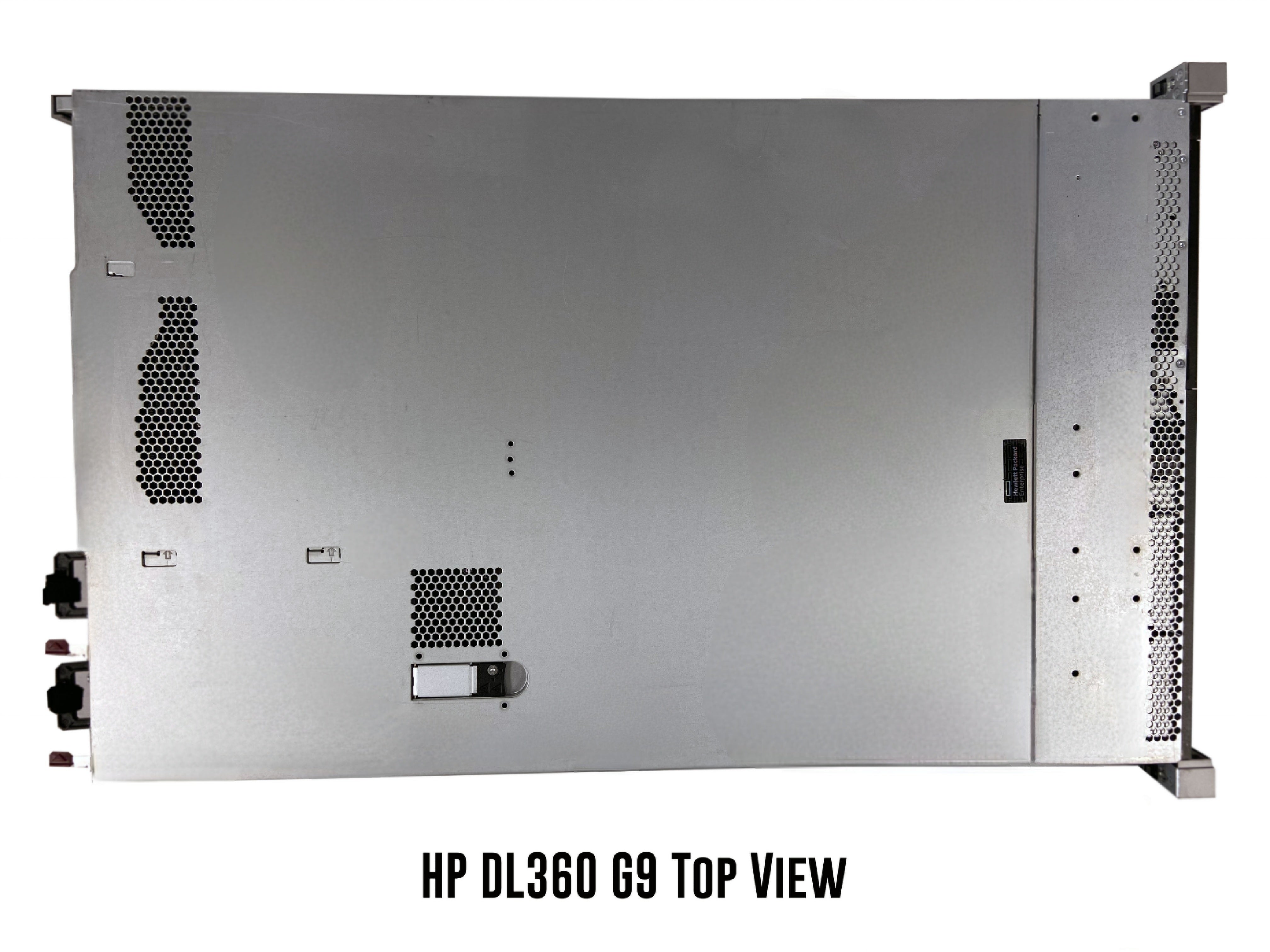

8 Bay SFF
The 8 Bay SFF chassis for the ProLiant DL360 Gen9 can accept up to eight 2.5" SAS/SATA hard drives and/or solid-state drives. Drive bays for the 8 Bay SFF chassis are hot-swap. The rear of the chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 4 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, one full-height PCIe 3.0 x16 slot, one low-profile PCIe 3.0 x8 slot, one low-profile PCIe 3.0 x16 slot, and two hot-swap power supply bays.
10 Bay SFF
The DL360 Gen9's 10 Bay SFF chassis supports up to ten 2.5" hard drives and/or solid-state drives. Six of the drive bays support NVMe drives while the other four support SAS/SATA drives. Drive bays 1-4 support SAS and SATA drives only. Drive bays 5-10 support PCIe-based NVMe drives only. Drive bays for the 10 Bay SFF chassis are hot-swap. The rear of the 10 Bay SFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 4 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, one full-height PCIe 3.0 x16 slot, one low-profile PCIe 3.0 x8 slot, one low-profile PCIe 3.0 x16 slot, and two hot-swap power supply bays.
Processing Power
The HP ProLiant DL360 Gen9 server supports up to two Intel Xeon E5-2600 v3 or E5-2600 v4 processors. Both CPU sockets are LGA2011-3 sockets. Up to 22 cores per processor are supported. That means that this system supports a max of 44 CPU cores. Intel Xeon 2600 v3 and v4 processor series have support for virtualization. In order to use a v4 processor, you may need to update your BIOS.
Intel Xeon E5-2600 v3 Series Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
E5-2603v3 | SR20A | 6 | 1.60 GHz |
E5-2608Lv3 | SR21P | 6 | 2.00 GHz |
E5-2609v3 | SR1YC | 6 | 1.90 GHz |
E5-2618Lv3 | SR200 | 8 | 2.30 GHz |
E5-2620v3 | SR207 | 6 | 2.40 GHz |
E5-2623v3 | SR208 | 4 | 3.00 GHz |
E5-2628Lv3 | SR1XZ | 10 | 2.00 GHz |
E5-2630v3 | SR206 | 8 | 2.40 GHz |
E5-2630Lv3 | SR209 | 8 | 1.80 GHz |
E5-2637v3 | SR202 | 4 | 3.50 GHz |
E5-2640v3 | SR205 | 8 | 2.60 GHz |
E5-2643v3 | SR204 | 6 | 3.40 GHz |
E5-2648Lv3 | SR1XW | 12 | 1.80 GHz |
E5-2650v3 | SR1YA | 10 | 2.30 GHz |
E5-2650Lv3 | SR1Y1 | 12 | 1.80 GHz |
E5-2658v3 | SR1XV | 12 | 2.20 GHz |
E5-2658Av3 | SR27T | 12 | 2.90 GHz |
E5-2660v3 | SR1XR | 10 | 3.30 GHz |
E5-2667v3 | SR203 | 8 | 3.20 GHz |
E5-2670v3 | SR1XS | 12 | 2.30 GHz |
E5-2680v3 | SR1XP | 12 | 2.50 GHz |
E5-2683v3 | SR1XH | 14 | 2.00 GHz |
E5-2690v3 | SR1XN | 12 | 2.60 GHz |
E5-2695v3 | SR1XG | 14 | 2.30 GHz |
E5-2697v3 | SR1XF | 14 | 2.60 GHz |
E5-2698v3 | SR1XE | 16 | 2.30 GHz |
E5-2699v3 | SR1XD | 18 | 2.30 GHz |
Intel Xeon E5-2600 v4 Series Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
E5-2603v4 | SR2P0 | 6 | 1.70 GHz |
E5-2608Lv4 | SR2P9 | 8 | 1.60 GHz |
E5-2609v4 | SR2P1 | 8 | 1.70 GHz |
E5-2618Lv4 | SR2PE | 10 | 2.20 GHz |
E5-2620v4 | SR2R6 | 8 | 2.10 GHz |
E5-2623v4 | SR2PJ | 4 | 2.60 GHz |
E5-2628Lv4 | SR2NC | 12 | 1.90 GHz |
E5-2630Lv4 | SR2P2 | 10 | 1.80 GHz |
E5-2630v4 | SR2R7 | 10 | 2.20 GHz |
E5-2637v4 | SR2P3 | 4 | 3.50 GHz |
E5-2640v4 | SR2NZ | 10 | 2.40 GHz |
E5-2643v4 | SR2P4 | 6 | 3.40 GHz |
E5-2648Lv4 | SR2ND | 14 | 1.80 GHz |
E5-2650Lv4 | SR2N8 | 14 | 1.70 GHz |
E5-2650v4 | SR2N3 | 12 | 2.20 GHz |
E5-2658v4 | SR2NB | 14 | 2.30 GHz |
E5-2660v4 | SR2N4 | 14 | 2.00 GHz |
E5-2667v4 | SR2P5 | 8 | 3.20 GHz |
E5-2680v4 | SR2N7 | 14 | 2.40 GHz |
E5-2683v4 | SR2JT | 16 | 2.10 GHz |
E5-2687Wv4 | SR2NA | 12 | 3.00 GHz |
E5-2690v4 | SR2N2 | 14 | 2.60 GHz |
E5-2695v4 | SR2J1 | 18 | 2.10 GHz |
E5-2697Av4 | SR2K1 | 16 | 2.60 GHz |
E5-2697v4 | SR2JV | 18 | 2.30 GHz |
E5-2698v4 | SR2JW | 20 | 2.20 GHz |
E5-2699v4 | SR2JS | 22 | 2.20 GHz |
E5-2699Rv4 | SR31X | 22 | 2.20 GHz |
E5-2699Av4 | SR30Y | 22 | 2.40 GHz |
Memory
DIMM slots & Memory Channels
The HP ProLiant DL360 Gen9 server is a DDR4 basd machine with 24 DIMM slots and 8 memory channels. Each channel consist of 3 DIMM slots.
Supported Memory Types
The DL360 Gen9 accepts both ECC Registered (RDIMM) and Load Reduced (LRDIMM) memory. It is important to not mixed together memory types. For example, if you are installing LRDIMMs into your server, do not install any RDIMMs. If you are installing RDIMMs, do not install any LRDIMMs. Mixing memory types can lead to issues such as boot failure.
Supported Memory Capacities
Modules capacities of 4GB, 8GB, 16GB, 32GB, 64GB, and 128GB. One thing to note is that 64GB and 128GB modules are only available as LRDIMMs. With LRDIMMs, you can achieve an overall greater RAM capacity when compared to RDIMMs.
Max Configurations
With ECC Registered, the max RAM you can achieve is 768GB via 24 x 32GB DDR4 modules. With Load Reduced memory, 3072GB (3TB) can be reach via a configuration of 24 x 128GB DDR4 modules.
Supported Memory Speeds
The HP DL360 G9 supports module speeds of 2133MT/s and 2400MT/s. 2666MT/s modules can be installed as well, but it will clock down to the fastest speed of the system. The fastest speed that memory modules will run at depends on the processor that is installed. If you install a module with a speed that is faster than the maximum supported speed of the processor, that module will clock down to the max speed. For example, if the installed processor supports a max speed of 2133MT/s and you install a 2400MT/s module, the module will operate at 2133MT/s. It is also not recommend to mix together modules with different speeds. With mixing module speeds, the system will still function properly, but all modules will clock down to the speed of the slowest module.
Storage
The DL360 G9 chassis that you have will determine what form factor and number of drives you can install. With the 4 Bay LFF chassis, you can install up to four 3.5" SAS/SATA hard drives. 2.5" SAS/SATA HDDs and/or SSDs can be install into the 4 Bay LFF chassis via a 2.5" to 3.5" drive adapter. The 8 Bay SFF chassis can accept up to eight 2.5" SAS/SATA hard drives and/or solid-state drives. Lastly, the 10 Bay SFF chassis can accept up to ten 2.5" hard drives or solid-state drives. Up to four SAS/SATA drives can be installed and up to six NVMe drives can be installed. Drive bays 1-4 accept only SAS and SATA drives. Drive bays 5-10 accept only NVMe drives. All three chassis for the DL360 Gen9 are hot-swap, meaning the drives can be added or removed while the server is powered on.
Supported Drives (2.5")
Type | Speeds | Max Capacity Per Drive |
---|---|---|
SAS | 7.2K, 10K, 15K | 2.4TB |
SATA | 7.2K | 2TB |
SSD (SAS & SATA) | 3GB/s, 6GB/s, 12GB/s | 15.36TB |
Supported Drives (3.5")
Type | Speeds | Max Capacity Per Drive |
---|---|---|
SAS | 7.2K, 15K | 10TB |
SATA | 7.2K | 14TB |
SSD (SAS & SATA) | 3GB/s, 6GB/s, 12GB/s | 7.68TB |
Power Supplies
Power Supplies Overview
There are power supply options for the DL360 Gen9: 500W Platinum, 800W Platinum, 800W Titanium, 800W Universal, 800W -48VDC, and 1400 Platinum. Each power supply option is hot-swap, which means that PSUs can be added or removed from the server while it is running, as long as one power supply remains plugged in. There two power supply bays on the rear of each chassis option. If you install two power supplies, the wattages and voltages of the units must be matching. All power supply options for the DL360 Gen9 are great options, but the one that is best for you depends on your application. For low end applications, 500W power supplies are a grea option. For higher end applications, 800W or 1400W will work just fine.
RAID Options
The HP ProLiant DL360 Gen9 has support for Mini Monolithic and PCIe RAID controllers. Mini mono RAID controllers have a dedicated spot of the motherboard that the card is installed. PCIe RAID controllers will take up one of your PCIe slots, but this is not an issue with the DL360 Gen9, since there is 7 total PCIe slots.
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
Smart Array B140i Software | 0, 1, 5, 10 | None | 6 Gb/s SATA | N/A | Software |
Smart Array H240ar | Passthrough | None | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array H240 | Passthrough | None | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array H241 | Passthrough | None | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array P440ar | 0, 1, 5, 6, 10, 10 ADM, 50, 60 | 2GB FBWC | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array P440 | 0, 1, 5, 6, 10, 10 ADM, 50, 60 | 4GB FBWC | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array P840ar | 0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60 | 2GB FBWC | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Smart Array P840 | 0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60 | 4GB FBWC | 6Gb/s SATA 12Gb/s SAS |
PCIe 3.0 | Hardware |
Network Interface Card Options
The HP DL360 Gen9 server has four 1GbE RJ45 port integrated into the motherboard. There is also a dedidicated FlexibleLom (FLOM) slot in the rear of the system. This FLOM slot allow you to install cards with up to four ports. If you want additional networking capabilities in addition to the built in network ports and an FLOM card, you can also install PCIe network cards. FLOM and PCIe network cards are available with a variety of different speeds and port types. There are cards with port interfaces of RJ45, SFP, SFP+, SFP28, QSFP, and QSFP28. There are also speed options of 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE. The number of ports, network speeds, and port interfaces that are best for you are entirely based on you applications.
FlexibleLOM (FLOM) Network Cards
HP Ethernet 640FLR-SFP28 Dual Port 2 x 10/25GbE SFP28 Network Adapter |
HP Ethernet 562FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter |
HP Ethernet 561FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter |
HP Ethernet 560FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter |
HP FlexFabric 556FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter |
HP FlexFabric 556FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter |
HP Ethernet 546FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter |
HP FlexFabric 536FLR-T Quad Port 4 x 10GbE RJ45 Network Adapter |
HP FlexFabric 534FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter |
HP FlexFabric 533FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter |
HP Ethernet 366FLR Quad Port 4 x 1GbE RJ45 Network Adapter |
HP Ethernet 331FLR Quad Port 4 x 1GbE RJ45 Network Adapter |
PCIe Network Cards
HP Ethernet 331T Quad Port 4 x 1GbE RJ45 PCIe Network Adapter |
HP Ethernet 361T Dual Port 2 x 1GbE RJ45 PCIe Network Adapter |
HP Ethernet 332T Dual Port 2 x 1GbE RJ45 PCIe Network Adapter |
HP Ethernet 366T Quad Port 4 x 1GbE RJ45 PCIe Network Adapter |
HP Ethernet 562SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter |
HP Ethernet 561T Dual Port 2 x 10GbE RJ45 PCIe Network Adapter |
HP Ethernet 560SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter |
HP Ethernet 557SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter |
HP Ethernet 546SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter |
HP Ethernet 530SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter |
HP Ethernet 530T Dual Port 2 x 10GbE RJ45 PCIe Network Adapter |
HP Ethernet 620QSFP28 Single Port 1 x 10/25GbE QSFP28 PCIe Network Adapter |
HP Ethernet 640SFP28 Dual Port 2 x 10/25GbE SFP28 PCIe Network Adapter |
QLogic InfiniBand 4X QDR PCIe 2.0 Dual Port 2 x 10/40GbE HCA |
HP InfiniBand FDR 545QSFP Dual Port 2 x 10/40GbE SFP PCIe Network Adapter |
HP InfiniBand FDR/Ethernet 544+QSFP Dual Port 2 x 10/40GbE QSFP PCIe Network Adapter |
HP InfiniBand FDR/Ethernet 544+FLR-QSFP Dual Port 2 x 10/40GbE QSFP PCIe Network Adapter |
HP InfiniBand QDR/Ethernet 544+FLR-QSFP Dual Port 2 x 10GbE QSFP PCIe Network Adapter |
HP InfiniBand EDR/Ethernet 840QSFP28 Single Port 1 x 100GbE QSFP28 PCIe Network Adapter |
HP InfiniBand EDR/Ethernet 840QSFP28 Dual Port 2 x 100GbE QSFP28 PCIe Network Adapter |
HP InfiniBand Single Port 1 x 100GbE OP101 QSFP28 x8 PCIe 3.0 with Intel Omni-PathArchitecture Network Adapter |
HP InfiniBand Single Port 1 x 100GbE OP101 QSFP28 x16 PCIe 3.0 with Intel Omni-PathArchitecture Network Adapter |
Systems Management Solutions
For server management, the HP ProLiant DL360 Gen9 server utilizes Integrated Lights-Out 4 (iLO 4). The iLO can be accessed via the integrated iLO port on the rear of the DL360 Gen9. iLO features include: Active Health System Logs, Agentless Management, Deployment and Provisioning, Embedded Remoted Support, iLO Federation Management, Integrated Management Log, Integrated Remote Console, Power Consumption and Power Settings, Power Management, Server Health Monitoring, User Access, and Virtual Media. The iLO has two license types: standard and advanced. A standard license is more limited than the advanced license. The main difference between the two licenses is that an advanced license allows you to use remote console and media functions.
Supported Operating Systems:
The HP ProLiant DL360 Gen9 Server supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. The operating systems include, but are not limited to:
- ⦿ Red Hat Enterprise 6.5 and later
- ⦿ SUSE Linux Enterprise Server 11 SP3 and later
- ⦿ Ubuntu Server 14.04 and later
- ⦿ VMware vSphere 5.1 U2 and later
- ⦿ Solaris 11.1 and later
- ⦿ Windows Server 2008 R2 x64
- ⦿ Windows Server 2012
- ⦿ Windows Server 2012 R2
Technical Information Overview
The HP ProLiant DL360 Gen9 rackmount server is a powerful 1U server that is very versitile and can be used for a wide variety of different applications. The DL360 Gen9 is loaded with amazing features. We have compiled a list of manuals to help you get the most out of your HP ProLiant DL360 Gen9!
