Cloud Ninjas' HP ProLiant DL380 Gen10 Specifications
The HP ProLiant DL380 Gen10 server is powerful, general-purpose server. This server is perfect for businesses of all sizes This 1U rackmount server has thress chassis options to choose from: 8 Bay LFF, 12 Bay LFF, 8 Bay SFF, 16 Bay SFF, and 24 Bay SFF
8 Bay LFF
The 8 Bay LFF chassis for the HP ProLiant DL380 Gen10 can accept up to eight 3.5" SAS/SATA drives. 2.5" hard drives and solid-state drives can be installed via a 2.5" to 3.5" drive converter. Drive bays for the DL380 are hot-swap, meaning that drives can be added or removed while the system is powered on. The rear of the 4 Bay LFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 5 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, and two hot-swap power supply bays.
12 Bay LFF

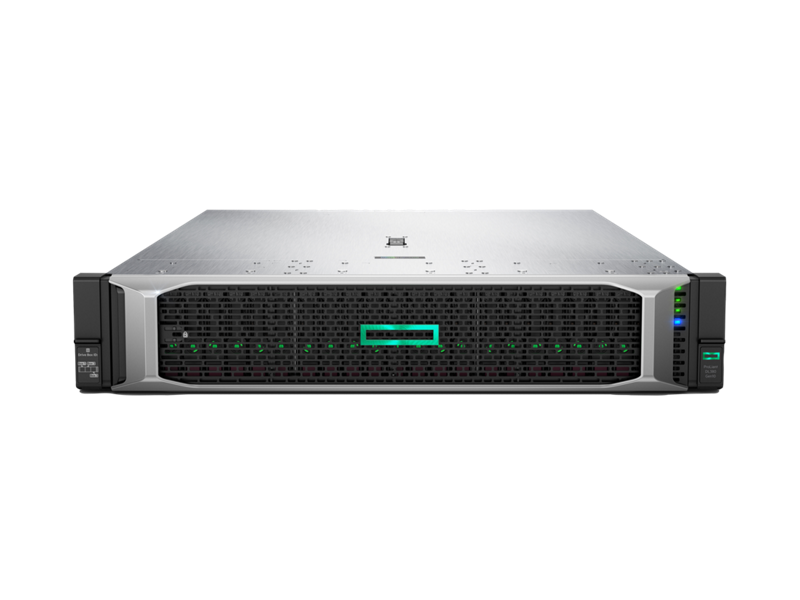

The 12 Bay LFF chassis for the ProLiant DL380 Gen10 can accept up to twelve 3.5" SAS/SATA hard drives and/or solid-state drives. 2.5" hard drives and solid-state drives can be installed via a 2.5" to 3.5" drive converter. Drive bays for the 12 Bay LFF chassis are hot-swap. The rear of the chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 5 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, and two hot-swap power supply bays.
8 Bay SFF

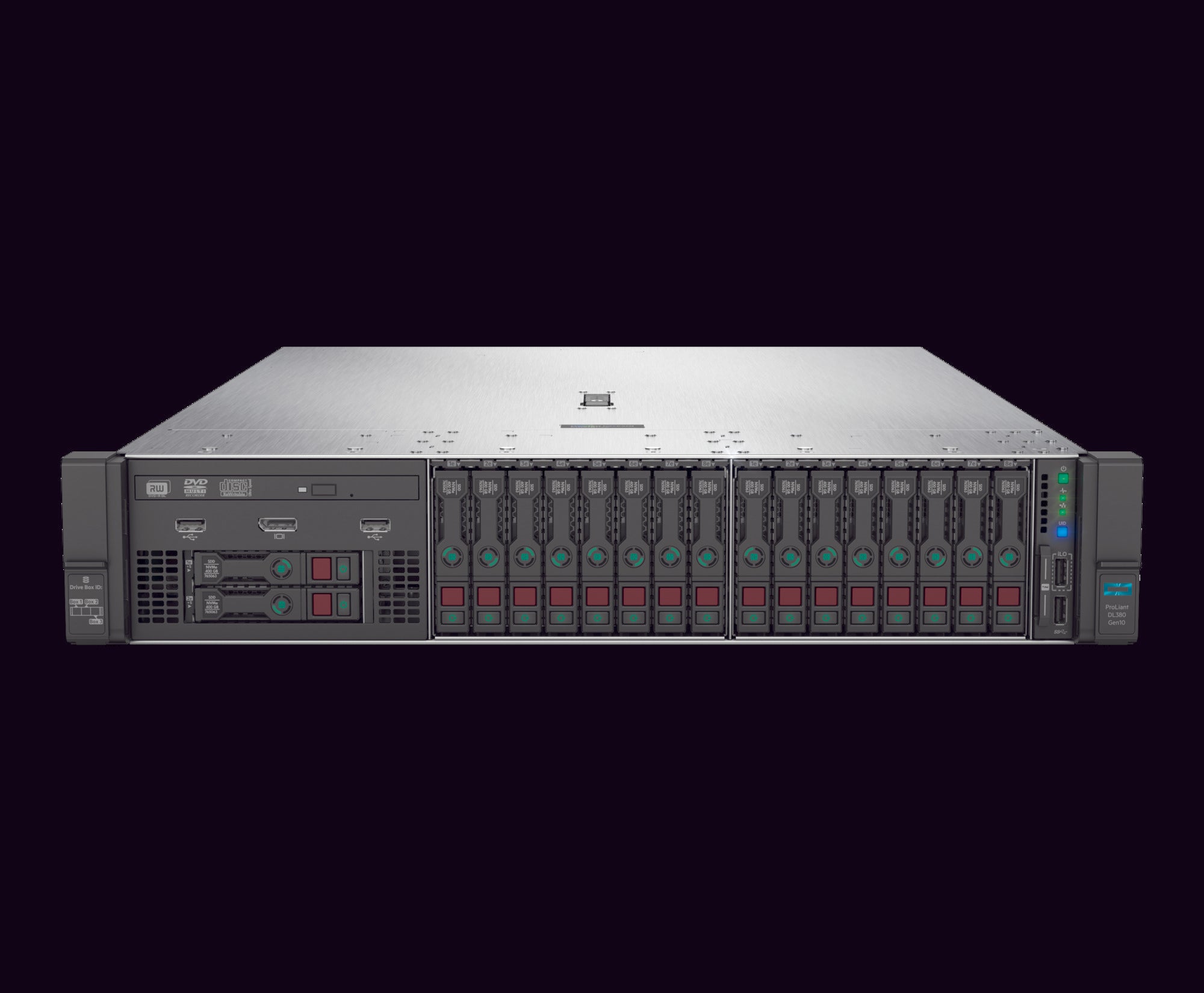

The DL380 Gen10's 8 Bay SFF chassis supports up to eight 2.5" SAS/SATA hard drives and/or solid-state drives. Drive bays for the 8 Bay SFF chassis are hot-swap. The rear of the 10 Bay SFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 5 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, and two hot-swap power supply bays.
16 Bay SFF

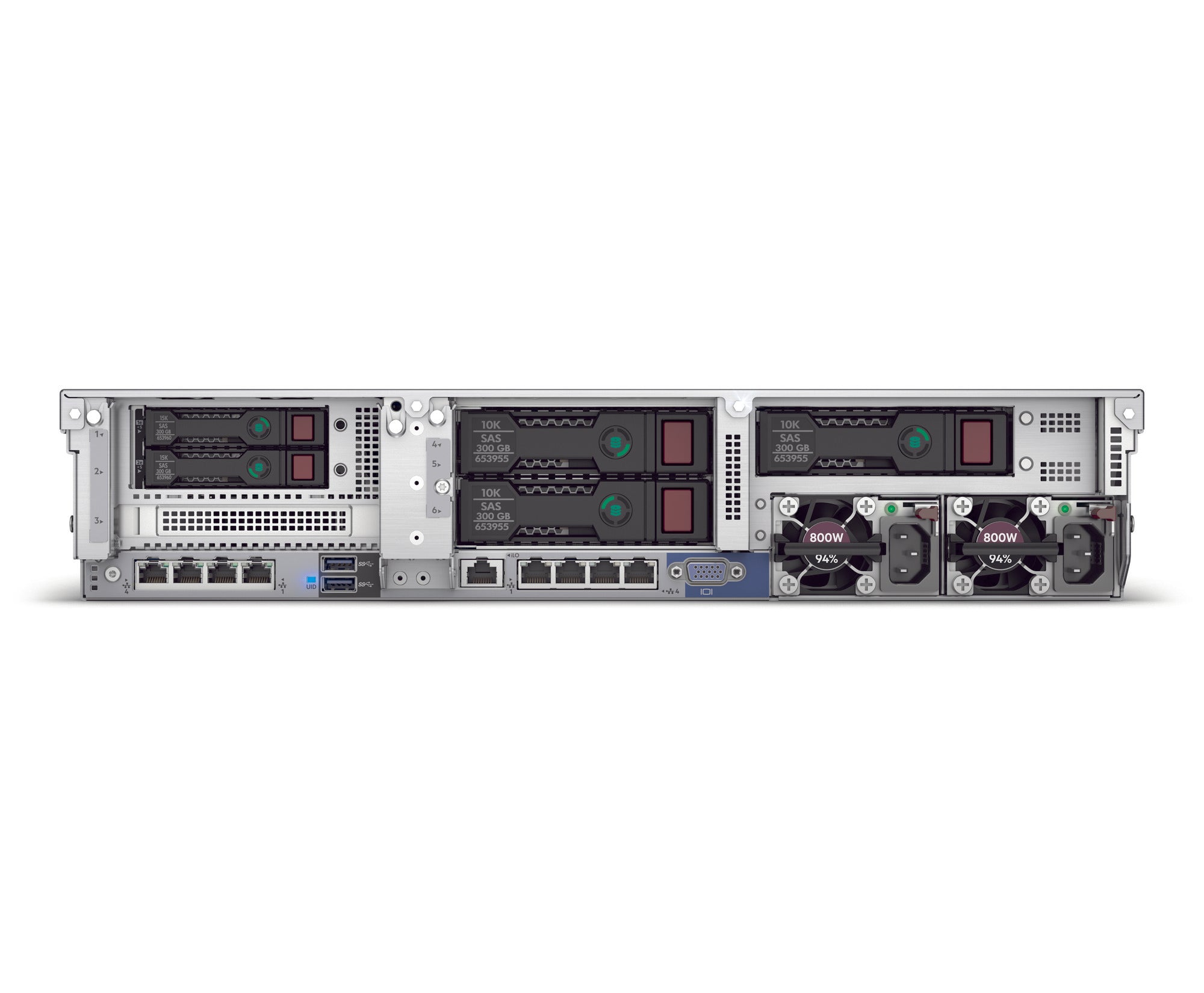

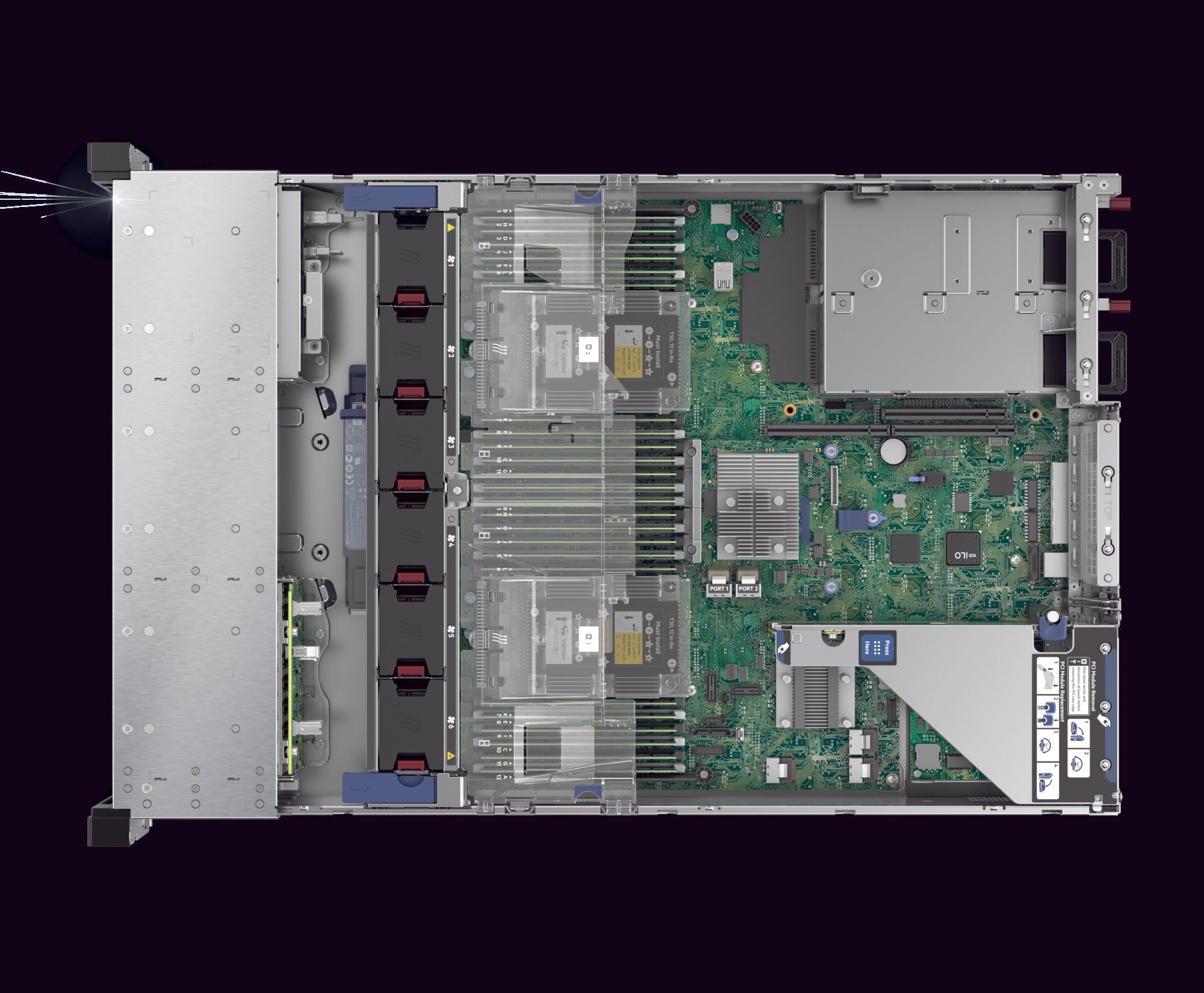

The DL380 Gen10's 16 Bay SFF chassis supports up to sixteen 2.5" SAS/SATA hard drives and/or solid-state drives. Drive bays for the 16 Bay SFF chassis are hot-swap. The rear of the 16 Bay SFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 5 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, and two hot-swap power supply bays.
24 Bay SFF
Lastly, the DL380 Gen10's 24 Bay SFF chassis supports up to twenty-four 2.5" SAS/SATA hard drives and/or solid-state drives. Drive bays for the 24 Bay SFF chassis are hot-swap. The rear of the 24 Bay SFF chassis includes two type A USB 3.0, a VGA port, a serial connector, a iLO 5 port, four 1GbE RJ45 Ethernet ports, one FLOM bay, and two hot-swap power supply bays.
The HP ProLiant DL380 Gen10 server supports up to two 1st or 2nd Generation Intel Scalable CPUs. Total of 56 cores with a total of 28 cores per processor.
1st Generation Intel Xeon Scalable
|Silver 4109T||SR3GP||8||2.0 GHz|
2nd Generation Intel Xeon Scalable
DIMM slots & Memory Channels
The HP ProLiant DL380 Gen10 server is a DDR4 basd machine with 24 DIMM slots and 8 memory channels. Each channel consist of 3 DIMM slots.
Supported Memory Types
The DL380 Gen10 accepts both ECC Registered (RDIMM) and Load Reduced (LRDIMM) memory. It is important to not mixed together memory types. For example, if you are installing LRDIMMs into your server, do not install any RDIMMs. If you are installing RDIMMs, do not install any LRDIMMs. Mixing memory types can lead to issues such as boot failure.
Supported Memory Capacities
Capacities of 8GB, 16GB, 32GB, 64GB, and 128GB, 256GB, and 512GB. 128GB is only available with LRDIMMs and 256GB and 512GB are only available with Intel PMem. With Load Reduced and Intel Optane, you can achieve an overall greater RAM capacity.
With ECC Registered memory, you can achieve a max of 1.5TB with a configuration of 24x64GB modules. With Load Reduced, the max you can achieve is 3TB with a configuration of 24x128GB modules. With Intel Optane alone, 6.14TB can be achieved with 12x512GB modules.
Supported Memory Speeds
The Dell R640 supports memory speeds of 2133MT/s, 2400MT/s, 2666MT/s, 2933MT/s, and 3200MT/s. The processor you have installed will determine the max memory speed that you can use with your system. For example, if your processor supports a max memory speed off 2666MT/s and you install a 2933MT/s module, the module will clock down to 2666MT/s. 2933MT/s is the fastest possible speed for this system.
The DL380 G10 chassis that you have will determine what form factor and number of drives you can install. With the 8 Bay LFF chassis, you can install up to eight 3.5" SAS/SATA hard drives. With the 12 Bay LFF chassis, you can install up to twelve 3.5" SAS/SATA hard drives. 2.5" SAS/SATA HDDs and/or SSDs can be install into the 8 Bay LFF and 12 Bay LFF chassis via a 2.5" to 3.5" drive adapter. The 8 Bay SFF chassis can accept up to eight 2.5" SAS/SATA hard drives and/or solid-state drives. The 16 Bay SFF chassis can accept up to sixteen 2.5" hard drives or solid-state drives. Lastly, the 24 Bay SFF chassis can accept up to twenty-four 2.5" hard drives or solid-state drives. All five chassis for the DL380 Gen10 are hot-swap, meaning the drives can be added or removed while the server is powered on.
Supported Drives (2.5")
|Type||Speeds||Max Capacity Per Drive|
|SAS||7.2K, 10K, 15K||2.4TB|
|SSD (SAS & SATA)||6GB/s, 12GB/s||15.36TB|
Supported Drives (3.5")
|Type||Speeds||Max Capacity Per Drive|
|SSD (SAS & SATA)||6GB/s, 12GB/s||15.36TB|
Power Supplies Overview
The HP ProLiant DL380 Gen10 has support for Embedded and PCIe RAID controllers. Embedded RAID controllers have a dedicated spot of the motherboard that the card is installed.
|RAID Options||RAID Levels||Cache||Drive Speeds||PCIe Generation||RAID Hardware|
|Smart Array S100i Software||0, 1, 5, 10||None||6 Gb/s SATA||N/A||Software|
|Smart Array P408i-a||0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60||2GB||6 Gb/s SATA
12 Gb/s SAS
|Smart Array P408e-p||0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60||4GB||6 Gb/s SATA
12 Gb/s SAS
|Smart Array P816i-a||0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60||4GB||6 Gb/s SATA
12 Gb/s SAS
Network Interface Card Options
The HP DL380 Gen10 server has four 1GbE RJ45 port integrated into the motherboard. There is also a dedidicated FlexibleLom (FLOM) slot in the rear of the system. This FLOM slot allow you to install cards with up to four ports. If you want additional networking capabilities in addition to the built in network ports and an FLOM card, you can also install PCIe network cards. FLOM and PCIe network cards are available with a variety of different speeds and port types. There are cards with port interfaces of RJ45, SFP, SFP+, SFP28, QSFP, and QSFP28. There are also speed options of 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE. The number of ports, network speeds, and port interfaces that are best for you are entirely based on you applications.
FlexibleLOM (FLOM) Network Cards
|HP Ethernet 640FLR-SFP28 Dual Port 2 x 10/25GbE SFP28 Network Adapter|
|HP Ethernet 562FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter|
|HP Ethernet 561FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter|
|HP Ethernet 560FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter|
|HP FlexFabric 556FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter|
|HP FlexFabric 556FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter|
|HP Ethernet 546FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter|
|HP FlexFabric 536FLR-T Quad Port 4 x 10GbE RJ45 Network Adapter|
|HP FlexFabric 534FLR-SFP+ Dual Port 2 x 10GbE SFP+ Network Adapter|
|HP FlexFabric 533FLR-T Dual Port 2 x 10GbE RJ45 Network Adapter|
|HP Ethernet 366FLR Quad Port 4 x 1GbE RJ45 Network Adapter|
|HP Ethernet 331FLR Quad Port 4 x 1GbE RJ45 Network Adapter|
PCIe Network Cards
|HP Ethernet 331T Quad Port 4 x 1GbE RJ45 PCIe Network Adapter|
|HP Ethernet 361T Dual Port 2 x 1GbE RJ45 PCIe Network Adapter|
|HP Ethernet 332T Dual Port 2 x 1GbE RJ45 PCIe Network Adapter|
|HP Ethernet 366T Quad Port 4 x 1GbE RJ45 PCIe Network Adapter|
|HP Ethernet 562SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter|
|HP Ethernet 561T Dual Port 2 x 10GbE RJ45 PCIe Network Adapter|
|HP Ethernet 560SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter|
|HP Ethernet 557SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter|
|HP Ethernet 546SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter|
|HP Ethernet 530SFP+ Dual Port 2 x 10GbE SFP+ PCIe Network Adapter|
|HP Ethernet 530T Dual Port 2 x 10GbE RJ45 PCIe Network Adapter|
|HP Ethernet 620QSFP28 Single Port 1 x 10/25GbE QSFP28 PCIe Network Adapter|
|HP Ethernet 640SFP28 Dual Port 2 x 10/25GbE SFP28 PCIe Network Adapter|
|QLogic InfiniBand 4X QDR PCIe 2.0 Dual Port 2 x 10/40GbE HCA|
|HP InfiniBand FDR 545QSFP Dual Port 2 x 10/40GbE SFP PCIe Network Adapter|
|HP InfiniBand FDR/Ethernet 544+QSFP Dual Port 2 x 10/40GbE QSFP PCIe Network Adapter|
|HP InfiniBand FDR/Ethernet 544+FLR-QSFP Dual Port 2 x 10/40GbE QSFP PCIe Network Adapter|
|HP InfiniBand QDR/Ethernet 544+FLR-QSFP Dual Port 2 x 10GbE QSFP PCIe Network Adapter|
|HP InfiniBand EDR/Ethernet 840QSFP28 Single Port 1 x 100GbE QSFP28 PCIe Network Adapter|
|HP InfiniBand EDR/Ethernet 840QSFP28 Dual Port 2 x 100GbE QSFP28 PCIe Network Adapter|
|HP InfiniBand Single Port 1 x 100GbE OP101 QSFP28 x8 PCIe 3.0 with Intel Omni-PathArchitecture Network Adapter|
|HP InfiniBand Single Port 1 x 100GbE OP101 QSFP28 x16 PCIe 3.0 with Intel Omni-PathArchitecture Network Adapter|
Systems Management Solutions
For server management, the HP ProLiant DL380 Gen10 server utilizes Integrated Lights-Out 4 (iLO 5). The iLO can be accessed via the integrated iLO port on the rear of the DL380 Gen10. iLO features include: Active Health System Logs, Agentless Management, Deployment and Provisioning, Embedded Remoted Support, iLO Federation Management, Integrated Management Log, Integrated Remote Console, Power Consumption and Power Settings, Power Management, Server Health Monitoring, User Access, and Virtual Media. The iLO has two license types: standard and advanced. A standard license is more limited than the advanced license. The main difference between the two licenses is that an advanced license allows you to use remote console and media functions.
Supported Operating Systems:
The HP ProLiant DL380 Gen10 Server supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. The operating systems include, but are not limited to:
- ⦿ Red Hat Enterprise Linux 6.9 and 7.3
- ⦿ SUSE Linux Enterprise Server 11 SP4 and 12 SP2
- ⦿ VMware ESXi 6.0 U3
- ⦿ VMware ESXi 6.5 U1
- ⦿ ClearOS
- ⦿ CentOS
- ⦿ Windows Server 2012 R2
- ⦿ Windows Server 2016
Technical Information Overview
The HP ProLiant DL360 Gen10 rackmount server is a powerful 1U server that is very versatile and can be used for a wide variety of different applications. The DL360 Gen10 is loaded with amazing features. We have compiled a list of manuals to help you get the most out of your HP ProLiant DL360 Gen10!
