Dell PowerEdge R830 Server

SKU: Dell-R830-8B-SFF

Chassis
Qty
Price
8 Bay SFF
1
$1,950.00
Price as configured
Regular price
$1,950.00
Sale price
$1,950.00
Unit price
per
Chassis
Qty
Price
8 Bay SFF
1
$1,950.00
Price as configured
Regular price
$1,950.00
Sale price
$1,950.00
Unit price
per

CPUs

Coming Soon

Memory

Coming Soon

Drives

Coming Soon

NVMe

Coming Soon

Different Chassis Types

Coming Soon

RAID

Coming Soon

BIOS

Coming Soon

iDRAC

Coming Soon

Mass Updates

Coming Soon

How to set IP Address

Coming Soon

How to install VMware ESXI 7.0.3

Coming Soon

Network Cards

Coming Soon

Power Supplies

Coming Soon

How to Rack

Coming Soon

How to Install Windows Server 2016

Coming Soon

Cloud Ninjas' Dell PowerEdge R830 Specifications

Chassis

The Dell PowerEdge R830 server is powerful enterprise server that excels at database applications and virtualization. This server is perfect for businesses of all sizes This 2U rackmount server has two chassis options to choose from: 8 Bay SFF and 16 Bay SFF.

8 Bay SFF

The 8 Bay SFF chassis for the PowerEdge R830 can accept up to eight 2.5" SAS/SATA hard drives or solid-state drives. This server supports hot-swap drives meaning the drives can be added or removed while the system is powered on. The rear of the 8 Bay SFF chassis includes one type A USB 2.0 port, one type A USB 3.0 port, a network daughter card slot, a serial connector, a VGA port, a dedicated iDRAC LAN port, four full-height PCIe slots, three low-profile PCIe slots, and two hot-swap power supply bays.

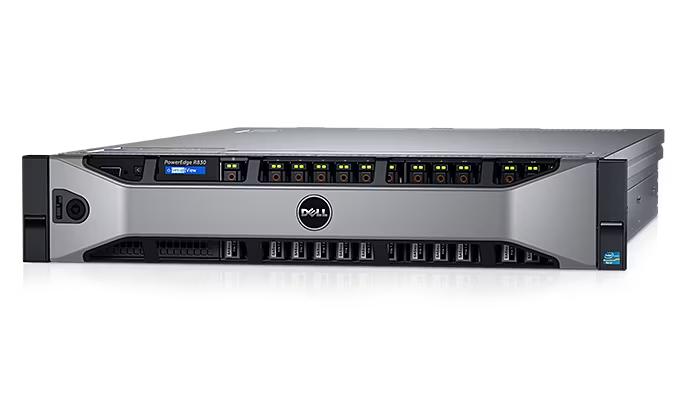

16 Bay SFF Hot-swap

The 16 Bay SFF chassis is identical to the 8 Bay SFF chassis, except for the drive bays layout. The R830's 16 Bay SFF chassis accepts up to sixteen 2.5" SAS/SATA hot-swap hard drives and solid-state drives. The chassis rear includes one type A USB 2.0 port, one type A USB 3.0 port, a network daughter card slot, a serial connector, a VGA port, a dedicated iDRAC LAN port, four full-height PCIe slots, three low-profile PCIe slots, and two hot-swap power supply bays.

Processing Power

The Dell PowerEdge R830 server has a max of four LGA2011-3 CPU sockets and supports Intel Xeon E5-4600 v4 series processors. In order to get up to four processors, you must have an expansion riser board installed. A maximum of 22 CPU cores per processor is supported. This means that a total of 88 cores can be achieved.

Intel Xeon E5-4600 v4 Series

CPU Step Code Cores Frequency Cache
E5-4610 v4 SR2SE 10 1.80 GHz 25 MB
E5-4620 v4 SR2SJ 10 2.10 GHz 25 MB
E5-4627 v4 SR2SN 10 2.60 GHz 25 MB
E5-4628L v4 SR2SB 14 1.80 GHz 35 MB
E5-4640 v4 SR2SC 12 2.10 GHz 30 MB
E5-4650 v4 SR2SA 14 2.20 GHz 35 MB
E5-4655 v4 SR2SH 8 2.50 GHz 30 MB
E5-4660 v4 SR2SD 16 2.20 GHz 40 MB
E5-4667 v4 SR2SF 18 2.20 GHz 45 MB
E5-4669 v4 SR2SG 22 2.20 GHz 55 MB

Memory

DIMM slots & Memory Channels

The Dell PowerEdge R830 is a DDR4 based machine with 48 DIMM slots and 16 memory channels. Each memory channel consists of 3 DIMM slots.

Supported Memory Types

The PowerEdge R830 server accepts both ECC Registered (RDIMM) and Load Reduced (LRDIMM) memory. It is important to not mix memory types. Doing so can lead to unwanted issues such as boot failure.

Supported Memory Capacities

Modules capacities of 4GB, 8GB, 16GB, 32GB, 64GB, and 128GB. One thing to note is that 64GB and 128GB modules are only available as LRDIMMs. With LRDIMMs, you can achieve an overall greater RAM capacity when compared to RDIMMs.

Max Configurations

With ECC Registered, the max RAM you can achieve is 1.5TB via 48 x 32GB DDR4 modules. With Load Reduced memory, 6.1TB can be reach via a configuration of 48 x 128GB DDR4 modules.

Supported Memory Speeds

The Dell PowerEdge R830 supports module speeds of 2133MT/s and 2400MT/s. 2666MT/s modules can be installed as well, but the E5-4600v4 processor series clocks down 2666MT/s modules. The fastest speed that the installed modules can run at will be determined by the processor that is installed. If you installed a module with a speed that is higher than the maximum supported speed, that module will clock down to the max speed. For example, if your system has a max speed of 2133MT/s, and you install a 2400MT/s module, the module will clock down to 2133MT/s.

Storage

The Dell PowerEdge R830 only has support for 2.5" SAS/SATA hard drives or solid state drives. There is not LFF (3.5") chassis option for the R830. The 8 Bay SFF chassis accepts up to eight 2.5" SAS/SATA drives while the 16 Bay SFF chassis accepts up to sixteen 2.5" SAS/SATA drives. Both chassis have hot-swap drives, meaning that drives can be added or removed while the server is powered on.

Supported Drives

Type Speeds Max Capacity (Per Drive) 2.5"
SAS 7.2K, 10K, 15K 2.4TB
SATA 7.2K 2TB
SSD 3GB/s, 6GB/s, 12GB/s 7.68TB

Power Supplies

Power Supplies Overview

There are three power supply options for the Dell PowerEdge R830: 750W Platinum AC auto-ranging, 1100W AC, and 1600W Platinum AC auto-ranging. Each power supply option is hot-swap. There are two hot-swap power supply bays on the R830's rear, which allows for up to two power supply units to be plugged in at once. If you install two power supplies, the wattages of the units must be matching. Utilizing two power supplies allows for redundancy, so if one unit fails, the other unit will take over, keeping the server powered on. Hot-swap power supplies can be installed or removed while the system is powered on, as long as one unit remains plugged into the server.

RAID Options

The Dell PowerEdge R830 has support for Mini Monolithic and PCIe RAID controllers. Mini mono RAID controllers have a dedicated spot of the motherboard that the card is installed. PCIe RAID controllers will take up one of your PCIe slots, but this is not an issue with the R830, since there is 7 total PCIe slots.

RAID Options RAID Levels Cache Drive Speeds PCIe Generation RAID Hardware
S130 onboard software 0,1,5,10 None 6 Gb/s SATA PCIe 3.0 Software
H330 0,1,5,10,50 None 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.0 Hardware
H730 0,1,5,6,10,50,60 1GB 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.0 Hardware
H730P 0,1,5,6,10,50,60 2GB 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.0 Hardware
H830 0,1,5,6,10,50,60 2GB 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.0 Hardware

Network Interface Card Options

Unlike other systems in the 13th generation of Dell servers, the PowerEdge R830 does not have any built in LAN ports. To give the R830 internet access, you will need to install a Network Daughter Card (NDC) or a PCIe Network Card. Daughter cards have a spot on the motherboard that are designed only for daughter cards. We recommend going with a daughter card since it does not take up any PCIe slots. If you want additional networking capabilities in addition to a NDC, then installing an extra PCIe NIC will do the trick. There are 10GbE and fiber options for both Daughter cards and PCIe cards.

Network Daughter Cards

Broadcom 5720 Quad Port 4 x 1GbE RJ45
Broadcom 57800S Dual Port 1 x 1GbE RJ45 + 1 x 1GbE SFP+
Broadcom 57800T Dual Port 2 x 1GbE RJ45
Broadcom 57840S Quad Port 4 x 10GbE SFP+
Intel I350 Quad Port 4 x 1GbE RJ45
Intel I350 Quad Port 4 x 1GbE RJ45
Intel X520 Dual Port 2 x 10GbE SFP + I350 Dual Port 2 x 1GbE RJ45
Intel X540 Dual Port 2 x 10GbE RJ45 + I350 Dual Port 2 x 1GbE RJ45
Intel X710 Dual Port 2 x 10GbE SFP + I350 Dual Port 2 x 1GbE RJ45
Intel X710 Quad Port 4 x 10GbE SFP+
Intel XL710 Dual Port 2 x 40GbE QFP+
Emulex OCm14104B-U1-D Quad Port 4 x 10GbE SFP+

PCIe Network Cards

Broadcom 5719 Quad Port 4 x 1GbE RJ45
Broadcom 5720 Dual Port 2 x 1GbE RJ45
Broadcom 57402 Dual Port 2 x 10GbE SFP+
Broadcom 57406 Dual Port 2 x 10GbE RJ45
Broadcom 57504 Quad Port 4 x 25GbE SFP
Broadcom 57810 Dual Port 2 x 10GbE RJ45
Broadcom 57810 Dual Port 2 x 10GbE SFP+ CNA
Intel I350-T2 Dual Port 2 x 1GbE RJ45
Intel I350-T4 Quad Port 4 x 1GbE RJ45
Intel OPA Single Port 1 x 100 QSFP HFA
Intel X520-DA2 Dual Port 2 x 10GbE SFP+ CNA
Intel X520-DA2 Dual Port 2 x 10GbE SFP+ CNA
Intel X520-T2 Dual Port 2 x 10GbE RJ45
Intel X540-T2 Dual Port 2 x 10GbE RJ45
Intel X710-DA2 Dual Port 2 x 10GbE SFP+ CNA
Intel X710-DA4 Quad Port 4 x 10GbE SFP CNA
Intel X710-T2L Dual Port 2 x 10GbE RJ45
Intel X710-T4 Quad Port 4 x 10GbE RJ45 CNA
Intel XL710-QD2 Dual Port 2 x 40GbE QSFP
Brocade 815 Single Port 1 x 8GbE FC SFP+ HBA
Brocade 825 Dual Port 2 x 8GbE FC SFP+ HBA
Brocade 1020 Dual Port 2 x 10GbE SFP+ CNA
QLogic QLE2560 Single Port 1 x 8GbE SFP+ HBA
QLogic QLE2562 Dual Port 2 x 8GbE SFP+ HBA
QLogic QLE2564 Quad Port 4 x 8GbE SFP+ HBA
QLogic QLE2660 Single Port 1 x 16GbE SFP+ HBA
QLogic QLE2662 Dual Port 2 x 16GbE SFP+ HBA
QLogic QLE2690 Single Port 1 x 16GbE SFP+ HBA
QLogic QLE2742L Dual Port 2 x 32GbE FC HBA
QLogic QLE8262 Dual Port 2 x 10GbE SFP+ CNA
Mellanox ConnectX-3 CX322A Dual Port 2 x 10GbE SFP+
Mellanox ConnectX-3 CX324A Dual Port 2 x 40GbE SFP+
Mellanox ConnectX-3 Single Port 1 x 40GbE QSFP
Mellanox ConnectX-4 CX4121A Dual Port 2 x 25GbE SFP+
Mellanox ConnectX-4 CX456A Dual Port 2 x 100GbE QSFP
Mellanox ConnectX-4 Single Port 1 x 100GbE QSFP
Mellanox ConnectX-5 Single Port 1 x 100GbE QSFP
Emulex LPE12000 Single Port 1 x 8GbE SFP+ HBA
Emulex LPE12002-E Dual Port 2 x 8GbE SFP+ HBA
Emulex LPE15002B-E Dual Port 2 x 8GbE SFP+ HBA
Emulex LPE16002 Dual Port 2 x 16GbE SFP+ HBA
Emulex LPe35002 Dual Port 2 x 32GbE FC SFP+ CNA
Emulex OCe14102B-N1D Dual Port 2 x 10GbE SFP+
Emulex OCe14102B-U1D Dual Port 2 x 10GbE SFP+
Emulex OCe14102-U1D Dual Port 2 x 10GbE SFP CNA
Emulex OCe14102UXD Dual Port 2 x 10GbE SFP+ CNA
Chelsio T520-CR Dual Port 2 x 10GbE SFP+ CNA

Systems Management Solutions

The Dell PowerEdge R830 Server utilizes the Integrated Dell Remote Access Controller 8 (iDRAC8), which allows you to easily manage your Dell server. The iDRAC8 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC8 web interface, by setting the iDRAC IP in system setup and searching the IP in a web browser.

Supported Operating Systems:

The Dell PowerEdge R830 Server supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. The operating systems include, but are not limited to:

  • ⦿ Citrix XenServer 6.5
  • ⦿ Citrix XenServer 7.0
  • ⦿ Novell SuSE Linux ES 11
  • ⦿ Red Hat® Enterprise Linux 6
  • ⦿ Red Hat® Enterprise Linux 7
  • ⦿ Red Hat® Enterprise Linux 8
  • ⦿ SUSE Linux ES 12
  • ⦿ VMware ESXi 5.5
  • ⦿ VMware ESXi 6.0
  • ⦿ VMware ESXi 6.5
  • ⦿ VMware ESXi 6.7
  • ⦿ VMware ESXi 7.0
  • ⦿ Window Server 2012
  • ⦿ Window Server 2012 R2
  • ⦿ Window Server 2016
  • ⦿ Window Server 2019 LTSC

Technical Information Overview

The Dell PowerEdge R830 is a powerful 2U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the cababilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R830. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R830 server.

Owner's Manual

Learn the ins and outs of the R830: View PowerEdge R830 Owner's Manual



Spec Sheet

Need a quick overview of the R830's specs? Check out the R830 spec sheet: View PowerEdge R830 Spec Sheet



Integrated Dell Remote Access Controller 8 User's Guide

Everything you need to know about iDRAC 8, all in one place: View PowerEdge R830 iDRAC 8 User's Guide
