NEW X470D4U AMD Ryzen 1U Server

SKU: X470D4U-2Bay-LFF

Chassis
Qty
Price
2 Bay LFF Cabled
1
$550.00
Price as configured
Regular price
Sold out
Sale price
$550.00
Unit price
per

Cloud Ninjas NEW X470D4U Server Specifications

Chassis

Chassis Options

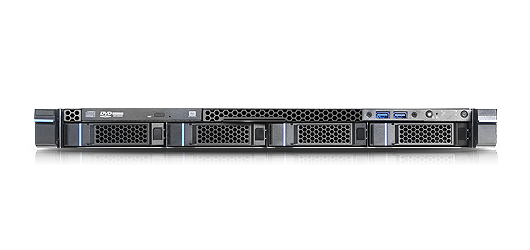

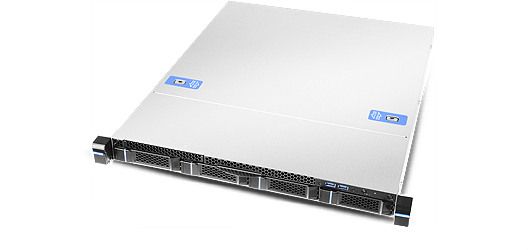

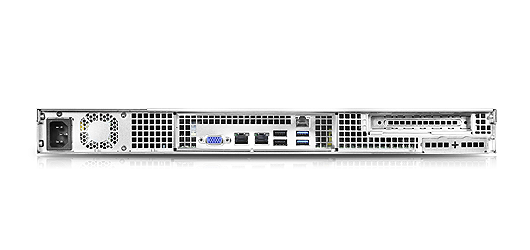

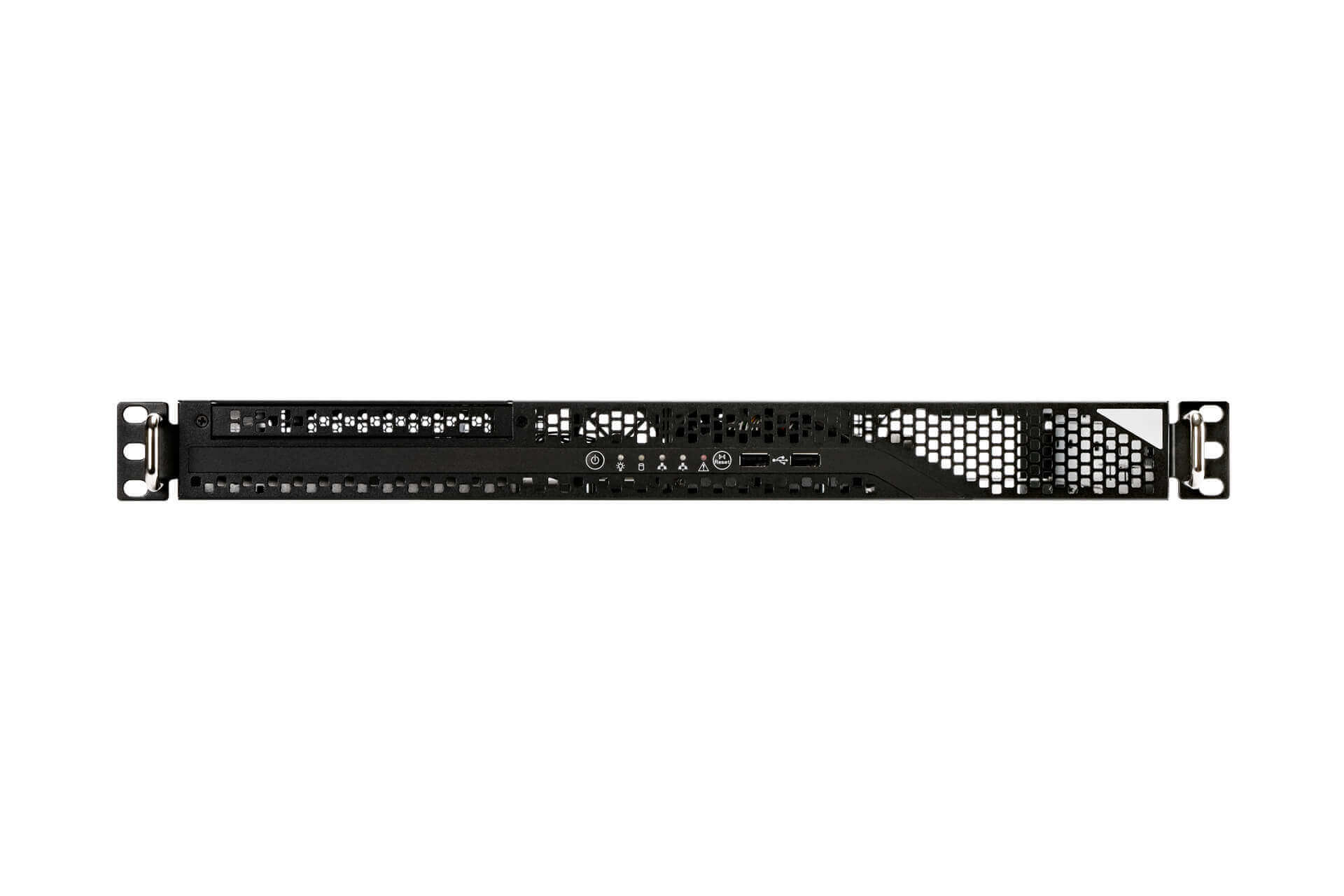

We provide two different chassis options to house the ASRock X470D4U motherboard. These options are 2 Bay LFF cabled and 4 Bay LFF hot-swap. The 2 Bay LFF cabled chassis supports up to two 3.5" drives. This chassis does not support hot-swap, since the drives are cabled in. The 4 Bay LFF hot-swap chassis accepts up to four 3.5" drives. This chassis does support hot-swap, meaning that drives can be add/removed while the system is powered on. Both chassis can accept 2.5" drives with the use of a 2.5" to 3.5" drive converter.

Motherboard

Motherboard Overview

Inside of the chassis lies the ASRock X470D4U motherboard. This Micro-ATX motherboard has one AM4 CPU socket, 4 DDR4 DIMM slots, two M.2 sockets, two x16 PCIe slots, one x8 PCIe slot, and one USB 3.1 Gen1 header. Do note, that even though the motherboard has three PCIe slots, there is only room for one inside of the 1U chassis and with the riser. The rear of the motherboard has a serial connector, a VGA port, two 1GbE RJ45 Ethernet ports, a RJ45 dedicated IPMI port, and two USB 3.2 Gen1 ports.

Processing Power

This server has a single AM4 (PGA 1331) CPU socket. AMD Ryzen PRO/ Ryzen 1st, 2nd, 3rd, and 4th generation series processors are supported.

1st Generation AMD Ryzen

CPU Cores Frequency Cache (L3)
Ryzen 3 1200 4 3.1 GHz 8 MB
Ryzen 3 PRO 1200 4 3.1 GHz 8 MB
Ryzen 3 PRO 1300 4 3.5 GHz 8 MB
Ryzen 3 1300X 4 3.5 GHz 8 MB
Ryzen 5 1400 4 3.2 GHz 8 MB
Ryzen 5 PRO 1500 4 3.5 GHz 16 MB
Ryzen 5 1500X 4 3.5 GHz 16 MB
Ryzen 5 1600 6 3.2 GHz 16 MB
Ryzen 5 PRO 1600 6 3.2 GHz 16 MB
Ryzen 5 1600X 6 3.6 GHz 16 MB
Ryzen 7 1700 8 3.0 GHz 16 MB
Ryzen PRO 7 1700 8 3.0 GHz 16 MB
Ryzen 7 1700X 8 3.4 GHz 16 MB
Ryzen 7 1800X 8 3.6 GHz 16 MB

2nd Generation AMD Ryzen

CPU Cores Frequency Cache (L3)
Ryzen 3 1200 (AF) 4 3.1 GHz 8 MB
Ryzen 3 2300X 4 3.5 GHz 8 MB
Ryzen 5 2500X 4 3.6 GHz 8 MB
Ryzen 5 2600E 6 3.1 GHz 16 MB
Ryzen 5 1600 (AF) 6 3.2 GHz 16 MB
Ryzen 5 2600 6 3.4 GHz 16 MB
Ryzen 5 2600X 6 3.6 GHz 16 MB
Ryzen 7 2700E 8 2.8 GHz 16 MB
Ryzen 7 2700 8 3.2 GHz 16 MB
Ryzen 7 PRO 2700 8 3.2 GHz 16 MB
Ryzen 7 2700X 8 3.7 GHz 16 MB
Ryzen 7 PRO 2700X 8 3.6 GHz 16 MB
Ryzen 3 PRO 3200GE 4 3.3 GHz 4 MB
Ryzen 3 3200G 4 3.6 GHz 4 MB
Ryzen 3 PRO 3200G 4 3.6 GHz 4 MB
Ryzen 5 PRO 3350GE 4 3.3 GHz 4 MB
Ryzen 5 PRO 3350G 4 3.6 GHz 4 MB
Ryzen 5 PRO 3400GE 4 3.3 GHz 4 MB
Ryzen 5 3400G 4 3.7 GHz 4 MB
Ryzen 5 PRO 3400G 4 3.7 GHz 4 MB

3rd Generation AMD Ryzen

CPU Cores Frequency Cache (L3)
Ryzen 3 3100 4 3.6 GHz 16 MB
Ryzen 3 3300X 4 3.8 GHz 16 MB
Ryzen 5 3500 6 3.6 GHz 16 MB
Ryzen 5 3500X 6 3.6 GHz 32 MB
Ryzen 5 3600 6 3.6 GHz 32 MB
Ryzen 5 3600X 6 3.8 GHz 32 MB
Ryzen 5 3600XT 6 3.8 GHz 32 MB
Ryzen 7 PRO 3700 8 3.6 GHz 32 MB
Ryzen 7 3700X 8 3.6 GHz 32 MB
Ryzen 7 3800X 8 3.9 GHz 32 MB
Ryzen 7 3800XT 8 3.9 GHz 32 MB
Ryzen 9 3900 12 3.1 GHz 64 MB
Ryzen 9 PRO 3900 12 3.1 GHz 64 MB
Ryzen 9 3900X 12 3.8 GHz 64 MB
Ryzen 9 3900XT 12 3.8 GHz 64 MB
Ryzen 9 3950X 16 3.5 GHz 64 MB
Ryzen 3 4100 4 3.8 GHz 4 MB
Ryzen 5 4500 6 3.6 GHz 8 MB
Ryzen 3 4300GE 4 3.5 GHz 4 MB
Ryzen 3 4300G 4 3.8 GHz 4 MB
Ryzen 5 4600GE 6 3.3 GHz 8 MB
Ryzen 5 4600G 6 3.7 GHz 8 MB
Ryzen 7 4700GE 8 3.1 GHz 8 MB
Ryzen 7 4700G 8 3.6 GHz 8 MB

4th Generation AMD Ryzen

CPU Cores Frequency Cache (L3)
Ryzen 5 5500 6 3.6 GHz 16 MB
Ryzen 5 5600 6 3.5 GHz 32 MB
Ryzen 5 5600X 6 3.7 GHz 32 MB
Ryzen 5 5700X 8 3.4 GHz 32 MB
Ryzen 5 5800 8 3.4 GHz 32 MB
Ryzen 5 5800X 8 3.8 GHz 32 MB
Ryzen 5 5800X3D 8 3.4 GHz 96 MB
Ryzen 5 5900 12 3.0 GHz 64 MB
Ryzen 5 5900X 12 3.7 GHz 64 MB
Ryzen 5 5950X 16 3.4 GHz 64 MB
Ryzen 3 5300GE 4 3.6 GHz 8 MB
Ryzen 3 5300G 4 4.0 GHz 8 MB
Ryzen 5 5600GE 6 3.4 GHz 16 MB
Ryzen 5 5600G 6 3.9 GHz 16 MB
Ryzen 7 5700GE 8 3.2 GHz 16 MB
Ryzen 7 5700G 8 3.8 GHz 16 MB

Memory

The X470D4U motherboard has a total of 4 DDR4 DIMM slots consisting of two channels. Each channel contains two DIMM slots. Only ECC Unbuffered (ECC UDIMMs) and non-ECC Unbuffered (non-ECC Unbuffered) can be used with this motherboard. A max configuration of 128GB can be achieved with 4x32GB ECC DIMM modules. Module speeds of 2133MT/s, 2400MT/s, 2666MT/s, 2933MT/s, and 3200MT/s can be used with this server. It is important to note, that not every processor will support all the listed speeds. If you install a module with a speed that is unsupported by the processor, the module will operate at the maximum supported speed. The module will still function properly, just at a lower speed.

Storage

Both 2.5” and 3.5” drives can be used with this system. For the 4 Bay LFF Hot-swap chassis, you will need a 2.5” to 3.5” drive converter to plug in 2.5” drives. A total of two M.2 drives can be installed into the system’s motherboard. Drive speeds of 6Gb/s are supported.

NVMe Options & Upgrades

The only NVMe solutions that can be used with this server is M.2. There are two M.2 slots on the motherboard which both accept M.2 NVMe drives. NVMe drives cannot be plugged into the backplane of the 4 Bay chassis. For the 2 Bay chassis, NVMe drives cannot be connected to the motherboard.

Power Supplies

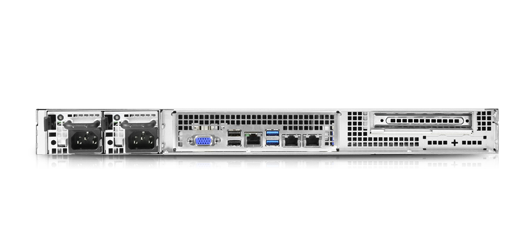

Depending on the chassis that you have selected, we will provide either a 315W or 400W cabled power supply. With the 2 Bay LFF chassis, we include a 315W PSU. With the 4 Bay LFF chassis, we include a 400W PSU.

Network Interface Card Options

The X470D4U motherboard inside has two 1GbE RJ45 Ethernet ports embedded on the board. If you need something that is faster or supports fiber connections, there is an option to include a 2 x 10GbE RJ45 PCIe card or a 2 x 10GbE SFP+ PCIe card. For those who use RJ45 and don’t need anything faster than gigabit Ethernet, the built-in network ports work just fine.

Technical Information Overview

X470D4U User Manual

Learn about the ASRock X470D4U Motherboard inside: View X470D4U User Manual

X470D4U RAID Installation Guide

Learn how to configure RAID for the X470D4U: View X470D4U RAID Installation Manual
