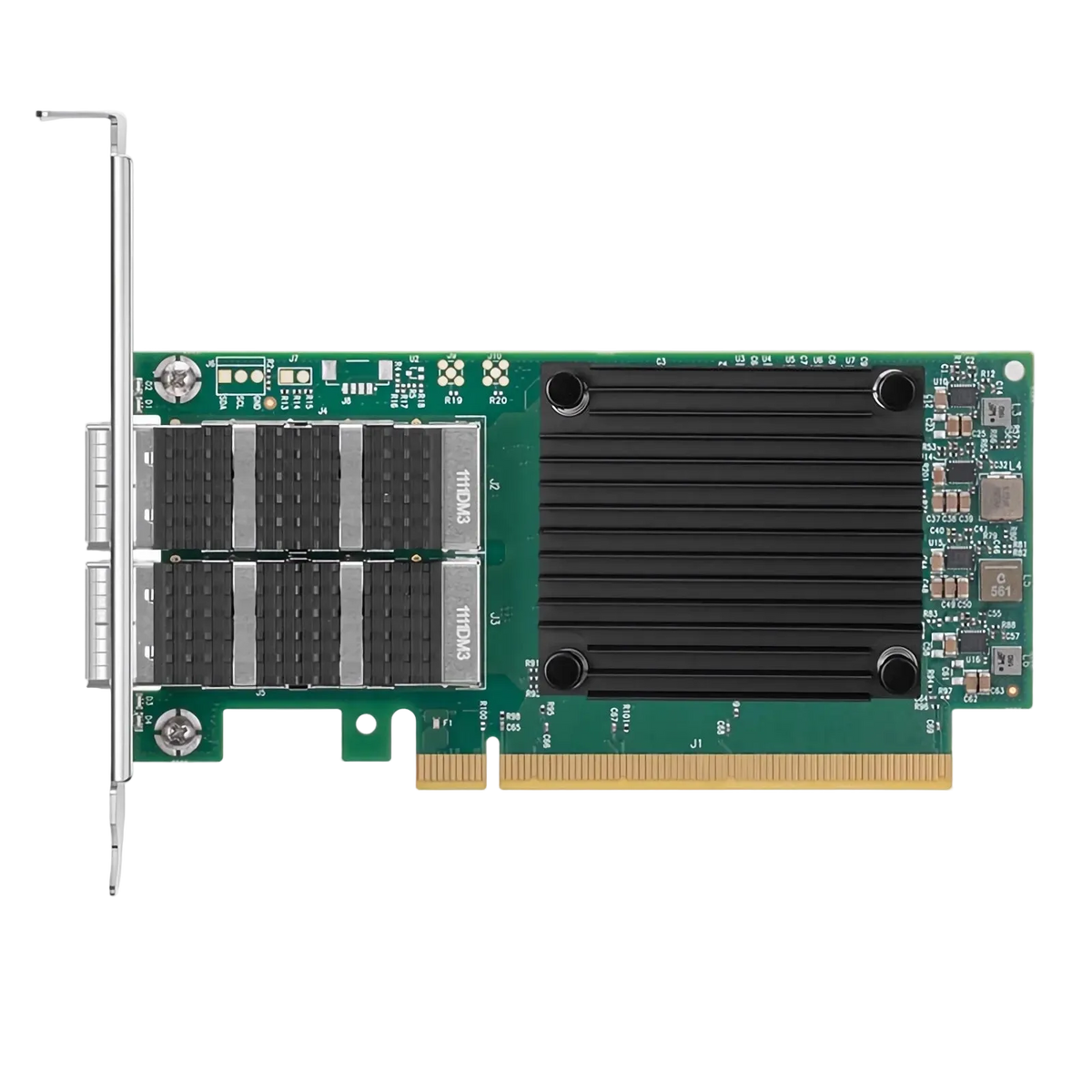

Mellanox MCX623106AC-CDAT ConnectX-6 EN 100GbE Dual-port QSFP56 NIC

Form Factor: PCIe 4.0 x16 Network Adapter
Brand & Model: Mellanox MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card
Ports and Speed: 2x 100GbE
Interface: Dual QSFP56
Features: Crypto Enabled, Secure Boot Enabled
Condition: New

SKU ConnectX-6-dual-port-QSFP56-PCIe4.0-MCX623106AC-CDAT

Manufacturer NVIDIA/Mellanox

$1,499.00

In Stock

Enterprise Networking Data center and AI infrastructure hardware

Secure Checkout Shop with confidence

Mellanox MCX623106AC-CDAT ConnectX-6 EN 100GbE Dual-port QSFP56 NIC Overview

Form Factor: PCIe 4.0 x16 Network Adapter
Brand & Model: Mellanox MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card
Ports and Speed: 2x 100GbE
Interface: Dual QSFP56
Features: Crypto Enabled, Secure Boot Enabled
Condition: New

Mellanox MCX623106AC-CDAT ConnectX-6 EN 100GbE Dual-port QSFP56 NIC Specifications

CONNECTOR QSFP56

PCIE PCIe 4.0

PORT 2

SPEED 100GbE

NVIDIA ConnectX Compatibility

The Mellanox ConnectX-6 Dx MCX623106AC-CDAT is a dual-port 100GbE Ethernet network adapter designed for server and data-center environments, including high-performance computing (HPC), AI infrastructure, cloud networking, distributed storage, enterprise networking, and other high-bandwidth applications.

The adapter uses a PCIe 4.0 x16 host interface and requires an appropriate PCIe x16 slot with sufficient system power, cooling, airflow, and physical clearance. NVIDIA specifies compatibility with PCIe 3.0, PCIe 2.0, and PCIe 1.1 host interfaces, subject to platform capabilities.

The MCX623106AC-CDAT provides two QSFP56 Ethernet ports, with each port supporting Ethernet data rates up to 100Gb/s. NVIDIA specifies supported Ethernet rates of 1, 10, 25, 40, 50, and 100Gb/s, depending on the network configuration and connected infrastructure.

This is a ConnectX-6 Dx EN Ethernet adapter, not a VPI adapter. The MCX623106AC-CDAT is designed for Ethernet networking and does not support InfiniBand.

The adapter uses a Half-Height Half-Length (HHHL) form factor measuring approximately 5.59 × 2.71 inches (142 × 68.90 mm) and uses a tall bracket. Verify that the host chassis provides sufficient expansion-slot clearance for the adapter and its connectors.

For networking connectivity, the adapter uses QSFP56 Ethernet interfaces and supports copper and optical connections. The appropriate cable, transceiver, or optical module depends on the desired Ethernet speed, switch compatibility, transmission distance, and physical medium.

The adapter is designed primarily for server and data-center environments. Desktop and workstation compatibility should not be assumed, particularly where the system cannot provide the required PCIe connectivity, power delivery, cooling, airflow, physical clearance, firmware, or driver support.

The MCX623106AC-CDAT is specified with Crypto Enabled and Secure Boot Enabled.

Before purchasing, verify that the host system provides a compatible PCIe x16 slot, adequate power and airflow, sufficient physical clearance for the tall-bracket adapter, compatible NVIDIA drivers, and appropriate QSFP56 Ethernet infrastructure.

Frequently Asked Questions

What is the Mellanox MCX623106AC-CDAT?

The Mellanox MCX623106AC-CDAT is a high-performance ConnectX-6 Dx Ethernet network adapter designed for server and data-center networking, high-performance computing (HPC), AI infrastructure, cloud networking, distributed storage, enterprise networking, and other high-bandwidth applications. It features two QSFP56 ports and a PCIe 4.0 x16 host interface.

What speed does the MCX623106AC-CDAT support?

The MCX623106AC-CDAT supports Ethernet speeds up to 100GbE per port. With two ports, the adapter provides two 100GbE Ethernet interfaces when connected to compatible network infrastructure.

Is the MCX623106AC-CDAT a 100GbE network adapter?

Yes. The MCX623106AC-CDAT is a dual-port 100GbE Ethernet network adapter with two QSFP56 networking ports. Actual link speed depends on the connected switch, cable or transceiver, and network configuration.

Does the MCX623106AC-CDAT support InfiniBand?

No. The MCX623106AC-CDAT is a ConnectX-6 Dx EN Ethernet adapter. It is intended for Ethernet networking rather than InfiniBand operation.

Is the MCX623106AC-CDAT a VPI adapter?

No. The MCX623106AC-CDAT is a ConnectX-6 Dx EN Ethernet adapter. It is not a VPI adapter and does not support InfiniBand.

Does the MCX623106AC-CDAT support Windows?

NVIDIA/Mellanox provides drivers for supported ConnectX adapters and Windows operating systems. Verify the specific Windows version, driver release, firmware requirements, and supported features for the MCX623106AC-CDAT before deployment.

Does the MCX623106AC-CDAT support Ethernet on Windows?

Yes. The MCX623106AC-CDAT can be used for Ethernet networking on supported Windows systems with the appropriate NVIDIA/Mellanox driver. Verify the specific Windows version and supported driver release before installation.

What PCIe interface does the MCX623106AC-CDAT use?

The MCX623106AC-CDAT uses a PCIe 4.0 x16 host interface and is compatible with PCIe 3.0, PCIe 2.0, and PCIe 1.1 systems, subject to platform support.

What connectors does the MCX623106AC-CDAT use?

The MCX623106AC-CDAT uses two QSFP56 networking ports. The ports are intended for high-speed Ethernet networking and require compatible QSFP56 cables, transceivers, or optical modules.

What is the form factor of the MCX623106AC-CDAT?

The MCX623106AC-CDAT uses a Half-Height Half-Length (HHHL) form factor measuring approximately 5.59 × 2.71 inches (142 × 68.90 mm) and uses a tall bracket.

Does the MCX623106AC-CDAT support Secure Boot?

Yes. The MCX623106AC-CDAT is specified with Secure Boot enabled.

Is cryptographic functionality enabled on the MCX623106AC-CDAT?

Yes. The MCX623106AC-CDAT is specified with Crypto Enabled.

What is the MPN of the Mellanox ConnectX-6 Dx adapter?

The manufacturer part number (MPN) is MCX623106AC-CDAT.

What type of server is compatible with the MCX623106AC-CDAT?

The MCX623106AC-CDAT is intended for server and data-center environments that provide an appropriate PCIe x16 slot, sufficient power delivery, cooling, airflow, physical clearance, and compatible NVIDIA/Mellanox driver support.

Can I install the MCX623106AC-CDAT in a desktop PC or workstation?

Compatibility with desktop or workstation systems should not be assumed. The adapter is designed primarily for server and data-center environments and requires appropriate PCIe connectivity, power, cooling, airflow, physical clearance, firmware, and driver support.

What cables or transceivers work with the MCX623106AC-CDAT?

The adapter uses two QSFP56 ports and requires compatible QSFP56 Ethernet cables, transceivers, or optical modules. The appropriate solution depends on the desired Ethernet speed, switch compatibility, transmission distance, and copper or optical networking configuration.

Does the MCX623106AC-CDAT support two 100GbE connections?

Yes. The adapter provides two QSFP56 Ethernet ports, each capable of supporting up to 100GbE when connected to compatible network infrastructure. Actual link speed depends on the connected switch, cable or transceiver, and network configuration.

What Ethernet speeds are supported by the MCX623106AC-CDAT?

he MCX623106AC-CDAT supports Ethernet data rates of 1, 10, 25, 40, 50, and 100 Gb/s per port, depending on the network configuration and connected infrastructure.

Does the MCX623106AC-CDAT support cryptographic functionality?

Yes. This adapter is specified with Crypto Enabled, providing hardware cryptographic capabilities supported by the ConnectX-6 Dx platform.
