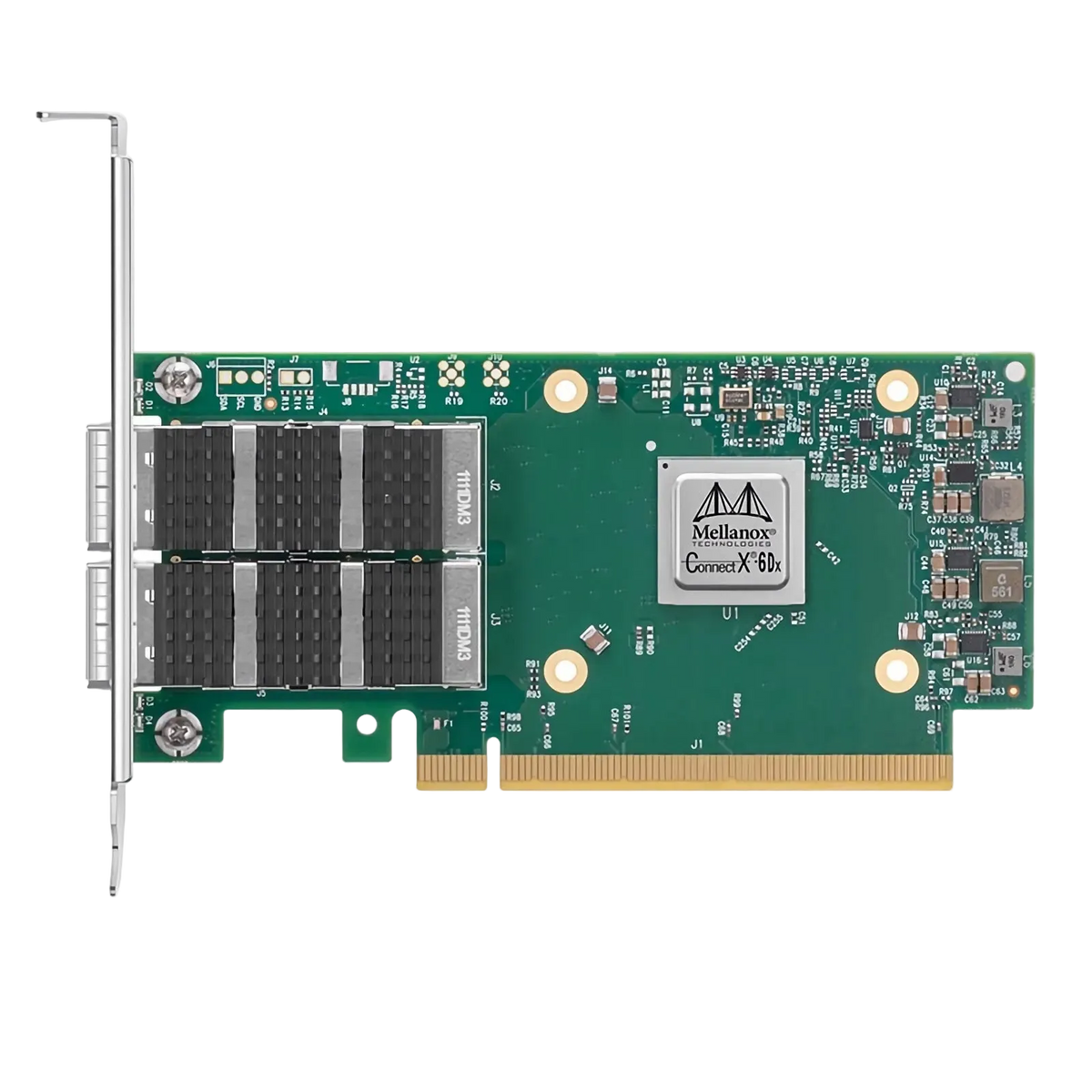

Mellanox MCX623106AN-CDAT ConnectX-6 Dx 100GbE Dual-Port NIC No Crypto Secure Boot Disabled
NVIDIA Networking

Mellanox MCX623106AN-CDAT ConnectX-6 Dx 100GbE Dual-Port NIC No Crypto Secure Boot Disabled

  • Form Factor: PCIe NIC
  • Brand & Model: Mellanox ConnectX-6 Dx EN NIC 100GbE Dual-Port QSFP56 PCIe4.0 x 16
  • MPN: MCX623106AN-CDAT
  • Ports and Speed: 2x 100GbE
  • Interface: QSFP56
  • Condition: New
SKU ConnectX-6-Dual-Port-QSFP56-PCIe4.0-MCX623106AN-CDAT
Manufacturer NVIDIA/Mellanox
$1,349.00
In Stock
Enterprise Networking Data center and AI infrastructure hardware
Secure Checkout Shop with confidence
Overview Specifications Compatibility FAQ

Mellanox MCX623106AN-CDAT ConnectX-6 Dx 100GbE Dual-Port NIC No Crypto Secure Boot Disabled Overview

  • Form Factor: PCIe NIC
  • Brand & Model: Mellanox ConnectX-6 Dx EN NIC 100GbE Dual-Port QSFP56 PCIe4.0 x 16
  • MPN: MCX623106AN-CDAT
  • Ports and Speed: 2x 100GbE
  • Interface: QSFP56
  • Condition: New

Mellanox MCX623106AN-CDAT ConnectX-6 Dx 100GbE Dual-Port NIC No Crypto Secure Boot Disabled Specifications

CONNECTOR QSFP56
PCIE PCIe 4.0
PORT 2
SPEED 100GbE

NVIDIA ConnectX Compatibility

The Mellanox ConnectX-6 Dx MCX623106AN-CDAT is a dual-port 100GbE Ethernet (EN) network adapter designed for server and data-center environments, including high-performance computing (HPC), AI infrastructure, cloud networking, distributed storage, enterprise networking, and other high-bandwidth applications. NVIDIA identifies this model as a ConnectX-6 Dx EN adapter with dual QSFP56 ports.

The adapter uses a PCIe Gen 4.0 x16 host interface and is compatible with PCIe Gen 3.0 systems. The host system should provide an appropriate PCIe x16 slot along with sufficient power delivery, cooling, airflow, and physical clearance for the adapter.

The MCX623106AN-CDAT provides two QSFP56 Ethernet ports, with supported Ethernet data rates of 1, 10, 25, 40, 50, and 100Gb/s depending on the network configuration and connected infrastructure.

The MCX623106AN-CDAT is an EN Ethernet adapter, not a VPI adapter, and is intended for Ethernet networking rather than InfiniBand. NVIDIA's documentation specifically identifies the card as a ConnectX-6 Dx EN adapter.

The adapter uses a 5.59 × 2.71 inch (142.00 × 68.90 mm) form factor and a tall bracket. Verify that the intended server chassis provides sufficient physical clearance and a compatible full-height expansion slot.

For networking connectivity, the two QSFP56 ports require compatible Ethernet cables, transceivers, or optical modules. The appropriate cable or optical configuration depends on the desired Ethernet speed, switch compatibility, transmission distance, and copper or optical deployment. NVIDIA specifies support for both copper and optical QSFP56 connectivity.

The MCX623106AN-CDAT has Crypto Disabled and Secure Boot Disabled. This distinguishes it from related ConnectX-6 Dx variants such as the MCX623106AC-CDAT, which has both Crypto Enabled and Secure Boot Enabled.

The adapter is primarily intended for server and data-center environments. Desktop and workstation compatibility should not be assumed; verify PCIe compatibility, power requirements, cooling and airflow, physical clearance, firmware, and operating-system/driver support before installation.

Frequently Asked Questions

What is the Mellanox ConnectX-6 Dx MCX623106AN-CDAT?

The Mellanox ConnectX-6 Dx MCX623106AN-CDAT is a high-performance 100GbE Ethernet network adapter designed for server and data-center networking, high-performance computing, AI infrastructure, cloud networking, distributed storage, enterprise networking, and other high-bandwidth applications. It features two QSFP56 ports and a PCIe Gen 4.0 x16 host interface.

What speed does the MCX623106AN-CDAT support?

The MCX623106AN-CDAT supports Ethernet data rates of 1, 10, 25, 40, 50, and 100Gb/s. Actual link speed depends on the connected switch, cable or transceiver, network configuration, and supported Ethernet mode.

Is the MCX623106AN-CDAT a 100GbE network adapter?

Yes. The MCX623106AN-CDAT is a dual-port 100GbE Ethernet network adapter with two QSFP56 ports. Each port can support up to 100GbE when connected to compatible network infrastructure.

Does the MCX623106AN-CDAT support InfiniBand?

No. The MCX623106AN-CDAT is a ConnectX-6 Dx EN Ethernet adapter. It is designed for Ethernet networking and does not provide InfiniBand operation.

Is the MCX623106AN-CDAT a VPI adapter?

No. The MCX623106AN-CDAT is an EN Ethernet adapter rather than a VPI adapter. It is intended for Ethernet networking and does not provide InfiniBand functionality.

Does the MCX623106AN-CDAT support Windows?

NVIDIA provides drivers for supported ConnectX adapters and Windows operating systems. Verify the specific Windows version, NVIDIA driver release, firmware requirements, and supported features for the MCX623106AN-CDAT before deployment.

Does the MCX623106AN-CDAT support Ethernet on Windows?

Yes. The MCX623106AN-CDAT can be used for Ethernet networking on supported Windows systems with the appropriate NVIDIA ConnectX driver. Verify the specific Windows version and supported driver release before installation.

What PCIe interface does the MCX623106AN-CDAT use?

The MCX623106AN-CDAT uses a PCIe Gen 4.0 x16 host interface and is compatible with PCIe Gen 3.0 systems. The host system must provide an appropriate PCIe x16 slot and sufficient system resources for the adapter.

What connectors does the MCX623106AN-CDAT use?

The MCX623106AN-CDAT uses two QSFP56 Ethernet networking ports. The ports support compatible copper and optical Ethernet connectivity.

What is the form factor of the MCX623106AN-CDAT?

The MCX623106AN-CDAT uses a 5.59 × 2.71 inch (142.00 × 68.90 mm) form factor and a tall bracket. Verify that the intended server chassis provides sufficient physical clearance and a compatible full-height expansion slot.

Does the MCX623106AN-CDAT support Secure Boot?

No. NVIDIA specifies Secure Boot as disabled for the MCX623106AN-CDAT.

Is cryptographic functionality enabled on the MCX623106AN-CDAT?

No. NVIDIA specifies Crypto Disabled for the MCX623106AN-CDAT. Customers requiring hardware cryptographic functionality should select a ConnectX-6 Dx variant specifically configured with Crypto Enabled.

What is the MPN of the Mellanox ConnectX-6 Dx MCX623106AN-CDAT?

The manufacturer part number (MPN) is MCX623106AN-CDAT.

What type of server is compatible with the MCX623106AN-CDAT?

The MCX623106AN-CDAT is intended for server and data-center environments that provide a compatible PCIe x16 slot, sufficient power delivery, cooling, airflow, physical clearance, and compatible NVIDIA drivers.

Can I install the MCX623106AN-CDAT in a desktop PC or workstation?

Compatibility with desktop or workstation systems should not be assumed. Although the adapter uses a standard PCIe x16 interface, it is designed primarily for server and data-center environments. Verify PCIe compatibility, power, cooling, airflow, physical clearance, firmware, and driver support before installation.

What cables or transceivers work with the MCX623106AN-CDAT?

The adapter uses two QSFP56 Ethernet ports and requires compatible QSFP56 cables, optical modules, or active/passive cable solutions. The appropriate solution depends on the desired Ethernet speed, switch compatibility, transmission distance, and copper or optical networking configuration.

Does the MCX623106AN-CDAT support two 100GbE connections?

Yes. The adapter provides two QSFP56 Ethernet ports, each capable of supporting up to 100GbE when connected to compatible network infrastructure. Actual link speed depends on the connected switch, cable or transceiver, and network configuration.

What Ethernet speeds are supported by the MCX623106AN-CDAT?

NVIDIA specifies Ethernet support at 1, 10, 25, 40, 50, and 100Gb/s for the MCX623106AN-CDAT. The actual available rate depends on the connected network infrastructure and configuration.
