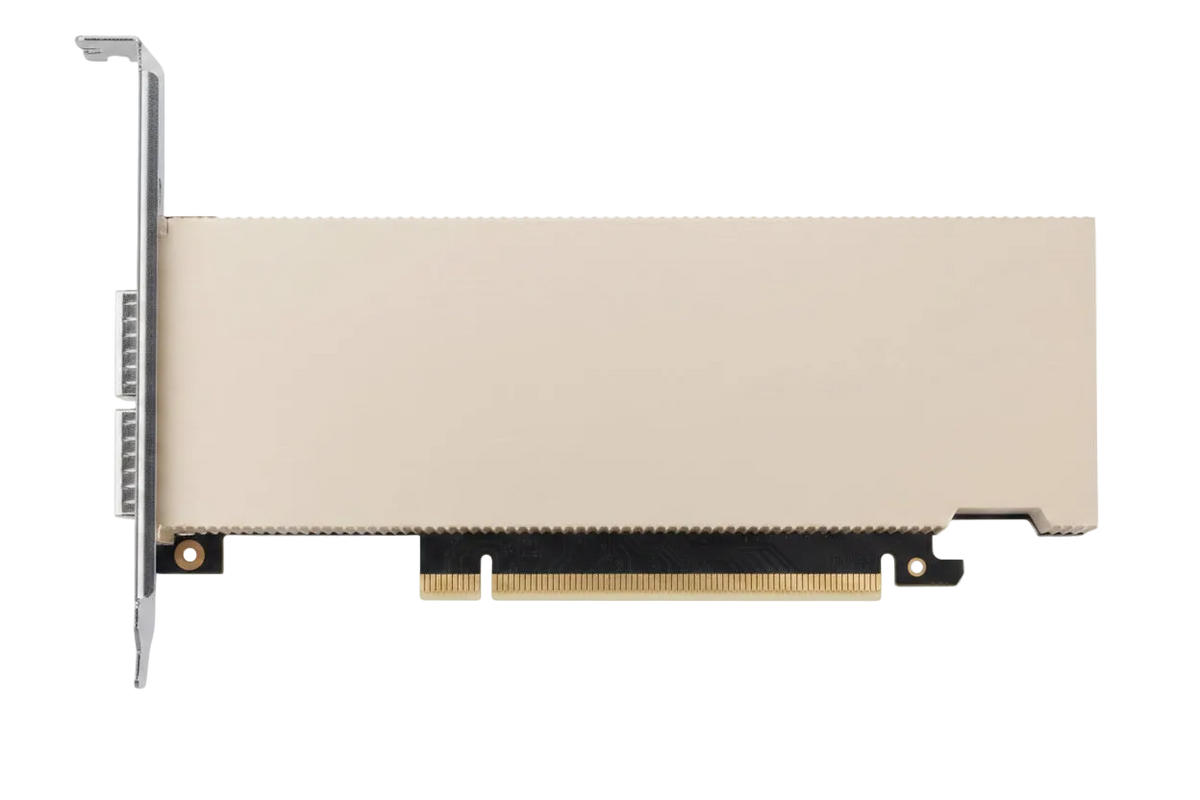

NVIDIA 900-9X81Q-00CN-ST0 ConnectX-8 400GbE VPI Dual Port QSFP112 NIC
NVIDIA Networking

NVIDIA 900-9X81Q-00CN-ST0 ConnectX-8 400GbE VPI Dual Port QSFP112 NIC

  • Form Factor: PCIe 6.0 x16 Network Adapter
  • Brand & Model: NVIDIA ConnectX-8 400GbE Dual-Port VPI QSFP112 NIC
  • MPN: 900-9X81Q-00CN-ST0
  • Ports and Speed: 2x 400GbE
  • Interface: Single QSFP112
  • Features: Secure Boot Enabled, Crypto Enabled
  • Condition: New
SKU ConnectX-8-dual-port-QSFP112-PCIe 6-900-9X81Q-00CN-ST0
Manufacturer NVIDIA/Mellanox
$2,795.00
In Stock
Enterprise Networking Data center and AI infrastructure hardware
Secure Checkout Shop with confidence
Overview Specifications Compatibility FAQ

NVIDIA 900-9X81Q-00CN-ST0 ConnectX-8 400GbE VPI Dual Port QSFP112 NIC Overview

  • Form Factor: PCIe 6.0 x16 Network Adapter
  • Brand & Model: NVIDIA ConnectX-8 400GbE Dual-Port VPI QSFP112 NIC
  • MPN: 900-9X81Q-00CN-ST0
  • Ports and Speed: 2x 400GbE
  • Interface: Single QSFP112
  • Features: Secure Boot Enabled, Crypto Enabled
  • Condition: New

NVIDIA 900-9X81Q-00CN-ST0 ConnectX-8 400GbE VPI Dual Port QSFP112 NIC Specifications

CONNECTOR QSFP112
PCIE PCIe 6.0
PORT 2
SPEED 400GbE

NVIDIA ConnectX Compatibility

The NVIDIA ConnectX-8 C8240 (MPN 900-9X81Q-00CN-ST0) is a high-performance PCIe network adapter designed for AI infrastructure, high-performance computing (HPC), hyperscale data centers, cloud networking, and other high-bandwidth applications.

This adapter uses a PCIe 6.0 x16 host interface and a Half-Height Half-Length (HHHL) form factor. The card features two QSFP112 ports for high-speed network connectivity and supports both Ethernet, up to 400GbE, and 400Gb/s NDR InfiniBand networking.

Before purchasing, verify that your server has an available PCIe x16 slot with the required PCIe generation and platform support, sufficient physical clearance for an HHHL adapter, and appropriate operating system and NVIDIA driver support.

Network connectivity also requires compatible QSFP112 cables, transceivers, or optical modules appropriate for the intended Ethernet or InfiniBand deployment.

For multi-host or SocketDirect deployments, verify that the server platform supports the appropriate PCIe 6.0 x16 SocketDirect/Multi-Host configuration.

This adapter is intended for data-center and high-performance networking environments. Verify server, firmware, driver, cable, transceiver, switch, and operating-system compatibility before ordering.

Frequently Asked Questions

What is the NVIDIA ConnectX-8 C8240 900-9X81Q-00CN-ST0?

The NVIDIA ConnectX-8 C8240 900-9X81Q-00CN-ST0 is a high-performance SuperNIC designed for AI infrastructure, high-performance computing (HPC), hyperscale data centers, and other bandwidth-intensive networking environments. It features two QSFP112 networking ports and a PCIe 6.0 x16 host interface.

What speed does the NVIDIA ConnectX-8 C8240 support?

The NVIDIA ConnectX-8 C8240 supports up to 400Gb/s Ethernet per port. NVIDIA specifies 400GbE as the default Ethernet configuration for the 900-9X81Q-00CN-ST0. The adapter also supports 400Gb/s NDR/HDR/HDR100/EDR/SDR InfiniBand networking.

Is the NVIDIA ConnectX-8 C8240 a 400GbE NIC?

Yes. The 900-9X81Q-00CN-ST0 is a 400GbE-capable ConnectX-8 SuperNIC with two QSFP112 ports. NVIDIA identifies 400GbE Ethernet as the default mode for this model.

Can the ConnectX-8 C8240 be used for InfiniBand?

Yes. The NVIDIA ConnectX-8 C8240 supports both Ethernet and InfiniBand networking. The 900-9X81Q-00CN-ST0 supports 400Gb/s NDR InfiniBand in addition to its 400/200/100 Gb/s Ethernet capability.

What PCIe interface does the ConnectX-8 C8240 use?

The NVIDIA ConnectX-8 C8240 900-9X81Q-00CN-ST0 uses a PCIe 6.0 x16 host interface. NVIDIA also specifies an x16 PCIe SocketDirect / Multi-Host extension option for this adapter.

What connector does the NVIDIA ConnectX-8 C8240 use?

The 900-9X81Q-00CN-ST0 uses two QSFP112 networking ports. These ports support the high-bandwidth Ethernet and InfiniBand connections used by the ConnectX-8 C8240.

Is the NVIDIA ConnectX-8 C8240 a VPI network adapter?

Yes. The ConnectX-8 C8240 is designed to support both InfiniBand and Ethernet networking. The 900-9X81Q-00CN-ST0 supports 400GbE Ethernet and 400Gb/s NDR InfiniBand through its dual QSFP112 ports.

What is the NVIDIA ConnectX-8 C8240 used for?

The ConnectX-8 C8240 is designed for demanding workloads including artificial intelligence and machine learning infrastructure, high-performance computing, hyperscale cloud data centers, distributed computing, and other applications requiring high-bandwidth and low-latency networking.

What is the form factor of the NVIDIA ConnectX-8 C8240?

The NVIDIA ConnectX-8 C8240 900-9X81Q-00CN-ST0 uses a Half-Height Half-Length (HHHL) PCIe form factor. NVIDIA specifies a tall bracket for this model.

What is the MPN for the NVIDIA ConnectX-8 C8240?

The manufacturer part number (MPN), also referred to by NVIDIA as the orderable part number (OPN), for this ConnectX-8 C8240 SuperNIC is 900-9X81Q-00CN-ST0.

Is the NVIDIA ConnectX-8 C8240 compatible with my server?

Compatibility depends on the server's PCIe interface, available physical space, operating system and driver support, networking configuration, and the cables or transceivers required for the intended deployment. The adapter requires an appropriate PCIe x16 host interface. Verify your server and networking requirements before purchasing.
