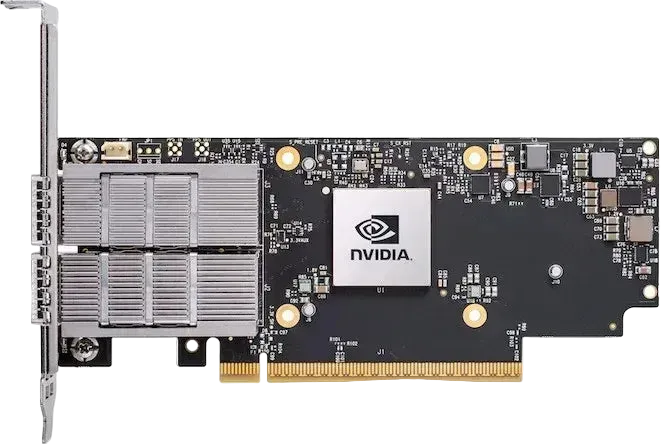

NVIDIA MCX713106AS-CEAT ConnectX-7 EN 100 GbE Dual-Port QSFP112 NIC

Form Factor: PCIe 5.0 x16 Network Adapter
Brand & Model: NVIDIA ConnectX-7 Ethernet Adapter
MPN: MCX713106AS-CEAT
Ports and Speed: 2x 100GbE
Interface: Dual QSFP112
Features: Secure Boot Enabled
Crypto: Crypto Disabled
Condition: New

SKU ConnectX-7-dual-port-QSFP-PCIe5.0-MCX713106AS-CEAT

Manufacturer NVIDIA/Mellanox

$2,139.00

In Stock

Enterprise Networking Data center and AI infrastructure hardware

Secure Checkout Shop with confidence

NVIDIA MCX713106AS-CEAT ConnectX-7 EN 100 GbE Dual-Port QSFP112 NIC Overview

Form Factor: PCIe 5.0 x16 Network Adapter
Brand & Model: NVIDIA ConnectX-7 Ethernet Adapter
MPN: MCX713106AS-CEAT
Ports and Speed: 2x 100GbE
Interface: Dual QSFP112
Features: Secure Boot Enabled
Crypto: Crypto Disabled
Condition: New

NVIDIA MCX713106AS-CEAT ConnectX-7 EN 100 GbE Dual-Port QSFP112 NIC Specifications

CONNECTOR QSFP

PCIE PCIe 5.0

PORT 2

SPEED 100GbE

NVIDIA ConnectX Compatibility

The NVIDIA ConnectX-7 MCX713106AS-CEAT is a high-performance Ethernet network adapter designed for server and data-center environments, including AI infrastructure, high-performance computing (HPC), cloud data centers, distributed storage, enterprise networking, and other bandwidth-intensive applications.

The adapter uses a PCIe 5.0 x16 host interface and is compatible with PCIe 4.0 and PCIe 3.0 systems. NVIDIA specifies a Half-Height Half-Length (HHHL) form factor measuring approximately 2.71 × 6.6 inches (68.90 × 167.65 mm) with a tall bracket. A compatible server should provide an appropriate PCIe x16 slot, sufficient power, airflow, and physical clearance for the adapter.

The MCX713106AS-CEAT features two QSFP112 networking ports for Ethernet connectivity. NVIDIA specifies Ethernet data rates of 100GbE, 50GbE, 40GbE, 25GbE, 10GbE, and 1GbE for this adapter. The actual link speed depends on the connected network equipment, cable or optical module, and network configuration.

The MCX713106AS-CEAT is an Ethernet-only ConnectX-7 EN adapter and should not be treated as a VPI or InfiniBand adapter. NVIDIA's specifications identify this OPN specifically as a dual-port QSFP112 Ethernet adapter.

For networking connectivity, use compatible QSFP112 cables, transceivers, or optical modules appropriate for the intended Ethernet speed and deployment. Cable and optical requirements can vary according to network speed, switch compatibility, transmission distance, and the selected copper or optical connection.

The adapter requires appropriate server power and airflow. NVIDIA specifies that ConnectX-7 cards should be installed in PCIe slots capable of supplying the required power and that system airflow should be planned appropriately for the adapter. Compatibility with desktop or workstation systems should not be assumed; NVIDIA designs these adapters primarily for controlled server and data-center environments.

For Windows deployments, verify the specific Windows version and NVIDIA WinOF-2 driver release supported for the intended configuration. NVIDIA also provides Linux and virtualization driver/software support for ConnectX-7 adapters.

Before purchasing or installing the MCX713106AS-CEAT, verify PCIe compatibility, physical clearance, power and airflow requirements, operating-system and driver support, and QSFP112 cable or optical-module compatibility for the intended server and network environment.

Frequently Asked Questions

What is the NVIDIA ConnectX-7 MCX713106AS-CEAT?

The NVIDIA ConnectX-7 MCX713106AS-CEAT is a high-performance Ethernet network adapter designed for server and data-center networking, including AI infrastructure, high-performance computing, cloud data centers, distributed storage, enterprise networking, and other high-bandwidth applications. It features two QSFP112 Ethernet ports and a PCIe 5.0 x16 host interface.

What speed does the MCX713106AS-CEAT support?

The MCX713106AS-CEAT supports Ethernet data rates up to 100GbE per port. NVIDIA also specifies support for 50GbE, 40GbE, 25GbE, 10GbE, and 1GbE Ethernet rates, depending on the network configuration and connected infrastructure.

Is the MCX713106AS-CEAT a 100GbE network adapter?

Yes. The MCX713106AS-CEAT is a dual-port 100GbE Ethernet adapter with two QSFP112 networking ports. Each port supports Ethernet speeds up to 100GbE when connected to compatible network infrastructure.

Does the MCX713106AS-CEAT support InfiniBand?

No. The MCX713106AS-CEAT is an Ethernet-only ConnectX-7 EN adapter. NVIDIA specifies this model with dual-port QSFP112 Ethernet connectivity rather than VPI or InfiniBand functionality.

Is the MCX713106AS-CEAT a VPI adapter?

No. The MCX713106AS-CEAT is an Ethernet-only ConnectX-7 EN adapter. It is not specified as a VPI adapter and does not provide InfiniBand connectivity.

What PCIe interface does the MCX713106AS-CEAT use?

The MCX713106AS-CEAT uses a PCIe 5.0 x16 host interface. NVIDIA also specifies compatibility with PCIe 4.0 and PCIe 3.0 systems.

What connectors does the MCX713106AS-CEAT use?

The MCX713106AS-CEAT uses two QSFP112 networking ports. NVIDIA specifies these ports for Ethernet networking and supports copper and optical connectivity through compatible cables, transceivers, and optical modules.

What is the form factor of the MCX713106AS-CEAT?

The MCX713106AS-CEAT uses a Half-Height Half-Length (HHHL) PCIe form factor measuring approximately 2.71 × 6.6 inches (68.90 × 167.65 mm). NVIDIA specifies a tall bracket for this adapter.

Does the MCX713106AS-CEAT support Secure Boot?

Yes. NVIDIA specifies Secure Boot as enabled for the MCX713106AS-CEAT.

Is cryptographic functionality enabled on the MCX713106AS-CEAT?

No. NVIDIA specifies Crypto Disabled for the MCX713106AS-CEAT.

What is the MPN of the NVIDIA ConnectX-7 MCX713106AS-CEAT?

The manufacturer part number (MPN) is MCX713106AS-CEAT. The corresponding NVIDIA SKU is 900-9X7AH-0076-ST0.

Does the MCX713106AS-CEAT support Windows?

NVIDIA provides WinOF-2 drivers for supported ConnectX adapters and Windows operating systems. Verify the specific Windows version, driver release, firmware requirements, and supported features before deployment.

Does the MCX713106AS-CEAT support Ethernet on Windows?

Yes. The MCX713106AS-CEAT can be used for Ethernet networking on supported Windows systems with the appropriate NVIDIA WinOF-2 driver. Verify the specific Windows version and supported driver release before installation.

What type of server is compatible with the MCX713106AS-CEAT?

The MCX713106AS-CEAT is intended for server and data-center environments that provide an appropriate PCIe x16 slot, sufficient power, airflow, physical clearance, and compatible operating-system and NVIDIA driver support. Verify the server manufacturer's PCIe, power, cooling, and physical compatibility requirements before installation.

Can I install the MCX713106AS-CEAT in a desktop PC or workstation?

Compatibility with desktop or workstation systems should not be assumed. NVIDIA designs ConnectX-7 adapters primarily for server and data-center environments with appropriate PCIe connectivity, power, airflow, physical clearance, and software support. Verify the system requirements before installation.

What cables or transceivers work with the MCX713106AS-CEAT?

The adapter uses two QSFP112 ports and supports compatible copper and optical Ethernet connectivity. The appropriate QSFP112 cable, transceiver, or optical module depends on the desired Ethernet speed, switch compatibility, transmission distance, and network configuration.

Does the MCX713106AS-CEAT support two 100GbE connections?

Yes. The adapter provides two QSFP112 Ethernet ports, each supporting up to 100GbE when connected to compatible network infrastructure. The actual link speed depends on the connected switch, cable or transceiver, and network configuration.

What Ethernet speeds are supported by the MCX713106AS-CEAT?

NVIDIA specifies 100GbE, 50GbE, 40GbE, 25GbE, 10GbE, and 1GbE Ethernet data rates for the MCX713106AS-CEAT.
