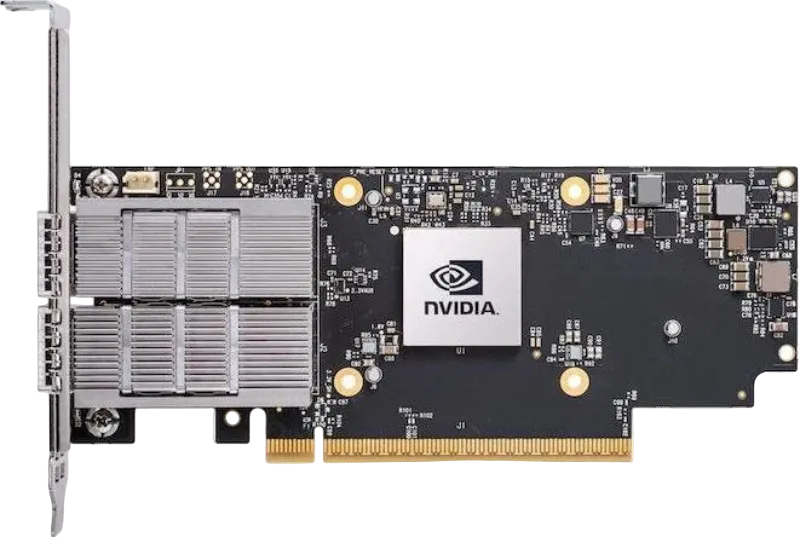

NVIDIA MCX713106AC-CEAT ConnectX-7 EN 100GbE Dual-Port QSFP112 NIC

The NVIDIA ConnectX-7 MCX713106AC-CEAT is a high-performance Ethernet network adapter designed for data-center networking, AI infrastructure, high-performance computing, cloud data centers, distributed storage, enterprise networking, and other high-bandwidth applications. It features two QSFP112 ports and a PCIe 5.0 x16 host interface.

The MCX713106AC-CEAT supports Ethernet speeds up to 100GbE per port. With two ports, the adapter provides two 100GbE network interfaces, subject to the connected network infrastructure and configuration.

Yes. The MCX713106AC-CEAT is a dual-port 100GbE Ethernet network adapter with two QSFP112 networking ports. Actual link speed depends on the connected switch, cable or transceiver, and network configuration.

No. The MCX713106AC-CEAT is an Ethernet-only ConnectX-7 EN adapter and does not support InfiniBand. The MCX713106AC-CEAT is an Ethernet-focused ConnectX-7 EN adapter.

NVIDIA provides WinOF-2 drivers for supported ConnectX adapters and Windows operating systems. Verify the specific Windows version, driver release, firmware requirements, and supported features for the MCX713106AC-CEAT before deployment.

Yes. The MCX713106AC-CEAT can be used for Ethernet networking on supported Windows systems with the appropriate NVIDIA WinOF-2 driver. Verify the specific Windows version and supported driver release before installation.

The MCX713106AC-CEAT uses a PCIe 5.0 x16 host interface. Compatibility with earlier PCIe generations depends on the server, motherboard, and adapter configuration.

The MCX713106AC-CEAT uses two QSFP112 networking ports. The ports are intended for high-speed Ethernet networking and require compatible cables, transceivers, or optical modules.

MCX713106AC-CEAT uses a Half-Height Half-Length (HHHL) PCIe form factor measuring approximately 2.71 × 6.6 inches (68.90 × 167.65 mm). NVIDIA specifies a tall bracket for this adapter.

Yes. The MCX713106AC-CEAT is specified with Secure Boot enabled.

Yes. The MCX713106AC-CEAT is specified with Crypto Enabled.

The manufacturer part number (MPN) is MCX713106AC-CEAT. The corresponding NVIDIA SKU is 900-9X7AH-0086-SQ0

The MCX713106AC-CEAT is intended for server and data-center environments that provide an appropriate PCIe slot, power delivery, airflow, physical clearance, operating-system support, and compatible NVIDIA drivers.

Compatibility with desktop or workstation systems should not be assumed. The adapter is designed for server and data-center environments and requires appropriate PCIe connectivity, power, airflow, physical clearance, firmware, and driver support. Verify the system requirements before installation.

The adapter uses two QSFP112 ports and requires compatible QSFP112 cables, optical modules, or active/passive cable solutions. The appropriate solution depends on the desired Ethernet speed, switch compatibility, transmission distance, and optical or copper networking configuration.

Yes. The adapter provides two QSFP112 networking ports, each supporting up to 100GbE when connected to compatible network infrastructure. The actual link speed depends on the switch, cable or transceiver, and network configuration.
