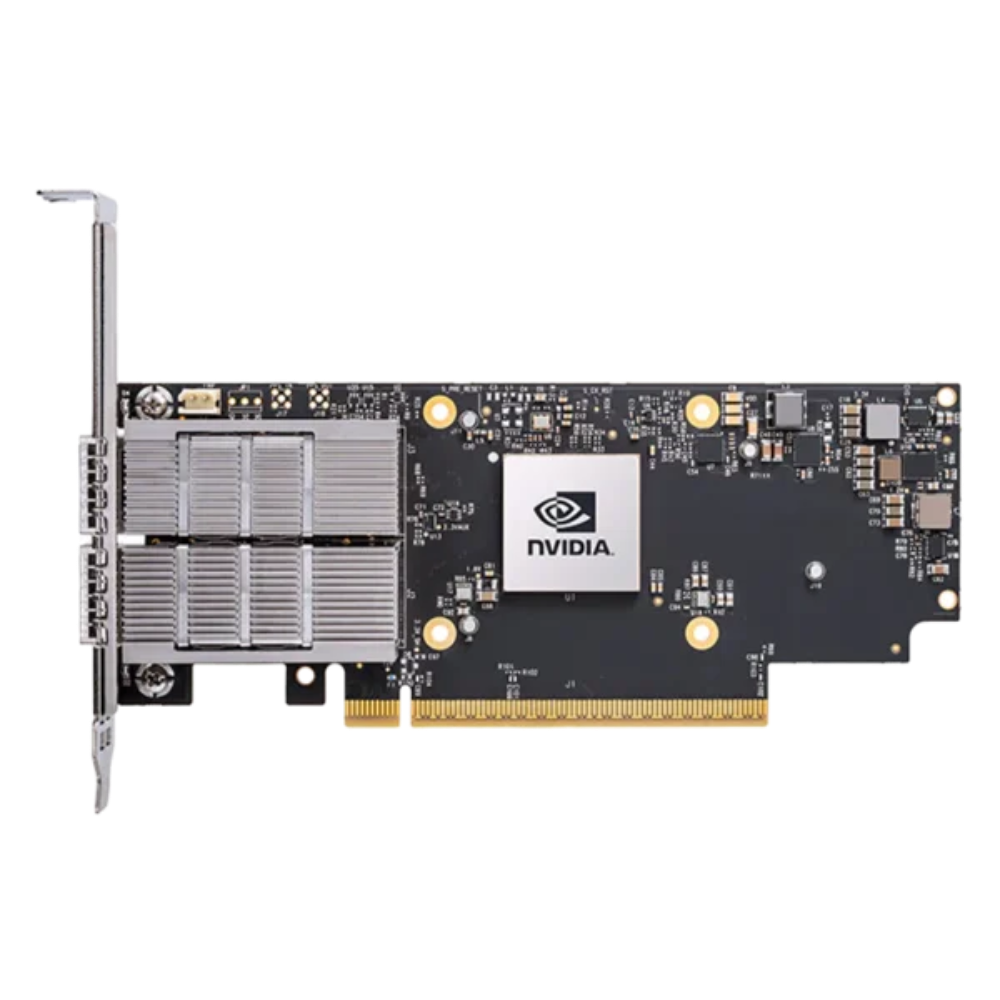

NVIDIA MCX755106AC-HEAT ConnectX-7 200GbE VPI Dual-Port QSFP112 NIC

Form Factor: PCIe 5.0 x16 Network Adapter
Brand & Model: NVIDIA ConnectX-7 200GbE Dual-Port QSFP112 NIC
MPN: MCX755106AC-HEAT
Ports and Speed: 2x 200GbE
Interface: Dual QSFP112
Features: Secure Boot Enabled, Crypto Enabled
Condition: New

SKU ConnectX-7-dual-port-QSFP112-PCIe5.0-MCX755106AC-HEAT

Manufacturer NVIDIA/Mellanox

$2,689.00

In Stock

Enterprise Networking Data center and AI infrastructure hardware

Secure Checkout Shop with confidence

NVIDIA MCX755106AC-HEAT ConnectX-7 200GbE VPI Dual-Port QSFP112 NIC Overview

Form Factor: PCIe 5.0 x16 Network Adapter
Brand & Model: NVIDIA ConnectX-7 200GbE Dual-Port QSFP112 NIC
MPN: MCX755106AC-HEAT
Ports and Speed: 2x 200GbE
Interface: Dual QSFP112
Features: Secure Boot Enabled, Crypto Enabled
Condition: New

NVIDIA MCX755106AC-HEAT ConnectX-7 200GbE VPI Dual-Port QSFP112 NIC Specifications

CONNECTOR QSFP112

PCIE PCIe 5.0

PORT 2

SPEED 200GbE

NVIDIA ConnectX Compatibility

The NVIDIA ConnectX-7 MCX755106AC-HEAT is designed for server and data-center environments requiring high-speed Ethernet or InfiniBand networking. It is suitable for applications including AI infrastructure, high-performance computing (HPC), cloud data centers, distributed storage, enterprise networking, and other high-bandwidth environments.

The adapter uses a PCIe 5.0 x16 host interface and should be installed in a compatible PCIe x16 slot. ConnectX-7 adapters can also operate with earlier PCIe generations, subject to the capabilities of the server and adapter configuration.

The MCX755106AC-HEAT uses a Half-Height Half-Length (HHHL) form factor with with 2.71 in x 6.6 in (68.90mm x 167.65 mm) dimensions and Two QSFP112 network ports. Before installation, verify that the server chassis provides sufficient physical clearance for the adapter and that the PCIe slot and surrounding components do not interfere with the card or its connectors.

The adapter requires appropriate power delivery and airflow for reliable operation. Server manufacturers may have specific requirements for PCIe slot power, system cooling, and supported adapter configurations. Desktop and workstation compatibility should not be assumed.

The MCX755106AC-HEAT is a VPI adapter, supporting both Ethernet and InfiniBand networking. It supports up to 200GbE Ethernet and NDR200 200Gb/s InfiniBand, depending on the selected networking mode and connected infrastructure.

For Windows deployments, verify the specific Windows version and NVIDIA WinOF-2 driver release required for the intended configuration. Linux and other operating systems should likewise be checked against NVIDIA's supported driver and firmware versions before deployment.

The two QSFP112 ports require compatible cables, transceivers, or optical modules appropriate for the intended Ethernet or InfiniBand deployment. Cable and transceiver requirements can vary based on network speed, switch compatibility, transmission distance, and networking protocol.

Before purchasing or installing the MCX755106AC-HEAT, verify PCIe compatibility, physical clearance, power and cooling requirements, operating-system and driver support, and QSFP112 cable or transceiver compatibility for your specific server and networking environment.

Frequently Asked Questions

What is the NVIDIA ConnectX-7 MCX755106AC-HEAT?

The NVIDIA ConnectX-7 MCX755106AC-HEAT is a high-performance VPI network adapter designed for data-center networking, AI infrastructure, high-performance computing, cloud data centers, distributed storage, enterprise networking, and other high-bandwidth applications. It features two QSFP112 ports and a PCIe 5.0 x16 host interface.

What speed does the MCX755106AC-HEAT support?

The MCX755106AC-HEAT supports Ethernet speeds up to 200GbE and NDR200 200Gb/s InfiniBand. Additional Ethernet and InfiniBand speeds may be supported depending on the network configuration, connected switch, and cabling or optics.

Is the MCX755106AC-HEAT a 200GbE network adapter?

Yes. The MCX755106AC-HEAT supports up to 200GbE Ethernet through its two QSFP112 ports. Lower Ethernet speeds may also be supported depending on the network configuration and connected infrastructure.

Can the MCX755106AC-HEAT be used for InfiniBand?

Yes. The MCX755106AC-HEAT is a VPI adapter supporting both Ethernet and InfiniBand networking. NVIDIA specifies NDR200 200Gb/s InfiniBand for this ConnectX-7 adapter.

What is the default networking mode of the MCX755106AC-HEAT?

The MCX755106AC-HEAT is a VPI adapter supporting both Ethernet and InfiniBand. NVIDIA specifies 200GbE Ethernet as the default protocol and data rate, with NDR200 200Gb/s InfiniBand also supported. The adapter can be configured for the intended networking protocol.

Does the MCX755106AC-HEAT support Windows?

Yes. NVIDIA provides WinOF-2 drivers for supported ConnectX adapters and Windows operating systems. The exact supported Windows versions, driver release, firmware requirements, and available networking features depend on the specific deployment.

Does the MCX755106AC-HEAT support Ethernet on Windows?

Yes. The adapter can be used for Ethernet networking on supported Windows systems using the appropriate NVIDIA WinOF-2 driver. Verify the specific Windows version and driver release before deployment.

Does the MCX755106AC-HEAT support InfiniBand on Windows?

Windows InfiniBand support depends on the specific ConnectX-7 adapter, Windows version, and NVIDIA driver release. Verify the current NVIDIA WinOF-2 documentation and supported configuration before deploying this adapter for InfiniBand on Windows.

What PCIe interface does the MCX755106AC-HEAT use?

The MCX755106AC-HEAT uses a PCIe 5.0 x16 host interface. ConnectX-7 adapters can also operate in systems using earlier PCIe generations, subject to the system and adapter configuration.

What connectors does the MCX755106AC-HEAT use?

The MCX755106AC-HEAT uses two QSFP112 networking ports. The ports support high-speed Ethernet and InfiniBand networking.

Is the MCX755106AC-HEAT a VPI adapter?

Yes. VPI allows the adapter to support both Ethernet and InfiniBand networking. The MCX755106AC-HEAT supports up to 200GbE Ethernet and NDR200 200Gb/s InfiniBand.

What is the form factor of the MCX755106AC-HEAT?

The MCX755106AC-HEAT uses a Half-Height Half-Length (HHHL) PCIe form factor measuring approximately 2.71 × 6.6 inches (68.90 × 167.65 mm). NVIDIA specifies a tall bracket for this adapter.

Does the MCX755106AC-HEAT support Secure Boot?

Yes. Secure Boot is enabled on the MCX755106AC-HEAT.

Is cryptographic functionality enabled on the MCX755106AC-HEAT?

Yes. The MCX755106AC-HEAT is specified with Crypto Enabled. This distinguishes it from closely related ConnectX-7 variants that are specified with Crypto Disabled.

What is the MPN of the NVIDIA ConnectX-7 MCX755106AC-HEAT?

The manufacturer part number (MPN) is MCX755106AC-HEAT. The corresponding NVIDIA SKU is 900-9X7AH-0079-DTZ.

What type of server is compatible with the MCX755106AC-HEAT?

The MCX755106AC-HEAT is intended for server and data-center environments that provide an appropriate PCIe slot, power delivery, airflow, physical clearance, operating-system support, and driver compatibility. Verify the server manufacturer's PCIe, power, cooling, and physical compatibility requirements before installation.

Can I install the MCX755106AC-HEAT in a desktop PC or workstation?

Compatibility with desktop or workstation systems should not be assumed. The adapter is designed for server and data-center environments and requires appropriate PCIe connectivity, power, airflow, physical clearance, firmware, and driver support. Verify the system requirements before installation.

What cables or transceivers work with the MCX755106AC-HEAT?

The adapter uses two QSFP112 ports and requires compatible QSFP112 cables, optical modules, or active/passive cable solutions appropriate for the intended Ethernet or InfiniBand deployment. The exact cable or optical configuration depends on network speed, switch compatibility, transmission distance, and networking protocol.

Does the MCX755106AC-HEAT support 200Gb/s Ethernet and InfiniBand?

Yes. The MCX755106AC-HEAT supports up to 200GbE Ethernet and NDR200 200Gb/s InfiniBand. Actual link speed depends on the connected switch, cable or transceiver, network configuration, and supported protocol.
