Dell PowerEdge R940 Server
SKU: Dell-R940-8B-SFF
Cloud Ninjas' Dell PowerEdge R940 Specifications
Chassis
The Dell PowerEdge R940 server is perfect for automation. This 3U rackmount server has two different chassis options to choose from: 8 Bay SFF and 24 Bay SFF.
8 Bay SFF
The 8 Bay SFF chassis for the PowerEdge R940 accepts up to eight hot-swap 2.5" SAS/SATA drives and up to twelve NVMe PCIe SSDs. Drive plugged into the backplane are hot-swap, meaning that drives can be added or removed while the server is powered on. This is good in situations where a drive fails and you need to replace it, but your server can stay online.

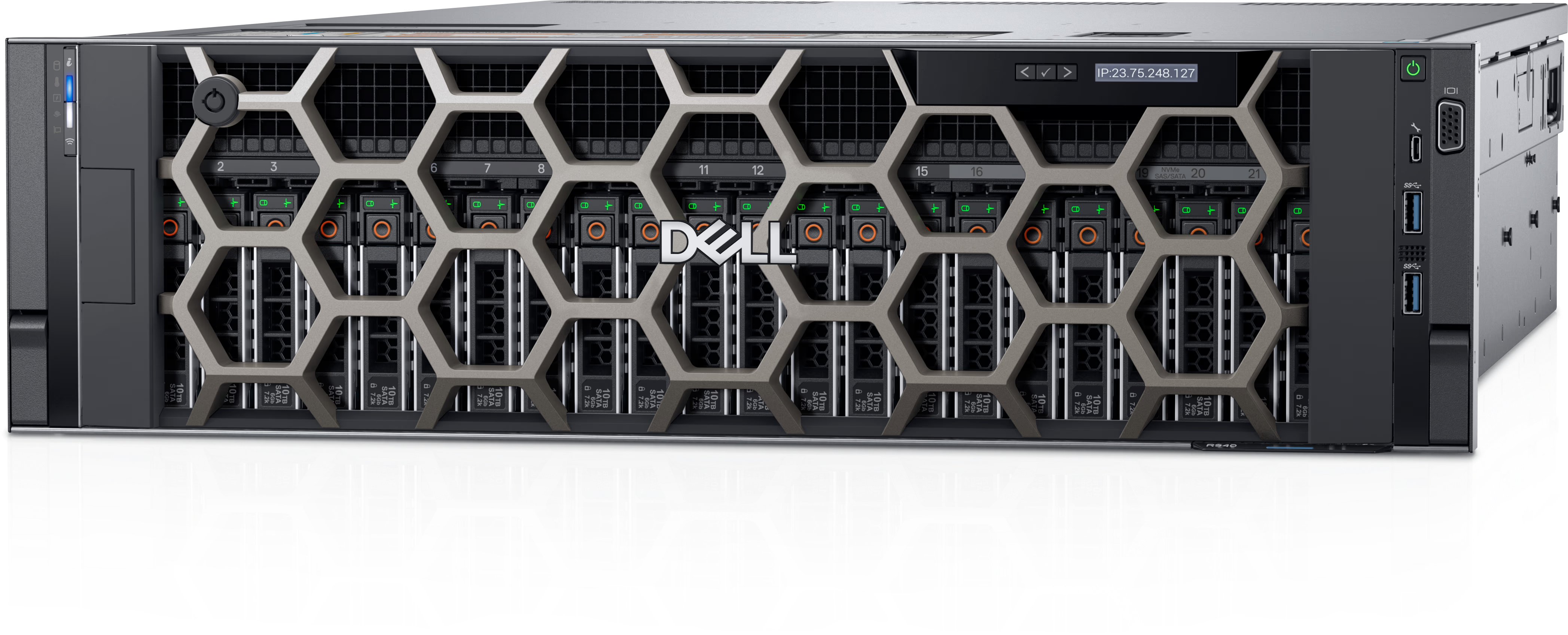

24 Bay SFF
The 24 Bay SFF chassis is nearly identical to the 8 Bay SFF chassis. The 24 Bay SFF chassis supports up to twenty-four hot-swap 2.5" SAS/SATA drives and up to twelve NVMe PCIe SSDs. Just like the 8 Bay SFF chassis, the 24 Bay SFF chassis' backplane supports hot-swap drives, which allows you to add or remove drives while the system is running.
Chassis Rear
The chassis rear is identical across both chassis’ options. The rear includes twelve full-height PCIe slots, a network daughter card slot, a serial connector, a VGA port, two type A USB ports, a dedicated iDRAC LAN port, and two hot-swap power supply bays.
Processing Power
The Dell PowerEdge R940 server has four LGA3647 CPU sockets that accept 1st and 2nd generation Intel Xeon Scalable processors. A maximum of 28 cores per processor is allowed, meaning that the R940 can have a maximum of 112 CPU cores across all four CPU sockets.
Supported 1st Generation Intel Xeon Scalable Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3104 | SR3GM | 6 | 1.70 GHz |
Bronze 3106 | SR3GL | 8 | 1.70 GHz |
Silver 4106H | SR44Y | 8 | 1.80 GHz |
Silver 4108 | SR3GJ | 8 | 1.80 GHz |
Silver 4109T | SR3GP | 8 | 2.00 GHz |
Silver 4110 | SR3GH | 8 | 2.10 GHz |
Silver 4112 | SR3GN | 4 | 2.60 GHz |
Silver 4114 | SR3GK | 10 | 2.20 GHz |
Silver 4114T | SR3MM | 10 | 2.20 GHz |
Silver 4116 | SR3HQ | 12 | 2.10 GHz |
Silver 4116T | SR3MQ | 12 | 2.10 GHz |
Silver 4123 | SR3VW | 8 | 3.00 GHz |
Gold 5115 | SR3GB | 10 | 2.40 GHz |
Gold 5117 | SR37S | 14 | 2.00 GHz |
Gold 5117F | SR3KM | 14 | 2.00 GHz |
Gold 5118 | SR3GF | 12 | 2.30 GHz |
Gold 5119T | SR3MN | 14 | 1.90 GHz |
Gold 5120 | SR3GD | 14 | 2.20 GHz |
Gold 5120T | SR3GC | 14 | 2.20 GHz |
Gold 5122 | SR3AT | 4 | 3.60 GHz |
Gold 6122 | SRCKF | 20 | 1.80 GHz |
Gold 6126 | SR3B3 | 12 | 2.60 GHz |
Gold 6126F | SR3KE | 12 | 2.60 GHz |
Gold 6126T | SR3J9 | 12 | 2.60 GHz |
Gold 6127M | 16 | 2.20 GHz | |
Gold 6128 | SR3J4 | 6 | 3.40 GHz |
Gold 6130 | SR3B9 | 16 | 2.10 GHz |
Gold 6130F | SR3KD | 16 | 2.10 GHz |
Gold 6130T | SR3J8 | 16 | 2.10 GHz |
Gold 6132 | SR3J3 | 14 | 2.60 GHz |
Gold 6133 | SR3M1 | 20 | 2.50 GHz |
Gold 6134 | SR3AR | 8 | 3.20 GHz |
Gold 6134M | SR3AS | 8 | 3.20 GHz |
Gold 6135 | SR3M6 | 8 | 3.40 GHz |
Gold 6135M | SR3M6 | 8 | 3.50 GHz |
Gold 6136 | SR3B2 | 12 | 3.00 GHz |
Gold 6137 | SR3M3 | 8 | 3.90 GHz |
Gold 6137M | 8 | 3.90 GHz | |
Gold 6138 | SR3B5 | 20 | 2.00 GHz |
Gold 6138F | SR3KK | 20 | 2.00 GHz |
Gold 6138P | SRCUG | 20 | 2.00 GHz |
Gold 6138T | SR3J7 | 20 | 2.00 GHz |
Gold 6139 | SR3G3 | 18 | 2.30 GHz |
Gold 6139M | SR3FV | 18 | 2.30 GHz |
Gold 6140 | SR3AX | 18 | 2.30 GHz |
Gold 6140M | SR3AZ | 18 | 2.30 GHz |
Gold 6142 | SR3AY | 16 | 2.60 GHz |
Gold 6142F | SR3KH | 16 | 2.60 GHz |
Gold 6142M | SR3B1 | 16 | 2.60 GHz |
Gold 6143 | SR3M7 | 16 | 2.80 GHz |
Gold 6144 | SR3MB | 8 | 3.50 GHz |
Gold 6145 | SR3G4 | 20 | 2.00 GHz |
Gold 6146 | SR3MA | 12 | 3.20 GHz |
Gold 6148 | SR3B6 | 20 | 2.40 GHz |
Gold 6148F | SR3KJ | 20 | 2.40 GHz |
Gold 6149 | SR3G2 | 16 | 3.10 GHz |
Gold 6150 | SR37K | 18 | 2.70 GHz |
Gold 6151 | SR3BG | 18 | 3.00 GHz |
Gold 6152 | SR3B4 | 22 | 2.10 GHz |
Gold 6154 | SR3J5 | 18 | 3.00 GHz |
Gold 6155 | 20 | 3.00 GHz | |
Gold 6159 | 22 | 2.20 GHz | |
Gold 6161 | SR3G7 | 22 | 2.20 GHz |
Gold 6162 | SRCKE | 24 | 1.90 GHz |
Gold 6164 | 24 | 1.90 GHz | |
Platinum 6162 | SRCKE | 24 | 1.90 GHz |
Platinum 8124M | SRD1Y | 18 | 3.00 GHz |
Platinum 8151 | SR3M0 | 12 | 3.40 GHz |
Platinum 8153 | SR3BA | 16 | 2.00 GHz |
Platinum 8156 | SR3AV | 4 | 3.60 GHz |
Platinum 8158 | SR3B7 | 12 | 3.00 GHz |
Platinum 8160 | SR3B0 | 24 | 2.10 GHz |
Platinum 8160F | SR3B8 | 24 | 2.10 GHz |
Platinum 8160H | 24 | 2.10 GHz | |
Platinum 8160M | SR3B8 | 24 | 2.10 GHz |
Platinum 8160T | SR3J6 | 24 | 2.10 GHz |
Platinum 8163 | SR3G1 | 24 | 2.40 GHz |
Platinum 8164 | SR3BB | 26 | 2.00 GHz |
Platinum 8165 | 24 | 2.30 GHz | |
Platinum 8167M | SR3A0 | 26 | 2.00 GHz |
Platinum 8168 | SR37J | 24 | 2.70 GHz |
Platinum 8170 | SR37H | 26 | 2.10 GHz |
Platinum 8170M | SR3BD | 26 | 2.10 GHz |
Platinum 8171M | SR37I | 26 | 2.30 GHz |
Platinum 8172M | SR39Q | 26 | 2.60 GHz |
Platinum 8173M | SR37Q | 28 | 2.00 GHz |
Platinum 8174 | SR3ZA | 24 | 3.10 GHz |
Platinum 8175M | SR3FU | 24 | 2.50 GHz |
Platinum 8176 | SR37A | 28 | 2.10 GHz |
Platinum 8176F | SR3MK | 28 | 2.10 GHz |
Platinum 8176M | SR37U | 28 | 2.10 GHz |
Platinum 8179M | 26 | 2.40 GHz | |
Platinum 8180 | SR377 | 28 | 2.50 GHz |
Platinum 8180M | SR37T | 28 | 2.50 GHz |
Platinum P-8124 | SR2YS | 18 | 3.00 GHz |
Platinum P-8136 | SR2YN | 28 | 2.00 GHz |
Supported 2nd Generation Intel Xeon Scalable Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3204 | SRFBP | 6 | 1.90 GHz |
Bronze 3206R | SRG25 | 8 | 1.90 GHz |
Silver 4208 | SRFBM | 8 | 2.10 GHz |
Silver 4209T | SRFBQ | 8 | 2.20 GHz |
Silver 4210 | SRFBL | 10 | 2.20 GHz |
Silver 4210R | SRG24 | 10 | 2.40 GHz |
Silver 4210T | SRGYH | 10 | 2.30 GHz |
Silver 4214 | SRFB9 | 12 | 2.20 GHz |
Silver 4214R | SRG1W | 12 | 2.40 GHz |
Silver 4214Y | SRFDG | 12 | 2.20 GHz |
Silver 4215 | SRFBA | 8 | 2.50 GHz |
Silver 4215R | SRGZE | 8 | 3.20 GHz |
Silver 4216 | SRFBB | 16 | 2.10 GHz |
Gold 5215 | SRFBC | 10 | 2.50 GHz |
Gold 5215L | SRFBE | 10 | 2.50 GHz |
Gold 5215M | SRFBD | 10 | 2.50 GHz |
Gold 5217 | SRFBF | 8 | 3.00 GHz |
Gold 5218 | SRF8T | 16 | 2.30 GHz |
Gold 5218B | SRFDJ | 16 | 2.30 GHz |
Gold 5218N | SRFD9 | 16 | 2.30 GHz |
Gold 5218N | SRGLN | 16 | 2.30 GHz |
Gold 5218R | SRGZ7 | 20 | 2.10 GHz |
Gold 5218T | SRFPM | 16 | 2.10 GHz |
Gold 5219Y | SRF8C | 16 | 2.40 GHz |
Gold 5220 | SRFBJ | 18 | 2.20 GHz |
Gold 5220S | SRFPT | 18 | 2.70 GHz |
Gold 5220R | SRGZP | 24 | 2.20 GHz |
Gold 5220T | SRFPK | 18 | 1.90 GHz |
Gold 5222 | SRF8V | 4 | 3.80 GHz |
Gold 6208U | SRGZD | 16 | 2.90 GHz |
Gold 6209U | SRFQ3 | 20 | 2.10 GHz |
Gold 6210U | SRF9B | 20 | 2.50 GHz |
Gold 6212U | SRF9A | 24 | 2.40 GHz |
Gold 6222 | SRFQ5 | 16 | 1.80 GHz |
Gold 6222V | SRF8D | 20 | 1.80 GHz |
Gold 6226 | SRFPP | 12 | 2.70 GHz |
Gold 6226R | SRGZC | 16 | 2.90 GHz |
Gold 6230 | SRF8W | 20 | 2.10 GHz |
Gold 6230N | SRFPR | 20 | 2.30 GHz |
Gold 6230R | SRGZA | 26 | 2.10 GHz |
Gold 6230T | SRFPS | 20 | 2.10 GHz |
Gold 6231 | 16 | 3.20 GHz | |
Gold 6233 | 24 | 2.50 GHz | |
Gold 6234 | SRFPN | 8 | 3.30 GHz |
Gold 6238 | SRFPL | 22 | 2.10 GHz |
Gold 6238L | SRFQ2 | 22 | 2.10 GHz |
Gold 6238M | SRFQ1 | 22 | 2.10 GHz |
Gold 6238R | SRGZ9 | 28 | 2.20 GHz |
Gold 6238T | SRF9C | 22 | 1.90 GHz |
Gold 6240 | SRF8X | 18 | 2.60 GHz |
Gold 6240C | 18 | 2.60 GHz | |
Gold 6240L | SRFQ0 | 18 | 2.60 GHz |
Gold 6240M | SRFPZ | 18 | 2.60 GHz |
Gold 6240R | SRGZ8 | 24 | 2.40 GHz |
Gold 6240Y | SRF9D | 18 | 2.60 GHz |
Gold 6241W | 16 | 3.20 GHz | |
Gold 6242 | SRF8Y | 16 | 2.80 GHz |
Gold 6242R | SRGZJ | 20 | 3.10 GHz |
Gold 6244 | SRF8Z | 8 | 3.60 GHz |
Gold 6246 | SRFPJ | 12 | 3.30 GHz |
Gold 6246R | SRGZL | 16 | 3.40 GHz |
Gold 6248 | SRF90 | 20 | 2.50 GHz |
Gold 6248R | SRGZG | 24 | 3.00 GHz |
Gold 6250 | SRGTR | 8 | 3.90 GHz |
Gold 6250L | SRH5D | 8 | 3.90 GHz |
Gold 6252 | SRF91 | 24 | 2.10 GHz |
Gold 6252N | SRFPQ | 24 | 2.30 GHz |
Gold 6253CL | SRF7Z | 18 | 3.10 GHz |
Gold 6254 | SRF92 | 18 | 3.10 GHz |
Gold 6256 | SRGTQ | 12 | 3.60 GHz |
Gold 6258R | SRGZF | 28 | 2.70 GHz |
Gold 6262 | SRF8E | 24 | 1.90 GHz |
Gold 6262V | SRFQ4 | 24 | 1.90 GHz |
Gold 6266C | SRF83 | 22 | 3.00 GHz |
Gold 6267 | SRFQ7 | 24 | 2.60 GHz |
Gold 6268CL | SRF80 | 24 | 2.80 GHz |
Gold 6269Y | SRF8B | 22 | 3.20 GHz |
Gold 6271C | SRF8M | 24 | 2.60 GHz |
Gold 6278C | SRF86 | 26 | 2.60 GHz |
Gold 6290 | SRFQ7 | 22 | 3.20 GHz |
Platinum 8222L | SRFA7 | 18 | 3.00 GHz |
Platinum 8251 | SRF8R | 12 | 3.80 GHz |
Platinum 8253 | SRF93 | 16 | 2.20 GHz |
Platinum 8255C | SRF92 | 24 | 2.50 GHz |
Platinum 8256 | SRF94 | 4 | 3.80 GHz |
Platinum 8259CL | SRFA8 | 24 | 2.50 GHz |
Platinum 8259L | 24 | 2.50 GHz | |
Platinum 8260 | SRF9H | 24 | 2.40 GHz |
Platinum 8260L | SRF9G | 24 | 2.40 GHz |
Platinum 8260M | SRF9J | 24 | 2.40 GHz |
Platinum 8260Y | SRF9F | 24 | 2.40 GHz |
Platinum 8268 | SRF95 | 24 | 2.90 GHz |
Platinum 8269CY | SRF8J | 26 | 2.50 GHz |
Platinum 8270 | SRF96 | 26 | 2.70 GHz |
Platinum 8272L | SRF89 | 26 | 2.60 GHz |
Platinum 8273CL | 28 | 2.20 GHz | |
Platinum 8274 | SRFPX | 24 | 3.20 GHz |
Platinum 8275CL | SRFA9 | 24 | 3.00 GHz |
Platinum 8276 | SRF99 | 28 | 2.20 GHz |
Platinum 8276L | SRF97 | 28 | 2.20 GHz |
Platinum 8276M | SRF98 | 28 | 2.20 GHz |
Platinum 8279W | SRGWA | 28 | 2.50 GHz |
Platinum 8280 | SRF9P | 28 | 2.70 GHz |
Platinum 8280L | SRF9R | 28 | 2.70 GHz |
Platinum 8280M | SRF9Q | 28 | 2.70 GHz |
Platinum 8284 | SRFPY | 28 | 3.00 GHz |
Memory
DIMM slots & Memory Channels
The Dell PowerEdge R940 is a DDR4 based machine with 48 DIMM slots and 24 total memory channels. There are two system boards inside, that each have 24 DIMMs. Each memory channel consists of two DIMM slot.
Supported Memory Types
The Dell PowerEdge R940 server accepts ECC Registered (RDIMM), Load Reduced (LRDIMM), Non-volatile memory (NVDIMM), and Intel Optane DC Persistent Memory (DCPMM). It is important to not mix different memory types unless you are mixing LRDIMMs or RDIMMs with DCPMMs together. Mixing together other types can lead to issues such as boot failure.
Supported Memory Capacities
Module capacities of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, and 512GB. 128GB modules are only available as Load Reduced and Intel Optane PMem. 256GB modules are only available as Load Reduced and Intel Optane PMem. Lastly, 512GB modules are only available as Intel Optane PMem.
Max Configurations
With ECC Registered memory, the max RAM capacity that can be achieved is 3TB (3072GB) via 48 x 64GB RDIMMs. With Load Reduced Memory, the maximum RAM capacity that can be achieved is 6TB (6144GB) via a configuration of 48 x 128GB LRDIMMs. With Non-volatile memory, a max RAM capacity of 192GB can be reached via 12 x 16GB NVDIMMs. 64GB RDIMMs can be installed into the remaining 36 DIMMs slots, bringing the total RAM capacity to 2.4TB (2496GB). Finally for Intel Optane DC Persistent Memory, the maximum possible RAM capacity is 12.28TB (12288GB) via 24 x 512GB DCPMMs. 128GB LRDIMMs can be installed into the last 24 DIMM slots, bringing the total capacity to 15.36TB (15360GB).
Supported Memory Speeds
The Dell PowerEdge R940 supports module speeds of 2133MT/s, 2400MT/s, 2666MT/s, and 2933MT/s. 3200MT/s modules can be installed, but will clock down to the fastest possible speed for your server's configuration. The processor that you have installed will determine the fastest supported memory speed is for your configuration. For example, if you install a processor that has a max memory speed of 2666MT/s, and you install a 2933MT/s module, the module will operate at 2666MT/s.
Storage
The Dell R940 server accepts 2.5" SAS/SATA drives. There is no chassis option for the R940 to install 3.5" drives. Only 2.5" drives can be used with the R940. The total number of drives that can be installed into your system depends on the chassis that you have. If you have an 8 Bay SFF chassis, up to eight 2.5" SAS/SATA hard drives and/or solid state drives can be installed. If you have a 24 Bay SFF chassis, up to twenty-four 2.5" SAS/SATA hard drives and/or solid state drives can be installed.
Supported Drives (2.5")
Type | Speeds | Max Capacity (Per Drive) |
---|---|---|
SAS | 7.2K, 10K, 15K | 2.4TB |
SATA | 7.2K | 2TB |
SSD | 6Gb/s, 12Gb/s | 7.68TB |
Power Supplies
How Many Power Supplies does the R940 Support?
The Dell PowerEdge R940 server supports up to two hot-swap power supply units (PSUs). Because power supplies for this system are hot-swap, PSUs can be added or removed while the server is powered on, as long as one unit remains plugged into the system.
Power Supply Options
Platinum 1100W |
Platinum 1100W 380VDC |
Platinum 1600W |
Platinum 2000W |
Platinum 2400W |
Titanium 1600W HLAC |
Titanium 2600W HLAC |
Gold 1100W -48VDC |
RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
S140 onboard software | 0,1,5,10 | None | 6 Gb/s SATA/NVMe | N/A | Software |
HBA330 | Passthrough | None | 6 Gb/s SAS/SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
12Gbps SAS Ext. HBA | Passthrough | None | 12 Gb/s SAS | PCIe 3.0 | Hardware |
H330 | 0, 1, 5, 10, 50 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H730P | 0, 1, 5, 6, 10, 50, 60 | 2 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H740P | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
H840 | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
Network Interface Card Options
In order to connect your R940 server to the Internet, you will need some type of Network Interface Card (NIC). The PowerEdge R940 accepts two NIC form factors: Daughter cards and PCIe cards. In the rear of the chassis, there is a dedicated slot, specifically for network daughter cards. Along with the daughter card, you can install multiple PCIe network cards if needed.
Daughter Cards
Broadcom 5720 Quad Port 4 x 1GbE RJ45 |
Broadcom 57412/5720 Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Broadcom 57414 Dual Port 2 x 25GbE SFP28 |
Broadcom 57416/5720 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Broadcom 57800S Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Broadcom 57800T Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Broadcom 57840S Quad Port 4 x 10GbE SFP+ |
Intel I350 Quad Port 4 x 1GbE RJ45 |
Intel X520/I350 Quad Port 2 x 10GbE SFP + 2 x 1GbE RJ45 |
Intel X540/I350 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Intel X550 Quad Port 4 x 10GbE RJ45 |
Intel X550/I350 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Intel X710 Quad Port 4 x 10GbE SFP+ |
Intel X710/I350 Quad Port 2 x 10GbE SFP + 2 x 1GbE RJ45 |
QLogic FastLinQ QL41164 Quad Port 4 x 10GbE RJ45 |
QLogic FastLinQ QL41262 Dual Port 2 x 25GbE SFP28 |
QLogic FastLinQ QL41264 Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Mellanox ConnectX-4 CX422A Dual Port 2 x 25GbE SFP HBA |
PCIe Cards
Broadcom 5719 Quad Port 4 x 1GbE RJ45 |
Broadcom 5720 Dual Port 2 x 1GbE RJ45 |
Broadcom 57412 Dual Port 2 x 10GbE SFP+ |
Broadcom 57414 Dual Port 2 x 25GbE SFP28 |
Broadcom 57416 Dual Port 2 x 10GbE RJ45 |
Broadcom 57504 Quad Port 4 x 25GbE SFP |
Broadcom 57810 Dual Port 2 x 10GbE SFP+ CNA |
Intel E810 Quad Port 4 x 25GbE SFP28 |
Intel I350-T2 Dual Port 2 x 1GbE RJ45 |
Intel I350-T4 Quad Port 4 x 1GbE RJ45 |
Intel X520-DA2 Dual Port 2 x 10GbE SFP+ CNA |
Intel X520-T2 Dual Port 2 x 10GbE RJ45 |
Intel X550-T2 Dual Port 2 x 10GbE SFP CNA |
Intel X710-DA2 Dual Port 2 x 10GbE SFP+ CNA |
Intel X710-DA4 Quad Port 4 x 10GbE SFP CNA |
Intel X710-T2L Dual Port 2 x 10GbE RJ45 |
Intel X710-T4 Quad Port 4 x 10GbE RJ45 CNA |
Intel X710-T4L Quad Port 4 10GbE RJ45 |
Intel XL710-QD2 Dual Port 2 x 40GbE QSFP |
Intel XXV710-DA2 Dual Port 2 x 25GbE SFP+ |
QLogic FastLinQ QL41164HFCU Quad Port 4 x 10GbE SFP |
QLogic QL41262HFCU-DE Dual Port 2 x 25GbE SFP+ CNA |
QLogic QLE2692 Dual Port 2 x 16GbE SFP+ |
QLogic QLE41112 Dual Port 2 x 10GbE SFP+ CNA |
QLogic QLE41162 Dual Port 2 x 10GbE RJ45 CNA |
QLogic QLE8262 Dual Port 2 x 10GbE SFP+ CNA |
Mellanox ConnectX-3 CX322A Dual Port 2 x 10GbE SFP+ |
Mellanox ConnectX-4 CX4121A Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-4 CX4121C Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-4 CX416A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-4 CX456A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-4 Single Port 1 x 100GbE QSFP |
Mellanox ConnectX-4 V2 CX4121C Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-5 CX516A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-5 EN CX512F Dual Port 2 x 25GbE SFP28 |
Mellanox ConnectX-5 Single Port 1 x 100GbE QSFP |
Mellanox ConnectX-6 CX623106A Dual Port 2 x 100GbE QSFP |
Emulex LPE31002 Dual Port 2 x 16GbE SFP+ |
Emulex LPe35002 Dual Port 2 x 32GbE FC SFP+ HBA |
Brocade 1020 Dual Port 2 x 10GbE SFP+ CNA |
Brocade 815 Single Port 1 x 8GbE FC SFP+ HBA |
Brocade 825 Dual Port 2 x 8GbE FC SFP+ HBA |
Solarflare SF10-050020 Dual Port 2 x 10GbE SFP+ CNA |
Solarflare SF8522 Dual Port 2 x 10GbE SFP+ CNA |
Systems Management Solutions
The Dell PowerEdge R940 Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup, and searching the IP in a web browser.
Supported Operating Systems:
The PowerEdge R940 supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. These operating systems are:
- ⦿ Citrix XenServer 7.1
- ⦿ Novell SuSE Linux ES 11
- ⦿ Red Hat® Enterprise Linux 7
- ⦿ Red Hat® Enterprise Linux 8
- ⦿ Red Hat® Enterprise Linux 9
- ⦿ SUSE Linux ES 12
- ⦿ SUSE Linux ES 15
- ⦿ Ubuntu Server 16.04 LTS
- ⦿ Ubuntu Server 18.04 LTS
- ⦿ Ubuntu Server 20.04 LTS
- ⦿ Ubuntu Server 22.04 LTS
- ⦿ VMware ESXi 6.0
- ⦿ VMware ESXi 6.5
- ⦿ VMware ESXi 6.7
- ⦿ VMware ESXi 7.0
- ⦿ VMware ESXi 8.0
- ⦿ Window Server 2012 R2
- ⦿ Window Server 2016
- ⦿ Window Server 2019 LTSC
- ⦿ Window Server 2022 LTSC
Technical Information Overview
The Dell PowerEdge R940 is a powerful 3U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the capabilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R940. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R940 server.
Technical Guide
Learn the ins and outs of the R940: View PowerEdge R940 Technical Guide
Technical Specifications
For all technical information regarding the PowerEdge R940, refer to the R940 technical specifications: View PowerEdge R940 Technical Specifications
Spec Sheet
Need a quick overview of the R940's specs? Check out the R940 spec sheet: View PowerEdge R940 Spec Sheet
Installation and Service Manual
Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R940 Installation and Service Manual
Integrated Dell Remote Access Controller 9 User's Guide
Everything you need to know about iDRAC9, all in one place: View PowerEdge R940 iDRAC9 User's Guide
Lifecycle Controller User's Guide
Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R940 Lifecycle Controller Setup Guide
Dell Systems Management Overview
Learn about the R940's System Management Technologies: View PowerEdge R940 Dell System Management Overview Guide
BIOS Upgrade EFI File Download
Upgrade your BIOS Via an EFI File: Download PowerEdge R940 BIOS Upgrade EFI File
- CPUs
- Memory
- Drives
- NVMe
- Different Chassis Types
- RAID
- BIOS
- iDRAC
- Mass Updates
- How to set IP Address
- How to install VMware ESXI 7.0.3
- Network Cards
- Power Supplies
- How to Rack
- How to Install Windows Server 2016
CPUs
Coming Soon
Memory
Coming Soon
Drives
Coming Soon
NVMe
Coming Soon
Different Chassis Types
Coming Soon
RAID
Coming Soon
BIOS
Coming Soon
iDRAC
Coming Soon
Mass Updates
Coming Soon
How to set IP Address
Coming Soon
How to install VMware ESXI 7.0.3
Coming Soon
Network Cards
Coming Soon
Power Supplies
Coming Soon
How to Rack
Coming Soon
How to Install Windows Server 2016
Coming Soon
Cloud Ninjas' Dell PowerEdge R940 Specifications
Chassis
The Dell PowerEdge R940 server is perfect for automation. This 3U rackmount server has two different chassis options to choose from: 8 Bay SFF and 24 Bay SFF.
8 Bay SFF
The 8 Bay SFF chassis for the PowerEdge R940 accepts up to eight hot-swap 2.5" SAS/SATA drives and up to twelve NVMe PCIe SSDs. Drive plugged into the backplane are hot-swap, meaning that drives can be added or removed while the server is powered on. This is good in situations where a drive fails and you need to replace it, but your server can stay online.
24 Bay SFF
The 24 Bay SFF chassis is nearly identical to the 8 Bay SFF chassis. The 24 Bay SFF chassis supports up to twenty-four hot-swap 2.5" SAS/SATA drives and up to twelve NVMe PCIe SSDs. Just like the 8 Bay SFF chassis, the 24 Bay SFF chassis' backplane supports hot-swap drives, which allows you to add or remove drives while the system is running.
Chassis Rear
The chassis rear is identical across both chassis’ options. The rear includes twelve full-height PCIe slots, a network daughter card slot, a serial connector, a VGA port, two type A USB ports, a dedicated iDRAC LAN port, and two hot-swap power supply bays.
Processing Power
The Dell PowerEdge R940 server has four LGA3647 CPU sockets that accept 1st and 2nd generation Intel Xeon Scalable processors. A maximum of 28 cores per processor is allowed, meaning that the R940 can have a maximum of 112 CPU cores across all four CPU sockets.
Supported 1st Generation Intel Xeon Scalable Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3104 | SR3GM | 6 | 1.70 GHz |
Bronze 3106 | SR3GL | 8 | 1.70 GHz |
Silver 4106H | SR44Y | 8 | 1.80 GHz |
Silver 4108 | SR3GJ | 8 | 1.80 GHz |
Silver 4109T | SR3GP | 8 | 2.00 GHz |
Silver 4110 | SR3GH | 8 | 2.10 GHz |
Silver 4112 | SR3GN | 4 | 2.60 GHz |
Silver 4114 | SR3GK | 10 | 2.20 GHz |
Silver 4114T | SR3MM | 10 | 2.20 GHz |
Silver 4116 | SR3HQ | 12 | 2.10 GHz |
Silver 4116T | SR3MQ | 12 | 2.10 GHz |
Silver 4123 | SR3VW | 8 | 3.00 GHz |
Gold 5115 | SR3GB | 10 | 2.40 GHz |
Gold 5117 | SR37S | 14 | 2.00 GHz |
Gold 5117F | SR3KM | 14 | 2.00 GHz |
Gold 5118 | SR3GF | 12 | 2.30 GHz |
Gold 5119T | SR3MN | 14 | 1.90 GHz |
Gold 5120 | SR3GD | 14 | 2.20 GHz |
Gold 5120T | SR3GC | 14 | 2.20 GHz |
Gold 5122 | SR3AT | 4 | 3.60 GHz |
Gold 6122 | SRCKF | 20 | 1.80 GHz |
Gold 6126 | SR3B3 | 12 | 2.60 GHz |
Gold 6126F | SR3KE | 12 | 2.60 GHz |
Gold 6126T | SR3J9 | 12 | 2.60 GHz |
Gold 6127M | 16 | 2.20 GHz | |
Gold 6128 | SR3J4 | 6 | 3.40 GHz |
Gold 6130 | SR3B9 | 16 | 2.10 GHz |
Gold 6130F | SR3KD | 16 | 2.10 GHz |
Gold 6130T | SR3J8 | 16 | 2.10 GHz |
Gold 6132 | SR3J3 | 14 | 2.60 GHz |
Gold 6133 | SR3M1 | 20 | 2.50 GHz |
Gold 6134 | SR3AR | 8 | 3.20 GHz |
Gold 6134M | SR3AS | 8 | 3.20 GHz |
Gold 6135 | SR3M6 | 8 | 3.40 GHz |
Gold 6135M | SR3M6 | 8 | 3.50 GHz |
Gold 6136 | SR3B2 | 12 | 3.00 GHz |
Gold 6137 | SR3M3 | 8 | 3.90 GHz |
Gold 6137M | 8 | 3.90 GHz | |
Gold 6138 | SR3B5 | 20 | 2.00 GHz |
Gold 6138F | SR3KK | 20 | 2.00 GHz |
Gold 6138P | SRCUG | 20 | 2.00 GHz |
Gold 6138T | SR3J7 | 20 | 2.00 GHz |
Gold 6139 | SR3G3 | 18 | 2.30 GHz |
Gold 6139M | SR3FV | 18 | 2.30 GHz |
Gold 6140 | SR3AX | 18 | 2.30 GHz |
Gold 6140M | SR3AZ | 18 | 2.30 GHz |
Gold 6142 | SR3AY | 16 | 2.60 GHz |
Gold 6142F | SR3KH | 16 | 2.60 GHz |
Gold 6142M | SR3B1 | 16 | 2.60 GHz |
Gold 6143 | SR3M7 | 16 | 2.80 GHz |
Gold 6144 | SR3MB | 8 | 3.50 GHz |
Gold 6145 | SR3G4 | 20 | 2.00 GHz |
Gold 6146 | SR3MA | 12 | 3.20 GHz |
Gold 6148 | SR3B6 | 20 | 2.40 GHz |
Gold 6148F | SR3KJ | 20 | 2.40 GHz |
Gold 6149 | SR3G2 | 16 | 3.10 GHz |
Gold 6150 | SR37K | 18 | 2.70 GHz |
Gold 6151 | SR3BG | 18 | 3.00 GHz |
Gold 6152 | SR3B4 | 22 | 2.10 GHz |
Gold 6154 | SR3J5 | 18 | 3.00 GHz |
Gold 6155 | 20 | 3.00 GHz | |
Gold 6159 | 22 | 2.20 GHz | |
Gold 6161 | SR3G7 | 22 | 2.20 GHz |
Gold 6162 | SRCKE | 24 | 1.90 GHz |
Gold 6164 | 24 | 1.90 GHz | |
Platinum 6162 | SRCKE | 24 | 1.90 GHz |
Platinum 8124M | SRD1Y | 18 | 3.00 GHz |
Platinum 8151 | SR3M0 | 12 | 3.40 GHz |
Platinum 8153 | SR3BA | 16 | 2.00 GHz |
Platinum 8156 | SR3AV | 4 | 3.60 GHz |
Platinum 8158 | SR3B7 | 12 | 3.00 GHz |
Platinum 8160 | SR3B0 | 24 | 2.10 GHz |
Platinum 8160F | SR3B8 | 24 | 2.10 GHz |
Platinum 8160H | 24 | 2.10 GHz | |
Platinum 8160M | SR3B8 | 24 | 2.10 GHz |
Platinum 8160T | SR3J6 | 24 | 2.10 GHz |
Platinum 8163 | SR3G1 | 24 | 2.40 GHz |
Platinum 8164 | SR3BB | 26 | 2.00 GHz |
Platinum 8165 | 24 | 2.30 GHz | |
Platinum 8167M | SR3A0 | 26 | 2.00 GHz |
Platinum 8168 | SR37J | 24 | 2.70 GHz |
Platinum 8170 | SR37H | 26 | 2.10 GHz |
Platinum 8170M | SR3BD | 26 | 2.10 GHz |
Platinum 8171M | SR37I | 26 | 2.30 GHz |
Platinum 8172M | SR39Q | 26 | 2.60 GHz |
Platinum 8173M | SR37Q | 28 | 2.00 GHz |
Platinum 8174 | SR3ZA | 24 | 3.10 GHz |
Platinum 8175M | SR3FU | 24 | 2.50 GHz |
Platinum 8176 | SR37A | 28 | 2.10 GHz |
Platinum 8176F | SR3MK | 28 | 2.10 GHz |
Platinum 8176M | SR37U | 28 | 2.10 GHz |
Platinum 8179M | 26 | 2.40 GHz | |
Platinum 8180 | SR377 | 28 | 2.50 GHz |
Platinum 8180M | SR37T | 28 | 2.50 GHz |
Platinum P-8124 | SR2YS | 18 | 3.00 GHz |
Platinum P-8136 | SR2YN | 28 | 2.00 GHz |
Supported 2nd Generation Intel Xeon Scalable Processors
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3204 | SRFBP | 6 | 1.90 GHz |
Bronze 3206R | SRG25 | 8 | 1.90 GHz |
Silver 4208 | SRFBM | 8 | 2.10 GHz |
Silver 4209T | SRFBQ | 8 | 2.20 GHz |
Silver 4210 | SRFBL | 10 | 2.20 GHz |
Silver 4210R | SRG24 | 10 | 2.40 GHz |
Silver 4210T | SRGYH | 10 | 2.30 GHz |
Silver 4214 | SRFB9 | 12 | 2.20 GHz |
Silver 4214R | SRG1W | 12 | 2.40 GHz |
Silver 4214Y | SRFDG | 12 | 2.20 GHz |
Silver 4215 | SRFBA | 8 | 2.50 GHz |
Silver 4215R | SRGZE | 8 | 3.20 GHz |
Silver 4216 | SRFBB | 16 | 2.10 GHz |
Gold 5215 | SRFBC | 10 | 2.50 GHz |
Gold 5215L | SRFBE | 10 | 2.50 GHz |
Gold 5215M | SRFBD | 10 | 2.50 GHz |
Gold 5217 | SRFBF | 8 | 3.00 GHz |
Gold 5218 | SRF8T | 16 | 2.30 GHz |
Gold 5218B | SRFDJ | 16 | 2.30 GHz |
Gold 5218N | SRFD9 | 16 | 2.30 GHz |
Gold 5218N | SRGLN | 16 | 2.30 GHz |
Gold 5218R | SRGZ7 | 20 | 2.10 GHz |
Gold 5218T | SRFPM | 16 | 2.10 GHz |
Gold 5219Y | SRF8C | 16 | 2.40 GHz |
Gold 5220 | SRFBJ | 18 | 2.20 GHz |
Gold 5220S | SRFPT | 18 | 2.70 GHz |
Gold 5220R | SRGZP | 24 | 2.20 GHz |
Gold 5220T | SRFPK | 18 | 1.90 GHz |
Gold 5222 | SRF8V | 4 | 3.80 GHz |
Gold 6208U | SRGZD | 16 | 2.90 GHz |
Gold 6209U | SRFQ3 | 20 | 2.10 GHz |
Gold 6210U | SRF9B | 20 | 2.50 GHz |
Gold 6212U | SRF9A | 24 | 2.40 GHz |
Gold 6222 | SRFQ5 | 16 | 1.80 GHz |
Gold 6222V | SRF8D | 20 | 1.80 GHz |
Gold 6226 | SRFPP | 12 | 2.70 GHz |
Gold 6226R | SRGZC | 16 | 2.90 GHz |
Gold 6230 | SRF8W | 20 | 2.10 GHz |
Gold 6230N | SRFPR | 20 | 2.30 GHz |
Gold 6230R | SRGZA | 26 | 2.10 GHz |
Gold 6230T | SRFPS | 20 | 2.10 GHz |
Gold 6231 | 16 | 3.20 GHz | |
Gold 6233 | 24 | 2.50 GHz | |
Gold 6234 | SRFPN | 8 | 3.30 GHz |
Gold 6238 | SRFPL | 22 | 2.10 GHz |
Gold 6238L | SRFQ2 | 22 | 2.10 GHz |
Gold 6238M | SRFQ1 | 22 | 2.10 GHz |
Gold 6238R | SRGZ9 | 28 | 2.20 GHz |
Gold 6238T | SRF9C | 22 | 1.90 GHz |
Gold 6240 | SRF8X | 18 | 2.60 GHz |
Gold 6240C | 18 | 2.60 GHz | |
Gold 6240L | SRFQ0 | 18 | 2.60 GHz |
Gold 6240M | SRFPZ | 18 | 2.60 GHz |
Gold 6240R | SRGZ8 | 24 | 2.40 GHz |
Gold 6240Y | SRF9D | 18 | 2.60 GHz |
Gold 6241W | 16 | 3.20 GHz | |
Gold 6242 | SRF8Y | 16 | 2.80 GHz |
Gold 6242R | SRGZJ | 20 | 3.10 GHz |
Gold 6244 | SRF8Z | 8 | 3.60 GHz |
Gold 6246 | SRFPJ | 12 | 3.30 GHz |
Gold 6246R | SRGZL | 16 | 3.40 GHz |
Gold 6248 | SRF90 | 20 | 2.50 GHz |
Gold 6248R | SRGZG | 24 | 3.00 GHz |
Gold 6250 | SRGTR | 8 | 3.90 GHz |
Gold 6250L | SRH5D | 8 | 3.90 GHz |
Gold 6252 | SRF91 | 24 | 2.10 GHz |
Gold 6252N | SRFPQ | 24 | 2.30 GHz |
Gold 6253CL | SRF7Z | 18 | 3.10 GHz |
Gold 6254 | SRF92 | 18 | 3.10 GHz |
Gold 6256 | SRGTQ | 12 | 3.60 GHz |
Gold 6258R | SRGZF | 28 | 2.70 GHz |
Gold 6262 | SRF8E | 24 | 1.90 GHz |
Gold 6262V | SRFQ4 | 24 | 1.90 GHz |
Gold 6266C | SRF83 | 22 | 3.00 GHz |
Gold 6267 | SRFQ7 | 24 | 2.60 GHz |
Gold 6268CL | SRF80 | 24 | 2.80 GHz |
Gold 6269Y | SRF8B | 22 | 3.20 GHz |
Gold 6271C | SRF8M | 24 | 2.60 GHz |
Gold 6278C | SRF86 | 26 | 2.60 GHz |
Gold 6290 | SRFQ7 | 22 | 3.20 GHz |
Platinum 8222L | SRFA7 | 18 | 3.00 GHz |
Platinum 8251 | SRF8R | 12 | 3.80 GHz |
Platinum 8253 | SRF93 | 16 | 2.20 GHz |
Platinum 8255C | SRF92 | 24 | 2.50 GHz |
Platinum 8256 | SRF94 | 4 | 3.80 GHz |
Platinum 8259CL | SRFA8 | 24 | 2.50 GHz |
Platinum 8259L | 24 | 2.50 GHz | |
Platinum 8260 | SRF9H | 24 | 2.40 GHz |
Platinum 8260L | SRF9G | 24 | 2.40 GHz |
Platinum 8260M | SRF9J | 24 | 2.40 GHz |
Platinum 8260Y | SRF9F | 24 | 2.40 GHz |
Platinum 8268 | SRF95 | 24 | 2.90 GHz |
Platinum 8269CY | SRF8J | 26 | 2.50 GHz |
Platinum 8270 | SRF96 | 26 | 2.70 GHz |
Platinum 8272L | SRF89 | 26 | 2.60 GHz |
Platinum 8273CL | 28 | 2.20 GHz | |
Platinum 8274 | SRFPX | 24 | 3.20 GHz |
Platinum 8275CL | SRFA9 | 24 | 3.00 GHz |
Platinum 8276 | SRF99 | 28 | 2.20 GHz |
Platinum 8276L | SRF97 | 28 | 2.20 GHz |
Platinum 8276M | SRF98 | 28 | 2.20 GHz |
Platinum 8279W | SRGWA | 28 | 2.50 GHz |
Platinum 8280 | SRF9P | 28 | 2.70 GHz |
Platinum 8280L | SRF9R | 28 | 2.70 GHz |
Platinum 8280M | SRF9Q | 28 | 2.70 GHz |
Platinum 8284 | SRFPY | 28 | 3.00 GHz |
Memory
DIMM slots & Memory Channels
The Dell PowerEdge R940 is a DDR4 based machine with 48 DIMM slots and 24 total memory channels. There are two system boards inside, that each have 24 DIMMs. Each memory channel consists of two DIMM slot.
Supported Memory Types
The Dell PowerEdge R940 server accepts ECC Registered (RDIMM), Load Reduced (LRDIMM), Non-volatile memory (NVDIMM), and Intel Optane DC Persistent Memory (DCPMM). It is important to not mix different memory types unless you are mixing LRDIMMs or RDIMMs with DCPMMs together. Mixing together other types can lead to issues such as boot failure.
Supported Memory Capacities
Module capacities of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, and 512GB. 128GB modules are only available as Load Reduced and Intel Optane PMem. 256GB modules are only available as Load Reduced and Intel Optane PMem. Lastly, 512GB modules are only available as Intel Optane PMem.
Max Configurations
With ECC Registered memory, the max RAM capacity that can be achieved is 3TB (3072GB) via 48 x 64GB RDIMMs. With Load Reduced Memory, the maximum RAM capacity that can be achieved is 6TB (6144GB) via a configuration of 48 x 128GB LRDIMMs. With Non-volatile memory, a max RAM capacity of 192GB can be reached via 12 x 16GB NVDIMMs. 64GB RDIMMs can be installed into the remaining 36 DIMMs slots, bringing the total RAM capacity to 2.4TB (2496GB). Finally for Intel Optane DC Persistent Memory, the maximum possible RAM capacity is 12.28TB (12288GB) via 24 x 512GB DCPMMs. 128GB LRDIMMs can be installed into the last 24 DIMM slots, bringing the total capacity to 15.36TB (15360GB).
Supported Memory Speeds
The Dell PowerEdge R940 supports module speeds of 2133MT/s, 2400MT/s, 2666MT/s, and 2933MT/s. 3200MT/s modules can be installed, but will clock down to the fastest possible speed for your server's configuration. The processor that you have installed will determine the fastest supported memory speed is for your configuration. For example, if you install a processor that has a max memory speed of 2666MT/s, and you install a 2933MT/s module, the module will operate at 2666MT/s.
Storage
The Dell R940 server accepts 2.5" SAS/SATA drives. There is no chassis option for the R940 to install 3.5" drives. Only 2.5" drives can be used with the R940. The total number of drives that can be installed into your system depends on the chassis that you have. If you have an 8 Bay SFF chassis, up to eight 2.5" SAS/SATA hard drives and/or solid state drives can be installed. If you have a 24 Bay SFF chassis, up to twenty-four 2.5" SAS/SATA hard drives and/or solid state drives can be installed.
Supported Drives (2.5")
Type | Speeds | Max Capacity (Per Drive) |
---|---|---|
SAS | 7.2K, 10K, 15K | 2.4TB |
SATA | 7.2K | 2TB |
SSD | 6Gb/s, 12Gb/s | 7.68TB |
Power Supplies
How Many Power Supplies does the R940 Support?
The Dell PowerEdge R940 server supports up to two hot-swap power supply units (PSUs). Because power supplies for this system are hot-swap, PSUs can be added or removed while the server is powered on, as long as one unit remains plugged into the system.
Power Supply Options
Platinum 1100W |
Platinum 1100W 380VDC |
Platinum 1600W |
Platinum 2000W |
Platinum 2400W |
Titanium 1600W HLAC |
Titanium 2600W HLAC |
Gold 1100W -48VDC |
RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
S140 onboard software | 0,1,5,10 | None | 6 Gb/s SATA/NVMe | N/A | Software |
HBA330 | Passthrough | None | 6 Gb/s SAS/SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
12Gbps SAS Ext. HBA | Passthrough | None | 12 Gb/s SAS | PCIe 3.0 | Hardware |
H330 | 0, 1, 5, 10, 50 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H730P | 0, 1, 5, 6, 10, 50, 60 | 2 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H740P | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
H840 | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
Network Interface Card Options
In order to connect your R940 server to the Internet, you will need some type of Network Interface Card (NIC). The PowerEdge R940 accepts two NIC form factors: Daughter cards and PCIe cards. In the rear of the chassis, there is a dedicated slot, specifically for network daughter cards. Along with the daughter card, you can install multiple PCIe network cards if needed.
Daughter Cards
Broadcom 5720 Quad Port 4 x 1GbE RJ45 |
Broadcom 57412/5720 Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Broadcom 57414 Dual Port 2 x 25GbE SFP28 |
Broadcom 57416/5720 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Broadcom 57800S Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Broadcom 57800T Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Broadcom 57840S Quad Port 4 x 10GbE SFP+ |
Intel I350 Quad Port 4 x 1GbE RJ45 |
Intel X520/I350 Quad Port 2 x 10GbE SFP + 2 x 1GbE RJ45 |
Intel X540/I350 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Intel X550 Quad Port 4 x 10GbE RJ45 |
Intel X550/I350 Quad Port 2 x 10GbE RJ45 + 2 x 1GbE RJ45 |
Intel X710 Quad Port 4 x 10GbE SFP+ |
Intel X710/I350 Quad Port 2 x 10GbE SFP + 2 x 1GbE RJ45 |
QLogic FastLinQ QL41164 Quad Port 4 x 10GbE RJ45 |
QLogic FastLinQ QL41262 Dual Port 2 x 25GbE SFP28 |
QLogic FastLinQ QL41264 Quad Port 2 x 10GbE SFP+ + 2 x 1GbE RJ45 |
Mellanox ConnectX-4 CX422A Dual Port 2 x 25GbE SFP HBA |
PCIe Cards
Broadcom 5719 Quad Port 4 x 1GbE RJ45 |
Broadcom 5720 Dual Port 2 x 1GbE RJ45 |
Broadcom 57412 Dual Port 2 x 10GbE SFP+ |
Broadcom 57414 Dual Port 2 x 25GbE SFP28 |
Broadcom 57416 Dual Port 2 x 10GbE RJ45 |
Broadcom 57504 Quad Port 4 x 25GbE SFP |
Broadcom 57810 Dual Port 2 x 10GbE SFP+ CNA |
Intel E810 Quad Port 4 x 25GbE SFP28 |
Intel I350-T2 Dual Port 2 x 1GbE RJ45 |
Intel I350-T4 Quad Port 4 x 1GbE RJ45 |
Intel X520-DA2 Dual Port 2 x 10GbE SFP+ CNA |
Intel X520-T2 Dual Port 2 x 10GbE RJ45 |
Intel X550-T2 Dual Port 2 x 10GbE SFP CNA |
Intel X710-DA2 Dual Port 2 x 10GbE SFP+ CNA |
Intel X710-DA4 Quad Port 4 x 10GbE SFP CNA |
Intel X710-T2L Dual Port 2 x 10GbE RJ45 |
Intel X710-T4 Quad Port 4 x 10GbE RJ45 CNA |
Intel X710-T4L Quad Port 4 10GbE RJ45 |
Intel XL710-QD2 Dual Port 2 x 40GbE QSFP |
Intel XXV710-DA2 Dual Port 2 x 25GbE SFP+ |
QLogic FastLinQ QL41164HFCU Quad Port 4 x 10GbE SFP |
QLogic QL41262HFCU-DE Dual Port 2 x 25GbE SFP+ CNA |
QLogic QLE2692 Dual Port 2 x 16GbE SFP+ |
QLogic QLE41112 Dual Port 2 x 10GbE SFP+ CNA |
QLogic QLE41162 Dual Port 2 x 10GbE RJ45 CNA |
QLogic QLE8262 Dual Port 2 x 10GbE SFP+ CNA |
Mellanox ConnectX-3 CX322A Dual Port 2 x 10GbE SFP+ |
Mellanox ConnectX-4 CX4121A Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-4 CX4121C Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-4 CX416A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-4 CX456A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-4 Single Port 1 x 100GbE QSFP |
Mellanox ConnectX-4 V2 CX4121C Dual Port 2 x 25GbE SFP+ |
Mellanox ConnectX-5 CX516A Dual Port 2 x 100GbE QSFP |
Mellanox ConnectX-5 EN CX512F Dual Port 2 x 25GbE SFP28 |
Mellanox ConnectX-5 Single Port 1 x 100GbE QSFP |
Mellanox ConnectX-6 CX623106A Dual Port 2 x 100GbE QSFP |
Emulex LPE31002 Dual Port 2 x 16GbE SFP+ |
Emulex LPe35002 Dual Port 2 x 32GbE FC SFP+ HBA |
Brocade 1020 Dual Port 2 x 10GbE SFP+ CNA |
Brocade 815 Single Port 1 x 8GbE FC SFP+ HBA |
Brocade 825 Dual Port 2 x 8GbE FC SFP+ HBA |
Solarflare SF10-050020 Dual Port 2 x 10GbE SFP+ CNA |
Solarflare SF8522 Dual Port 2 x 10GbE SFP+ CNA |
Systems Management Solutions
The Dell PowerEdge R940 Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup, and searching the IP in a web browser.
Supported Operating Systems:
The PowerEdge R940 supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. These operating systems are:
- ⦿ Citrix XenServer 7.1
- ⦿ Novell SuSE Linux ES 11
- ⦿ Red Hat® Enterprise Linux 7
- ⦿ Red Hat® Enterprise Linux 8
- ⦿ Red Hat® Enterprise Linux 9
- ⦿ SUSE Linux ES 12
- ⦿ SUSE Linux ES 15
- ⦿ Ubuntu Server 16.04 LTS
- ⦿ Ubuntu Server 18.04 LTS
- ⦿ Ubuntu Server 20.04 LTS
- ⦿ Ubuntu Server 22.04 LTS
- ⦿ VMware ESXi 6.0
- ⦿ VMware ESXi 6.5
- ⦿ VMware ESXi 6.7
- ⦿ VMware ESXi 7.0
- ⦿ VMware ESXi 8.0
- ⦿ Window Server 2012 R2
- ⦿ Window Server 2016
- ⦿ Window Server 2019 LTSC
- ⦿ Window Server 2022 LTSC
Technical Information Overview
The Dell PowerEdge R940 is a powerful 3U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the capabilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R940. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R940 server.
Technical Guide
Learn the ins and outs of the R940: View PowerEdge R940 Technical Guide
Technical Specifications
For all technical information regarding the PowerEdge R940, refer to the R940 technical specifications: View PowerEdge R940 Technical Specifications
Spec Sheet
Need a quick overview of the R940's specs? Check out the R940 spec sheet: View PowerEdge R940 Spec Sheet
Installation and Service Manual
Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R940 Installation and Service Manual
Integrated Dell Remote Access Controller 9 User's Guide
Everything you need to know about iDRAC9, all in one place: View PowerEdge R940 iDRAC9 User's Guide
Lifecycle Controller User's Guide
Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R940 Lifecycle Controller Setup Guide
Dell Systems Management Overview
Learn about the R940's System Management Technologies: View PowerEdge R940 Dell System Management Overview Guide
BIOS Upgrade EFI File Download
Upgrade your BIOS Via an EFI File: Download PowerEdge R940 BIOS Upgrade EFI File
Cloud Ninja One Year Warranty
WHAT IS COVERED BY THIS WARRANTY?
Cloud Ninja warrants the hardware product and accessories contained in the original packaging (“Cloud Ninja Product”) against defects in materials and workmanship when used normally in accordance with Cloud Ninja' guidelines for a period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser ("Warranty Period"). Cloud Ninja’s guidelines include but are not limited to information contained in technical specifications and user manuals communications from Brand.
Please note: All claims made under the Cloud Ninja’s One-Year Limited Warranty will be governed by the terms set out in this warranty document.
WHAT IS NOT COVERED BY THIS WARRANTY?
This Warranty does not apply to any non-Cloud Ninja sold hardware products or any software, even if packaged or sold with Cloud Ninja hardware. Manufacturers, suppliers, or publishers, other than Cloud Ninjas, may provide their own warranties to you – please contact them for further information. Cloud Ninjas does not warrant that the operation of the Cloud Ninja Product will be uninterrupted or error-free. Cloud Ninjas is not responsible for damages arising from failure to follow instructions relating to the Cloud Ninja Product’s use. We do warranty drives used for China plotting or mining. We support the Crypto community and love what they are building. However, China burns through drives and we cannot provide warranty for China.
This Warranty does not apply: (a) to consumable parts, such as batteries or protective coatings that are designed to diminish over time, unless failure has occurred due to a defect in materials or workmanship; (b) to cosmetic damage, including but not limited to scratches, dents and broken plastic on ports; (c) to damage caused by use with another product; (d) to damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or other external cause; (e) to damage caused by operating the Cloud Ninjas Product outside original manufacturer’s published guidelines; (f) to damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of Cloud Ninjas or a Cloud Ninjas Authorized Service Provider; (g) to a Cloud Ninjas Product that has been modified to alter functionality or capability without the written permission of Cloud Ninjas; (h) to defects caused by normal wear and tear or otherwise due to the normal aging of the Cloud Ninjas Product, or (i) if any serial number has been removed or defaced from the Cloud Ninjas Product.
YOUR RESPONSIBILITIES
YOU SHOULD MAKE PERIODIC BACKUP COPIES OF THE INFORMATION CONTAINED ON THE CLOUD NINJAS PRODUCT STORAGE MEDIA TO PROTECT THE CONTENTS AND AS A PRECAUTION AGAINST POSSIBLE OPERATIONAL FAILURES.
Before receiving warranty service, Cloud Ninjas or its agents may require that you furnish proof of purchase details, respond to questions designed to assist with diagnosing potential issues and follow Cloud Ninjas’ procedures for obtaining warranty service. Before submitting your Cloud Ninjas Product for warranty service you should maintain a separate backup copy of the contents of its storage media, remove all personal information that you want to protect and disable all security passwords.
DURING WARRANTY SERVICE IT IS POSSIBLE THE CONTENTS OF THE STORAGE MEDIA WILL BE LOST, REPLACED OR REFORMATTED. CLOUD NINJAS AND ITS AGENTS ARE NOT RESPONSIBLE FOR ANY LOSS OF SOFTWARE PROGRAMS, DATA OR OTHER INFORMATION CONTAINED ON THE STORAGE MEDIA OR ANY OTHER PART OF THE CLOUD NINJAS PRODUCT SERVICED.
Following warranty service your Cloud Ninjas Product or a replacement device will be returned to you as your Cloud Ninja Product was configured when originally purchased, subject to applicable updates. You will be responsible for reinstalling all other software programs, data and information. Recovery and reinstallation of other software programs, data and information are not covered under this Warranty.
