Dell PowerEdge R7425 Server
SKU: R7425-24BaySFF
Tech Specs
Chassis:

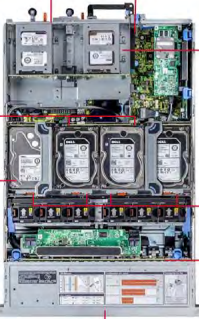

- Front 2U - 12 x 3.5" SATA/SAS

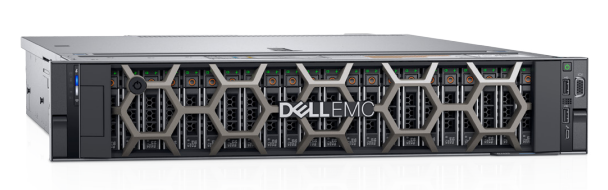

- Front Bay 2U - 24 x 2.5" SATA/SAS/NVMe
- *Both chassis allow up to 4 x 2.5" NVMe or 4 x 3.5" SATA/SAS HDD Mid bay drives
- *Both chassis allow up to 4 x 2.5" SAS/SATA or 2 x 3.5" SATA/SAS HDD Rear bay drives
Processor types:
- 2 x AMD EPYC 7001 series CPUs
Generation - Up to 32 Cores Processor
- Up to 200W TDP for processor
- Socket: SP3 Zen 1 Naples / 7nm
Memory RAM types:
- 32 Slots, 16 channels
- 16 channels 2 slots per channel
- Load-reduced & ECC Registered modules supported
- Max LRDIMM configuration: 2TB DDR4 2666 MT/s
16 x 128GB Load-reduced DIMMs - Max RDIMM configuration: 1TB DDR4 2666 MT/s
16 x 64GB ECC Registered DIMMs
Storage Options 2.5" Drives
& 3.5"
- NVMe U.2: 7.68TB
- SAS SSDs: 7.68TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SATA/SAS 30.72TB 7200 RPM HDD
Operating Systems:
- Windows Server 2016
- Red Hat Enterprise Linux 7.4
- VMware vSphere 2016 U1 (ESXi 6.5 U1)
- Microsoft Windows Server 2012 R2
Power Supplies:
- 495W Titanium
- 750W Titanium
- 1100W Titanium
- 1600W Titanium
Storage Controllers RAID Options:
- PERC H330
- PERC H730p
- PERC H740p
- HBA330
- H840
- S140 Software RAID
- BOSS-S1 card
Security:
- Trusted Platform Module 1.2/2.0
- iDRAC 9
Network Interface Card Options (NICs)
& Network Daughter Cards (NDCs)
- 4 x RJ45 ports @ 10, 100, 10000 Mbps
- 4 x RJ45 ports @ 100MB/s, 1GB/s, and 10 Gbps
- 4 x RJ45 ports @ 2 x 10GB/s and 2 x 1GB/s
- 2 x RJ45 @ 1Gbps + 2 x SFP+ @ 10 Gbps
- 4 x SFP+ @ 10Gbps
- 2 x SFP28 @ 25Gbps
Expansion Slots:
- 4x PCIe x16 Gen3 Full Height
- 4x PCIe x8 Gen3 Full Height
Dell PowerEdge R7425 Server Supported CPUs
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 7251 | 8C/16T | 2.10GHz | 2.90GHz |
AMD EPYC 7261 | 8C/16T | 2.50GHz | 2.90GHz |
AMD EPYC 7351 | 16C/32T | 2.40GHz | 2.90GHz |
AMD EPYC 7281 | 16C/32T | 2.10GHz | 2.70GHz |
AMD EPYC 7401 | 24C/48T | 2.00GHz | 3.00GHz |
AMD EPYC 7451 | 24C/48T | 2.30`GHz | 3.20GHz |
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 7551 | 32C/64T | 2.00GHz | 3.90GHz |
AMD EPYC 7601 | 32C/64T | 2.20GHz | 3.20GHz |
AMD EPYC 7501 | 32C/64T | 2.00GHz | 3.00GHz |
AMD EPYC 7301 | 16C/32T | 2.20GHz | 2.70GHz |
AMD EPYC 7371 | 16C/32T | 3.10GHz | 3.80GHz |
AMD EPYC 7571 | 32C/64T | 2.20GHz | 3.00GHz |
Dell PowerEdge R7425 Server RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
Software S140 | 0, 1, 5, 10 | N/A | 6GB/s SATA/SAS | N/A | No |
HBA330 | N/A | N/A | 6Gb/s SAS/SATA, 12Gb/s SAS | 3.0 | Yes |
H330 | 0, 1, 5, 10, 50 | N/A | 6 Gb/s SATA/SAS, 12 Gb/s SAS | 3.0 | Yes |
H730P | 0, 1, 5, 6, 10, 50, 60 | 2 GB NV | 6 Gb/s SATA/SAS, 12 Gb/s SAS | 3.0 | Yes |
H740P | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
H840 | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
Technical Information and Documentation
Tech Specs
Chassis:
- Front 2U - 12 x 3.5" SATA/SAS
- Front Bay 2U - 24 x 2.5" SATA/SAS/NVMe
- *Both chassis allow up to 4 x 2.5" NVMe or 4 x 3.5" SATA/SAS HDD Mid bay drives
- *Both chassis allow up to 4 x 2.5" SAS/SATA or 2 x 3.5" SATA/SAS HDD Rear bay drives
Processor types:
- 2 x AMD EPYC 7001 series CPUs
Generation - Up to 32 Cores Processor
- Up to 200W TDP for processor
- Socket: SP3 Zen 1 Naples / 7nm
Memory RAM types:
- 32 Slots, 16 channels
- 16 channels 2 slots per channel
- Load-reduced & ECC Registered modules supported
- Max LRDIMM configuration: 2TB DDR4 2666 MT/s
16 x 128GB Load-reduced DIMMs - Max RDIMM configuration: 1TB DDR4 2666 MT/s
16 x 64GB ECC Registered DIMMs
Storage Options 2.5" Drives
& 3.5"
- NVMe U.2: 7.68TB
- SAS SSDs: 7.68TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SATA/SAS 30.72TB 7200 RPM HDD
Operating Systems:
- Windows Server 2016
- Red Hat Enterprise Linux 7.4
- VMware vSphere 2016 U1 (ESXi 6.5 U1)
- Microsoft Windows Server 2012 R2
Power Supplies:
- 495W Titanium
- 750W Titanium
- 1100W Titanium
- 1600W Titanium
Storage Controllers RAID Options:
- PERC H330
- PERC H730p
- PERC H740p
- HBA330
- H840
- S140 Software RAID
- BOSS-S1 card
Security:
- Trusted Platform Module 1.2/2.0
- iDRAC 9
Network Interface Card Options (NICs)
& Network Daughter Cards (NDCs)
- 4 x RJ45 ports @ 10, 100, 10000 Mbps
- 4 x RJ45 ports @ 100MB/s, 1GB/s, and 10 Gbps
- 4 x RJ45 ports @ 2 x 10GB/s and 2 x 1GB/s
- 2 x RJ45 @ 1Gbps + 2 x SFP+ @ 10 Gbps
- 4 x SFP+ @ 10Gbps
- 2 x SFP28 @ 25Gbps
Expansion Slots:
- 4x PCIe x16 Gen3 Full Height
- 4x PCIe x8 Gen3 Full Height
Dell PowerEdge R7425 Server Supported CPUs
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 7251 | 8C/16T | 2.10GHz | 2.90GHz |
AMD EPYC 7261 | 8C/16T | 2.50GHz | 2.90GHz |
AMD EPYC 7351 | 16C/32T | 2.40GHz | 2.90GHz |
AMD EPYC 7281 | 16C/32T | 2.10GHz | 2.70GHz |
AMD EPYC 7401 | 24C/48T | 2.00GHz | 3.00GHz |
AMD EPYC 7451 | 24C/48T | 2.30`GHz | 3.20GHz |
CPU | Cores/Threads | Frequency | Turbo Frequency |
---|---|---|---|
AMD EPYC 7551 | 32C/64T | 2.00GHz | 3.90GHz |
AMD EPYC 7601 | 32C/64T | 2.20GHz | 3.20GHz |
AMD EPYC 7501 | 32C/64T | 2.00GHz | 3.00GHz |
AMD EPYC 7301 | 16C/32T | 2.20GHz | 2.70GHz |
AMD EPYC 7371 | 16C/32T | 3.10GHz | 3.80GHz |
AMD EPYC 7571 | 32C/64T | 2.20GHz | 3.00GHz |
Dell PowerEdge R7425 Server RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
Software S140 | 0, 1, 5, 10 | N/A | 6GB/s SATA/SAS | N/A | No |
HBA330 | N/A | N/A | 6Gb/s SAS/SATA, 12Gb/s SAS | 3.0 | Yes |
H330 | 0, 1, 5, 10, 50 | N/A | 6 Gb/s SATA/SAS, 12 Gb/s SAS | 3.0 | Yes |
H730P | 0, 1, 5, 6, 10, 50, 60 | 2 GB NV | 6 Gb/s SATA/SAS, 12 Gb/s SAS | 3.0 | Yes |
H740P | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
H840 | 0, 1, 5, 6, 10, 50, 60 | 8 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
Technical Information and Documentation
