Dell PowerEdge R440 Server
SKU: Dell-R440-4B-LFF
Cloud Ninjas' Dell PowerEdge R440 Specifications
Chassis
The Dell PowerEdge R440 server is a capable enterprise server that builds off of the PowerEdge R430. This system has three different chassis options. The main differences lie between the drive bay counts and the form factor of those bays. The three options are: 4 Bay LFF, 8 Bay SFF, and 10 Bay SFF.
4 Bay LFF
THe 4 Bay LFF chassis for the R440 accepts up to four 3.5" hot-swap SAS/SATA drives. 2.5" HDDs and SSDs can be installed via a 2.5" to 3.5" drive converter.

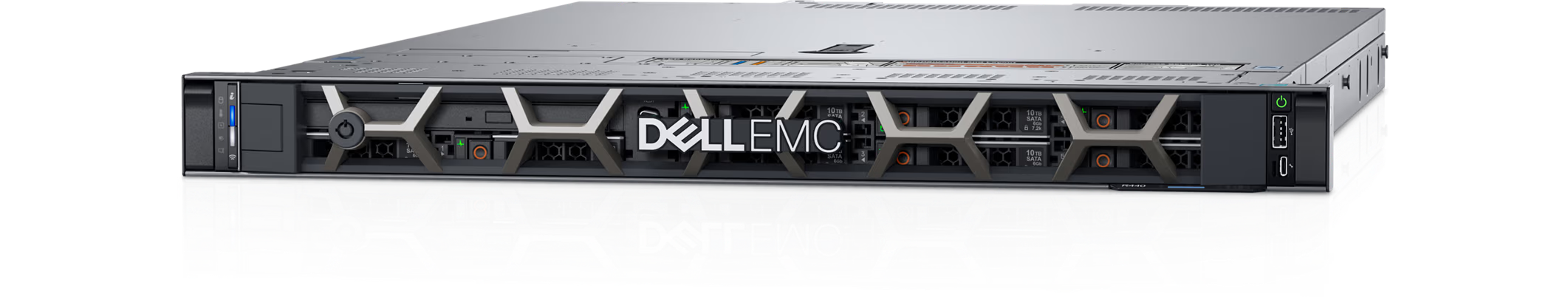

8 Bay SFF
The 8 Bay SFF chassis accepts up to eight 2.5" hot-swap SAS/SATA hard drives and/or solid-state drives.
10 Bay SFF
The 8 Bay SFF chassis accepts up to ten 2.5" hot-swap SAS/SATA drives. Both hard disk drives and/or solid state drives can be installed.
Processing Power
The Dell PowerEdge R440 server has two LGA-3647 CPU sockets inside that supports 1st Generation or 2nd Generation Intel Xeon Scalable processors. A max of 24 cores per processor are supported.
1st Generation Intel Xeon Scalable
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3104 | SR3GM | 6 | 1.7GHz |
Bronze 3106 | SR3GL | 8 | 1.7GHz |
Silver 4106H | SR44Y | 8 | 1.8GHz |
Silver 4108 | SR3GJ | 8 | 1.8GHz |
Silver 4109T | SR3GP | 8 | 2.0 GHz |
Silver 4110 | SR3GH | 8 | 2.1GHz |
Silver 4112 | SR3GN | 4 | 2.6GHz |
Silver 4114 | SR3GK | 10 | 2.2GHz |
Silver 4114T | SR3MM | 10 | 2.2GHz |
Silver 4116 | SR3HQ | 12 | 2.1GHz |
Silver 4116T | SR3MQ | 12 | 2.1GHz |
Silver 4123 | SR3VW | 8 | 3.0GHz |
Gold 5115 | SR3GB | 10 | 2.4GHz |
Gold 5117 | SR37S | 14 | 2.0GHz |
Gold 5117F | SR3KM | 14 | 2.0GHz |
Gold 5118 | SR3GF | 12 | 2.4GHz |
Gold 5119T | SR3MN | 14 | 1.9GHz |
Gold 5120 | SR3GD | 14 | 2.2GHz |
Gold 5120T | SR3GC | 14 | 2.2GHz |
Gold 5122 | SR3AT | 4 | 3.6GHz |
Gold 6122 | SRCKF | 20 | 1.8GHz |
Gold 6126 | SR3B3 | 12 | 2.6GHz |
Gold 6126F | SR3KE | 12 | 2.6GHz |
Gold 6126T | SR3J9 | 12 | 2.6GHz |
Gold 6128 | SR3J4 | 6 | 3.4GHz |
Gold 6130 | SR3B9 | 16 | 2.1GHz |
Gold 6130F | SR3KD | 16 | 2.1GHz |
Gold 6130T | SR3J8 | 16 | 2.1GHz |
Gold 6132 | SR3J3 | 14 | 2.6GHz |
Gold 6133 | SR3M1 | 20 | 2.5GHz |
Gold 6134 | SR3AR | 8 | 3.2GHz |
Gold 6136 | SR3B2 | 12 | 3.0GHz |
Gold 6138 | SR3B5 | 20 | 2.0GHz |
Gold 6138F | SR3KK | 20 | 2GHz |
Gold 6138P | SRCUG | 20 | 2.0GHz |
Gold 6138T | SR3J7 | 20 | 2.0GHz |
Gold 6140 | SR3AX | 18 | 2.3GHz |
Gold 6142 | SR3AY | 16 | 2.6GHz |
Gold 6142F | SR3KH | 16 | 2.6GHz |
Gold 6144 | SR3MB | 8 | 3.5GHz |
Gold 6146 | SR3MA | 12 | 3.2GHz |
Gold 6148 | SR3B6 | 20 | 2.4GHz |
Gold 6148F | SR3KJ | 20 | 2.4GHz |
Gold 6150 | SR37K | 18 | 2.7GHz |
Gold 6152 | SR3B4 | 22 | 2.1GHz |
Gold 6154 | SR3J5 | 18 | 3.0GHz |
Platinum 8153 | SR3BA | 16 | 2.0GHz |
Platinum 8156 | SR3AV | 4 | 3.6GHz |
Platinum 8158 | SR3B7 | 12 | 3.0GHz |
Platinum 8160 | SR3B0 | 24 | 2.1GHz |
Platinum 8160F | SR3B8 | 24 | 2.1GHz |
Platinum 8160T | SR3J6 | 24 | 2.1GHz |
Platinum 8168 | SR37J | 24 | 2.7GHz |
2nd Generation Intel Xeon Scalable
CPU | Step Code | Cores | Frequency |
---|---|---|---|
Bronze 3204 | SRFBP | 6 | 1.9GHz |
Bronze 3206R | SRG25 | 8 | 1.9GHz |
Silver 4208 | SRFBM | 8 | 2.1GHz |
Silver 4209T | SRFBQ | 8 | 2.2GHz |
Silver 4210 | SRFBL | 10 | 2.2GHz |
Silver 4210R | SRG24 | 10 | 2.4GHz |
Silver 4210T | SRGYH | 10 | 2.3GHz |
Silver 4214 | SRFB9 | 12 | 2.2GHz |
Silver 4214R | SRG1W | 12 | 2.4GHz |
Silver 4214Y | SRFDG | 12 | 2.2GHz |
Silver 4215 | SRFBA | 8 | 2.5GHz |
Silver 4215R | SRGZE | 8 | 3.2GHz |
Silver 4216 | SRFBB | 16 | 2.1GHz |
Gold 5215 | SRFBC | 10 | 2.5GHz |
Gold 5215L | SRFBE | 10 | 2.5GHz |
Gold 5217 | SRFBF | 8 | 3.0GHz |
Gold 5218 | SRF8T | 16 | 2.3GHz |
Gold 5218B | SRFDJ | 16 | 2.3GHz |
Gold 5218N | SRFD9 | 16 | 2.3GHz |
Gold 5218R | SRGZ7 | 20 | 2.1GHz |
Gold 5218T | SRFPM | 16 | 2.1GHz |
Gold 5220 | SRFBJ | 18 | 2.2GHz |
Gold 5220R | SRGZP | 24 | 2.2GHz |
Gold 5220S | SRFPT | 18 | 2.7GHz |
Gold 5220T | SRFPK | 18 | 1.9GHz |
Gold 5222 | SRF8V | 4 | 3.8GHz |
Gold 6208U | SRGZD | 16 | 2.9GHz |
Gold 6209U | SRFQ3 | 20 | 2.1GHz |
Gold 6210U | SRF9B | 20 | 2.5GHz |
Gold 6212U | SRF9A | 24 | 2.4GHz |
Gold 6222V | SRFQ5 | 20 | 1.8GHz |
Gold 6226 | SRFPP | 12 | 2.7GHz |
Gold 6226R | SRGZC | 16 | 2.9GHz |
Gold 6230 | SRF8W | 20 | 2.1GHz |
Gold 6230N | SRFPR | 20 | 2.3GHz |
Gold 6230T | SRFPS | 20 | 2.1GHz |
Gold 6234 | SRFPN | 8 | 3.3GHz |
Gold 6238 | SRFPL | 22 | 2.1GHz |
Gold 6238L | SRFQ2 | 22 | 2.1GHz |
Gold 6238T | SRF9C | 22 | 1.9GHz |
Gold 6240 | SRF8X | 18 | 2.6GHz |
Gold 6240L | SRFQ0 | 18 | 2.6GHz |
Gold 6240R | SRGZ8 | 24 | 2.4GHz |
Gold 6240Y | SRF9D | 18 | 2.6GHz |
Gold 6242 | SRF8Y | 16 | 2.8GHz |
Gold 6242R | SRGZJ | 20 | 3.1GHz |
Gold 6244 | SRF8Z | 8 | 3.6GHz |
Gold 6246 | SRFPJ | 12 | 3.3GHz |
Gold 6246R | SRGZL | 16 | 3.4GHz |
Gold 6248 | SRF90 | 20 | 2.5GHz |
Gold 6248R | SRGZG | 24 | 3.0GHz |
Gold 6250 | SRGTR | 8 | 3.9GHz |
Gold 6250L | SRH5D | 8 | 3.9GHz |
Gold 6252 | SRF91 | 24 | 2.1GHz |
Gold 6252N | SRFPQ | 24 | 2.3GHz |
Gold 6254 | SRF92 | 18 | 3.1GHz |
Gold 6256 | SRGTQ | 12 | 3.6GHz |
Gold 6262V | SRFQ4 | 24 | 1.9GHz |
Platinum 8253 | SRF93 | 16 | 2.2GHz |
Platinum 8256 | SRF94 | 4 | 3.8GHz |
Platinum 8260 | SRF9H | 24 | 2.4GHz |
Platinum 8260L | SRF9G | 24 | 2.4GHz |
Platinum 8260Y | SRF9F | 24 | 2.4GHz |
Platinum 8268 | SRF95 | 24 | 2.9GHz |
Memory
DIMM Slots & Channels
The Dell PowerEdge R440 has a total of 16 DIMM slots with a total of six memory channels. Each memory channel consists of two DIMM slots.
Memory Types & Module Capacities
The R440 accepts DDR4 memory. ECC Registered (RDIMMs) and Load Reduced (LRDIMMs) are supported by this server, but the two types cannot be mixed. Mixing memory types can lead to boot failure. With load reduced memory, an overall greater capacity can be achieved when compared to ECC registered. Module capacities of 8GB, 16GB, 32GB, 64GB and 128GB. It is important to note that 128GB modules can only be installed as an LRDIMM.
Max Configurations
With load reduced memory, a maximum configuration of 2TB can be achieved via 16 x 128GB modules. With ECC Registered, 1TB is the max that you can achieve with a configuration of 16 x 64GB modules.
Supported Memory Speeds
The Dell PowerEdge accepts memory speeds of 2133MT/s, 2400MT/s, 2666MT/s, 2933MT/s, and 3200MT/s. Do note, that 2666MT/s is the fastest possible speed for this system with 1st Gen Scalable CPUs and 2933MT/s with 2nd Gen Scalable CPUs. 3200MT/s only supported with 2nd Gen CPUs. Another factor that affects the max memory speed of the system, is the processor that is installed. For example, if the installed processor supports a max speed of 2400MT/s and a 2666MT/s module are installed, the module will operate at 2400MT/s.
Storage
Supported Drives
Type | Speeds | Max Capacity (Per Drive) 2.5" |
---|---|---|
SAS | 7.2K, 10K, 15K | 2.4TB |
SATA | 7.2K | 2TB |
SSD | 6GB/s, 12GB/s | 7.68TB |
Type | Speeds | Max Capacity (Per Drive) 3.5" |
---|---|---|
SAS | 7.2K | 18TB |
SATA | 7.2K | 16TB |
SSD | 6GB/s, 12GB/s | 3.84TB |
Power Supplies
Power Supplies Overview
The R440 server supports up to two hot-swap power supplies. Hot swap means that power supplies can be added or removed if one power supply remains within the system. There is only one power supply option for the Dell PowerEdge R440: 550W AC Platinum. This power supply only comes in a 100-240V AC version.
RAID Options
RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
---|---|---|---|---|---|
S140 onboard software | 0,1,5,10 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Software |
HBA330 | Passthrough | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
HBA350i | Passthrough | None | 3 Gb/s SAS 6 Gb/s SAS/SATA 12 Gb/s |
PCIe 4.0 | Hardware |
HBA355e | Passthrough | None | 3 Gb/s SAS/SATA 6 Gb/s SAS/SATA 12 Gb/s SAS |
PCIe 4.0 | Hardware |
12 Gb/s Ext SAS HBA | Passthrough | None | 12 Gb/s SAS | PCIe 3.0 | Hardware |
H330 | 0,1,5,10,50 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H730p | 0,1,5,6,10,50,60 | 2GB | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
H840 | 0,1,5,6,10,50,60 | 8GB | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.1 | Hardware |
H350 | 0,1,10 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 4.0 | Hardware |
H750 | 0,1,5,6,10,50,60 | 8GB | 3 Gb/s SAS/SATA 6 Gb/s SAS/SATA 12 Gb/s SAS |
PCIe 4.0 | Hardware |
Network Interface Card Options
The Dell PowerEdge R440 has two 1GbE RJ45 ports that are built into the server's motherboard. For additional networking capabilities an optional Mezzanine card can installed into the rear of the system. PCIe network cards can also be installed as well.
Mezzanine Cards
Broadcom 5720 Dual Port 2x1GbE RJ45 |
Broadcom 57416 Dual Port 2x10GbE RJ45 |
Broadcom 57416 Dual Port 2x10GbE SFP+ |
PCIe Cards
Broadcom 5719 Quad Port 4x1GbE RJ45 |
Broadcom 5720 Dual Port 2x1GbE RJ45 |
Broadcom 57412 Dual Port 2x10GbE SFP+ |
Broadcom 57416 Dual Port 2x10GbE RJ45 |
Intel X710-DA2 Dual Port 2x10GbE SFP+ |
Intel X710-T4 Quad Port 4x10GbE RJ45 |
Intel XXV710-DA2 Dual Port 2x25Gb SFP28 |
Intel X550-T2 Dual Port 2x10GbE RJ45 |
QLogic FastLinQ QL41162 Dual Port 2x10GbE RJ45 |
QLogic FastLinQ QL41164 Quad Port 4x10GbE RJ45 |
Mellanox ConnectX-4 Dual Port 2x25GbE DA/SFP |
Mellanox ConnectX-3 Dual Port 2x40GbE QSFP+ |
Systems Management Solutions
The Dell PowerEdge R440 Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup and searching the IP in a web browser.
Supported Operating Systems:
The Dell PowerEdge R440 Server supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. The operating systems include, but are not limited to:
- ⦿ Citrix XenServer 6.5
- ⦿ Citrix XenServer 7.0
- ⦿ Novell SuSE Linux ES 11
- ⦿ Red Hat® Enterprise Linux 6
- ⦿ Red Hat® Enterprise Linux 7
- ⦿ Red Hat® Enterprise Linux 8
- ⦿ SUSE Linux ES 12
- ⦿ SUSE Linux ES 15
- ⦿ VMware ESXi 5.1
- ⦿ VMware ESXi 5.5
- ⦿ VMware ESXi 6.0
- ⦿ VMware ESXi 6.5
- ⦿ VMware ESXi 6.7
- ⦿ Window Server 2008 R2
- ⦿ Window Server 2012
- ⦿ Window Server 2012 R2
- ⦿ Window Server 2016
- ⦿ Window Server 2019 LTSC
Dell PowerEdge R440 Video
Technical Information Overview
The Dell PowerEdge R440 is a powerful 1U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the capabilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R440. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R440 server.
Technical Guide
Learn the ins and outs of the R440: View PowerEdge R440 Technical Guide
Technical Specifications
Get detailed information about all of the R440's Specifications: View PowerEdge R440 Technical Specifications
Spec Sheet
Get a quick overview of the R440's specs: View PowerEdge R440 Spec Sheet
Installation and Service Manual
Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R440 Installation and Service Manual
Integrated Dell Remote Access Controller 9 User's Guide
Everything you need to know about iDRAC9, all in one place: View PowerEdge R440 iDRAC9 User's Guide
Lifecycle Controller User's Guide
Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R440 Lifecycle Controller Setup Guide
Dell Systems Management Overview
Learn about the R440's System Management Technologies: View PowerEdge R440 Dell System Management Overview Guide
BIOS Upgrade EFI File Download
Upgrade your BIOS Via an EFI File: Download PowerEdge R440 BIOS Upgrade EFI File
