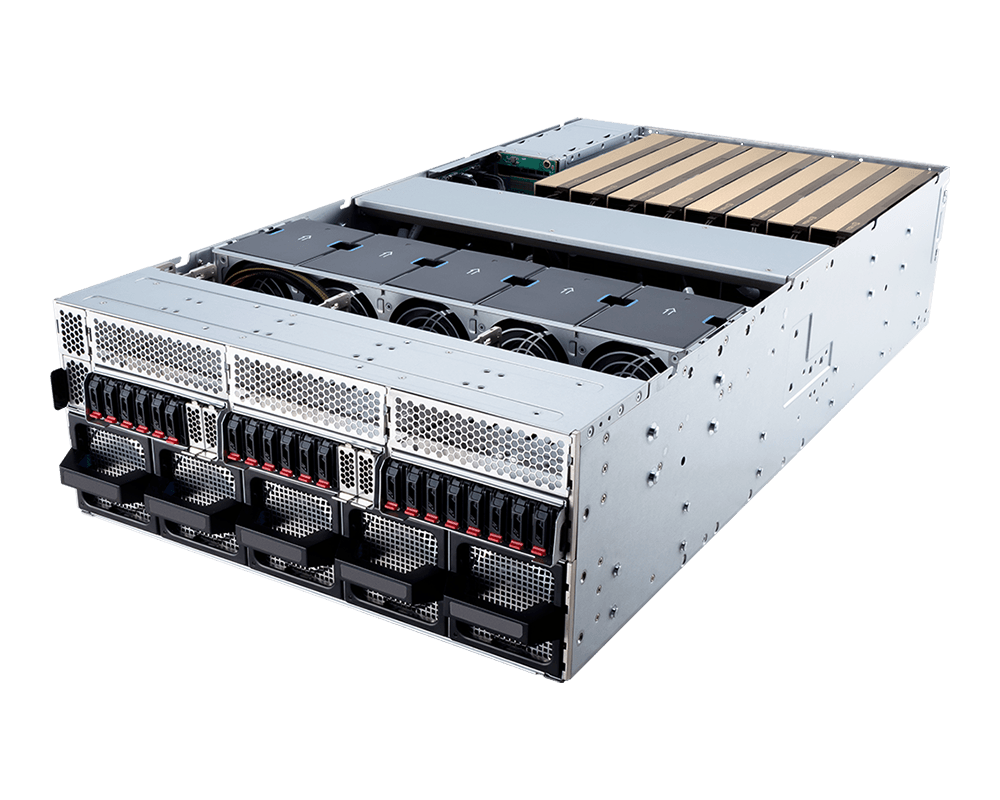

MSI GC480-S5063 GPU Server
Introducing the new MSI GC480-S5063 GPU Server
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the MSI GC480-S5063 GPU Server delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the MSI GC480-S5063 GPU Server email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 4U Rackmount
- 20x E1.S NVMe PCIe 5.0
- 2x M.2 NVMe PCIe Gen5
- MPN: S5063G480RAE20
Processor types:
- Dual Socket LGA4710
Intel Xeon 6500 & 6700 Series
Memory RAM types:
- ECC Registered Memory, up to Max 8TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 8TB (32x256GB)
- Memory Speeds: 5200MT/s using 2 DIMMs per channel
- Memory Speeds: 6400MT/s using 1 DIMM per channel
Storage Options
- NVMe E1.S PCIe Gen5.0 : 15.36TB @ 32GT/s
- NVMe M.2 22110 or 2280: 3.84TB
GPU Options:
- 8x NVDIA H200 NVL
- 8x NVDIA RTX PRO 6000 Blackwell PCIe
Power Supplies:
- 4x 3200W Redundant (3+1) Titanium PSU
Systems Management Solutions
- 1000Base-T Dedicated Server Management port
- ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Incorporated Intel X710-AT2
- NVIDIA Mellanox ConnectX-7 400GbE
- NVIDIA Mellanox ConnectX-7 200GbE
Expansion Slots:
- 4x FHFL Single-slot PCIe Gen5 x16 slots PCIe Switch bound
- 1x FHHL single-slot PCIe Gen5 x16 slots CPU bound
MSI GC480-S5063 GPU Server Supported CPUs
| Intel Xeon 6500 Series | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6521p | 24C/48T | 2.60GHz | 4.10GHz |
| Intel Xeon 6530P | 32C/64T | 2.30GHz | 4.10GHz |
| Intel Xeon 6533P-B | 32C/64T | 2.20GHz | 3.90GHz |
| Intel Xeon 6553P-B | 36C/72T | 2.60GHz | 4.00GHz |
| Intel Xeon 6556P-B | 36C/72T | 2.30GHz | 3.50GHz |
| Intel Xeon 6700 Series | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6710E | 64C/64T | 2.40GHz | 3.20GHz |
| Intel Xeon 6714P | 8C/16T | 4.00GHz | 4.30GHz |
| Intel Xeon 6731E | 96C/96T | 2.20GHz | 3.10GHz |
| Intel Xeon 6746E | 112C/112T | 2.00GHz | 2.70GHz |
| Intel Xeon 6780E | 144C/144T | 2.20GHz | 3.00GHz |
| Intel Xeon 6781P | 80C/160T | 2.00GHz | 3.80GHz |
| Intel Xeon 6787P | 86C/172T | 2.00GHz | 3.80GHz |
| Intel Xeon 6788P | 86C/172T | 2.00GHz | 3.80GHz |
| Intel Xeon 6716P-B | 40C/80T | 2.50GHz | 3.50GHz |
