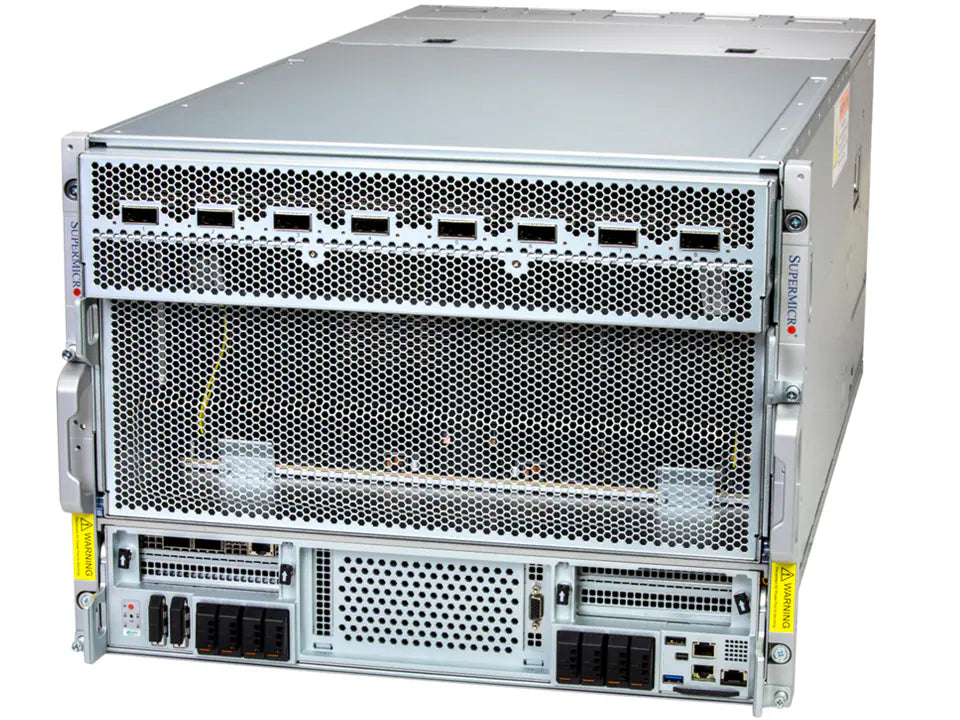

Supermicro B300 GPU SuperServer SYS-822GS-NB3RT
Introducing the new Supermicro B300 GPU SuperServer SYS-822GS-NB3RT
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the Supermicro B300 GPU SuperServer SYS-822GS-NB3RT delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the Supermicro B300 GPU SuperServer SYS-822GS-NB3RT email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 8U Rackmount
- 8x E1.S NVMe
- 2x NVMe M.2 (2280/22110)
Processor types:
- Dual Socket E2 LGA-4710
Intel Xeon 6700/6500 Series, housing up to 128 cores and 256 Threads per processor
Memory RAM types:
- Motherboard: Super X14DBG-LC
- ECC Registered Memory, up to Max 8TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 8TB (32x256GB)
- Memory Speeds: 4800MT/s to 6400MT/s
Storage Options
- NVMe E1.S: 15.36TB @ 16GT/s
- M.2 NVMe/SATA PCIe 4.0
GPU Options:
- NVIDIA SXM: HGX B300 8-GPU NVL8
- NVIDIA NVLink with NVSwitch GPU-to-GPU connection
Power Supplies:
- 6x 6600W Redundant (3+3) Titanium PSU
Systems Management Solutions
- Supermicro Server Manager
- Super Diagnostics Offline
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- 8x NVIDIA Mellanox ConnectX-7 400GbE
Expansion Slots:
- 2 PCIe 5.0 x16 FHHL slots
Supermicro GPU SuperServer SYS-822GS-NB3RT Supported CPUs
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6714P | 8C/16T | 4.00GHz | 4.30GHz |
| Intel Xeon 6724P | 16C/32T | 3.60GHz | 4.20GHz |
| Intel Xeon 6728P | 24C/48T | 2.70GHz | 3.90GHz |
| Intel Xeon 6738P | 32C/64T | 2.90GHz | 4.10GHz |
| Intel Xeon 6748P | 48C/96T | 2.50GHz | 3.80GHz |
| Intel Xeon 6768P | 64C/128T | 2.40GHz | 3.60GHz |
| Intel Xeon 6788P | 86C/172T | 2.00GHz | 3.20GHz |
| Intel Xeon 6731P | 32C/64T | 2.50GHz | 3.90GHz |
| Intel Xeon 6741P | 48C/96T | 3.85GHz | 4.30GHz |
| Intel Xeon 6761P | 64C/128T | 2.50GHz | 3.60GHz |
| Intel Xeon 6781P | 80C/160T | 2.00GHz | 3.20GHz |
| Intel Xeon 6730P | 32C/64T | 2.50GHz | 3.60GHz |
| Intel Xeon 6736P | 36C/72T | 2.00GHz | 3.40GHz |
| Intel Xeon 6737P | 32C/64T | 2.90GHz | 4.00GHz |
| Intel Xeon 6740P | 48C/96T | 2.10GHz | 3.30GHz |
| Intel Xeon 6745P | 32C/64T | 3.10GHz | 4.10GHz |
| Intel Xeon 6747P | 48C/96T | 2.70GHz | 3.80GHz |
| Intel Xeon 6760P | 64C/128T | 2.20GHz | 3.40GHz |
| Intel Xeon 6767P | 64C/128T | 2.40GHz | 3.60GHz |
| Intel Xeon 6787P | 86C/172T | 2.00GHz | 3.20GHz |
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6511P | 16C/32T | 2.50GHz | 4.20GHz |
| Intel Xeon 6521P | 24C/48T | 2.60GHz | 4.10GHz |
| Intel Xeon 6505P | 12C/24T | 2.20GHz | 3.90GHz |
| Intel Xeon 6507P | 8C/16T | 3.50GHz | 4.30GHz |
| Intel Xeon 6515P | 16C/32T | 2.40GHz | 3.80GHz |
| Intel Xeon 6517P | 16C/32T | 3.20GHz | 4.00GHz |
| Intel Xeon 6520P | 24C/48T | 2.40GHz | 3.40GHz |
| Intel Xeon 6527P | 24C/48T | 3.00GHz | 4.20GHz |
| Intel Xeon 6530P | 32C/64T | 2.30GHz | 3.70GHz |
