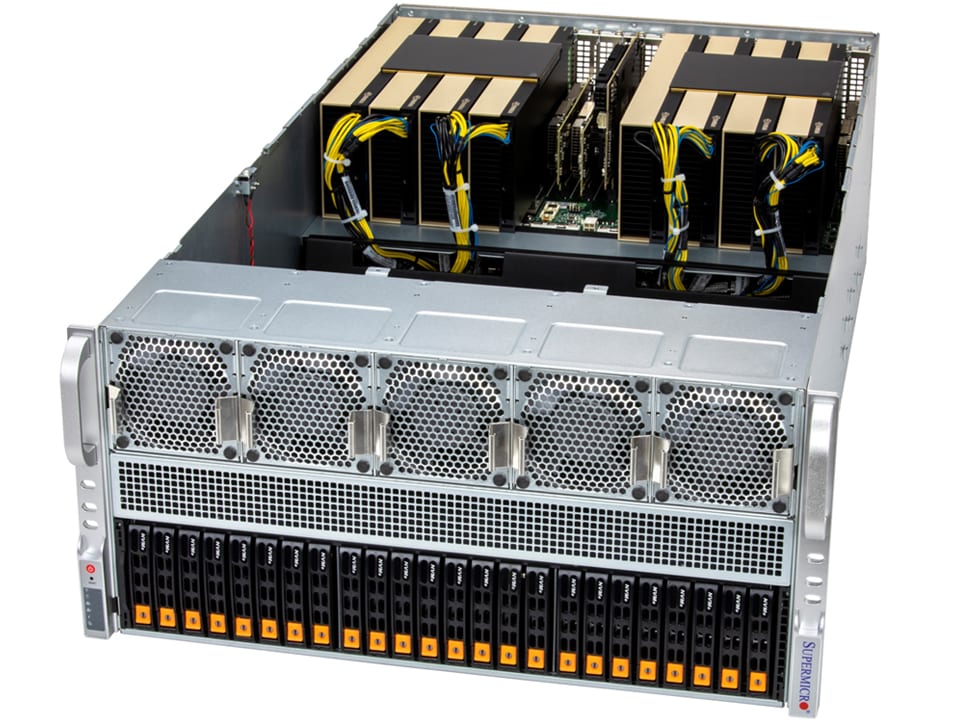

Supermicro GPU SuperServer SYS-522GA-NRT
Introducing the new Supermicro GPU SuperServer SYS-522GA-NRT
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors the Supermicro GPU SuperServer SYS-522GA-NRT delivers extremely fast processing speeds, opearations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the Supermicro GPU SuperServer SYS-522GA-NRT email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 5U Rackmoutn
- 24x Hot-Swap 2.5-inch NVMe PCIe 5.0
- 2x NVMe M.2 (2280/22110) PCIe Gen5
Processor types:
- One, Dual Socket (LGA-7529)
Intel Xeon 6900 Series, housing up to 128 cores and 256 Threads
Memory RAM types:
- Motherboard: Super X14DBG-AP
- ECC Registered Memory, up to Max 6TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Max Configuration: 6TB (24x256GB)
- Memory Speeds: 4800MT/s to 6400MT/s
Storage Options 2.5" Drives
- NVMe PCIe Gen5.0: 15.36TB @ 16GT/s
GPU Options:
- NVIDIA H100
- NVIDIA RTX Pro 6000 Blackwell
- NVIDIA H200
- NVIDIA L4
- NVIDIA L40
- NVIDIA L40S
Power Supplies:
- 6x 2700W Redundant Titanium PSU
Systems Management Solutions
- Supermicro Server Manager
- Super Diagnostics Offline
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Intel X710-AT2
- NVIDIA Mellanox MCX755106AS-HEAT ConnectX-7
- Mellanox MCX75310AAS-NEAT ConnectX-7
- Mellanox MCX755106AC-HEAT ConnectX-7
Expansion Slots:
- 13 PCIe 5.0 x16 FHFL slot
Supermicro GPU SuperServer SYS-522GA-NRT CPUs
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6944P | 72C/144T | 1.80GHz | 3.10GHz |
| Intel Xeon 6952P | 96C/172T | 2.10GHz | 3.20GHz |
| Intel Xeon 6960P | 72C/144T | 2.70GHz | 3.80GHz |
| CPU | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon 6972P | 96C/172T | 2.40GHz | 3.50GHz |
| Intel Xeon 6979P | 120C/240T | 2.10GHz | 3.20GHz |
| Intel Xeon 6980P | 128C/256T | 3.20GHz | 3.90GHz |
