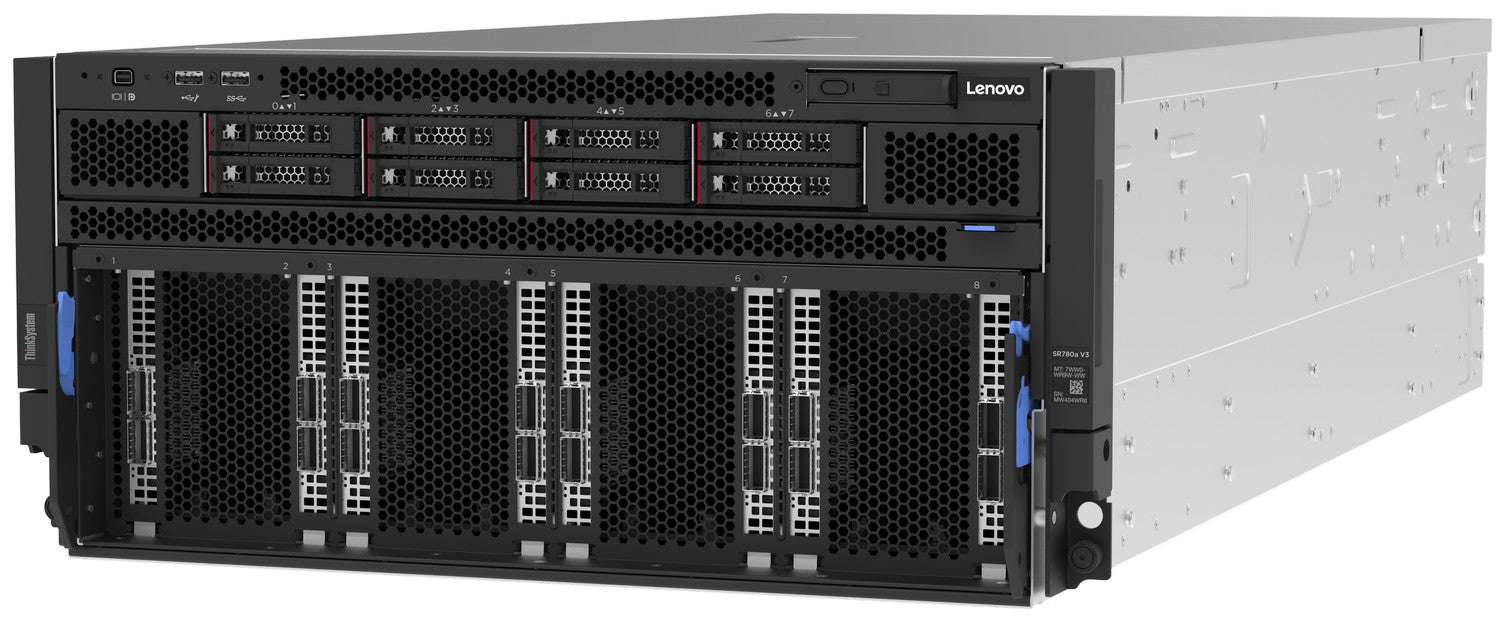

Lenovo SR780a V3 GPU Server
Introducing the new Lenovo SR780a V3 GPU Server
Cloud Ninjas is proud to be offering this cutting edge rack server that brings performance and efficiency to your business and data center.
Powered by the latest processors, the Lenovo SR780a V3 GPU Server delivers extremely fast processing speeds, operations, and state of the art parts for heavy work loads.
For the best deals and custom quotes for the Lenovo SR780a V3 GPU Server email us at Sales@CloudNinjas.com or click the "Request Quote" button below.
Tech Specs
Chassis:
- 5U Rackmount
- 12x 2.5" NVMe PCIe 5.0
- 2x M.2 NVMe PCIe Gen5 (22110, 2280) x4
Processor types:
- Dual Socket Intel Xeon 5th Gen Scalable
Memory RAM types:
- ECC Registered Memory, up to Max 4TB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB
- Max Configuration: 4TB (32x128GB)
- Memory Speeds: 5600MT/s 1 DIMM per channel, 4400MT/s 2 DIMMs per channel
Storage Options
- NVMe U.2/U.3 PCIe Gen5.0 : 15.36TB @ 32GT/s
- NVMe M.2 22110 or 2280: 3.84TB
GPU Options:
- 8x NVDIA H100 SXM5 80GB HBM3
- 8x NVDIA H200 SXM5 141GB HBM3
- 8x NVDIA HGX B200 SXM6 180GB HBM3
Power Supplies:
- 8x 2600W Redundant (4+4) Titanium PSU
Systems Management Solutions
- XClarity Controller 2 (XCC2) embedded management
based on the ASPEED AST2600 baseboard management controller (BMC) - Dedicated rear Ethernet port for XCC2 remote access for management
Security:
- Hardware: Trusted Platform Module (TPM) 2.0
Network Interface Card Options (NICs)
- Mellanox ConnectX-6 Lx 2-port 10/25GbE
- NVIDIA 400Gb/s adapter with direct GPU support
Expansion Slots:
- 3x FHHL PCIe Gen5 x16 slots PCIe Switch bound
Lenovo SR780a V3 GPU Server Supported CPUs
| Intel Xeon 5th Gen Scalable | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon Bronze 3508U | 8C/8T | 2.10GHz | 2.20GHz |
| Intel Xeon Silver 4509Y | 8C/16T | 2.60GHz | 4.10GHz |
| Intel Xeon Silver 4510 | 12C/24T | 2.40GHz | 4.10GHz |
| Intel Xeon Silver 4510T | 12C/24T | 2.00GHz | 3.70GHz |
| Intel Xeon Silver 4514Y | 16C/32T | 2.00GHz | 3.40GHz |
| Intel Xeon Silver 4516Y+ | 24C/48T | 2.20GHz | 3.70GHz |
| Intel Xeon Gold 5512U | 28C/56T | 2.10GHz | 3.70GHz |
| Intel Xeon Gold 5515+ | 8C/16T | 3.20GHz | 4.10GHz |
| Intel Xeon Gold 5520+ | 28C/56T | 2.20GHz | 4.00GHz |
| Intel Xeon Gold 6526Y | 16C/32T | 2.80GHz | 3.90GHz |
| Intel Xeon Gold 6530 | 32C/64T | 2.10GHz | 4.00GHz |
| Intel Xeon Gold 6534 | 8C/16T | 3.90GHz | 4.20GHz |
| Intel Xeon Gold 6538N | 32C/64T | 2.10GHz | 4.10GHz |
| Intel Xeon Gold 6538Y+ | 32C/64T | 3.90GHz | 4.20GHz |
| Intel Xeon Gold 6542Y | 24C/48T | 2.90GHz | 4.10GHz |
| Intel Xeon Gold 6544Y | 16C/32T | 3.60GHz | 4.10GHz |
| Intel Xeon 5th Gen Scalable | Cores/Threads | Frequency | Turbo Frequency |
|---|---|---|---|
| Intel Xeon Gold 6548N | 32C/64T | 2.80GHz | 4.10GHz |
| Intel Xeon Gold 6548Y+ | 32C/64T | 2.50GHz | 4.10GHz |
| Intel Xeon Gold 6554S | 36C/72T | 2.20GHz | 4.00GHz |
| Intel Xeon Gold 6558Q | 32C/64T | 3.20GHz | 4.10GHz |
| Intel Xeon Platinum 8558 | 48C/96T | 2.10GHz | 4.00GHz |
| Intel Xeon Platinum 8558P | 48C/96T | 2.70GHz | 4.00GHz |
| Intel Xeon Platinum 8558U | 48C/96T | 2.00GHz | 4.00GHz |
| Intel Xeon Platinum 8562Y+ | 32C/64T | 2.80GHz | 4.10GHz |
| Intel Xeon Platinum 8568Y+ | 48C/96T | 2.30GHz | 4.00GHz |
| Intel Xeon Platinum 8570 | 56C/112T | 2.10GHz | 4.00GHz |
| Intel Xeon Platinum 8571N | 52C/104T | 2.40GHz | 4.00GHz |
| Intel Xeon Platinum 8580 | 60C/120T | 2.00GHz | 4.00GHz |
| Intel Xeon Platinum 8581V | 60C/120T | 2.00GHz | 3.90GHz |
| Intel Xeon Platinum 8592+ | 64C/128T | 1.90GHz | 3.90GHz |
| Intel Xeon Platinum 8592V | 64C/128T | 1.90GHz | 3.90GHz |
| Intel Xeon Platinum 8593Q | 64C/128T | 2.20GHz | 3.90GHz |
