Dell PowerEdge R7515

SKU: Dell-R7515-8B-LFF

Chassis
Qty
Price
8 Bay LFF
1
$3,499.00
Price as configured
Regular price
$3,499.00
Sale price
$3,499.00
Unit price
per

Cloud Ninjas' Dell PowerEdge R7515 Specifications

Chassis

The Dell PowerEdge R7515 is a great server for Software-Defined Storage (SDS), Virtualization, Data Analytics, and more. This 2U chassis has a handful of different chassis options to pick from. We will cover some of the differences and similarities between the different chassis.

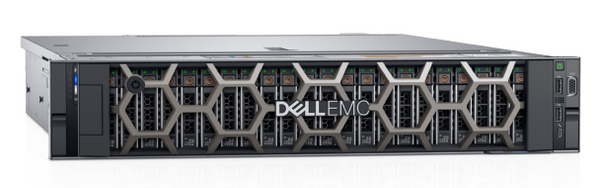

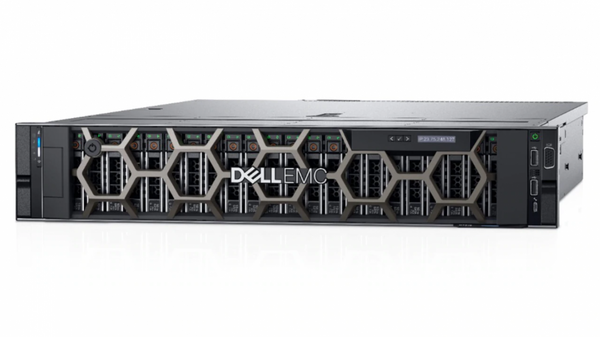

Bay Counts

There are three potential bay counts options for the R7515. These options are 8 Bay LFF, 12 Bay LFF, and 24 Bay SFF. The 8 Bay LFF chassis accepts up to eight 3.5” SAS/SATA hard drives. The 12 Bay LFF chassis accepts up to twelve 3.5” SAS/SATA hard drives. Lastly, the 24 Bay SFF chassis accepts up to twenty-four SAS/SATA/NVMe drives. Each chassis option supports hot-swap drives. There is also an option to install two 3.5” drives in the back of your system, depending on the rear configuration.

Chassis Rear & PCIe Slots

There are two possible rear configurations for the PowerEdge R7515. The first configuration allows you to install up to two 3.5” drives in the rear. There is also two low-profile PCIe slots. The second configuration has no rear drive bays. It has two full-height PCIe slots and two low-profile PCIe slots. Each rear has a system ID button, a system status indicator cable port (CMA), a serial port, a VGA port, two USB 3.0 ports, two 1GbE RJ45 Ethernet ports, a dedicated iDRAC port, two optional LOM riser RJ45 Ethernet ports, and two hot-swap power supplies.

Processing Power

The Dell PowerEdge R7515 has one SP3 socket. This server accepts 2nd or 3rd Generation AMD EPYC processors. A maximum of 64 cores are supported by the R7515.

AMD EPYC 7002 Series (2nd Generation)

CPU Cores Frequency Cache
7F72 24 3.20 GHz 192 MB
7F52 16 3.50 GHz 256 MB
7F32 8 3.70 GHz 128 MB
7H12 64 2.60 GHz 256 MB
7742 64 2.25 GHz 256 MB
7702 64 2.00 GHz 256 MB
7702P 64 2.00 GHz 256 MB
7662 64 2.00 GHz 256 MB
7662 64 2.00 GHz 256 MB
7642 48 2.30 GHz 256 MB
7552 48 2.20 GHz 192 MB
7542 32 2.90 GHz 128 MB
7532 32 2.40 GHz 256 MB
7502 32 2.50 GHz 128 MB
7502P 32 2.50 GHz 128 MB
7452 32 2.35 GHz 128 MB
7402 24 2.80 GHz 128 MB
7402P 24 2.80 GHz 128 MB
7352 24 2.30 GHz 128 MB
7302 16 3.00 GHz 128 MB
7302P 16 3.00 GHz 128 MB
7282 16 2.80 GHz 64 MB
7272 12 2.90 GHz 64 MB
7262 8 3.20 GHz 128 MB
7252 8 3.10 GHz 64 MB
7232P 8 3.10 GHz 32 MB

AMD EYPC 7003 Series (3rd Generation)

CPU Cores Frequency Cache
7773X 64 2.20 GHz 768 MB
7763 64 2.45 GHz 256 MB
7713P 64 2.00 GHz 256 MB
7713 64 2.00 GHz 256 MB
7663 56 2.00 GHz 256 MB
7643 48 2.30 GHz 256 MB
7573X 32 2.80 GHz 768 MB
75F3 32 2.95 GHz 256 MB
7543P 32 2.80 GHz 256 MB
7543 32 2.80 GHz 256 MB
7513 32 2.60 GHz 128 MB
7473X 24 2.80 GHz 768 MB
7453 28 2.75 GHz 64 MB
74F3 24 3.20 GHz 256 MB
7443P 24 2.85 GHz 128 MB
7443 24 2.85 GHz 128 MB
7413 24 2.65 GHz 128 MB
7373X 16 3.05 GHz 768 MB
73F3 16 3.50 GHz 256 MB
7343 16 3.20 GHz 128 MB
7313P 16 3.00 GHz 128 MB
7313 16 3.00 GHz 128 MB
72F3 8 3.70 GHz 256 MB

Memory

The Dell PowerEdge R7515 has 16 DDR4 DIMM slots inside. There 8 memory channels that each consist of two DIMM slots. Slots are color-coded white and black to help distinguish the memory channels.

Supported Memory Types and Capacities

Two types of memory are accepted by the R7515 server: ECC Registered (RDIMMs) and Load Reduced (LRDIMMs). Module capacities of 8GB, 16GB, 32GB, 64GB, and 128GB can be used with the PowerEdge R7515. It is important to know that 128GB modules can only be used with one type of RAM: Load Reduced. With LRDIMMs, you can achieve an overall greater RAM capacity than you can with RDIMMs. With RDIMMs, the greatest possible configuration you can achieve is 1TB (1024GB) with 16x64GB. On the other hand, with LRDIMMs you can achieve a maximum configuration of 2TB (2048GB) with 16x128GB.

Supported Memory Speeds

The Dell PowerEdge R7515 supported memory speeds of 2666MT/s, 2933MT/s, and 3200MT/s. The processor you install will determine that maximum memory speed that installed modules can run at. If you install a processor that supports a lower max memory speed than the speeds that you have installed, then the install modules will clock down to that maximum speed. For example, if the install processor supports a max speed of 2933MT/s, and you install a 3200MT/s module, the module will operate at 2933MT/s.

Storage

The PowerEdge R7515 has many potential storage options that are compatible. The chassis of the R7515 determines whether you can install 2.5” or 3.5” drives. If you system has a rear drive kit, then you can install an additional two 3.5” drives. The R7515 accepts HDDs, SSDs, and M.2s. Supported drive interfaces are: SATA, SAS, and NVMe.

Supported Drives

Form Factor Type Speed Rotational Speed Max Capacity Per Drive
3.5" SATA 6 Gb 7.2 K 10 TB
3.5" SAS 12 Gb 7.2 K 10 TB
2.5" SATA 12 Gb SSD 3.84 TB
2.5" SAS 12 Gb SSD 3.84 TB
2.5" SATA 6 Gb 7.2 K 2 TB
2.5" SAS 12 Gb 7.2 K 10 TB
2.5" SAS 12 Gb 10 K 2.4 TB
2.5" SAS 12 Gb 15 K 900 GB
M.2 SATA 6 Gb SSD 480GB
2.5" (U.2) NVMe Gen4 SSD 7.68TB

NVMe Options & Upgrades

NVMe is offers many benefits over most non-NVMe drives. NVMe drives bring major performance gains to your system. If you are wondering if the R7515 supports NVMe, the answer is yes!

U.2 NVMe and Backplane NVMe

Out of the three chassis options for the Dell PowerEdge R7515, only one supports U.2 NVMe drives. The 24 Bay SFF chassis has an NVMe capable backplane, meaning that you can install NVMe U.2 drives into the system’s drive bays. The 8 Bay LFF chassis and the 12 Bay LFF chassis only supports SAS and SATA drives.

M.2 NVMe

Up to two M.2 drives can be installed into the PowerEdge R7515 via a BOSS S1 card, but NVMe drives cannot be used. Only non-NVMe M.2 drives can be used with the Dell BOSS S1 card, meaning there is no M.2 NVMe solutions for the PowerEdge R7515.

Power Supplies

The Dell PowerEdge R6515 can accept up to two hot-swap power supply units (PSU). Because the PSUs are hot-swap, they can be removed or added while the system is running, as long as one unit remains plugged into the server. There are two power supply options to choose from: 550W AC Platinum and 700W 100-240VAC Platinum. For more power-intensive application, it is best to go with the 700W options. For lower-end applications, the 550W unit works just fine.

Wattages

The wattages for the R715 are: 495W, 750W, 1100W, and 1600W. All of these options are great options, but the best one for you depends on you application. For more power-intensive applications, the 1100W and 1600W are the best choice. For lower-end applications, the 495W and 750W units are your best bet.

Voltages

Each power supply wattage option has an input voltage associated with it. It is important to know this voltage, so you can choose the right power supply for your connection. Using a power supply with a voltage that is not supported by your connection may prevent your server from powering on. The possible voltage options are 100-240VAC, 200-240VAC, 240VDC, 200-380VDC, and (-48)-(-60)VDC. 495W units only come in 100-240VAC. 750W options only come in 200-240VAC, 240VDC, and 100-240VAC. For 1100W, voltage options are 200-380VDC, 100-240VAC, (-48)-(-60)VDC. Lastly, for 1600W, the only voltage option is 100-240VAC.

RAID Options

The Dell PowerEdge R7515 supports a handful of storage controllers/adapters. There are both (PERC) RAID and non-RAID options. Both are great options, but the one that is best for you, heavily depends on your application. You don’t need the ability to configure RAID, then a non-RAID option may be your best bet. A non-RAID adapter can be used as a boot controller as well as a data controller. If configuring RAID is a requirement, then a PERC RAID controller is the way to go. You can also use a software RAID, but this will be more limited than a hardware RAID option.

RAID Options RAID Levels Cache Drive Speeds PCIe Generation RAID Hardware
S150 onboard software 0,1,5,10 None 6 Gb/s SATA/NVMe PCIe Software
HBA330 None None 3Gb/s SATA
6Gb/s SAS/SATA
12Gb/s SAS
PCIe 3.0 Hardware
HBA355e None None 3Gb/s SAS/SATA
6Gb/s SAS/SATA
12Gb/s SAS/SATA
PCIe 4.0 Hardware
H330 1,5,10,50 None 6Gb/s SATA
12Gb/s SAS
PCIe 3.0 Hardware
H730P 0,1,5,6,10,50,60 2GB NV 6Gb/s SATA
12Gb/s SAS
PCIe 3.0 Hardware
H740P 0,1,5,6,10,50,60 8GB NV 6Gb/s SATA
12Gb/s SAS
PCIe 3.1 Hardware
H840 0,1,5,6,10,50,60 8GB NV 6Gb/s SATA
12Gb/s SAS
PCIe 3.1 Hardware

Network Interface Card Options

In order to connect a server to the Internet, it will need some type of Network Interface Card (NIC). A NIC can manifest as ports that are built-in to the motherboard. It can also manifest as an additional card that can be installed into the system. The PowerEdge R7515 has two RJ45 Ethernet ports built into the back of the motherboard. You can also install one LOM Mezzanine card into the back of the R7515.

Systems Management Solutions

The Dell PowerEdge R7515 has a ton of system management and support options. These options include but are not limited to: Lifecycle Controller 3.x, OpenManage, Quick Sync 2.0, OpenManage Enterprise Power Manager, Digital License Key, iDRAC Direct, and Easy Restore

Supported Operating Systems:

The Dell PowerEdge R7515 supports a vast amount of operating systems. These operating systems include multiple Linux distributions and different versions of VMware ESXi and Windows Server. These operating systems include, but are not limited to:

  • ⦿ Red Hat Enterprise Linux 7
  • ⦿ Red Hat Enterprise Linux 8
  • ⦿ Red Hat Enterprise Linux 9
  • ⦿ SuSE Linux ES 15
  • ⦿ Ubuntu Server 18.04 LTS
  • ⦿ Ubuntu Server 20.04 LTS
  • ⦿ VMware ESXi 6.5
  • ⦿ VMware ESXi 6.7
  • ⦿ VMware ESXi 7.0
  • ⦿ VMware ESXi 8.0
  • ⦿ Window Server 2016
  • ⦿ Window Server 2019 LTSC
  • ⦿ Window Server 2022 LTSC

Technical Information Overview

The Dell PowerEdge R7515 is a powerful 2U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the capabilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R7515. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R7515 server.

Technical Guide

Learn the ins and outs of the R7515: View PowerEdge R7515 Technical Guide



Specification Sheet

Specification Sheet: View PowerEdge R7515 Spec Sheet



Installation and Service Manual

Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R7515 Installation and Service Manual



Integrated Dell Remote Access Controller 9 User's Guide

Everything you need to know about iDRAC9, all in one place: View PowerEdge R7515 iDRAC9 User's Guide



Lifecycle Controller User's Guide

Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R7515 Lifecycle Controller Setup Guide



Dell Systems Management Overview

Learn about the R7515's System Management Technologies: View PowerEdge R7515 Dell System Management Overview Guide



BIOS Upgrade EFI File Download

Upgrade your BIOS Via an EFI File: Download PowerEdge R7515 BIOS Upgrade EFI File
