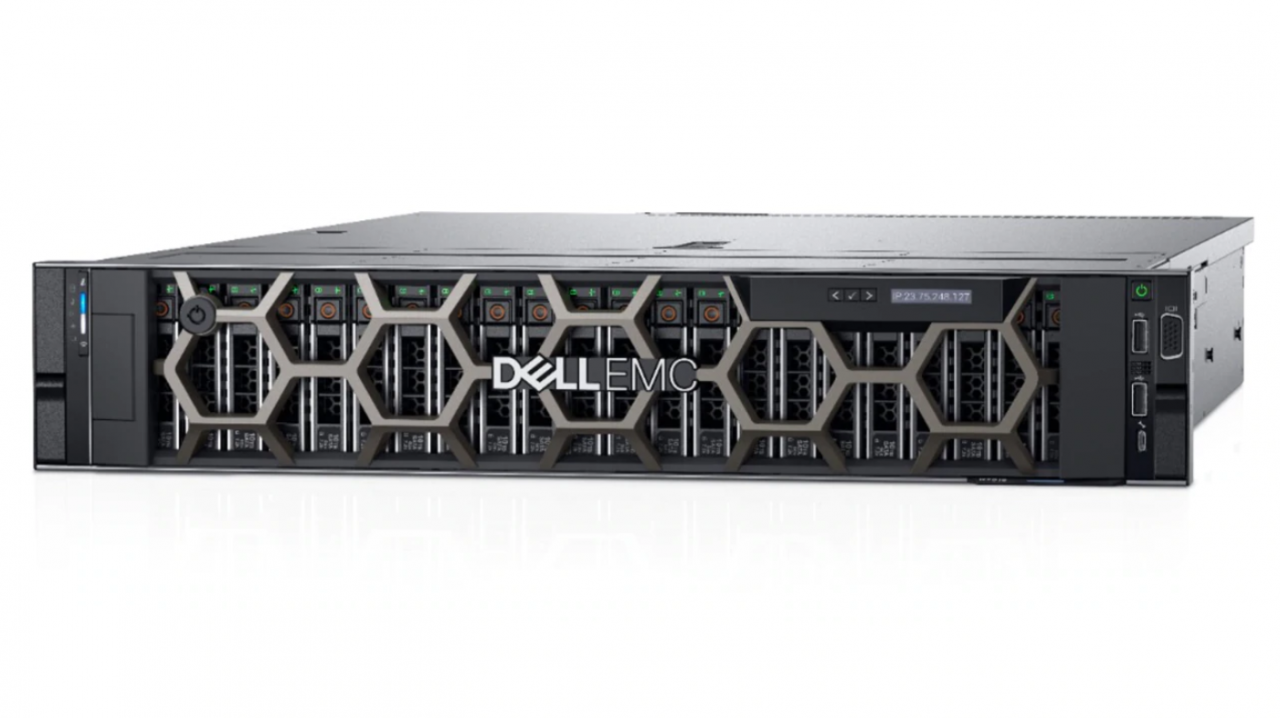

Dell PowerEdge R7525

SKU: Dell-R7525-8B-SFF-NVMe

Chassis
Qty
Price
8 Bay SFF (NVMe without XGMI)
1
$4,799.00
Price as configured
Regular price
$4,799.00
Sale price
$4,799.00
Unit price
per

Cloud Ninjas' Dell PowerEdge R7525 Specifications

Chassis

The Dell PowerEdge R7525 is a great server for data analytics, all flash SDS, VDI and more. This 2U chassis has a handful of different chassis options to pick from. We will cover some of the differences and similarities between the different chassis.

Bay Counts

There are five possible bay count and form factor options for the PowerEdge R7525 server. These options are: 8 Bay LFF, 12 Bay LFF, 8 Bay SFF, 16 Bay SFF, and 24 Bay SFF. The 8 Bay LFF chassis accepts eight 3.5” SAS/SATA drives. This chassis has an optical drive on the front. The 12 Bay LFF chassis accepts twelve 3.5” SAS/SATA hard drives. The 8 Bay SFF accepts up to eight 2.5” SAS/SATA hard drives or solid-state drives. The 16 Bay SFF accepts up to sixteen 2.5” SAS/SATA hard drives or solid-state drives.

Chassis Rear & PCIe Slots

There are two rear configurations to choose from for the PowerEdge R7525. The first configuration has six full-height PCIe slots and two low-profile PCIe slots. The second configuration has four full-height PCIe slots, two low-profile PCIe slots, and two 2.5” drive bays. Each rear configuration has a BOSS S2 module, two integrated 1GbE RJ45 Ethernet ports, an OCP NIC slot, a system ID button, a dedicated iDRAC port, USB 2.0 and 3.0 port, a VGA port, and two hot-swap power supply bays.

Processing Power

The Dell PowerEdge R7525 has one SP3 socket. This server accepts 2nd or 3rd Generation AMD EPYC processors. A maximum of 64 cores are supported by the R7525.

AMD EPYC 7002 Series (2nd Generation)

CPU Cores Frequency Cache
7F72 24 3.20 GHz 192 MB
7F52 16 3.50 GHz 256 MB
7F32 8 3.70 GHz 128 MB
7H12 64 2.60 GHz 256 MB
7742 64 2.25 GHz 256 MB
7702 64 2.00 GHz 256 MB
7702P 64 2.00 GHz 256 MB
7662 64 2.00 GHz 256 MB
7662 64 2.00 GHz 256 MB
7642 48 2.30 GHz 256 MB
7552 48 2.20 GHz 192 MB
7542 32 2.90 GHz 128 MB
7532 32 2.40 GHz 256 MB
7502 32 2.50 GHz 128 MB
7502P 32 2.50 GHz 128 MB
7452 32 2.35 GHz 128 MB
7402 24 2.80 GHz 128 MB
7402P 24 2.80 GHz 128 MB
7352 24 2.30 GHz 128 MB
7302 16 3.00 GHz 128 MB
7302P 16 3.00 GHz 128 MB
7282 16 2.80 GHz 64 MB
7272 12 2.90 GHz 64 MB
7262 8 3.20 GHz 128 MB
7252 8 3.10 GHz 64 MB
7232P 8 3.10 GHz 32 MB

AMD EYPC 7003 Series (3rd Generation)

CPU Cores Frequency Cache
7773X 64 2.20 GHz 768 MB
7763 64 2.45 GHz 256 MB
7713P 64 2.00 GHz 256 MB
7713 64 2.00 GHz 256 MB
7663 56 2.00 GHz 256 MB
7643 48 2.30 GHz 256 MB
7573X 32 2.80 GHz 768 MB
75F3 32 2.95 GHz 256 MB
7543P 32 2.80 GHz 256 MB
7543 32 2.80 GHz 256 MB
7513 32 2.60 GHz 128 MB
7473X 24 2.80 GHz 768 MB
7453 28 2.75 GHz 64 MB
74F3 24 3.20 GHz 256 MB
7443P 24 2.85 GHz 128 MB
7443 24 2.85 GHz 128 MB
7413 24 2.65 GHz 128 MB
7373X 16 3.05 GHz 768 MB
73F3 16 3.50 GHz 256 MB
7343 16 3.20 GHz 128 MB
7313P 16 3.00 GHz 128 MB
7313 16 3.00 GHz 128 MB
72F3 8 3.70 GHz 256 MB

Memory

The PowerEdge R7525 server has 32 DDR4 DIMM slots inside. There are eight memory channels for each CPU. Each memory channel consists of two DIMM slots. DIMM slots are colored either white or black to help distinguish the memory channels.

Supported Memory Types and Capacities

Two types of memory can be used with the PowerEdge R7525: ECC Registered (RDIMMs) and Load Reduced (LRDIMMs). Module capacities of 8GB, 16GB, 32GB, 64GB, and 128GB are supported by the R7525 server. One thing to note is that 128GB modules can only be used with Load Reduced. With LRDIMMs, an overall greater RAM capacity can be reached than if you were to use RDIMMs. With RDIMMs, the greatest possible configuration is 2TB (2048GB) with 32x64GB. With LRDIMMs, you can reach 4TB (4096GB) with a configuration of 32x128GB.

Supported Memory Speeds

The PowerEdge R7525 server supports memory speeds of 2666MT/s, 2933MT/s, and 3200MT/s. The processor that you install into your server will determine the maximum memory speed that your DIMMs can operate at. If you install a processor with that supports a lower maximum speed than the speeds you have installed, then the memory modules will clock down to the maximum supported speed. For example, if the installed processor supports a max speed of 2666MT/s, and you install 2933MT/s modules, the modules will operate at 2666MT/s.

Storage

The PowerEdge R7525 has many potential storage options that are compatible. The chassis of the R7525 determines whether you can install 2.5” or 3.5” drives. If your system has a rear drive kit, then you can install an additional two 3.5” drives. The R7525 accepts HDDs, SSDs, and M.2s. Supported drive interfaces are: SATA, SAS, and NVMe.

Supported Drives

Form Factor Type Speed Rotational Speed Max Capacity Per Drive
3.5" SATA 6 Gb 7.2 K 10 TB
3.5" SAS 12 Gb 7.2 K 10 TB
2.5" SATA 12 Gb SSD 3.84 TB
2.5" SAS 12 Gb SSD 3.84 TB
2.5" SATA 6 Gb 7.2 K 2 TB
2.5" SAS 12 Gb 7.2 K 10 TB
2.5" SAS 12 Gb 10 K 2.4 TB
2.5" SAS 12 Gb 15 K 900 GB
M.2 SATA 6 Gb SSD 240GB
2.5" (U.2) NVMe Gen4 SSD 15.36TB

NVMe Options & Upgrades

NVMe is offers many benefits over most non-NVMe drives. NVMe drives bring major performance gains to your system. If you are wondering if the R7525 supports NVMe, the answer is yes!

U.2 NVMe and Backplane NVMe

Out of the five chassis options for the Dell PowerEdge R7525, only one supports U.2 NVMe drives. The 24 Bay SFF chassis has an NVMe capable backplane, meaning that you can install NVMe U.2 drives into the system’s drive bays. The 8 Bay LFF, 12 Bay LFF, 8 Bay SFF, and 16 Bay SFF chassis only supports SAS and SATA drives.

M.2 NVMe

Up to two M.2 drives can be installed into the PowerEdge R7525 via a BOSS S2 card, but NVMe drives cannot be used. Only non-NVMe M.2 drives can be used with the Dell BOSS S2 card, meaning there is no M.2 NVMe solutions for the PowerEdge R7525. The BOSS S1 can also be used to install M.2 drives, but the S1 does not support NVMe either.

Power Supplies

The Dell PowerEdge 7525 can accept up to two hot-swap power supply units (PSUs). Hot-swap means that the PSUs can be added or removed while the server is powered on, as long as one unit remains plugged into the system.

Wattages

Wattage options for the PowerEdge R7525 are 800W, 1100W, and 1400W, and 2400W. For more power-intensive applications, a 1400W or 2400W power supply is the best choice. For lower end applications, a 800W or 1400W power supply works just fine.

Voltages

Voltage options for the R7525 are Mixed Mode and -48VDC. Mixed Mode power supplies support a power input of 100-240VAC or 240VDC. -48VDC power supplies support a power input of (-48)-(-60) VDC. Mixed mode options are only available with 800W, 1100W, 1400W, 2400W power supplies. -48VDC power supplies are only available with 1100W. It is important to make sure that your connection is supported by your power supply, or your system may not power on.

RAID Options

The Dell PowerEdge R7525 supports a handful of storage controllers/adapters. There are both (PERC) RAID and non-RAID options. Both are great options, but the one that is best for you, heavily depends on your application. You don’t need the ability to configure RAID, then a non-RAID option may be your best bet. A non-RAID adapter can be used as a boot controller as well as a data controller. If configuring RAID is a requirement, then a PERC RAID controller is the way to go. You can also use a software RAID, but this will be more limited than a hardware RAID option.

RAID Options RAID Levels Cache Drive Speeds PCIe Generation RAID Hardware
S150 onboard software 0,1,5,10 None 6 Gb/s SATA/NVMe PCIe Software
HBA345 None None 3Gb/s SAS/SATA
6 Gb/s SAS/SATA
12Gb/s SAS
PCIe 3.0 Hardware
HBA355 None None 3Gb/s SAS/SATA
6 Gb/s SAS/SATA
12Gb/s SAS
PCIe 4.0 Hardware
HBA355e None None 3Gb/s SAS/SATA
6Gb/s SAS/SATA
12Gb/s SAS/SATA
PCIe 4.0 Hardware
H345 0,1,10 None 3Gb/s SAS/SATA
6Gb/s SAS/SATA
12Gb/s SAS
PCIe 3.0 Hardware
H745 0,1,5,6,10,50,60 4GB NV 3Gb/s SAS/SATA
6Gb/s SAS/SATA
12Gb/s SAS
PCIe 3.0 Hardware
H755 0,1,5,6,10,50,60 8GB NV 3Gb/s SAS/SATA
6Gb/s SAS/SATA
12Gb/s SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe
PCIe 4.0 Hardware
H755N 0,1,5,6,10,50,60 8GB NV Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe
PCIe 4.0 Hardware
H840 0,1,5,6,10,50,60 8GB NV 6Gb/s SATA
12Gb/s SAS
PCIe 3.1 Hardware

Network Interface Card Options

In order to connect a server to the Internet, it will need some type of Network Interface Card (NIC). A NIC can manifest as ports that are built-in to the motherboard. It can also manifest as an additional card that can be installed into the system. The PowerEdge R7525 has two RJ45 Ethernet ports built into the back of the motherboard. You can also install one OCP NIC card into the back of the PowerEdge R7525.

Systems Management Solutions

The Dell PowerEdge R7525 has a ton of system management and support options. These options include but are not limited to: Lifecycle Controller 3.x, OpenManage, Quick Sync 2.0, OpenManage Enterprise Power Manager, Digital License Key, iDRAC Direct, and Easy Restore

Supported Operating Systems:

The Dell PowerEdge R7525 supports a vast amount of operating systems. These operating systems include multiple Linux distributions and different versions of VMware ESXi and Windows Server. These operating systems include, but are not limited to:

  • ⦿ Red Hat Enterprise Linux 7
  • ⦿ Red Hat Enterprise Linux 8
  • ⦿ Red Hat Enterprise Linux 9
  • ⦿ SuSE Linux ES 15
  • ⦿ Ubuntu Server 18.04 LTS
  • ⦿ Ubuntu Server 20.04 LTS
  • ⦿ VMware ESXi 6.5
  • ⦿ VMware ESXi 6.7
  • ⦿ VMware ESXi 7.0
  • ⦿ VMware ESXi 8.0
  • ⦿ Window Server 2016
  • ⦿ Window Server 2019 LTSC
  • ⦿ Window Server 2022 LTSC

Technical Information Overview

The Dell PowerEdge R7525 is a powerful 2U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the capabilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R7525. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R7525 server.

Technical Guide

Learn the ins and outs of the R7525: View PowerEdge R7525 Technical Guide



Specification Sheet

Specification Sheet: View PowerEdge R7525 Spec Sheet



Installation and Service Manual

Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R7525 Installation and Service Manual



Integrated Dell Remote Access Controller 9 User's Guide

Everything you need to know about iDRAC9, all in one place: View PowerEdge R7525 iDRAC9 User's Guide



Lifecycle Controller User's Guide

Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R7525 Lifecycle Controller Setup Guide



Dell Systems Management Overview

Learn about the R7525's System Management Technologies: View PowerEdge R7525 Dell System Management Overview Guide



BIOS Upgrade EFI File Download

Upgrade your BIOS Via an EFI File: Download PowerEdge R7525 BIOS Upgrade EFI File
