Dell PowerEdge R740xd Server

SKU: Dell-R740xd-12B

Chassis
Qty
Price
12 Bay LFF
1
$1,499.00
Price as configured
Regular price
$1,499.00
Sale price
$1,499.00
Unit price
per

Cloud Ninjas' Dell PowerEdge R740xd Specifications

Chassis

The Dell PowerEdge R740xd server is the one of the best storage servers in Dell's 14th Generation of PowerEdge servers. The R740xd allows for a vast number of drives to be installed. There are two possible chassis options for the R740xd: 12 Bay LFF and 24 Bay SFF. The main differences between the two chassis are the number of drive bays and the drive form factor that they accept.

12 Bay LFF

The 12 Bay LFF chassis for the PowerEdge R740xd allow for twelve 3.5" SAS/SATA drives to be installed into the backplane. 2.5" hard drives and solid state drives can be plugged into the backplane via a 2.5" to 3.5" drive converter.

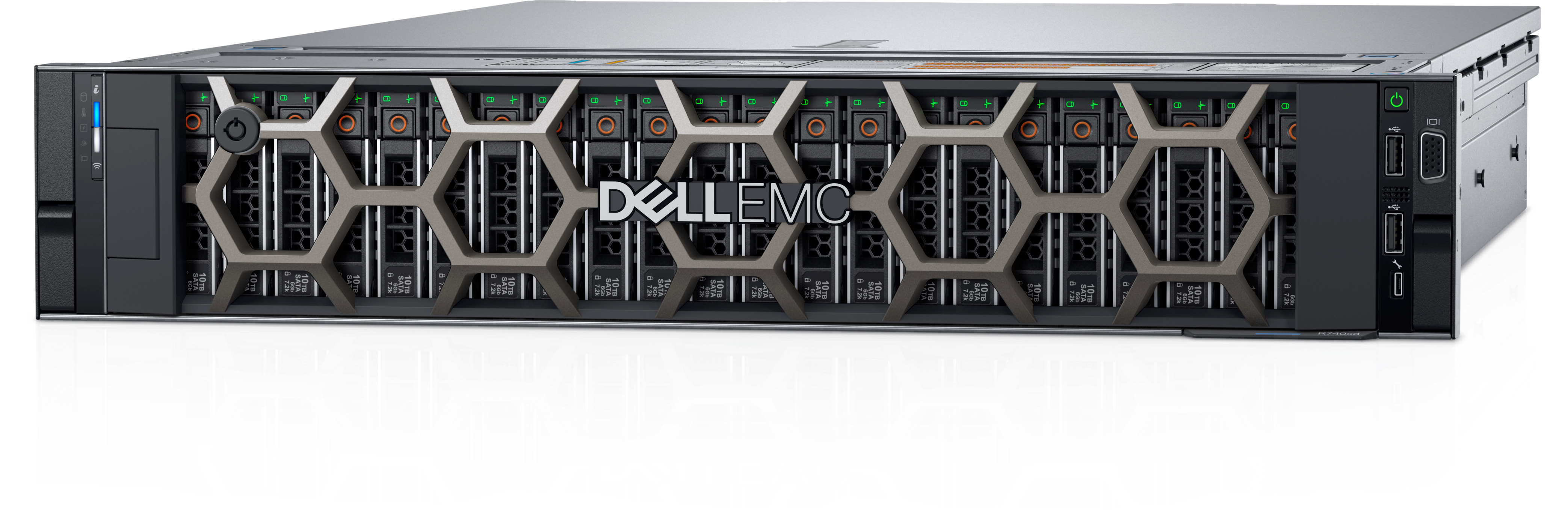

24 Bay SFF

The R740xd's 24 Bay SFF chassis allows for twenty-four 2.5" SAS/SATA HDDs and SSDs to be plugged into the backplane.

Rear Configurations

There are three rear configuration options for the Dell PowerEdge R740xd server. The first configuration includes two 3.5" rear flex bays, three full-height PCIe slots, and one low-profile PCIe slot. The second configuration includes four 2.5" rear flex bays, three full-height PCIe slots, and one low-profile PCIe slot. Each chassis has a dedicated iDRAC LAN port, a serial connector, a VGA port, two Type A USB 2.0 ports, a network daughter card slot, and two hot-swap power supply bays.

Processing Power

The Dell PowerEdge R740xd server can accept up to 1st Generation and 2nd Generation Intel Xeon Scalable processors. Total of 56 cores with a total of 28 cores per processor.

1st Generation Intel Xeon Scalable

CPU Step Code Cores Frequency
Bronze 3104 SR3GM 6 1.7GHz
Bronze 3106 SR3GL 8 1.7GHz
Silver 4106H SR44Y 8 1.8GHz
Silver 4108 SR3GJ 8 1.8GHz
Silver 4109T SR3GP 8 2.0 GHz
Silver 4110 SR3GH 8 2.1GHz
Silver 4112 SR3GN 4 2.6GHz
Silver 4114 SR3GK 10 2.2GHz
Silver 4114T SR3MM 10 2.2GHz
Silver 4116 SR3HQ 12 2.1GHz
Silver 4116T SR3MQ 12 2.1GHz
Silver 4123 SR3VW 8 3.0GHz
Gold 5115 SR3GB 10 2.4GHz
Gold 5117 SR37S 14 2.0GHz
Gold 5117F SR3KM 14 2.0GHz
Gold 5118 SR3GF 12 2.4GHz
Gold 5119T SR3MN 14 1.9GHz
Gold 5120 SR3GD 14 2.2GHz
Gold 5120T SR3GC 14 2.2GHz
Gold 5122 SR3AT 4 3.6GHz
Gold 6122 SRCKF 20 1.8GHz
Gold 6126 SR3B3 12 2.6GHz
Gold 6126F SR3KE 12 2.6GHz
Gold 6126T SR3J9 12 2.6GHz
Gold 6128 SR3J4 6 3.4GHz
Gold 6130 SR3B9 16 2.1GHz
Gold 6130F SR3KD 16 2.1GHz
Gold 6130T SR3J8 16 2.1GHz
Gold 6132 SR3J3 14 2.6GHz
Gold 6133 SR3M1 20 2.5GHz
Gold 6134 SR3AR 8 3.2GHz
Gold 6136 SR3B2 12 3.0GHz
Gold 6138 SR3B5 20 2.0GHz
Gold 6138F SR3KK 20 2GHz
Gold 6138P SRCUG 20 2.0GHz
Gold 6138T SR3J7 20 2.0GHz
Gold 6140 SR3AX 18 2.3GHz
Gold 6142 SR3AY 16 2.6GHz
Gold 6142F SR3KH 16 2.6GHz
Gold 6144 SR3MB 8 3.5GHz
Gold 6146 SR3MA 12 3.2GHz
Gold 6148 SR3B6 20 2.4GHz
Gold 6148F SR3KJ 20 2.4GHz
Gold 6150 SR37K 18 2.7GHz
Gold 6152 SR3B4 22 2.1GHz
Gold 6154 SR3J5 18 3.0GHz
Platinum 8153 SR3BA 16 2.0GHz
Platinum 8156 SR3AV 4 3.6GHz
Platinum 8158 SR3B7 12 3.0GHz
Platinum 8160 SR3B0 24 2.1GHz
Platinum 8160F SR3B8 24 2.1GHz
Platinum 8160T SR3J6 24 2.1GHz
Platinum 8164 SR3BB 26 2.0GHz
Platinum 8168 SR37J 24 2.7GHz
Platinum 8170 SR37H 26 2.1GHz
Platinum 8176 SR37A 28 2.1GHz
Platinum 8176F SR3MK 28 2.1GHz
Platinum 8180 SR377 28 2.5GHz

2nd Generation Intel Xeon Scalable

CPU Step Code Cores Frequency
Bronze 3204 SRFBP 6 1.9GHz
Bronze 3206R SRG25 8 1.9GHz
Silver 4208 SRFBM 8 2.1GHz
Silver 4209T SRFBQ 8 2.2GHz
Silver 4210 SRFBL 10 2.2GHz
Silver 4210R SRG24 10 2.4GHz
Silver 4210T SRGYH 10 2.3GHz
Silver 4214 SRFB9 12 2.2GHz
Silver 4214R SRG1W 12 2.4GHz
Silver 4214Y SRFDG 12 2.2GHz
Silver 4215 SRFBA 8 2.5GHz
Silver 4215R SRGZE 8 3.2GHz
Silver 4216 SRFBB 16 2.1GHz
Gold 5215 SRFBC 10 2.5GHz
Gold 5215L SRFBE 10 2.5GHz
Gold 5217 SRFBF 8 3.0GHz
Gold 5218 SRF8T 16 2.3GHz
Gold 5218B SRFDJ 16 2.3GHz
Gold 5218N SRFD9 16 2.3GHz
Gold 5218R SRGZ7 20 2.1GHz
Gold 5218T SRFPM 16 2.1GHz
Gold 5220 SRFBJ 18 2.2GHz
Gold 5220R SRGZP 24 2.2GHz
Gold 5220S SRFPT 18 2.7GHz
Gold 5220T SRFPK 18 1.9GHz
Gold 5222 SRF8V 4 3.8GHz
Gold 6208U SRGZD 16 2.9GHz
Gold 6209U SRFQ3 20 2.1GHz
Gold 6210U SRF9B 20 2.5GHz
Gold 6212U SRF9A 24 2.4GHz
Gold 6222V SRFQ5 20 1.8GHz
Gold 6226 SRFPP 12 2.7GHz
Gold 6226R SRGZC 16 2.9GHz
Gold 6230 SRF8W 20 2.1GHz
Gold 6230N SRFPR 20 2.3GHz
Gold 6230R SRGZA 26 2.1GHz
Gold 6230T SRFPS 20 2.1GHz
Gold 6234 SRFPN 8 3.3GHz
Gold 6238 SRFPL 22 2.1GHz
Gold 6238L SRFQ2 22 2.1GHz
Gold 6238R SRGZ9 28 2.2GHz
Gold 6238T SRF9C 22 1.9GHz
Gold 6240 SRF8X 18 2.6GHz
Gold 6240L SRFQ0 18 2.6GHz
Gold 6240R SRGZ8 24 2.4GHz
Gold 6240Y SRF9D 18 2.6GHz
Gold 6242 SRF8Y 16 2.8GHz
Gold 6242R SRGZJ 20 3.1GHz
Gold 6244 SRF8Z 8 3.6GHz
Gold 6246 SRFPJ 12 3.3GHz
Gold 6246R SRGZL 16 3.4GHz
Gold 6248 SRF90 20 2.5GHz
Gold 6248R SRGZG 24 3.0GHz
Gold 6250 SRGTR 8 3.9GHz
Gold 6250L SRH5D 8 3.9GHz
Gold 6252 SRF91 24 2.1GHz
Gold 6252N SRFPQ 24 2.3GHz
Gold 6254 SRF92 18 3.1GHz
Gold 6256 SRGTQ 12 3.6GHz
Gold 6258R SRGZF 28 2.7GHz
Gold 6262V SRFQ4 24 1.9GHz
Platinum 8253 SRF93 16 2.2GHz
Platinum 8256 SRF94 4 3.8GHz
Platinum 8260 SRF9H 24 2.4GHz
Platinum 8260L SRF9G 24 2.4GHz
Platinum 8260Y SRF9F 24 2.4GHz
Platinum 8268 SRF95 24 2.9GHz
Platinum 8270 SRF96 26 2.7GHz
Platinum 8276 SRF99 28 2.2GHz
Platinum 8276L SRF97 28 2.2GHz
Platinum 8280 SRF9P 28 2.7GHz
Platinum 8280L SRF9R 28 2.7GHz

Memory

The Dell PowerEdge R740xd Server has a total of 24 DIMM slots which makes this system great in terms of scalability. This system accepts DDR4 memory. ECC Registered (RDIMMs), Load Reduced (LRDIMMs), and Intel Optane DC Persistent Memory (DCPMM) can be used with the R740xd, but you cannot mix these two types. Capacities of 8GB, 16GB, 32GB, 64GB, and 128GB, 256GB, and 512GB. 128GB is only available with LRDIMMs and 256GB and 512GB are only available with DCPMM. With Load Reduced and Intel Optane, you can achieve an overall greater RAM capacity. With ECC Registered memory, you can achieve a max of 1.5TB with a configuration of 24x64GB modules. With Load Reduced, the max you can achieve is 3TB with a configuration of 24x128GB modules. With Intel Optane alone, 6.14TB can be acheived with 12x512GB modules. The Dell R740xd supports memory speeds of 2133MT/s, 2400MT/s, 2666MT/s, 2933MT/s, and 3200MT/s. The processor you have installed will determine the max memory speed that you can use with your system. For example, if your processor supports a max memory speed off 2666MT/s and you install a 2933MT/s module, the module will clock down to 2666MT/s. 2933MT/s is the fastest possible speed for this system.

Storage

Supported Drives (2.5")

Type Speeds Max Capacity (Per Drive)
SAS 7.2K, 10K, 15K 2.4TB
SATA 7.2K 2TB
SSD 6Gb/s, 12Gb/s 7.68TB

Supported Drives (3.5")

Type Speeds Max Capacity (Per Drive)
SAS 7.2K 18TB
SATA 7.2K 16TB
SSD 6Gb/s, 12Gb/s 7.68TB

Power Supplies

How Many Power Supplies does the R740xd Take?

The PowerEdge R740xd server can hold up to two hot-swap power supplies. Hot-swap means that power supplies can be install/removed as long as one power supply remains plugged in.

Power Supply Options

Power supply options for the R740xd include:

  • Titanium 750W
  • Platinum 495W
  • Platinum 750W
  • Platinum 750W Mixed Mode HVDC (China Only)
  • Platinum 750W Mixed Mode 240V DC (China Only)
  • Platinum 1100W
  • Platinum 1600W
  • Platinum 2000W
  • Platinum 2400W
  • 1100W 380V DC (China and Japan Only)
  • Gold 1100W -48V DC

RAID Options

RAID Options RAID Levels Cache Drive Speeds PCIe Generation RAID Hardware
S140 onboard software 0,1,5,10 None 6 Gb/s SATA/NVMe N/A Software
HBA330 Passthrough None 6 Gb/s SAS/SATA
12 Gb/s SAS
PCIe 3.0 Hardware
HBA350i Passthrough None 3 Gb/s SAS/SATA
6 Gb/s SAS/SATA
12 Gb/s SAS
PCIe 4.0 Hardware
HBA355e Passthrough None 3 Gb/s SAS/SATA
6 Gb/s SAS/SATA
12 Gb/s SAS
PCIe 4.0 Hardware
12Gbps SAS Ext. HBA Passthrough None 12 Gb/s SAS PCIe 3.0 Hardware
H730P 0, 1, 5, 6, 10, 50, 60 2 GB NV 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.0 Hardware
H740P 0, 1, 5, 6, 10, 50, 60 8 GB NV 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.1 Hardware
H750 0, 1, 5, 6, 10, 50, 60 8 GB NV 3 Gb/s SAS/SATA
6 Gb/s SAS/SATA
12 Gb/s SAS
PCIe 4.0 Hardware
H840 0, 1, 5, 6, 10, 50, 60 8 GB NV 6 Gb/s SATA
12 Gb/s SAS
PCIe 3.1 Hardware

Network Interface Card Options

Daughter Cards

Broadcom 5720 Quad Port 4x1GbE RJ45
Broadcom 5720/57412 Quad Port 2x1GbE RJ45 + 2x10GbE SFP+
Broadcom 57414 Dual Port 2x10/25GbE SFP28
Intel i350/X550 Quad Port 2x1GbE RJ45 + 2x10GbE RJ45
Intel i350/X710 Quad Port 2x1GbE RJ45 + 2x10GbE SFP+
Intel X550 Quad Port 4x10GbE RJ45

PCIe Cards

Broadcom 5719 Quad Port 4x1GbE RJ45 Low Profile
Broadcom 5719 Quad Port 4x1GbE RJ45 Full Height
Broadcom 5720 Dual Port 2x1GbE RJ45 Low Profile
Broadcom 5720 Dual Port 2x1GbE RJ45 Full Height
Broadcom 57412 Dual Port 2x10GbE SFP+ Low Profile
Broadcom 57412 Dual Port 2x10GbE SFP+ Full Height
Broadcom 57414 Dual Port 2x10/25GbE SFP28 Low Profile
Broadcom 57414 Dual Port 2x10/25GbE SFP28 Full Height
Broadcom 57416 Dual Port 2x10GbE RJ45 Low Profile
Broadcom 57416 Dual Port 2x10GbE RJ45 Full Height
Intel X550 Dual Port 2x10GbE RJ45 Low Profile
Intel X710 Dual Port 2x10GbE SFP+ Full Height
Intel XL710 Dual Port 2x40GbE QSFP+ Full Height
Intel E810-XXV Dual Port 2x10/25GbE SFP28 Low Profile
Emulex LPE 35002 Dual Port 2x32Gb FC HBA Low Profile
Emulex LPE 35002 Dual Port 2x32Gb FC HBA Full Height
QLogic 2690 Single Port 1x16Gb FC HBA Low Profile V2
QLogic 2690 Single Port 1x16Gb FC HBA Full Height V2
QLogic 2692 Dual Port 2x16Gb FC HBA Low Profile V2
QLogic 2692 Dual Port 2x16Gb FC HBA Full Height V2
QLogic 2772 Dual Port 2x32Gb FC HBA Low Profile V2
QLogic 2772 Dual Port 2x32Gb FC HBA Full Height V2

Systems Management Solutions

The Dell PowerEdge R740xd Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup, and searching the IP in a web browser.

Supported Operating Systems:

The PowerEdge R740xd supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. These operating systems include, but are not limited to:

  • ⦿ Citrix XenServer 7.1
  • ⦿ Red Hat® Enterprise Linux 6
  • ⦿ Red Hat® Enterprise Linux 7
  • ⦿ Red Hat® Enterprise Linux 8
  • ⦿ Red Hat® Enterprise Linux 9
  • ⦿ SUSE Linux ES 12
  • ⦿ SUSE Linux ES 15
  • ⦿ Ubuntu Server 16.04 LTS
  • ⦿ Ubuntu Server 18.04
  • ⦿ Ubuntu Server 18.04 LTS
  • ⦿ Ubuntu Server 20.04 LTS
  • ⦿ Ubuntu Server 22.04 LTS
  • ⦿ VMware ESXi 6.0
  • ⦿ VMware ESXi 6.5
  • ⦿ VMware ESXi 6.7
  • ⦿ VMware ESXi 7.0
  • ⦿ VMware ESXi 8.0
  • ⦿ Window Server 2012 R2
  • ⦿ Window Server 2016
  • ⦿ Window Server 2019
  • ⦿ Window Server 2022 LTSC

Dell PowerEdge R740xd Video

Technical Information Overview

The Dell PowerEdge R740xd is a powerful 1U rackmount server, that can handle almost anything you throw at it. It is loaded with features that expand the cababilities of the system. Learning about these features is the best thing you can do to fully take advantage of the perks of the R740xd. We have compiled a few guides that are useful for learning the ins and outs of the Dell PowerEdge R740xd server.

Technical Guide

Learn the ins and outs of the R740xd: View PowerEdge R740xd Technical Guide



Technical Specifications

For all technical information regarding the PowerEdge R740xd, refer to the R740xd technical specificaitons: View PowerEdge R740xd Technical Specifications



Spec Sheet

Need a quick overview of the R740xd's specs? Check out the R740xd spec sheet: View PowerEdge R740xd Spec Sheet



Installation and Service Manual

Need help installing/replacing components or with using diagnostic's tools? The Installation and Service Manual is a fantastic resource: View PowerEdge R740xd Installation and Service Manual



Integrated Dell Remote Access Controller 9 User's Guide

Everything you need to know about iDRAC 9, all in one place: View PowerEdge R740xd iDRAC 9 User's Guide



Lifecycle Controller User's Guide

Navigate Lifecycle Controller with the Lifecycle Controller User's Guide: View PowerEdge R740xd Lifecycle Controller Setup Guide



Dell Systems Management Overview

Learn about the R740xd's System Managment Technologies: View PowerEdge R740xd Dell System Management Overview Guide



BIOS Upgrade EFI File Download

Upgrade your BIOS Via an EFI File: Download PowerEdge R740xd BIOS Upgrade EFI File
